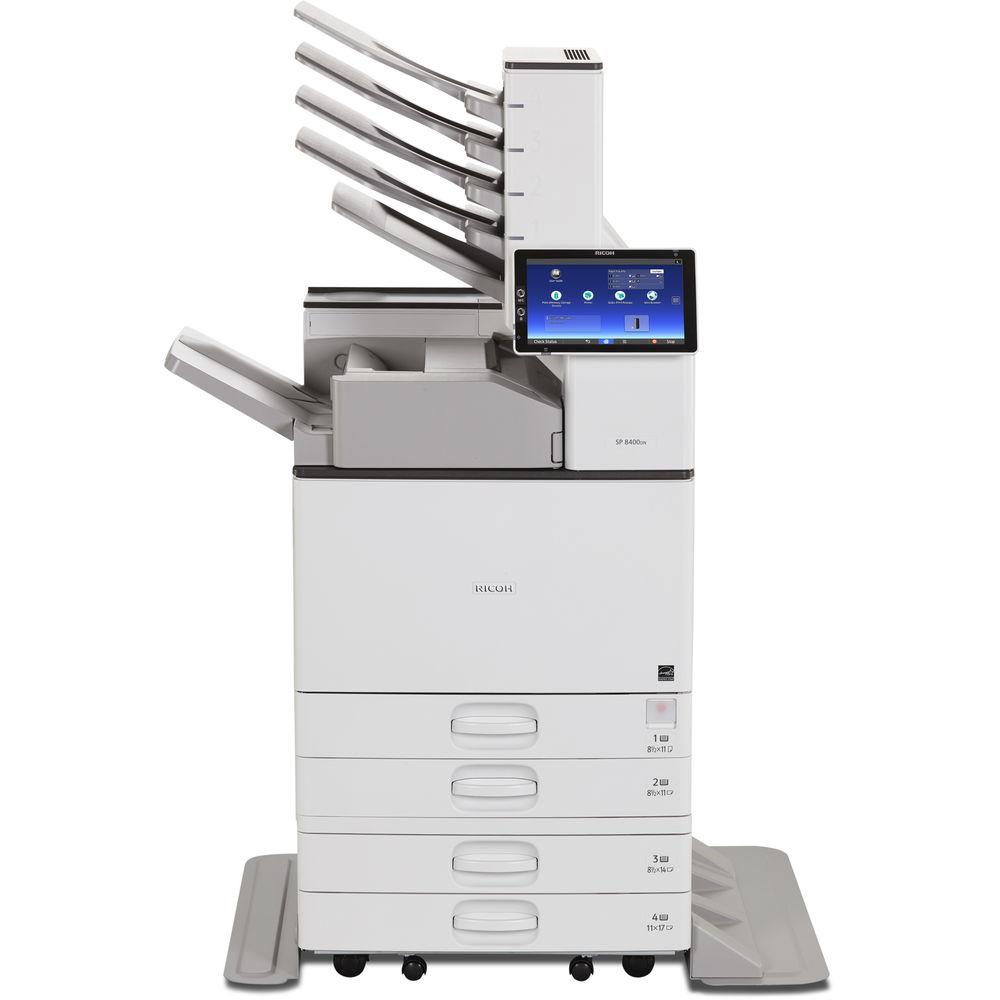

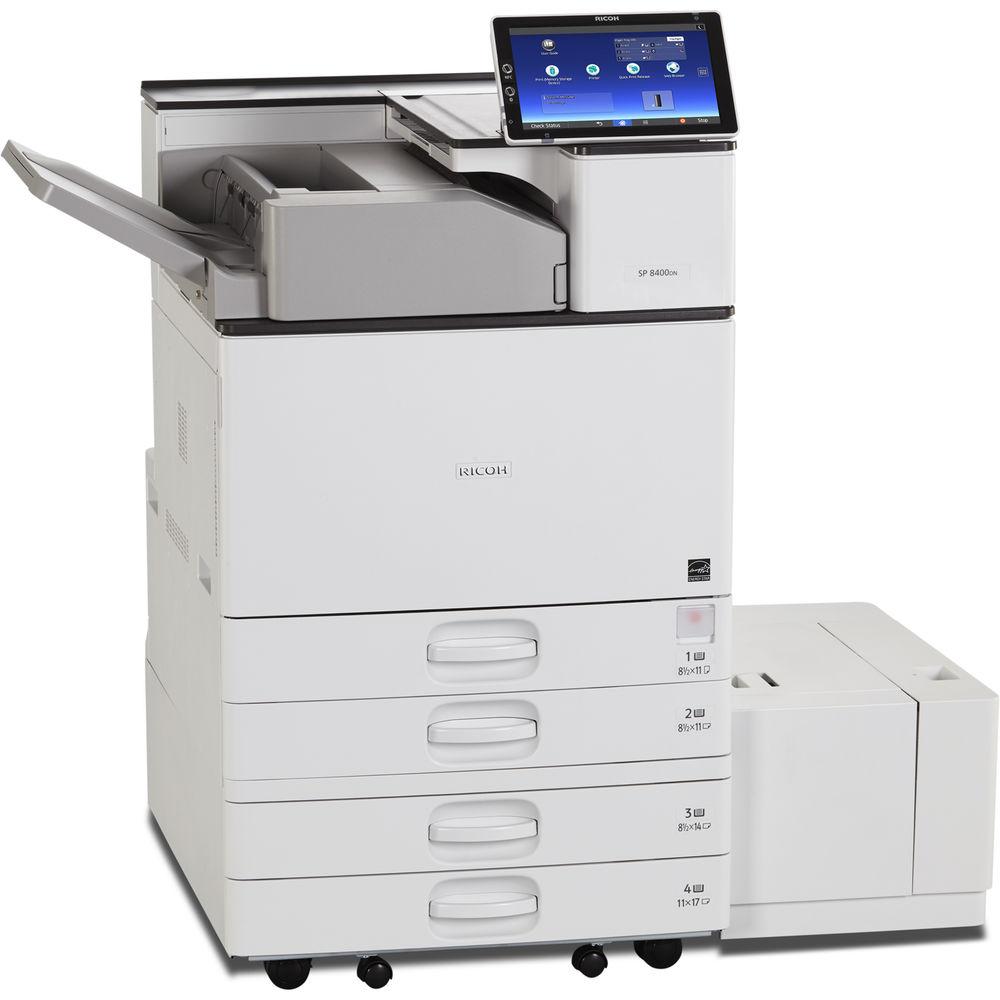

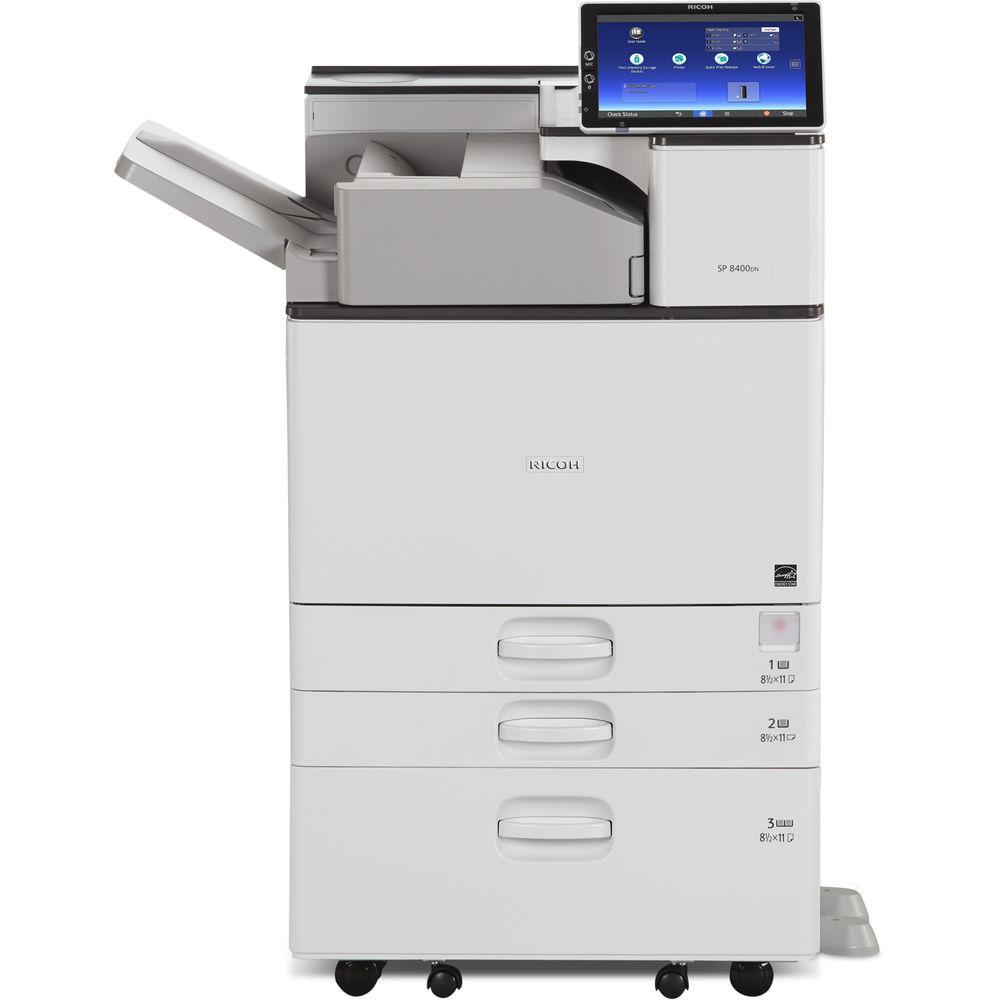

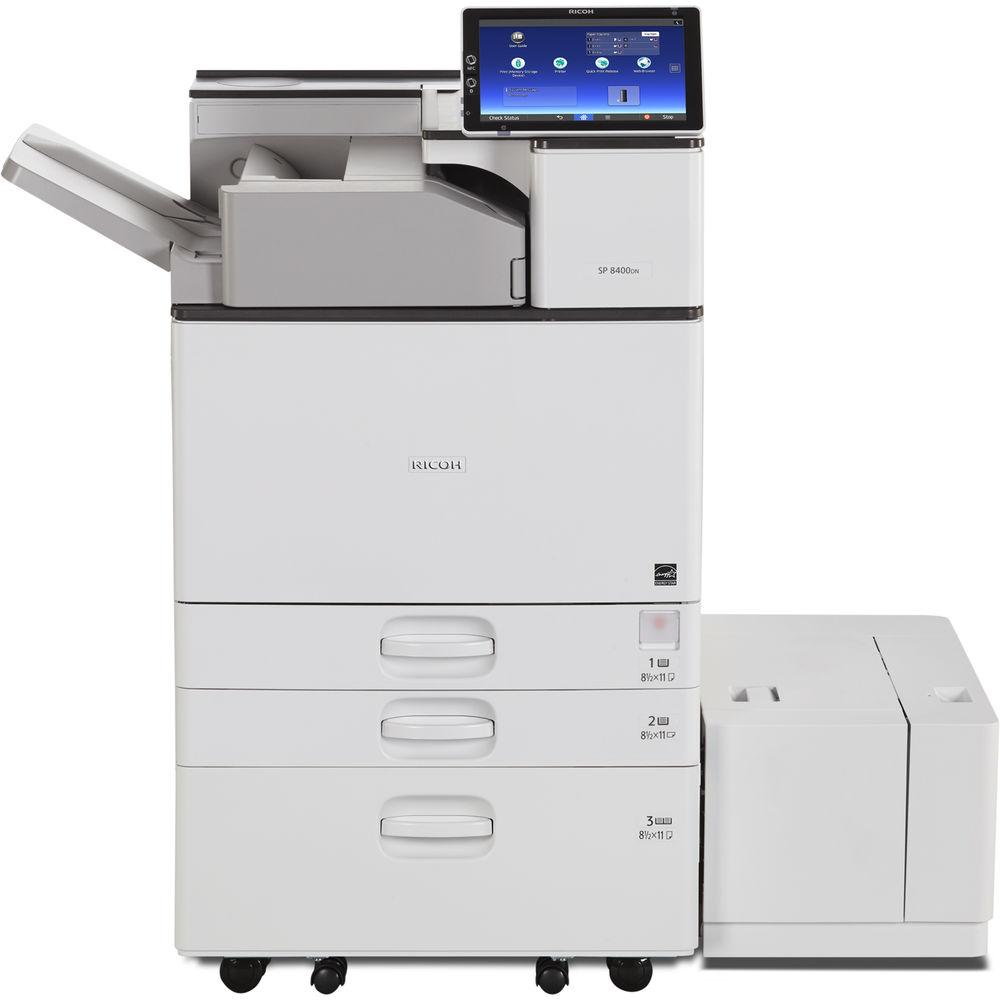

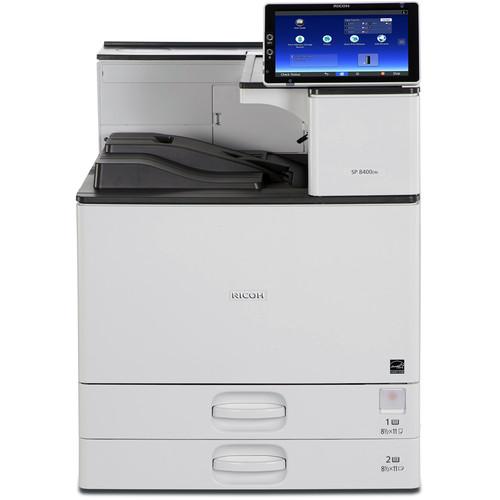

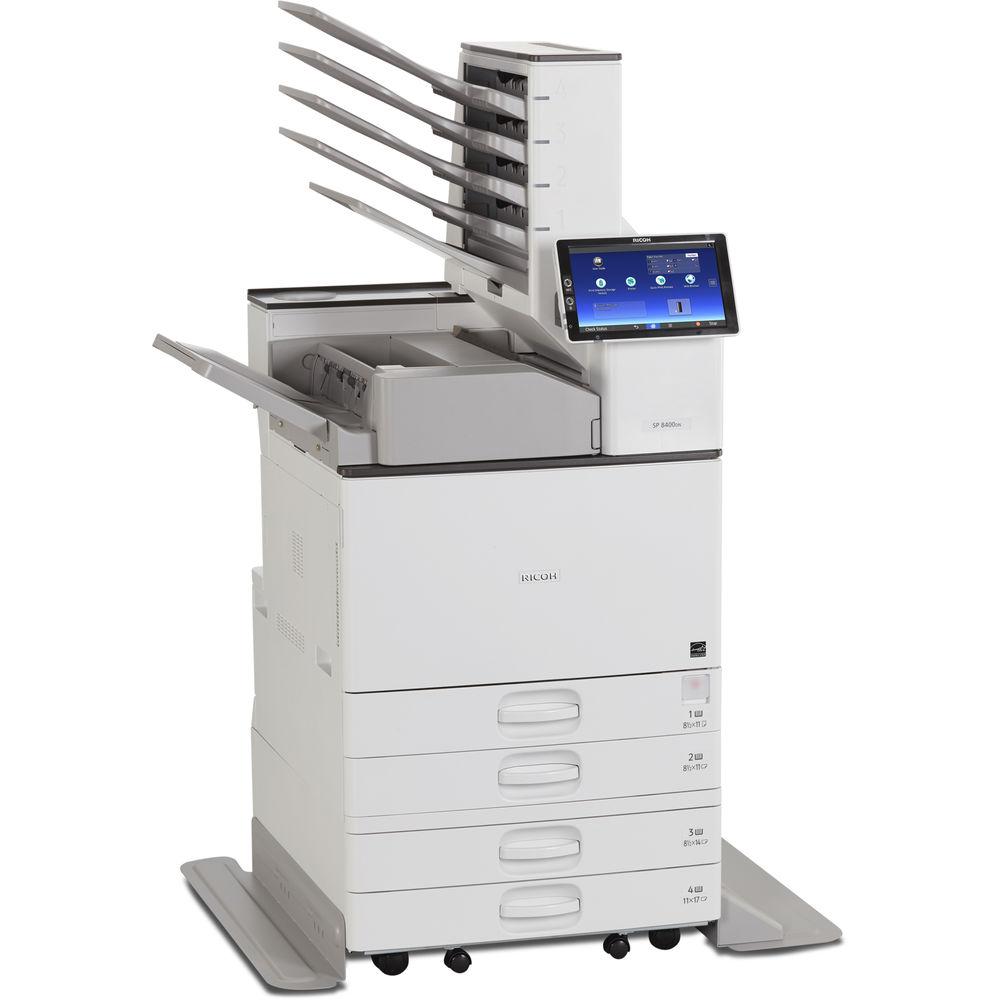

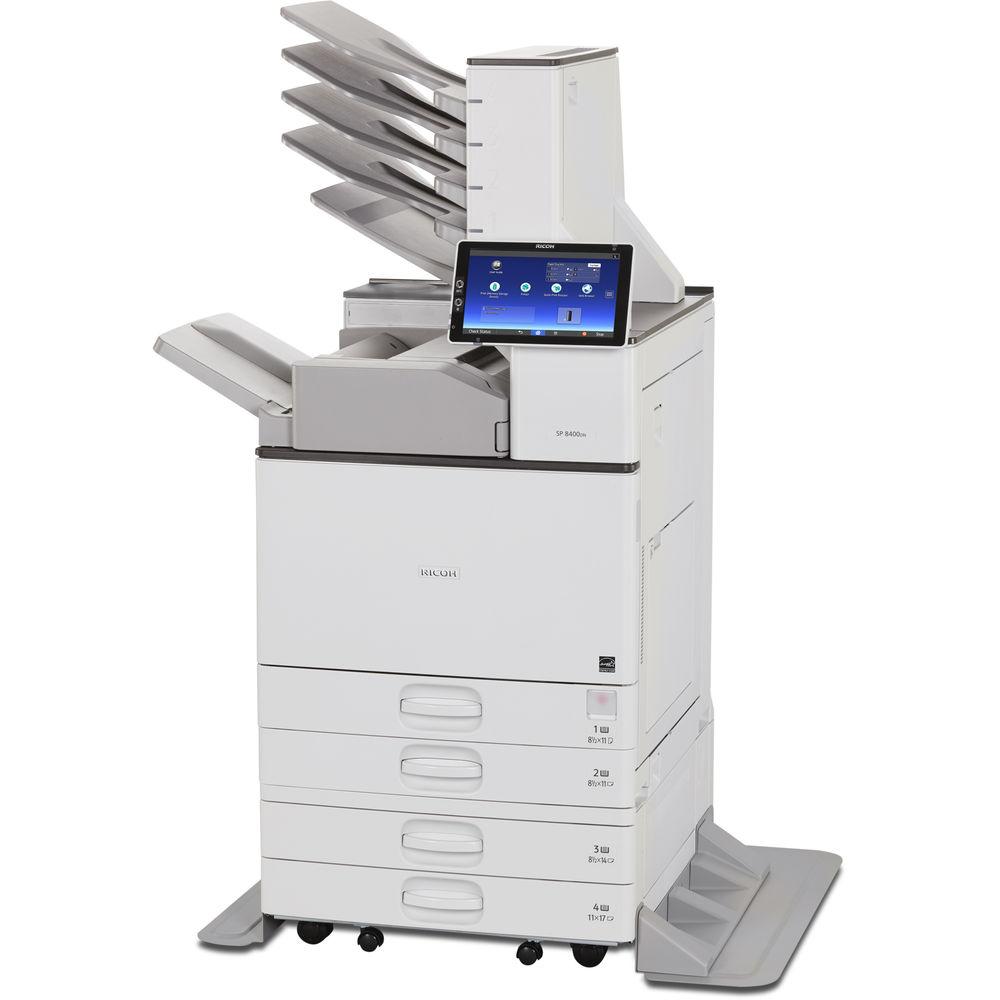

User Manual for Ricoh SP 8400DN Monochrome Laser Printer Click to enlarge the picture
Contents of the user manual for the Ricoh SP 8400DN Monochrome Laser Printer
- Product category: Laser Printers Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Laser Printers
 |
User manual for the Ricoh SP 8400DN Monochrome Laser Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|
Product description Handle your high-volume needs with ease by using the SP 8400DN Monochrome Laser Printer from Ricoh in your office. Able to reach speeds of 60 ppm and produce the first print in just 2.2 seconds, this unit will ensure you never miss a deadline. Also, it has added versatility with an intuitive 10.1" touchscreen, a print resolution of up to 1200 x 1200 dpi, and automatic duplexing. Added functionality is provided by the use of two 550-sheet input trays and a 100-sheet bypass tray, allowing the use of multiple paper types and sizes simultaneously from 3.5 x 5.8" to 12 x 23.6" in size. Other benefits include a USB port and SD card slot for direct printing while USB 2.0 and Ethernet are available for connection to a computer or network. - Print
-
- Using laser printing technology, the SP 8400DN can produce black-and-white documents at speeds up to 60 ppm.
- A max print resolution of 1200 x 1200 dpi ensures sharp, detailed documents.
- The printer will warm up in just 2.1 seconds and produce the first print in 2.2 seconds. It will also recover from sleep mode in 7 seconds.
- Automatic duplexing is standard for saving paper and producing double-sided documents.
- Standard media handling is provided by two 550-sheet input trays and one 100-sheet bypass tray.
- The standard trays can handle media sizes ranging from 3.55 x 5.83" to 11.69 x 17" in size while the bypass tray can work with paper from 3.55 x 5.83" to 12 x 23.6".
- Various paper types can be used, including plain, recycled, color, letterhead, card stock, bond, preprinted, and Com10 and C5 envelopes.
- Optional paper trays and organizers are available for expanding capacity and output.
- Standard printer features include Bonjour Support, Windows Active Directory Support, DDNS Support, PCL Resident Font Adoption, Tray-Parameter Change from Web Image Monitor, 1200 dpi Support, Universal Driver, XPS Support, WS Printer, Wireless LAN Interface Option, Media Direct Print (Print from USB/SD), Poster Print, and WPS Support. Utilities available include Device Manager NX Series, Web Image Monitor, and @Remote.
- General
-
- A 10.1" Smart Operation Panel features touchscreen controls for intuitive operation over the printer and its settings.
- A USB 2.0 port and an SD card slot are available for directly printing from portable storage devices.
- It features a 1.46 GHz processor and 2 GB RAM for smooth, fast operation.
- An embedded browser allows access to cloud-based storage applications, such as Google Drive, Box, and Dropbox, or to directly download PDF documents.
- Standard connectivity includes USB 2.0 and Ethernet.
- Built-in font support includes 80 Roman fonts and 13 international fonts via PostScript 3, PDF, and PCL emulations.
- The SP 8400DN in ENERGY STAR qualified and EPEAT Gold certified and it has a Typical Electricity Consumption (TEC) rating of 2.6 kWh/week.
- Standard security features include DataOverwriteSecurity System (DOSS), Authentication (Windows/LDAP/Kerberos/Basic/User Code/802.1.x Wired), Wireless LAN Security (WPS/IEEE802.11i/IEEE802.11w), Encryption (Address Book/Authentication Password/SSL Communication/S/MIME/IPsec Communication/HDD/SMTP over SSL/TLS/Transport Layer Security/SSH/Wireless LAN), Locked Print, Network Protocols ON/OFF, IP Address Filtering, Quota Setting/Account Limit, Compulsory Security Stamp, Unauthorized Copy Prevention and Mask Type for Copying.
UPC: 026649082443 In the Box Ricoh SP 8400DN Monochrome Laser Printer - Black Starter Toner Cartridge
- Power Cord
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh SP 8400DN Monochrome Laser Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh SP 8400DN Specs | | | Printing Technology | Laser | | Print Resolution | 1200 x 1200 dpi | | Print Speed | 60 ppm | | First Print Out Speed | 2.2 seconds | | Duplex Printing | Yes | | Borderless Printing | None | | Ink Type | Toner | | Ink Palette | Black | | Ink Cartridge Configuration | 1 individual cartridge | | Duty Cycle | Not specified by manufacturer | | Printer Language | PCL 5e
PCL 6
PostScript 3 emulation
PDF Direct Print emulation
Media Print (JPEG/TIFF)
RPCS | | | | Paper Handling | Input Tray 1
Input Tray 2
Bypass Tray
Output Tray | | Media Sizes | Input Tray 1: 3.5 x 5.8" to 11.7 x 17" / 9 x 14.8 cm to 29.7 x 43.2 cm
Input Tray 2: 3.5 x 5.8" to 11.7 x 17" / 9 x 14.8 cm to 29.7 x 43.2 cm
Bypass Tray: 3.5 x 5.8" to 12 x 23.6" / 9 x 14.8 cm to 30.5 x 60 cm | | Media Weight | Input Tray 1: 16-82 lb / 60-300 gsm
Input Tray 2: 16-82 lb / 60-300 gsm
Bypass Tray: 14-82 lb / 52-300 gsm | | Paper Capacity | Input Tray 1: 550 sheets
Input Tray 2: 550 sheets
Bypass Tray: 100 sheets
Output Tray: 500 sheets | | Special Media Support | Envelopes | | | | Interface | USB 2.0
Ethernet | | Direct Printing | USB port
SD card slot | | Compatible Memory Cards | SD
SDHC
SDXC | | Processor | 1.46 GHz | | Memory | 2 GB | | OS Compatibility | Windows
macOS/OS X
Linux
UNIX | | | | Control Panel | 10.1" / 25.6 cm touchscreen | | Power Requirements | 120-127 VAC, 60 Hz, 12 A | | Power Consumption | Maximum: 1600 W
Sleep: 0.8 W | | Acoustics | Power Emissions: 65.1 dB(A)
Pressure Emissions: 52.6 dB(A) | | Operating Conditions | Temperature: 50 to 89.6°F / 10 to 32°C
Humidity: 15 to 80% | | Storage Conditions | Not specified by manufacturer | | Dimensions | 23.1 x 25.7 x 28.3" / 58.7 x 65.3 x 72 cm | | Weight | 125.6 lb / 57 kg | | | | Package Weight | 167.55 lb | | Box Dimensions (LxWxH) | 36.0 x 29.0 x 27.5" |
