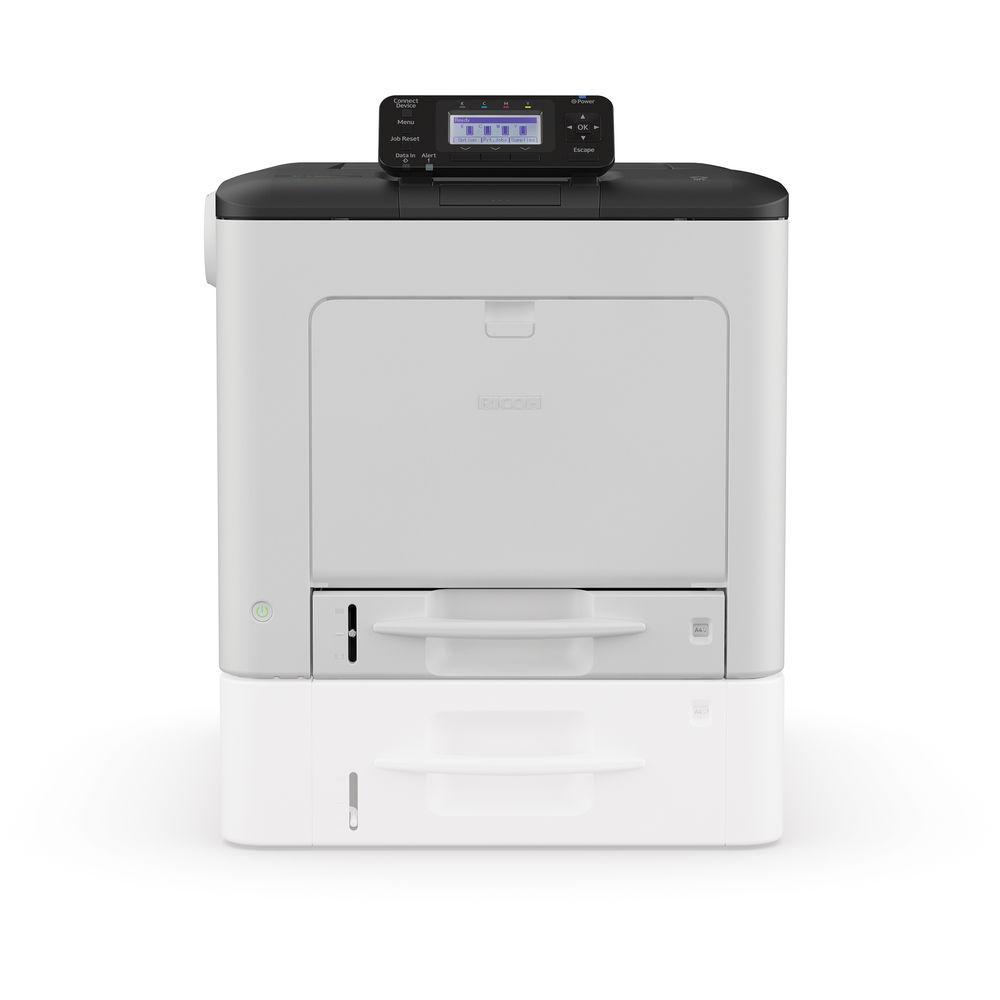

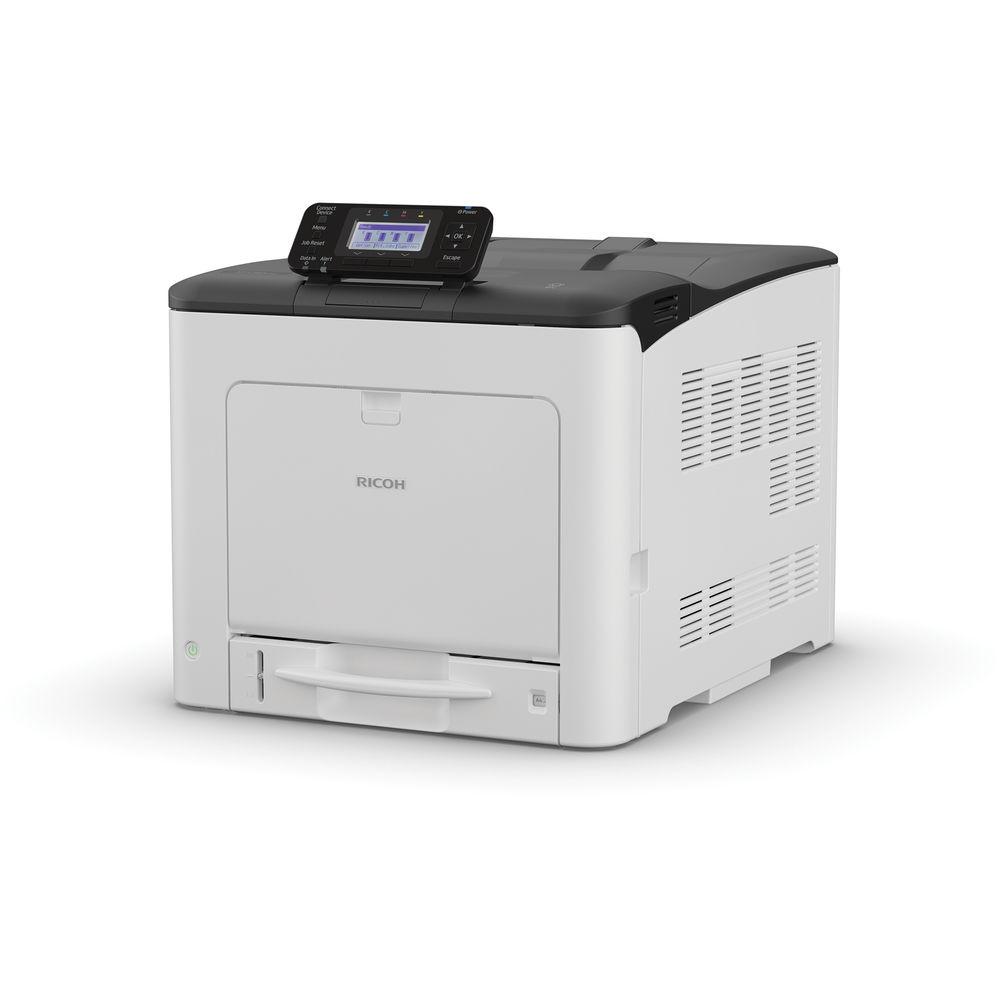

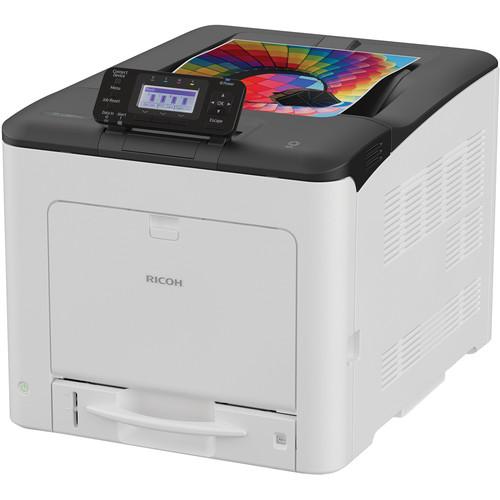

User Manual for Ricoh SP C360DNw LED Color Printer Click to enlarge the picture
Contents of the user manual for the Ricoh SP C360DNw LED Color Printer
- Product category: Laser Printers Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Laser Printers
 |
User manual for the Ricoh SP C360DNw LED Color Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|

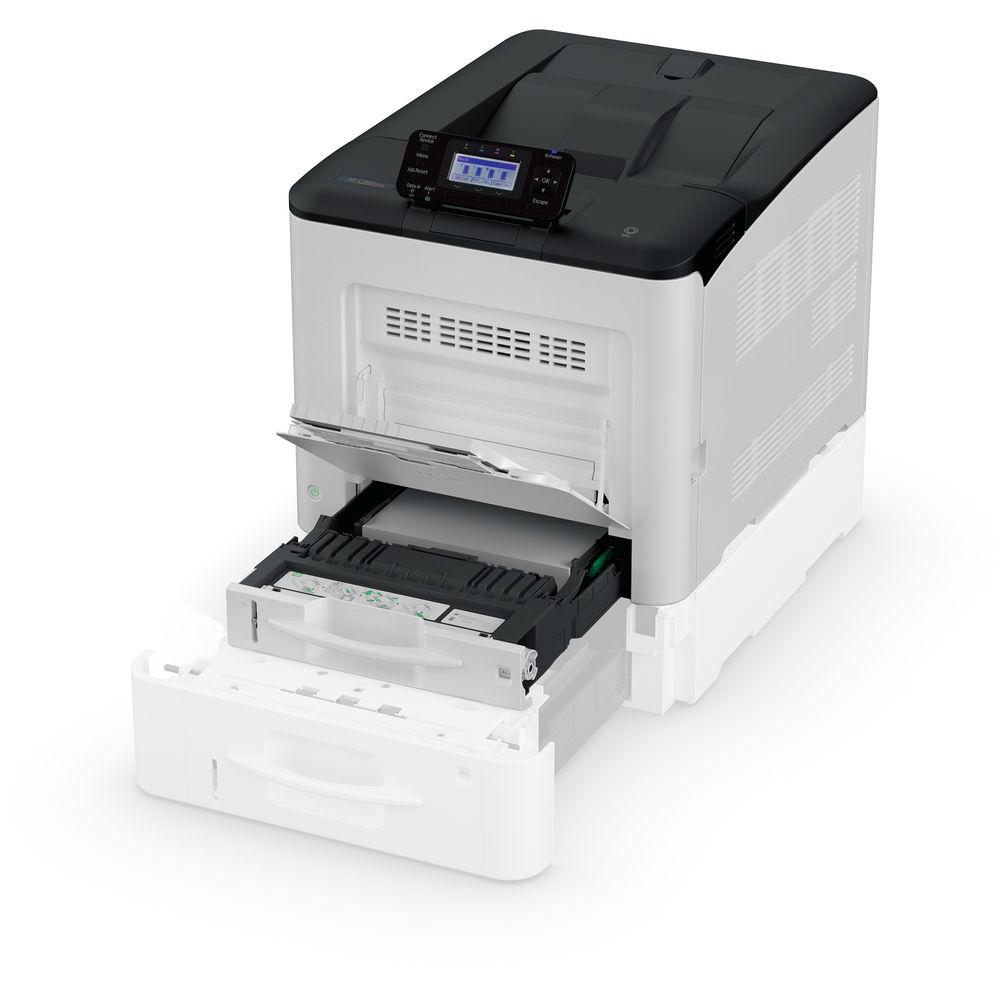

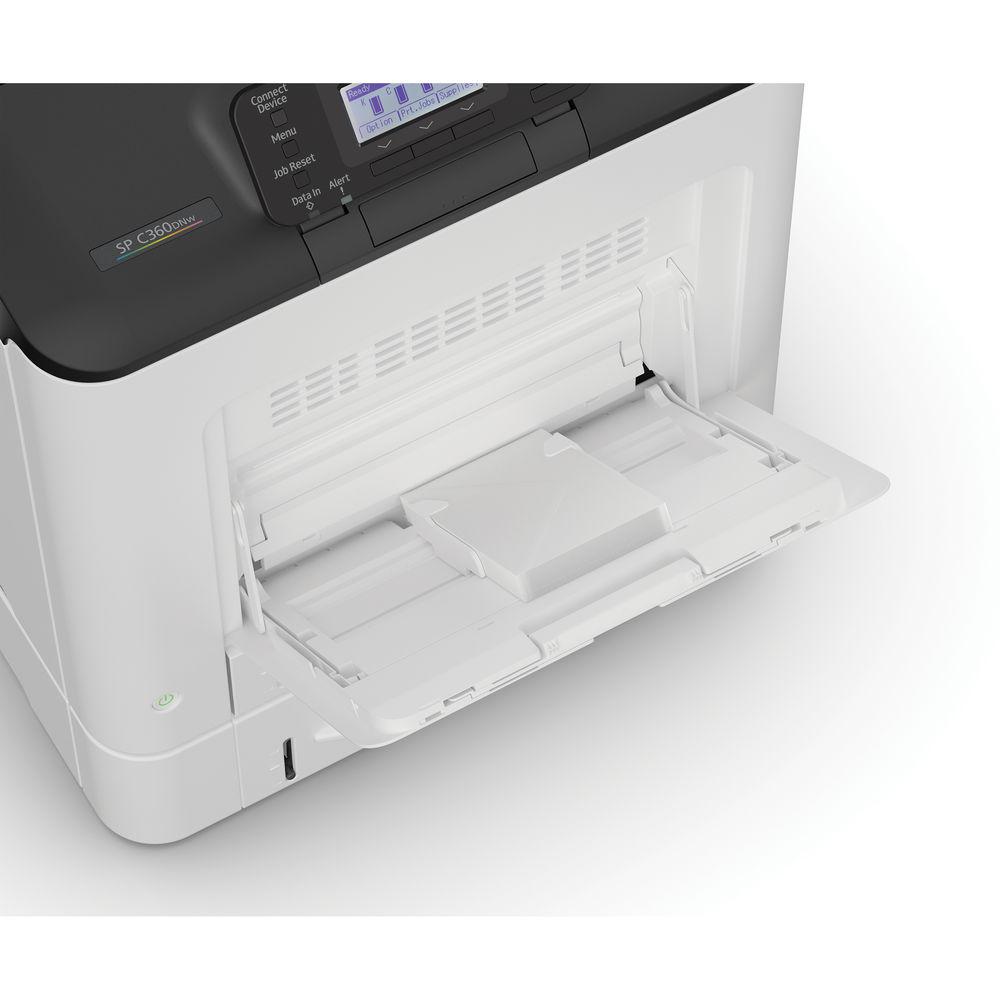

Product description Designed for speedy printing in a compact environment, the SP C360DNw LED Color Printer from Ricoh uses LED technology to create high quality 1200 x 1200 dpi prints in a flash. The printer is capable of speeds up to 30 ppm for letter-sized pages, with a first print-out time of 8.6 seconds for color and 7.2 seconds for black and white. With several mobile printing capabilities, sending jobs becomes easy by using devices equipped with AirPrint, Mopria, or a Near Field Communication (NFC) tag. The C360DNw offers two input trays, a regular slide-out tray that holds 250 sheets and a bypass tray for up to 100 sheets, so you can load two different types of media at once. Offering support for a larger range of sizes, the bypass tray can hold paper as small as 2.52 x 5" for pictures and up to 8.5 x 49.6" for banners or posters; the normal tray supports media as large as 8.5 x 14". As for output, the tray at the top holds up to 200 sheets for nearly non-stop printing. Other features include a four-line LCD control panel and a rated monthly duty cycle of up to 75,000 prints. -
- LED electro-photographic technology that uses four dry, single-component toners
- 1.2 GHz processor achieves quick processing of large files
- Duplexing feature for easy double-sided printing

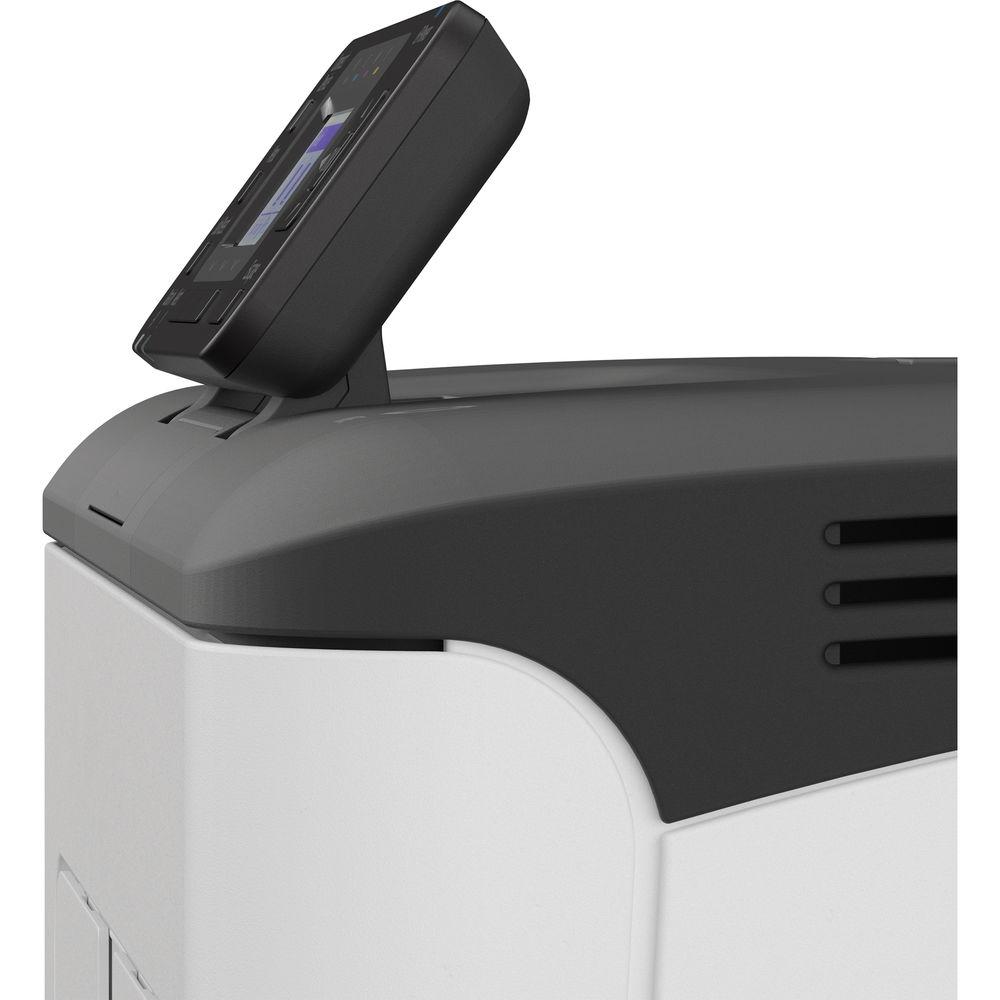

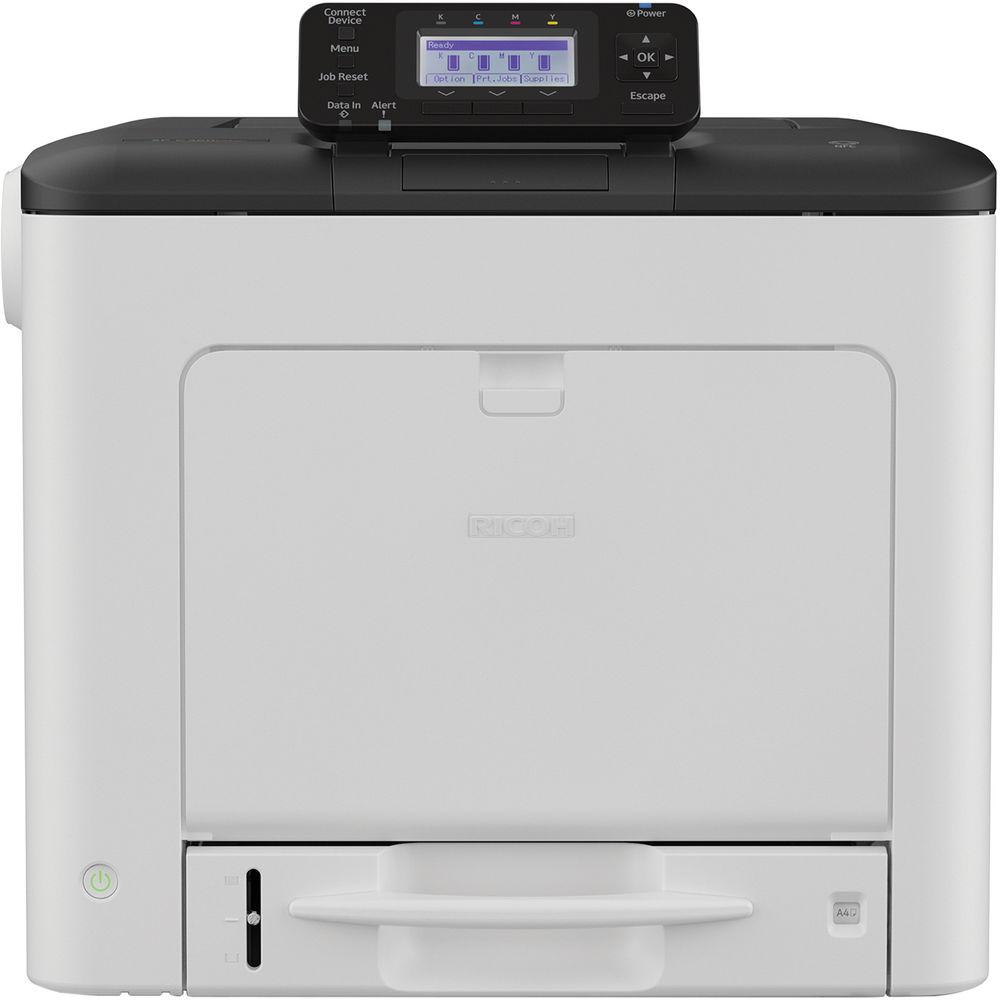

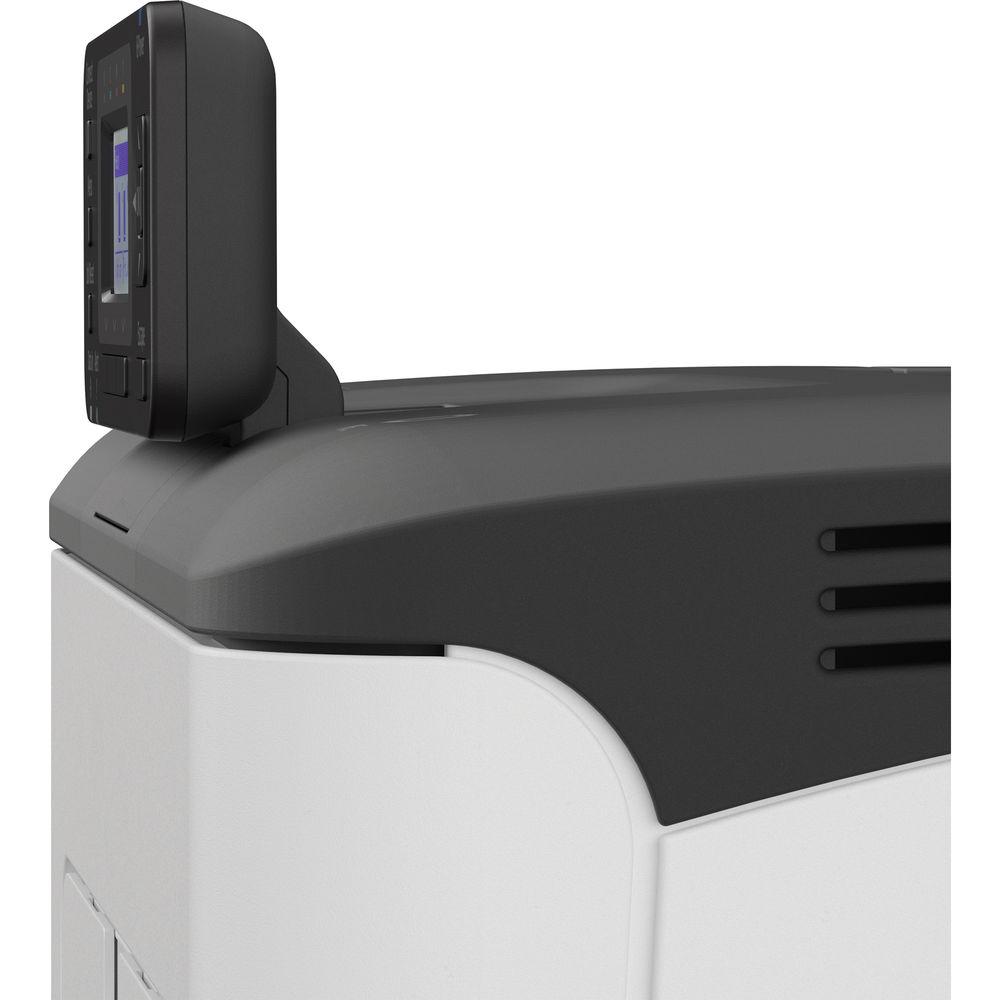

- Eight buttons and D-pad on control panel for making easy on-board adjustments
- Locked Print function requires user passwords before releasing print jobs
- Security protocols including IP filtering and SSL/TLS for safe operation
- Efficient warm-up time of only 20 seconds
- ENERGY STAR certified, with a typical electricity consumption of 1.2kWh

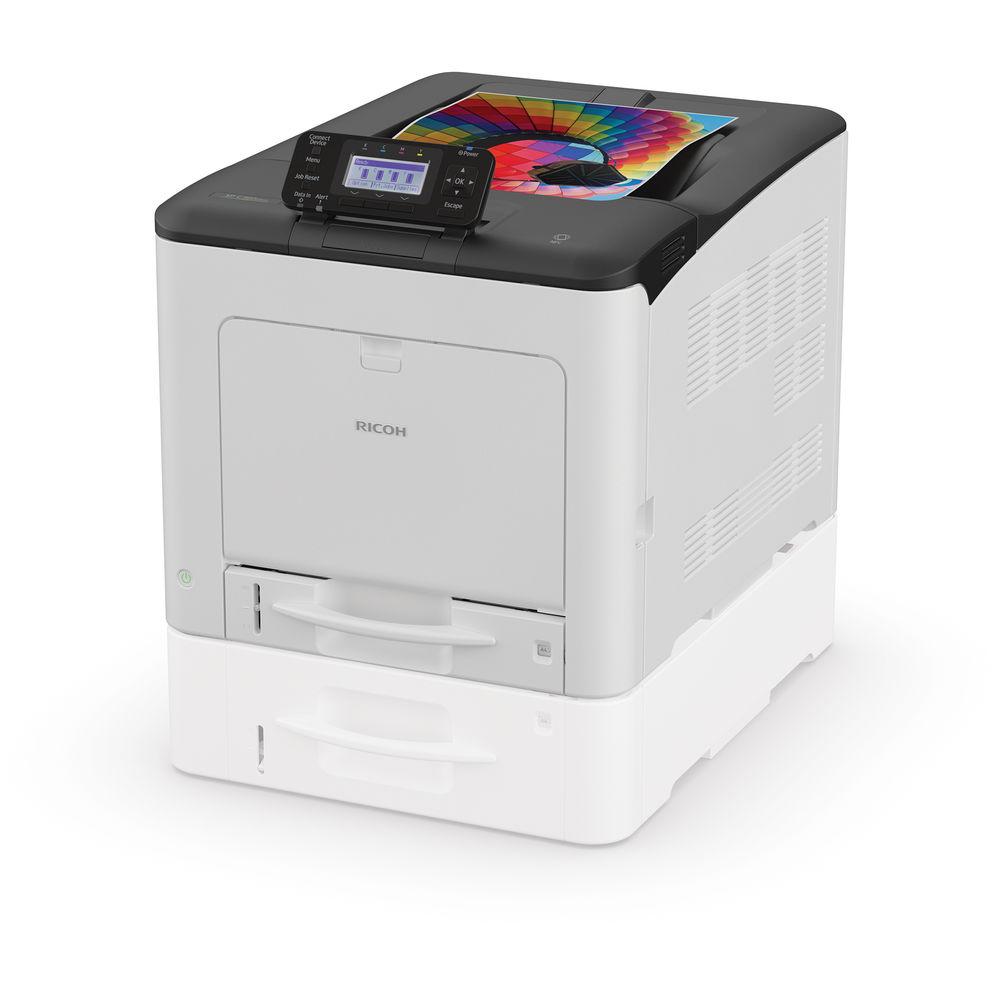

- Optional paper feed units available for increasing input capacity
UPC: 026649081644 In the Box Ricoh SP C360DNw LED Color Printer C360A Toner Cartridge (Black, 2500 Pages) C360A Toner Cartridge (Cyan, 1500 Pages) C360A Toner Cartridge (Magenta, 1500 Pages) C360A Toner Cartridge (Yellow, 1500 Pages) Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh SP C360DNw LED Color Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh SP C360DNw Specs | | | Printing Technology | LED | | Print Resolution | 1200 x 1200 dpi | | Print Speed | 30 ppm | | First Print Out Time | 8.6 Seconds (Color)
7.2 Seconds (Black) | | Duplex Printing | Yes | | Color Type | Color | | Configuration | 4 x Toner | | Monthly Duty Cycle | 75,000 Pages | | Printer Language | HP PCL 3 GUI, HP PCL 6, HP Postscript Level 3 (Emulation) | | | | Paper Handling | Input Tray 1, Input Tray 2, Output Tray | | Media Sizes | Input Tray 1: 3.25 x 5.83 to 8.5 x 14" / 8.26 x 14.81 to 21.59 x 35.56 cm
Input Tray 2: 2.52 x 5 to 8.5 x 49.6" / 6.40 x 12.70 to 21.59 x 125.98 cm | | Media Weight | Input Tray 1, Input Tray 2: 56 to 220 gsm / 16 to 59 lb | | Paper Capacity | Input Tray 1: 250 Sheets
Input Tray 2: 100 Sheets
Output Tray: 200 Sheets | | | | Interface | NFC, RJ45, USB Type-B | | Direct Printing | Apple AirPrint, Mopria | | Processor | 1.2 GHz | | Operating System Support | Linux, Windows, macOS/OS X | | | | AC Input Power | 120 VAC, 60 Hz | | Power Consumption | 533.7 W (Maximum)
0.83 W (Sleep) | | Dimensions (W x H x D) | 15.7 x 20.3 x 14.2" / 40.0 x 51.5 x 36.0 cm | | Weight | 70.5 lb / 32.0 kg | | | | Package Weight | 70.0 lb | | Box Dimensions (LxWxH) | 25.5 x 22.0 x 18.5" |
