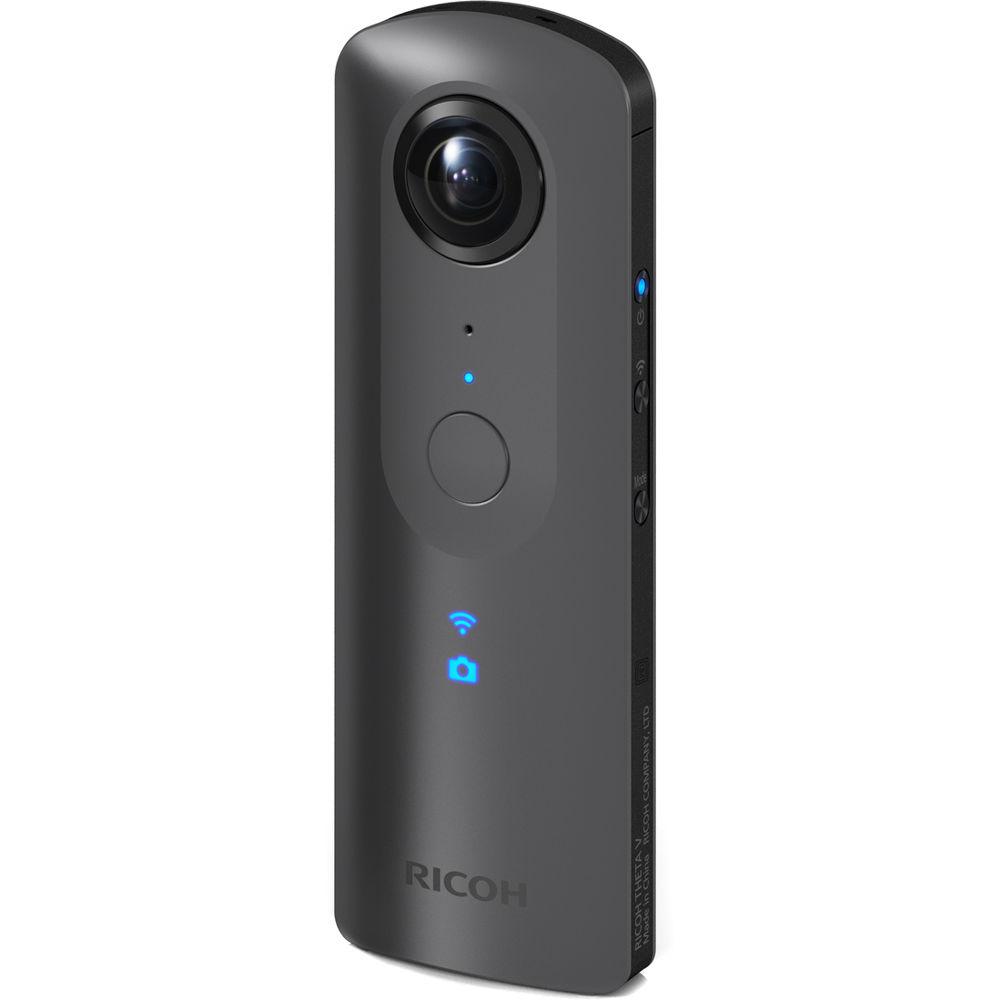

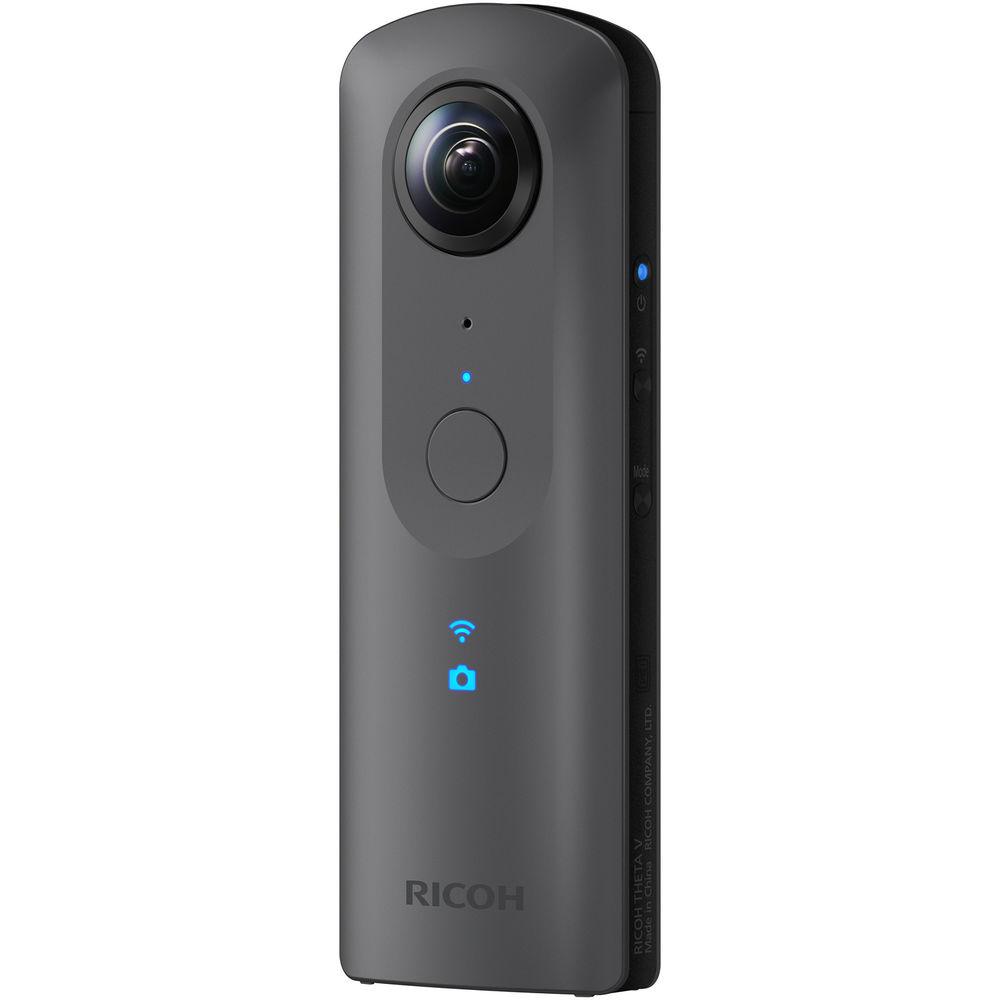

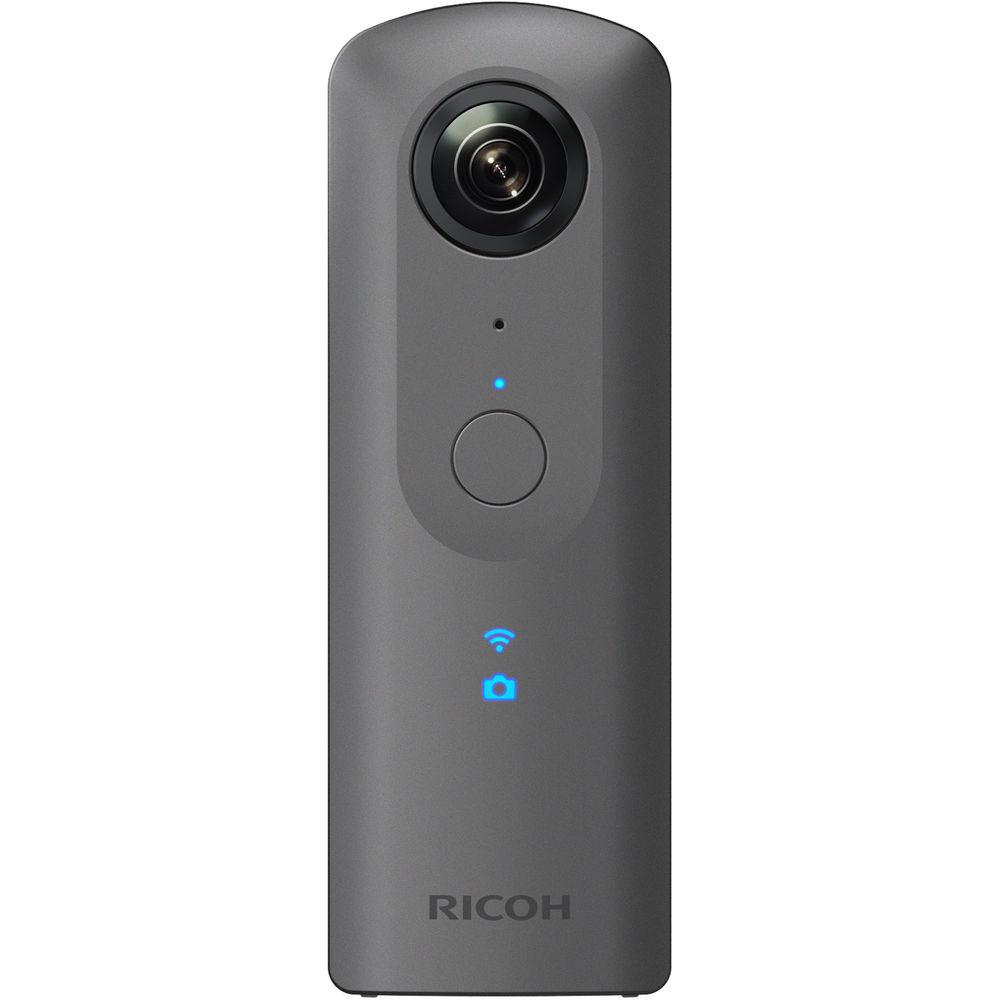

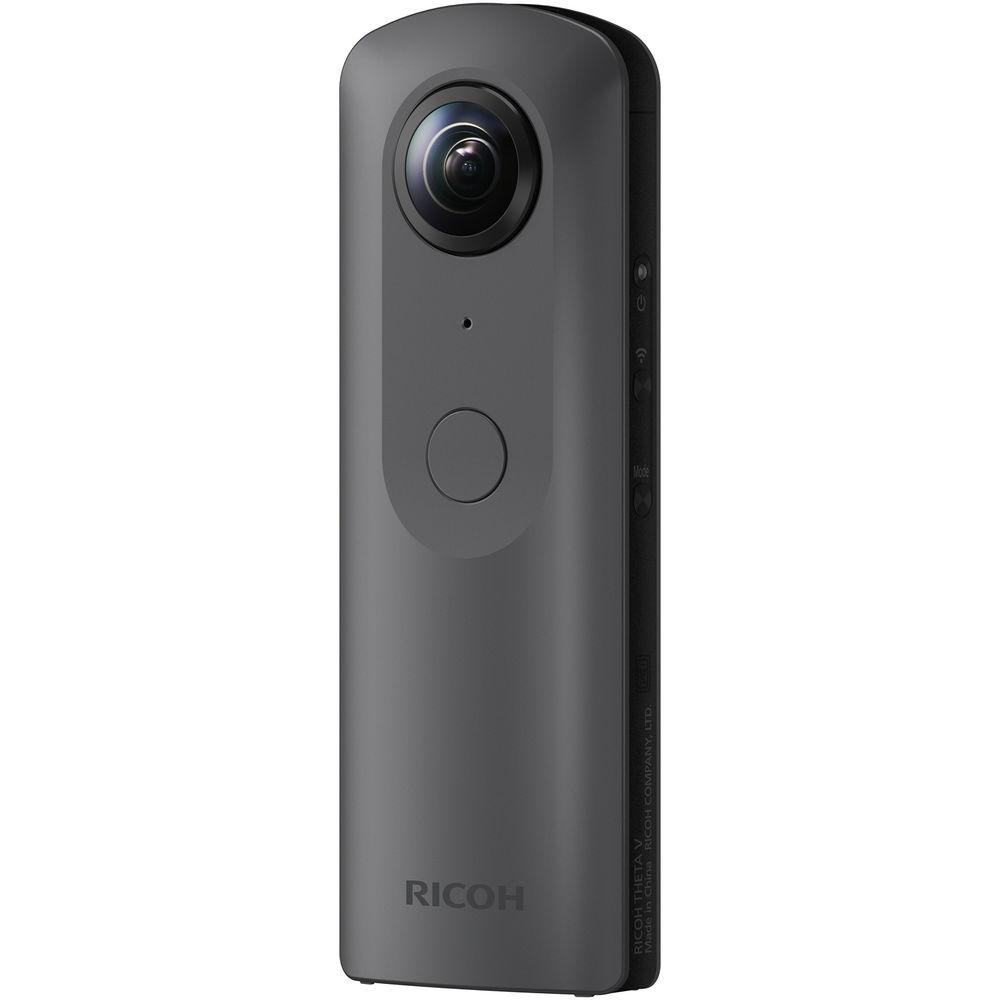

User Manual for Ricoh THETA V 360 4K Spherical VR Camera Click to enlarge the picture
Contents of the user manual for the Ricoh THETA V 360 4K Spherical
- Product category: All 360 Video Cameras Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh All 360 Video Cameras
 |
User manual for the Ricoh THETA V 360 4K Spherical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|
Product description In the Field: The Ricoh THETA V Spherical Camera Read More - RICOH THETA V - 4K & 360° Spatial Audio Sample (Tennis)
- RICOH THETA V - 4K & 360° Spatial Audio Sample (Airplane)
Building on the success of previous THETA models, the Ricoh THETA V is designed to provide you with an immersive 360° video and audio experience in a small form factor. Record with the camera pointing in one direction, and in the end, see and hear from all directions.
The THETA V features two 12MP sensors and a twin-lens optical system that captures two wide-angle images and automatically stitches them into one complete spherical image. It allows you to capture comprehensive 360° 4K videos and 12MP photos, as well as live stream 360° footage in 4K. Additionally, a built-in 4-channel microphone captures high-quality audio from four directions and with seamless transitions between the channels. Moreover, an optional designated 3D microphone (TA-1) is supported that allows you to add 3D 360° spatial audio to your 360° video content.
The THETA V records to approximately 19GB of internal memory. Once you've recorded your video, simply pull up the included THETA iOS/Android app on your smartphone or tablet, and with the swipe of your finger rotate the 360° image in any direction to see it from different angles. See what you missed while you were there. The THETA app also lets you preview your shots before you shoot, live stream to platforms such as YouTube Live, and perform a variety of other functions.
The THETA V is designed to provide the combined 360° image with minimal stitching artifacts so that your images look more professional. The camera is very compact and can be kept in pretty much any pocket. An optional waterproof housing (TW-1) is also available that will let you take your THETA V up to 100 ft underwater, opening up another world of 360 possibilities. - Key Features
-
- Capture 360° 4K videos and 12MP photos, and live stream 360° 4K footage
- Built-in 4-channel microphone with high-quality and seamless transition recording
- 19GB of internal memory
- Includes THETA app for iOS/Android
- Designed to combine dual images with minimal stitching artifacts
- Optional 3D 360° spatial microphone and underwater housing supported
- Video Resolution
-
- 3840 x 1920 at 29.97 fps / 56 Mbps in H.264
- 1920 x 960 at 29.97 fps / 16 Mbps in H.264
- Live Streaming Resolution
-
- 3840 x 1920 at 29.97 fps / 120 Mbps in H.264
- 1920 x 960 at 29.97 fps / 42 Mbps in H.264
- Twin-Lens Folded Optical System
-
- Two wide-angle lenses, each with 7 elements in 6 groups
- f/2.0 aperture
- Recording Capacity
-
- Approximately 4800 photos
- Total Video Recording Time: 40 minutes in 4K, 130 minutes in 2K
- Battery Life
-
- Approximately 300 photos
- 80 minutes of video
- Capture Modes
-
- Photo: Auto, Shutter Priority, ISO Priority, Manual
- Video: Auto
- Live Streaming: Auto
- Exposure Control Modes
-
- Program AE
- Shutter Speed Priority AE
- ISO Sensitivity AE
- Manual Exposure
- Wireless LAN Transfer Speeds
-
- 2.4 GHz (20 Mbps)
- 5 GHz (50 Mbps)
UPC: 026649107252 In the Box Ricoh THETA V 360 4K Spherical VR Camera Limited 1-Year Warranty Ricoh Reaches 4K with 360
|
Upload User Manual
Have you got an user manual for the Ricoh THETA V 360 4K Spherical VR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh 910725 Specs | | | Stitching Resolution | 4K | | Internal/External Stitching | Internal Stitching | | 360 Stitched Video Format | Internal:
3840 x 1920 at 29.97 fps (56 Mb/s MP4 via H.264)
1920 x 960 at 29.97 fps (16 Mb/s MP4 via H.264) | | Still Image Resolution | JPEG: 14 Megapixel, 5376 x 2688 (2:1) | | Number of Lenses | 2 | | | | Sensor | 1-Chip 1/2.3" CMOS | | | | Maximum Aperture | f/2 | | Lens Elements | 7 | | Minimum Focusing Distance | 4.0" / 10.2 cm | | | | Recording Media | x Internal Flash Memory | | Built-In Mic | Yes | | Channels | 4.0-Channel Surround | | Audio Format | AAC-LC | | | | Shutter Speed | 1/25000 - 1/8 Second (Photo)
1/25000 - 60 Seconds (Photo)
1/25000 - 1/30 Second (Video)
1/25000 - 1/30 Second (Streaming) | | Photo ISO Range | 100 - 1600 (Auto)
64 - 3200 (Manual) | | Video ISO Range | 64 - 6400 (Auto) | | | | Outputs | 1 x USB Micro-B | | Microphone Input | Yes | | | | Battery | Rechargeable Lithium-Ion Battery Pack | | Charging Method | USB | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 7.1 x 4.0 x 2.8" |
