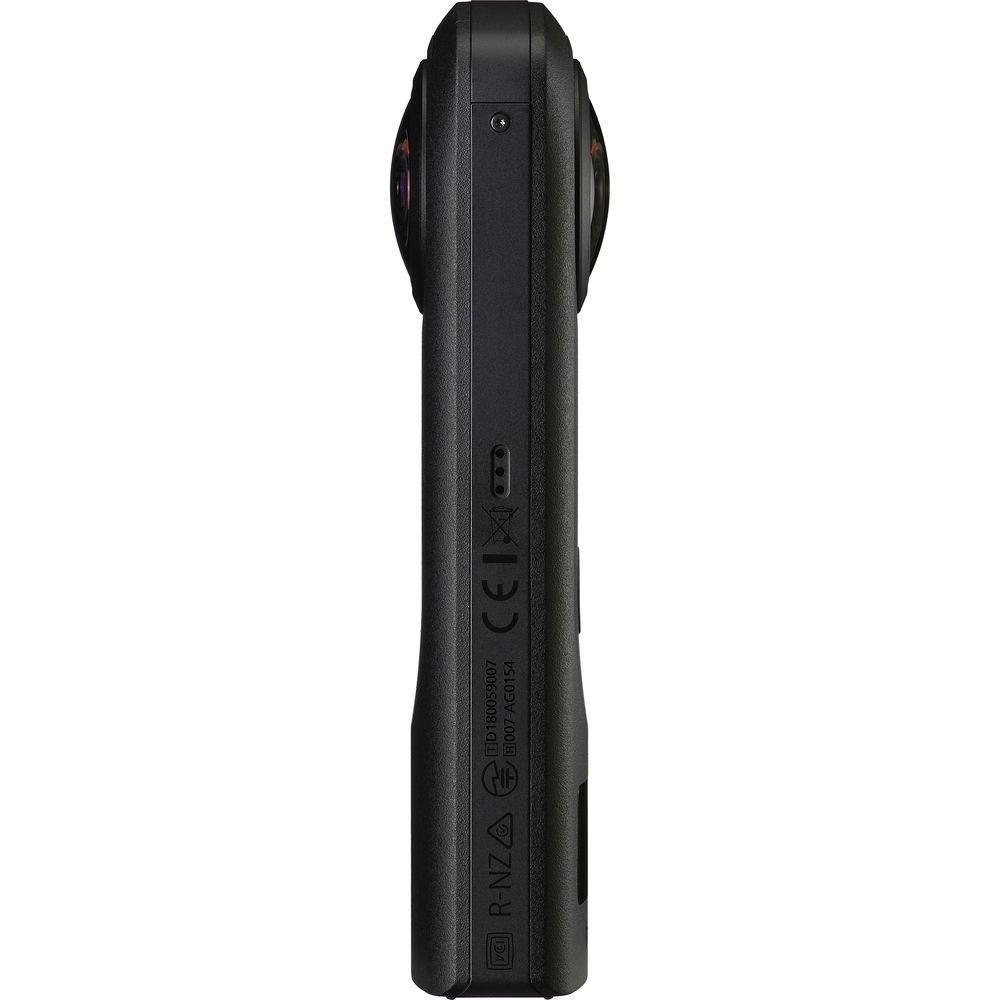

Ricoh THETA Z1 360 Camera

Search your instruction manual in PDF to download

User Manual for Ricoh THETA Z1 360 Camera

Click to enlarge the picture
Ricoh THETA Z1 360 Camera Contents of the user manual for the Ricoh THETA Z1 360 Camera
  • Product category: All 360 Video Cameras Ricoh
  • Brand: Ricoh
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Ricoh All 360 Video Cameras

Ricoh THETA Z1 360 Camera Ricoh THETA Z1 360 Camera Ricoh THETA Z1 360 Camera Ricoh THETA Z1 360 Camera Ricoh THETA Z1 360 Camera Ricoh THETA Z1 360 Camera Ricoh THETA Z1 360 Camera Ricoh THETA Z1 360 Camera Ricoh THETA Z1 360 Camera
User manual for the Ricoh THETA Z1 360 Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Ricoh product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!



Product description

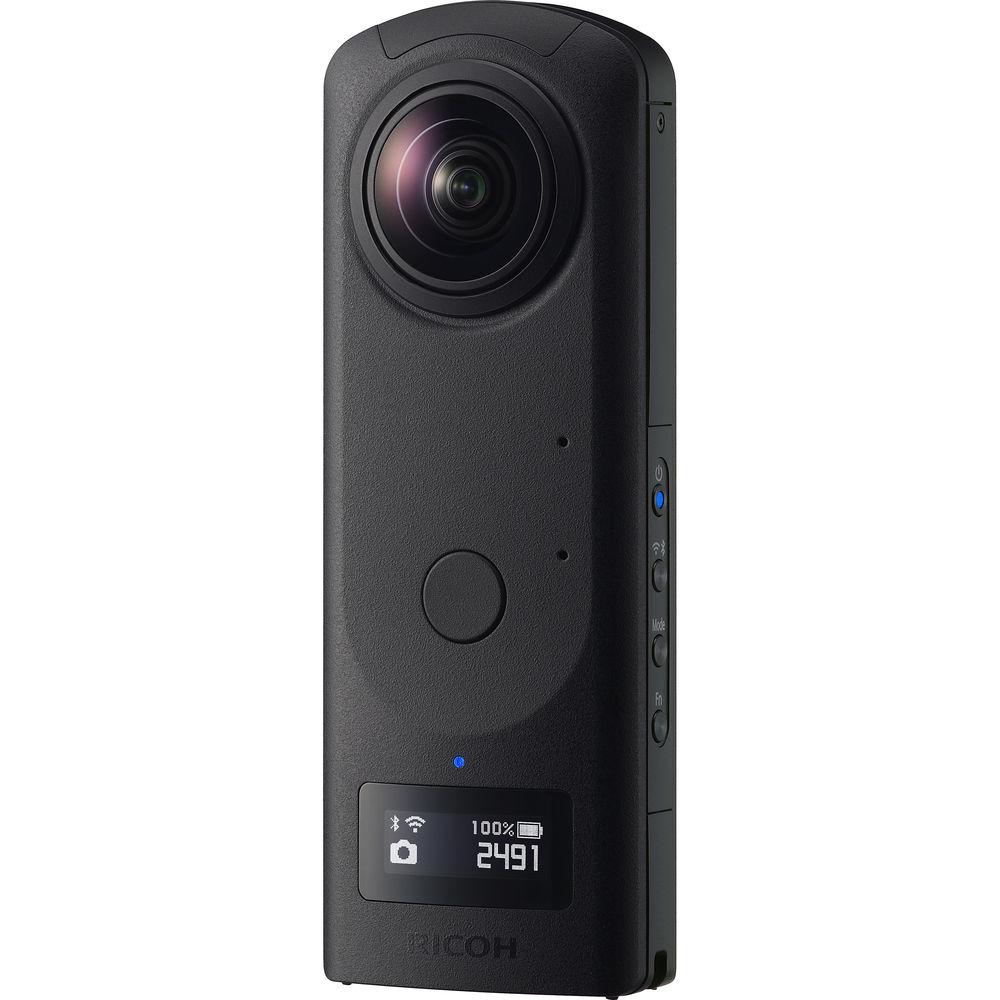

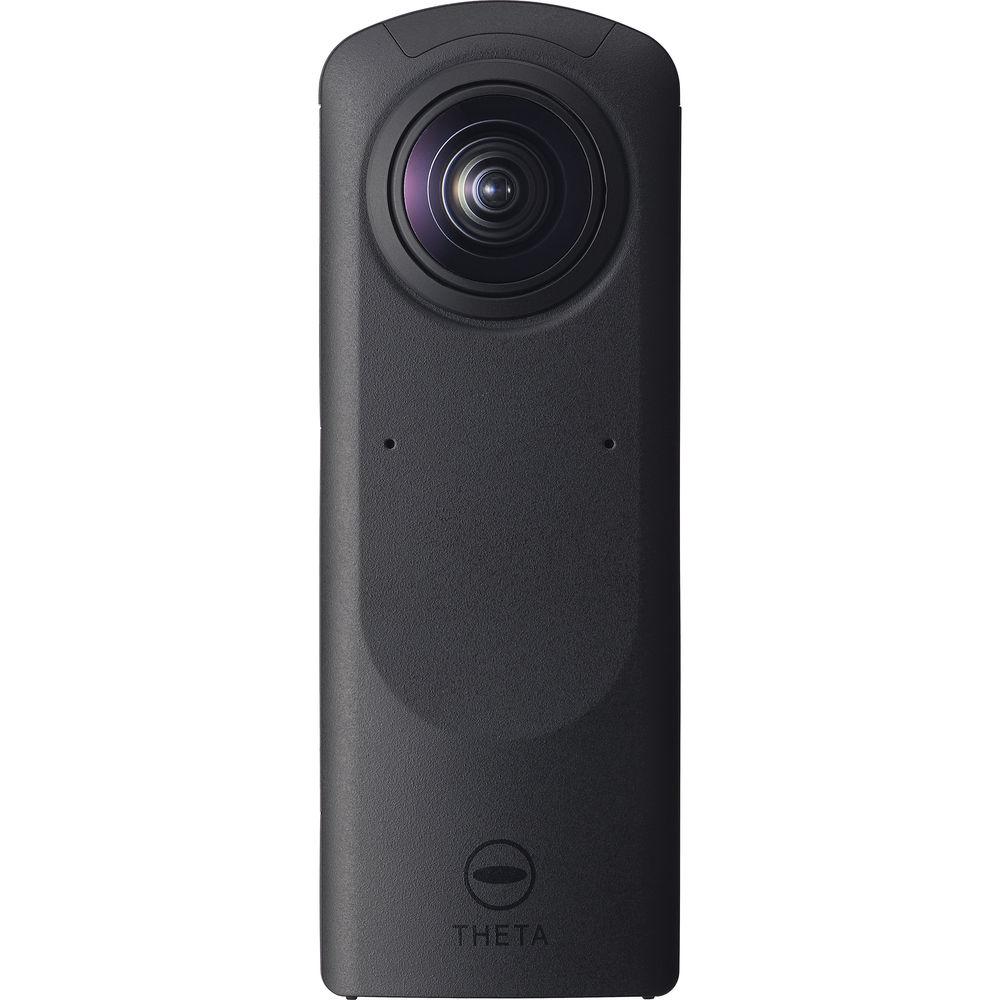

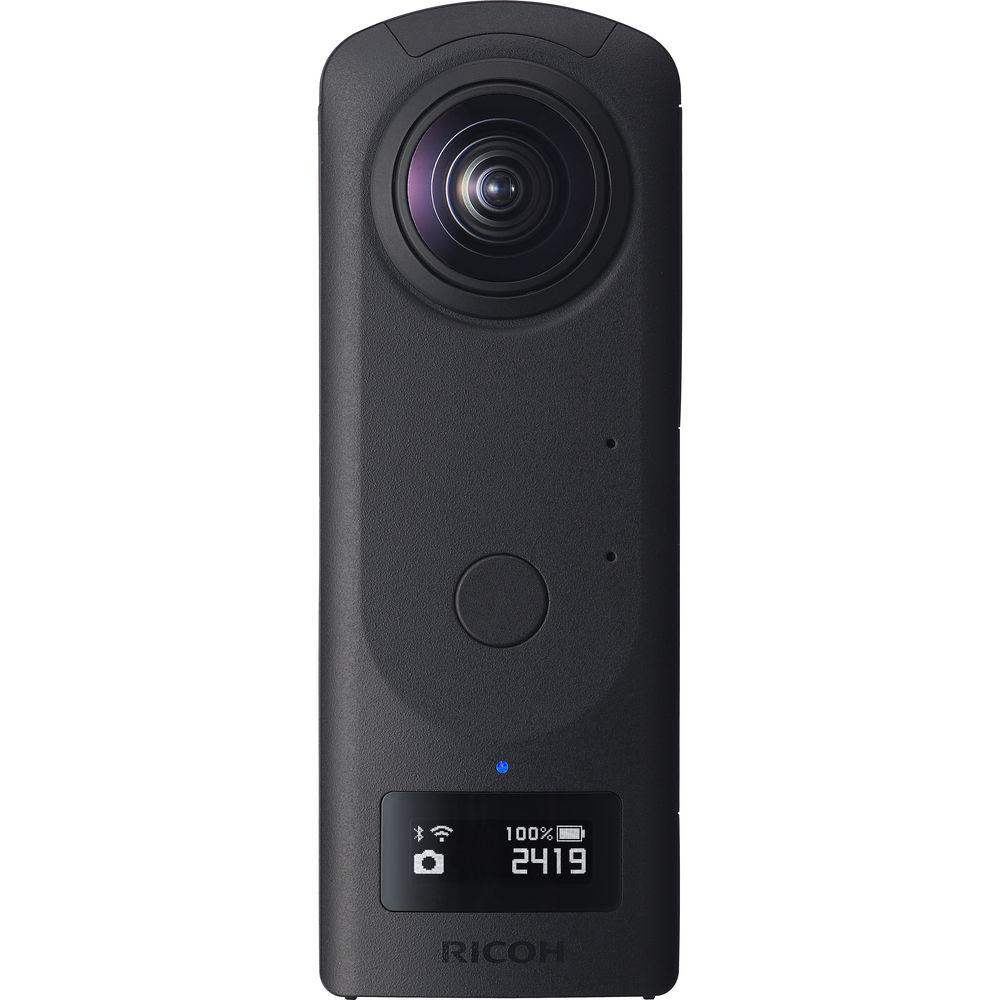

Ricoh Focuses on Image Quality with Flagship THETA Z1 Read More fbztuueq Ricoh's flagship THETA Z1 360° Camera offers high quality 360° imaging in a compact, easy-to-use form. Using dual 1"-type back-illuminated CMOS sensors and a revamped processing algorithm, the THETA Z1 provides highly realistic spherical images with improved noise reduction and low-light performance. The THETA Z1 can record or live stream up to 4K video or capture 23MP raw and/or JPEG photos.

The THETA Z1's dual 23MP sensors and twin lenses capture two wide-angle images and automatically stitches them into one complete image. Automatic DR (dynamic range) compensation helps to reduce blown-out highlights and increases details in shadowed areas. Its lens system offers selectable f2.1, 3.5, and 5.6 apertures for increasing your depth-of-field and increasing resolution. The optical system also features reduced ghosting, fringing and flares for more accurate image reproduction. Video capture has been improved with 3-axis image stabilization for smoother shots and built-in microphones capture audio from four independent directions for realistic sound. Take advantage of raw photo editing using Ricoh's THETA Stitcher and your Photoshop Lightroom Classic CC platform. Live stream to social media platforms or the Theta 360 dedicated website, upload still photos to Google Maps or use the Remote Playback plug-in and a separate wireless receiver to display your content on a larger screen. Additional functions like USB data transfer and more are available through the use of optional Ricoh or third-party plug-ins.

The THETA Z1 provides 19GB of internal memory and records up to 5 minute clips in 4K and up to 25 minutes in 2K with respective storage totals of 40 minutes and 130 minutes. The robust THETA Z1 is constructed from a magnesium alloy with a textured finish and incorporates a 0.93" OLED status display panel with a function control button.

Key Features

    • Record or live stream 360° 4K or 2K video
    • Capture 23MP photos in raw or JPEG or both simultaneously
    • Selectable f/2.1, F3.5 and F5.6 apertures for increased depth-of-field
    • Built-in 4-channel microphone with high-quality and seamless transition recording
    • 0.93" OLED status display with function button
    • Edit with THETA+ app for iOS/Android or with Lightroom Classic CC and THETA plug-in
    • Combines dual images with 4-mic spatial audio capture for realistic VR
    • 19GB of internal memory

Twin-Lens Optical System

    • Two wide-angle lenses with 14 elements in 10 groups
    • f/2.1, F3.5 and F5.6 aperture settings

Recording Maximums

    • Still Photos: Approximately 300 photos in raw, 2400 in JPEG
    • Each Video: Approximately 5 minutes 4K, 25 minutes 2K
    • Total Video: Approximately 40 minutes 4K, 130 minutes 2K

Battery Life

    • Still Photos: Approximately 300 photos
    • Video: Approximately 60 minutes

Capture Modes

    • Video/Photo: Auto, Aperture Priority, Shutter Priority, ISO Priority, Manual
    • Live Streaming: Auto
    1
    Please Note:
    Smartphone control is required to change modes or switch manual settings. close

Exposure Control Modes

    • Program AE
    • Aperture Priority AE
    • Shutter Speed Priority AE
    • ISO Priority AE
    • Manual Exposure
    2
    Please Note:
    Smartphone control is required to change modes or switch manual settings. close
UPC: 026649107788 In the Box Ricoh THETA Z1 360 Camera
  • Soft Case
  • USB Cable
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Ricoh THETA Z1 360 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Ricoh Z1 Specs

    Stitching Resolution 4K (Video)
    2K (Video)
    7K (Photo)
    Internal/External Stitching Internal, External Stitching
    360 Stitched Video Format Internal:
    3840 x 1920 at 29.97 fps (56 Mb/s MP4 via H.264)
    1920 x 960 at 29.97 fps (16 Mb/s MP4 via H.264) Live Streaming via USB:
    4K 29.97 at 120 Mbps
    2K 29.97 at 42 Mbps
    Still Image Resolution Raw: 23 Megapixel, 7296 x 3648
    JPEG: 23 Megapixel, 6720 x 3360
    Number of Lenses 2
    Sensor 1-Chip 1" CMOS
    Sensor Resolution 23 MP Effective Pixels: 20 MP
    Maximum Aperture f/2.1
    Lens Elements 14
    Minimum Focusing Distance 15.7" / 40.0 cm
    Recording Media 1 x Internal Flash Memory (19 GB Maximum)
    Built-In Mic Yes
    Channels 4.0-Channel Surround
    Shutter Speed 1/25000 - 1/8 Second (Photo)
    1/25000 - 60 Seconds (Photo)
    1/25000 - 1/30 Second (Video)
    1/25000 - 1/30 Second (Streaming)
    Photo ISO Range 80 - 1600 (Auto)
    80 - 3200 (Manual)
    Video ISO Range 80 - 6400 (Auto) Streaming Video ISO Range: 80 - 6400
    Screen Size .93"
    Touchscreen No
    Status Display Yes
    Wi-Fi Yes, 802.11a/b/g

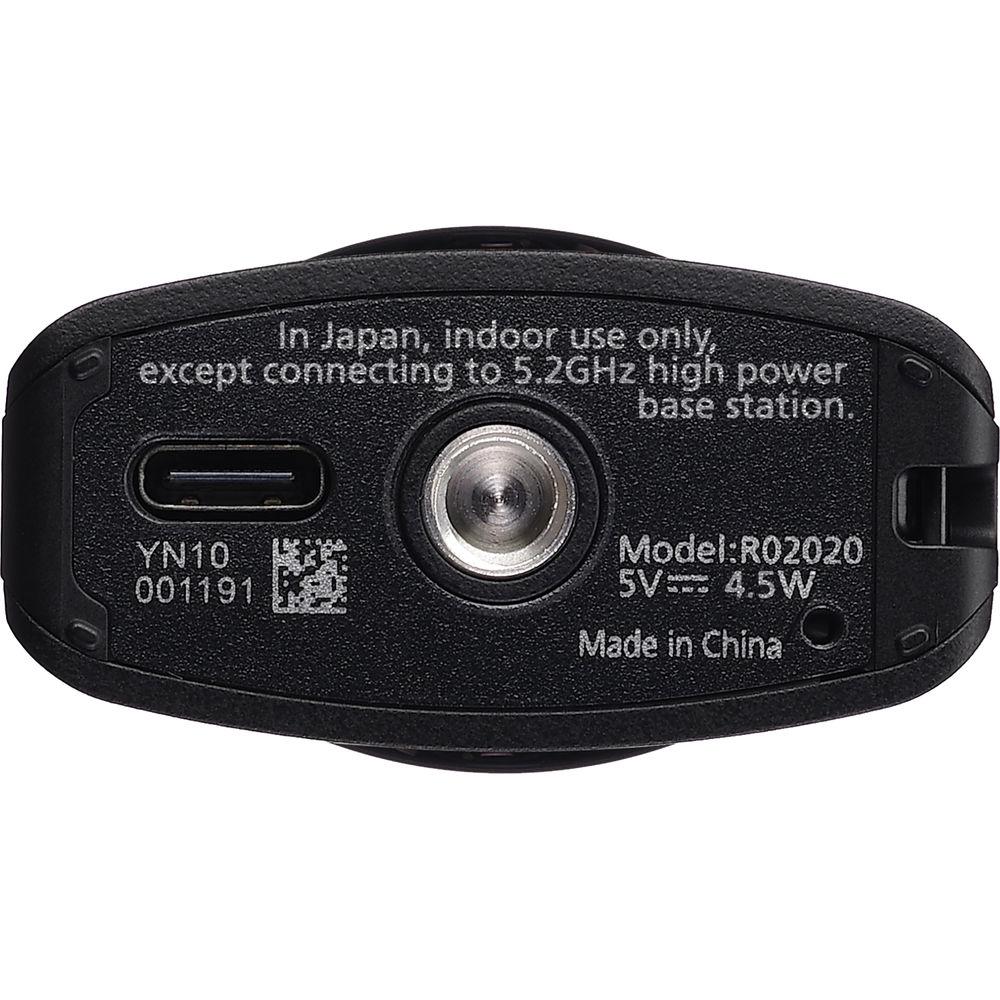

    Tripod Mount 1/4" - 20
    Outputs 1 x USB 3.0 Type-C
    Battery Rechargeable Lithium-Ion Battery Pack
    Max Runtime: 1 Hours per Charge
    Charging Method USB
    Operating Temperature 32 to 104°F / 0 to 40°C
    Humidity: 90%
    Dimensions (W x H x D) 5.2 x 1.9 x 1.2" / 132.5 x 48.0 x 29.7 mm
    Weight 6.42 oz / 182 g
