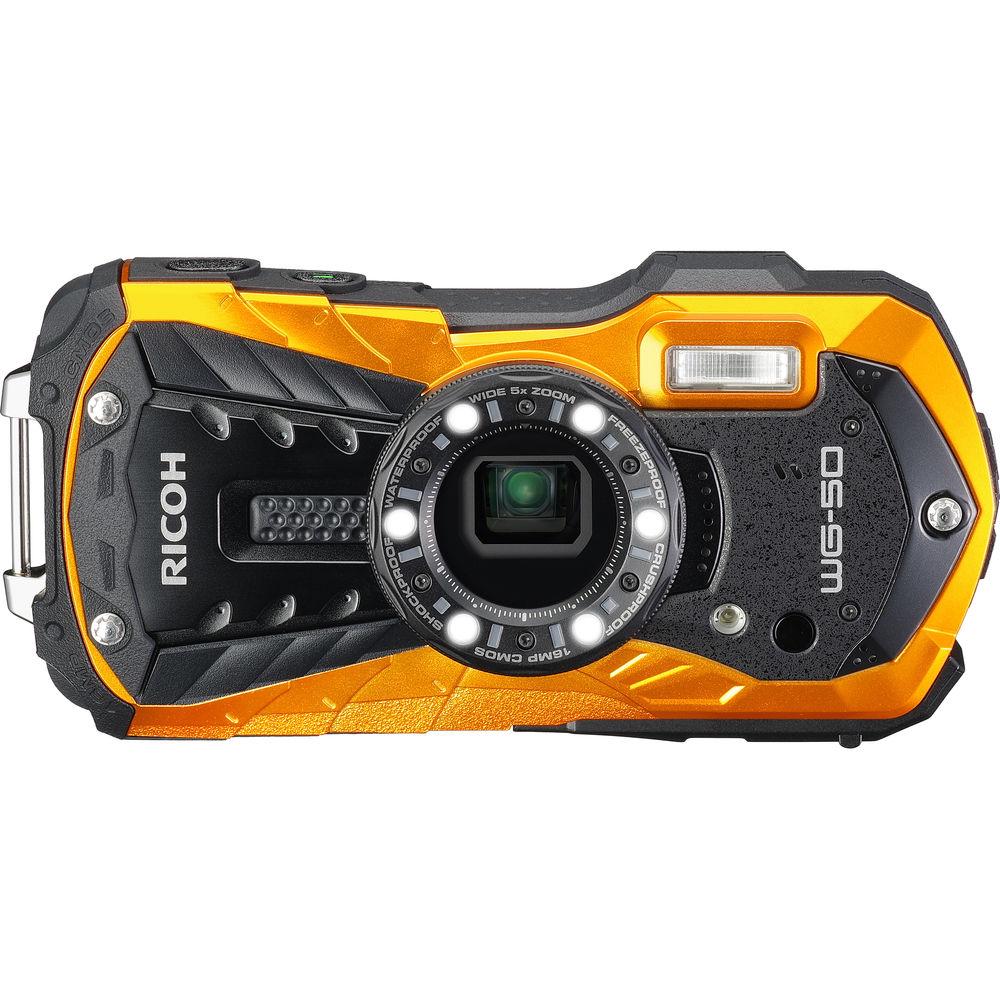

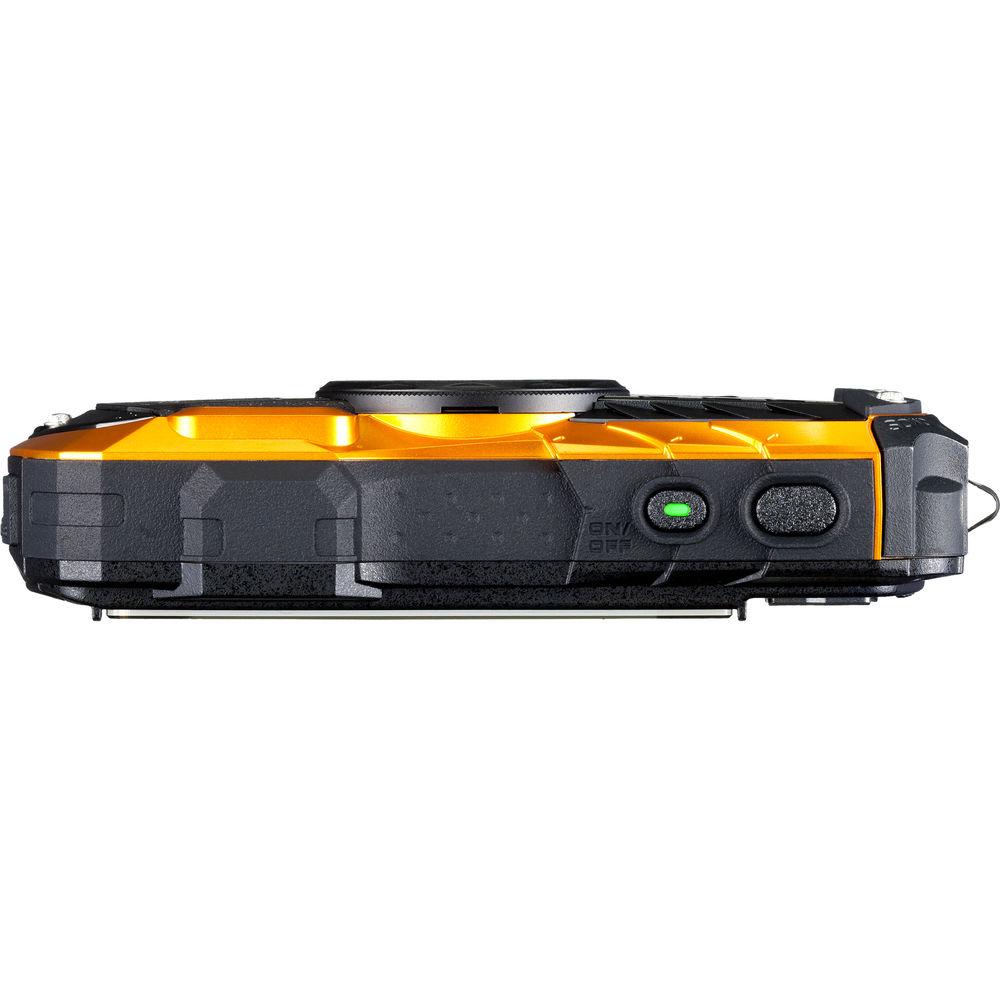

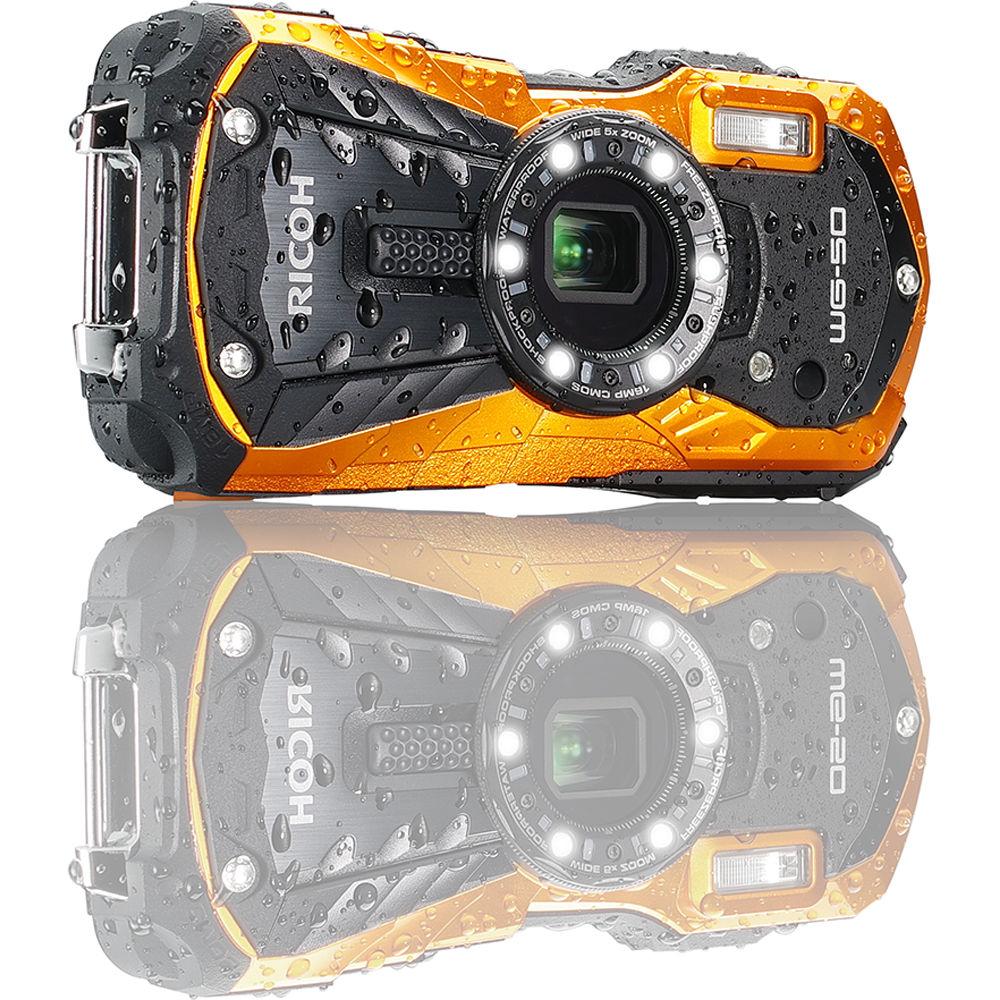

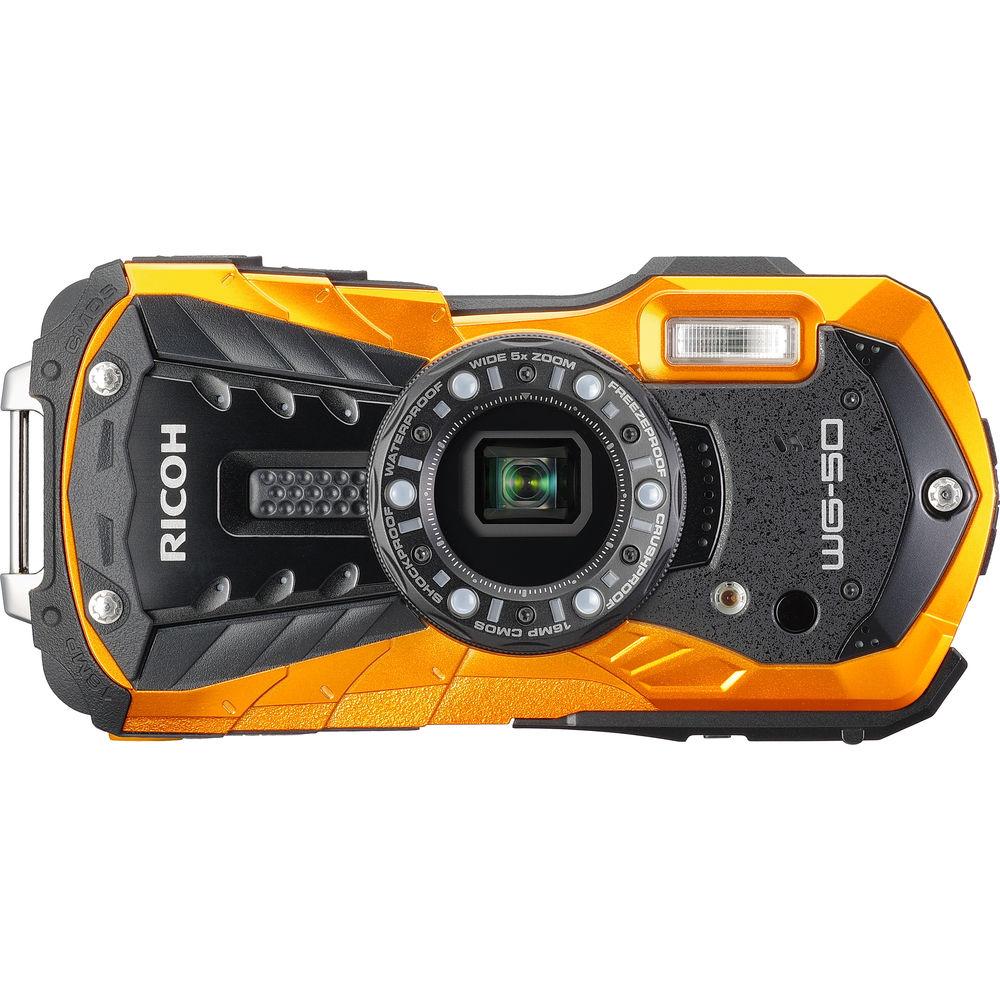

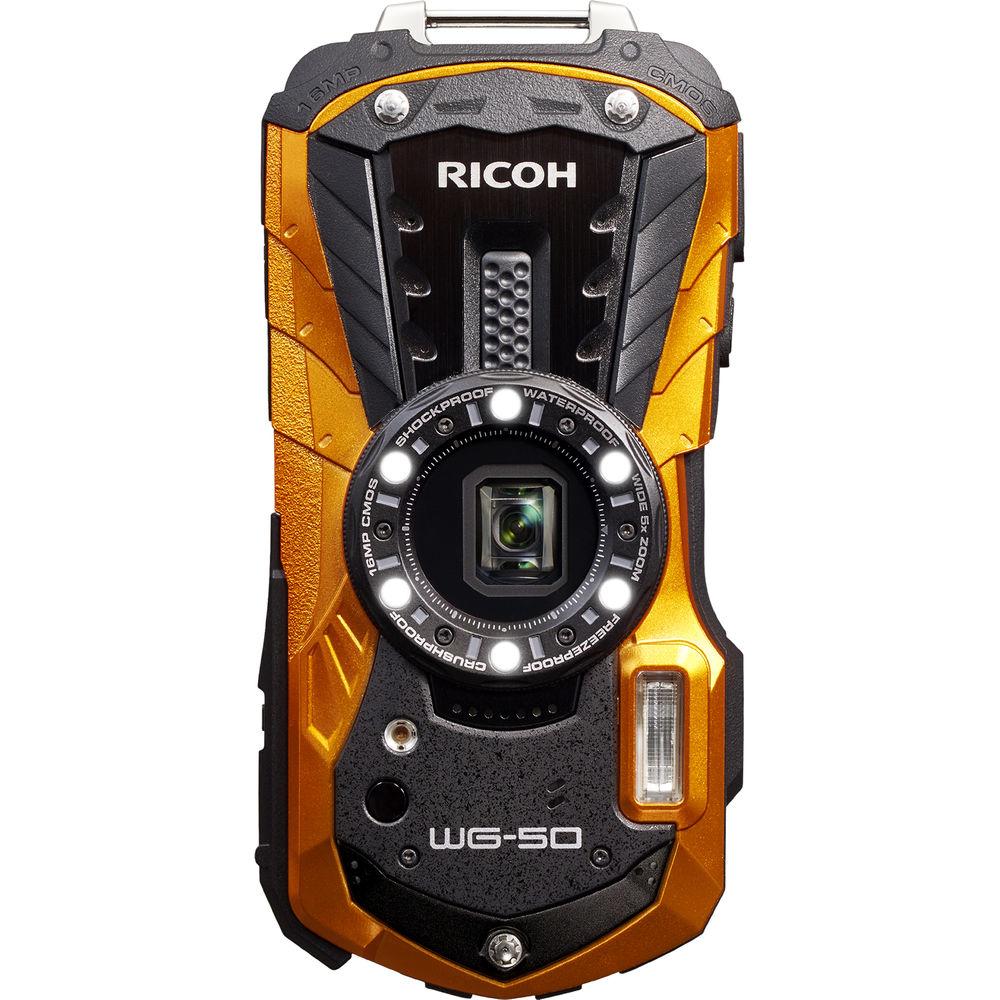

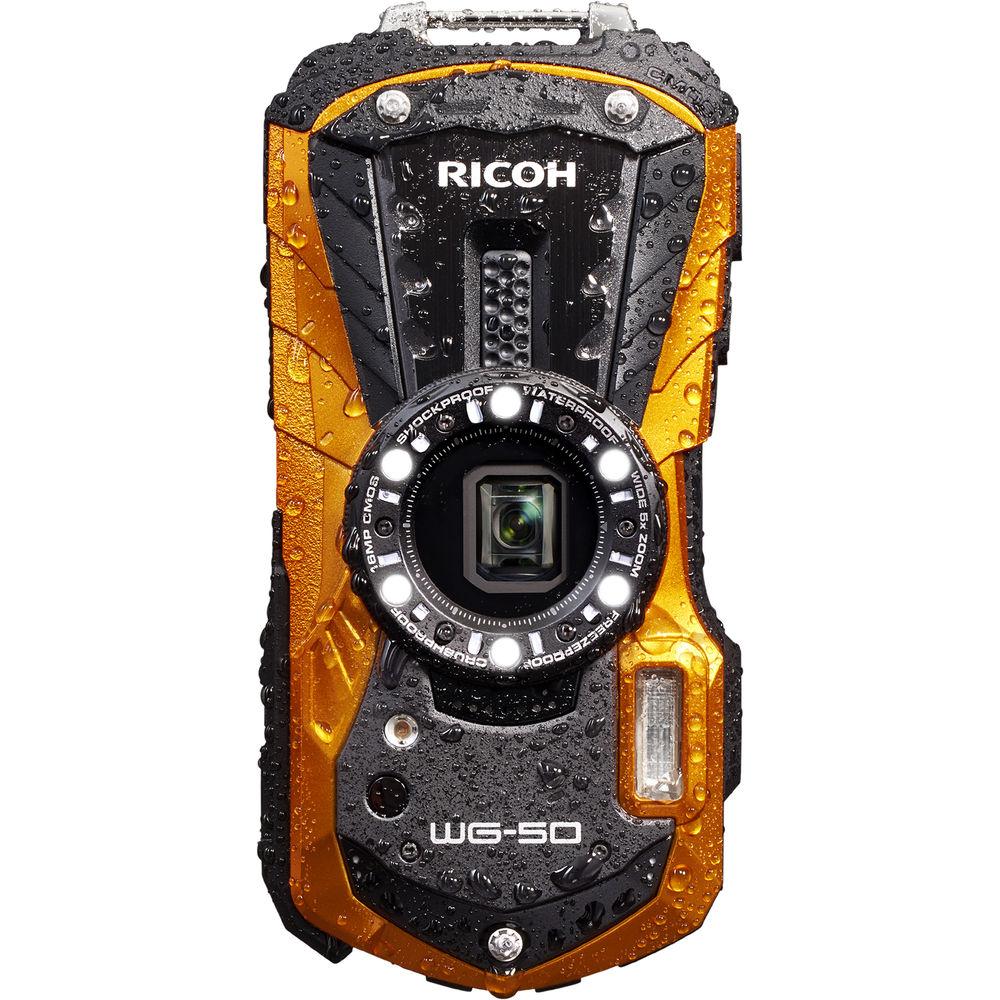

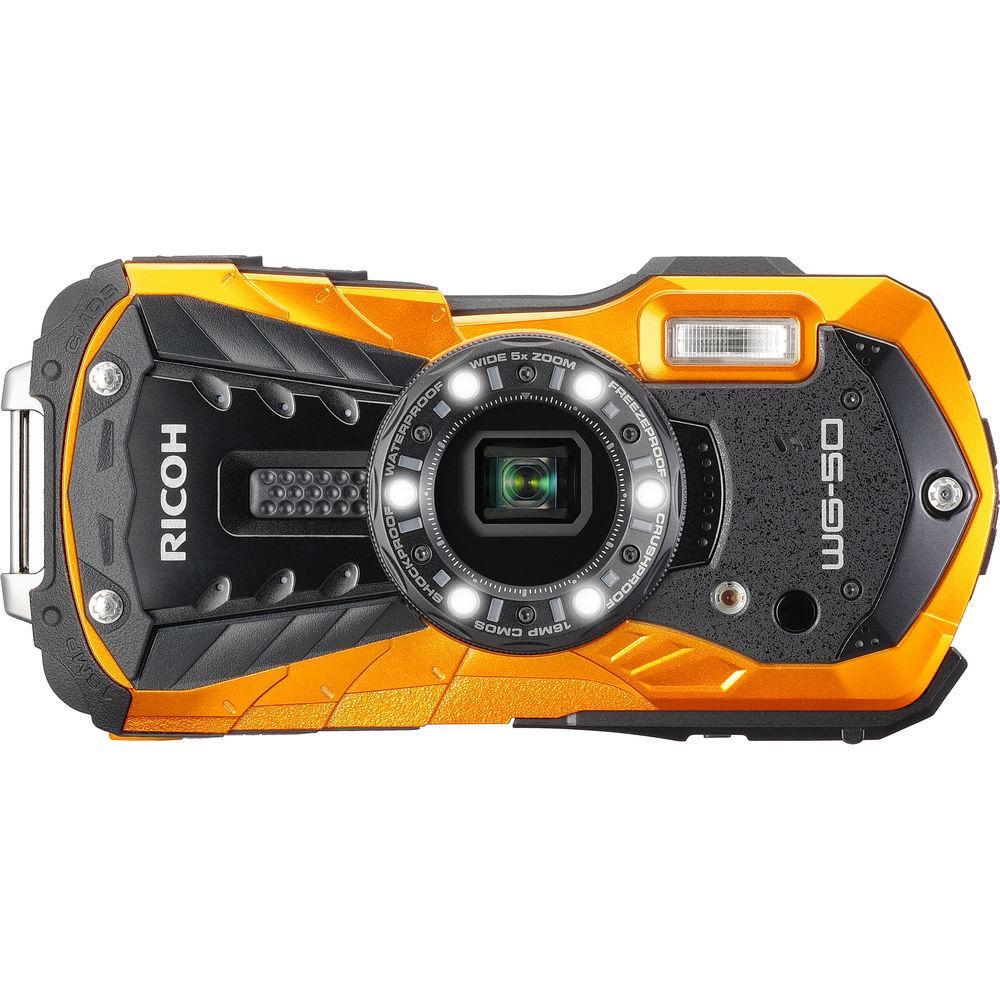

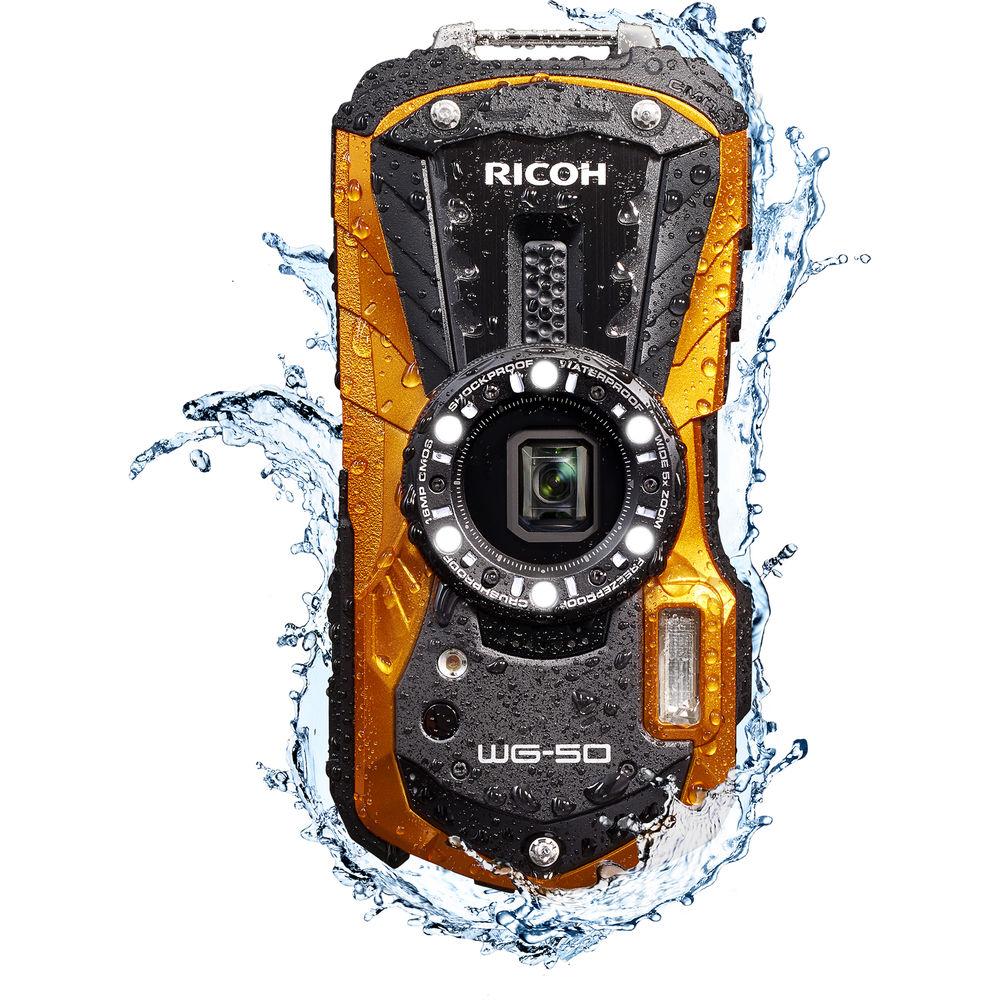

User Manual for Ricoh WG-50 Digital Camera Click to enlarge the picture
Contents of the user manual for the Ricoh WG-50 Digital Camera
- Product category: Point & Shoot Cameras Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Point & Shoot Cameras
 |
User manual for the Ricoh WG-50 Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|
Product description Ricoh Toughens Up with the WG-50 Camera Read More Distinguished by its durability, the orange WG-50 Digital Camera from Ricoh is a tough, compact point-and-shoot ideal for your everyday adventures. Its rugged physical construction renders it waterproof for depths up to 45.9' and shockproof from heights of 5.2', as well as freeze, crush, and dustproof to resist nearly anything you can throw at it. In terms of imaging, the WG-50 features a 16MP 1/2.3" CMOS sensor that enables high-resolution stills shooting and Full HD 1080p video recording, as well as a sensitivity range from ISO 125-6400 and a top shooting rate of 10 fps to suit working in a variety of situations. A 5x optical zoom lens also contributes to this flexibility, and covers a wide-angle to telephoto 28-140mm equivalent focal length range, and is complemented by Pixel Track and Digital SR to help realize sharper imagery. Rounding out the WG-50's design, its compact size incorporates a 2.7" 230k-dot LCD monitor, which uses an Outdoor View Setting mode for improved visibility in bright lighting conditions, and six LED lights also surround the lens to help illuminate close-up subjects for macro shooting. - Durable Design
- The WG-50 is designed to withstand a wide variety of conditions, ranging from harsh climates to everyday mishaps:
- Waterproof-rated to IPX8 for use underwater to depths of 45.9' / 14m (JIS Class 8)
- Freezeproof to temperatures as low as 14°F / -10°C
- Shockproof to falls from 5.2' / 1.6m high
- Crushproof to withstand up to 220 lbf / 100 kgf of pressure
- Dustproof-rated to JIS Class 6 to protect the internal components of the camera
- 16MP CMOS Sensor
- Featuring a 16MP 1/2.3" CMOS sensor, the WG-50 is capable of recording high-resolution stills and Full HD 1080p video. The sensor also affords a sensitivity range of ISO 125-6400, for working in a variety of lighting conditions, and a continuous shooting rate of 10 fps to suit photographing moving subjects.
- Ricoh 5x Optical Zoom Lens
- Spanning wide-angle to telephoto focal lengths, the 5x optical zoom lens covers a 28-140mm equivalent range to suit photographing a wide array of subject types. Its optical design features five aspherical elements for notable sharpness with controlled distortion, and Pixel Track SR (Shake Reduction) and Digital SR both help to minimize the appearance of camera shake when shooting handheld.
- Other Camera Features
-
- Six LED macro lights surround the lens to produce brighter, more even lighting when working with close-up subjects.
- Enhanced Digital Microscope mode enables close focusing to 0.4".

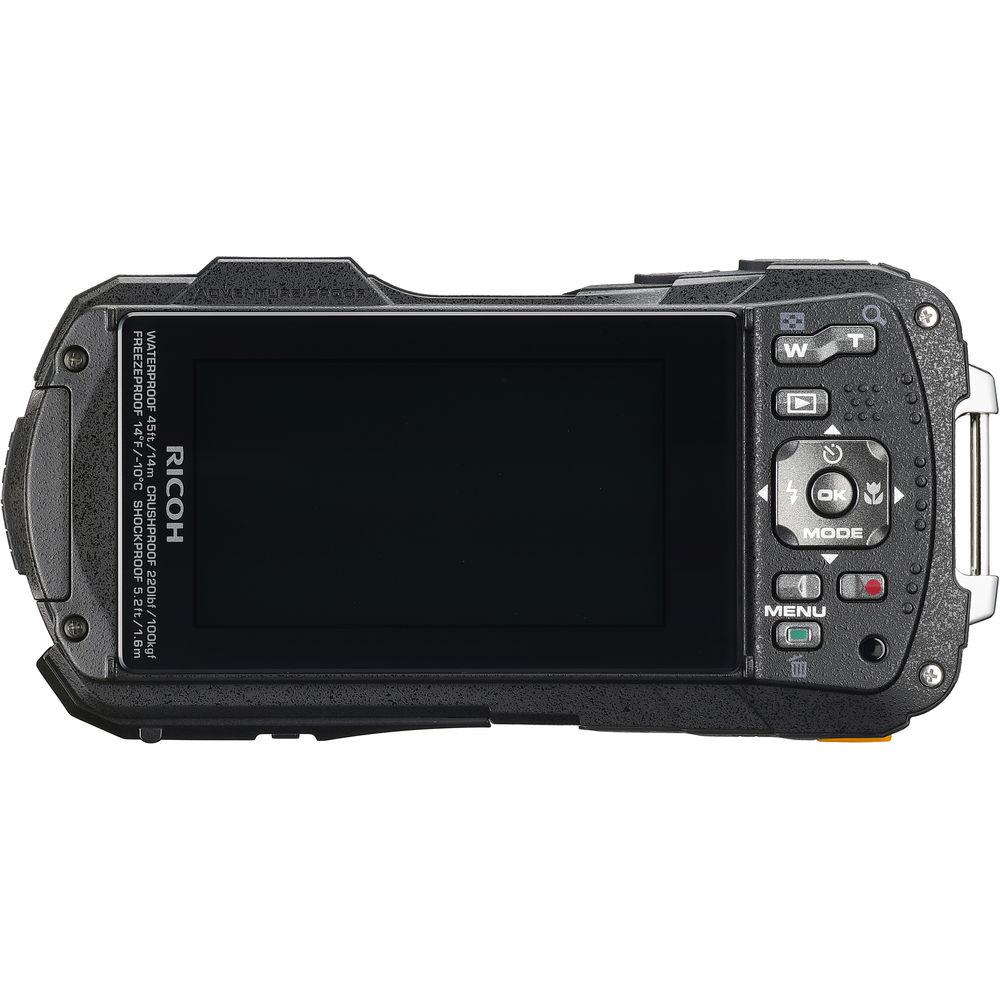

- Benefitting working with the rear 2.7" 230k-dot LCD monitor, an Outdoor View Setting mode automatically boosts the screen's brightness when working in bright, sunlit conditions for greater visibility.
- Included D-LI92 rechargeable lithium-ion battery provides approximately 300 shots per charge.
- A nine-point autofocus system provides quick and accurate focusing performance and is also capable of detecting subject's faces using Smile Capture, Blink Detection, Self Portrait Assist, Self Portrait Assist + Smile Capture, and Pet Detection settings.
- The processing engine contributes to a fast shutter lag time of 0.008 sec. and a startup time of 1.5 sec.
- Interval shooting modes allow you to record a series of exposures at pre-determined intervals for producing time-lapse imagery.
- Digital Filter: B&W/Sepia, Toy Camera, Retro, Color, Extract Color, Color Emphasis, High Contrast, Starburst, Soft, Fish-eye, Brightness, and Miniature Filter.
- English, French, Germany, Spanish, Portuguese, Italy, Dutch, Japanese, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkey, Greek, Russian, Thai, Korean, Simplified Chinese, and Traditional Chinese.
UPC: 027075299344 In the Box Ricoh WG-50 Digital Camera (Orange) D-LI92 Rechargeable Li-Ion Battery for Pentax X70 Digital Camera D-PA164J Power Adapter I-USB157 USB Cable O-ST104 Carabiner Strap O-ST157 Carabiner Strap O-MS1 Macro Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh WG-50 Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh WG-50 Specs | | | Pixels | Actual: 16.76 Megapixel
Effective: 16 Megapixel | | Sensor | 1/2.3" CMOS | | File Formats | Still Images: JPEG
Movies: AVC/H.264 | | Max Resolution | 4608 x 3456 | | Aspect Ratio | 1:1, 4:3, 16:9 | | Image Stabilization | Digital | | | | Lens | 11 Elements in 9 Groups
5 Aspherical
Effective Focal Length: 5 to 25mm (35 mm Equivalent: 28 to 140mm)
Aperture: f/3.3 (W) to f/5.5 (T) to f/6.6 | | Zoom | Optical: 5x
Digital: 7.2x
Intelligent Zoom: 7.5x
Intelligent Zoom: 36x | | Focus Range | Normal: 1.64' to Infinity / 50 cm to Infinity
Macro: 3.94" to 1.97' / 10 cm to 60 cm
Super-Macro: 0.39" to 11.81" / 1 cm to 30 cm | | | | ISO Sensitivity | Auto, 125 to 6400 | | Shutter | Type: Electronic & Mechanical
Speed: 1/4 to 1/4000 Second
4 to 0 Second in Night Scene Mode | | Exposure Metering | Center-Weighted, Multi, Spot | | Exposure Modes | Modes: Program
Compensation: -2 EV to +2 EV (in 1/3 EV Steps) | | Shooting Modes | Auto
Digital Microscope
Digital SR
Fireworks
Flower
Food
Green
HDR
Handheld Night Shot
High Speed Movie
Interval Movie
Interval Shooting
Kids
Landscape
Movie
Night Portrait
Night Scene
Pet Mode
Portrait
Report
Sports
Surf & Snow
Underwater
Underwater Movie | | White Balance | Auto, Daylight, Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (White), Manual, Shade, Tungsten | | Continuous Shooting | Up to 1.1 fps at 16 MP for up to 69 Exposures (JPEG Format)
Up to 10 fps at 5 MP for up to 30 Exposures (JPEG Format)
Up to 10 fps at 4 MP for up to 30 Exposures (JPEG Format) | | Self-Timer | 2, 10 Sec | | Interval Recording | Yes | | Remote Control | E, F, O-RC1 (Optional) | | | | Flash Modes | Flash On
Off
Red-Eye Reduction | | Built-In Flash | Yes | | Effective Flash Range | Wide:0.7 to 18.0' / 0.2 to 5.5 m
Telephoto:0.7 to 11.5' / 0.2 to 3.5 m | | | | Built-In Memory | 68 MB | | Memory Card Type | SD
SDHC
SDXC | | | | Video Recording | Yes, NTSC | | Resolution | 1920 x 1080p: 30 fps
1280 x 720p: 60 fps, 30 fps | | | | Audio Recording | Built-In Mic: With Video (Mono) | | | | Screen | 2.7" LCD Rear Screen (230,000 Pixels) | | | | Connectivity | HDMI D (Micro), USB 2.0 Micro-B, USB 2.0 | | | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Waterproofing | 45.9' / 14.0 m | | | | Battery | 1 x D-LI92 Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 770 mAh | | | | Dimensions (W x H x D) | 4.8 x 2.4 x 1.2" / 122.5 x 61.5 x 29.5 mm | | Weight | 6.81 oz / 193 g with battery and memory card | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.0 x 5.6 x 3.2" |
