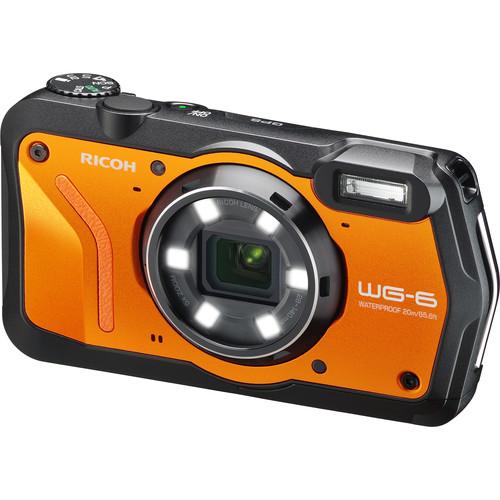

User Manual for Ricoh WG-6 Digital Camera Click to enlarge the picture
Contents of the user manual for the Ricoh WG-6 Digital Camera
- Product category: Point & Shoot Cameras Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Point & Shoot Cameras
 |
User manual for the Ricoh WG-6 Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|

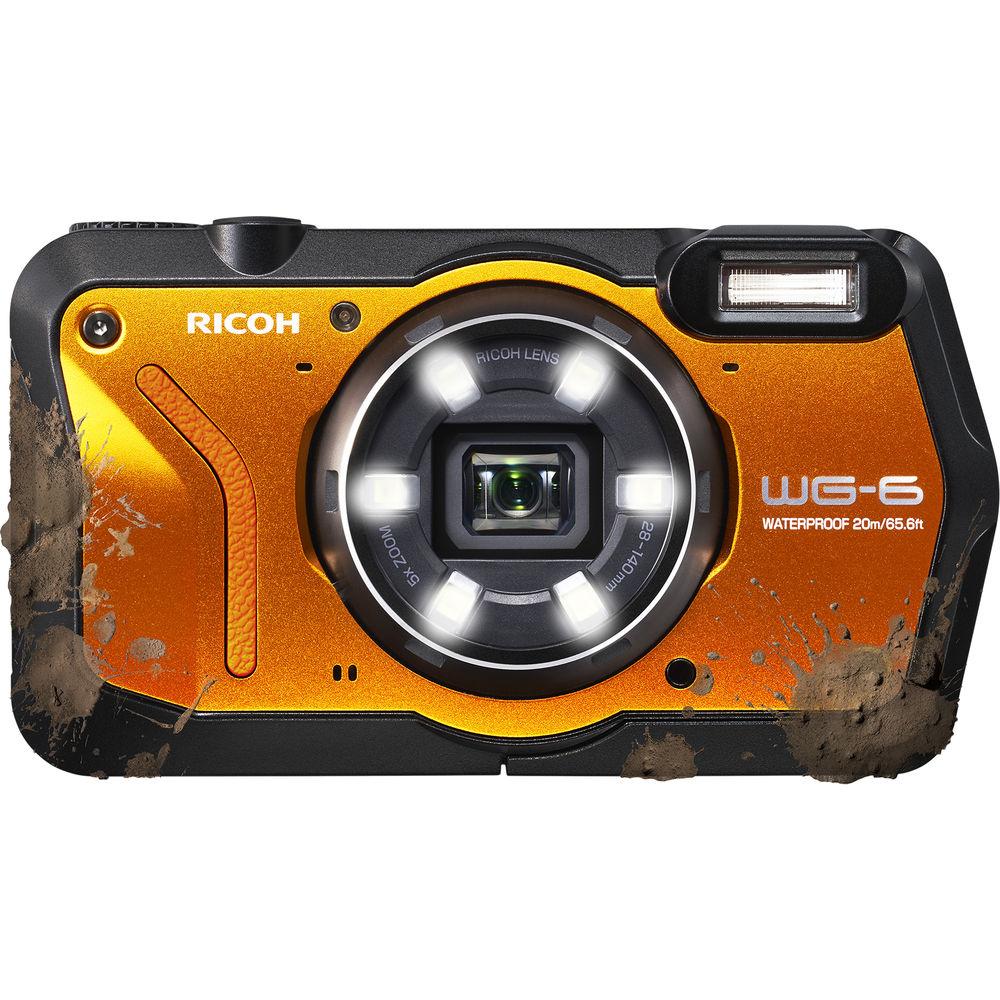

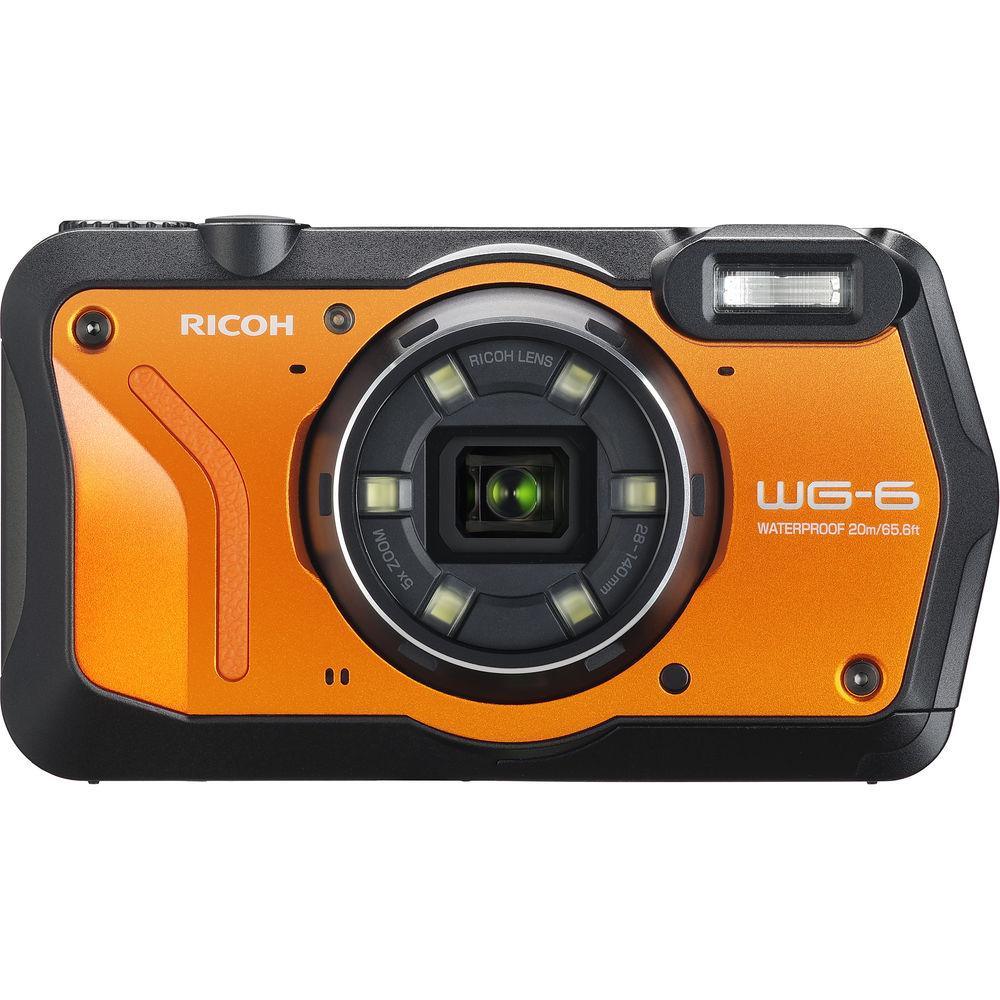

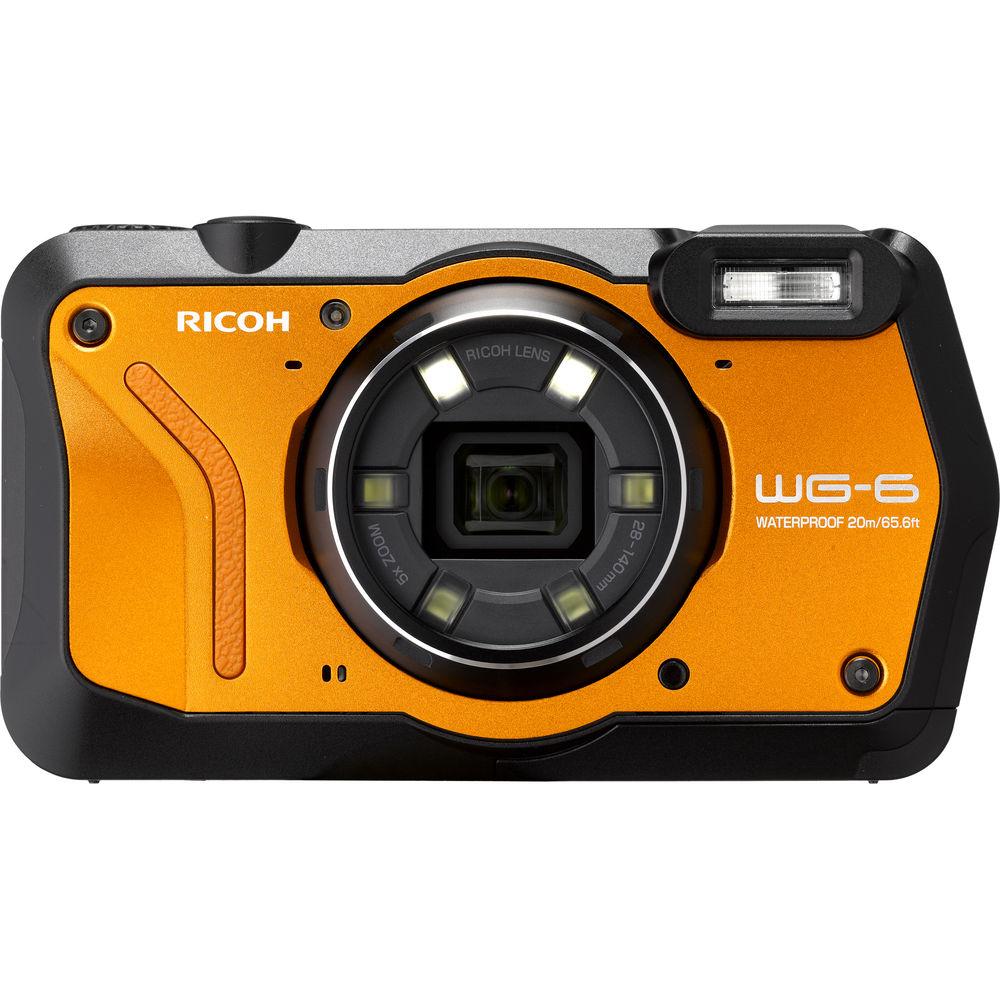

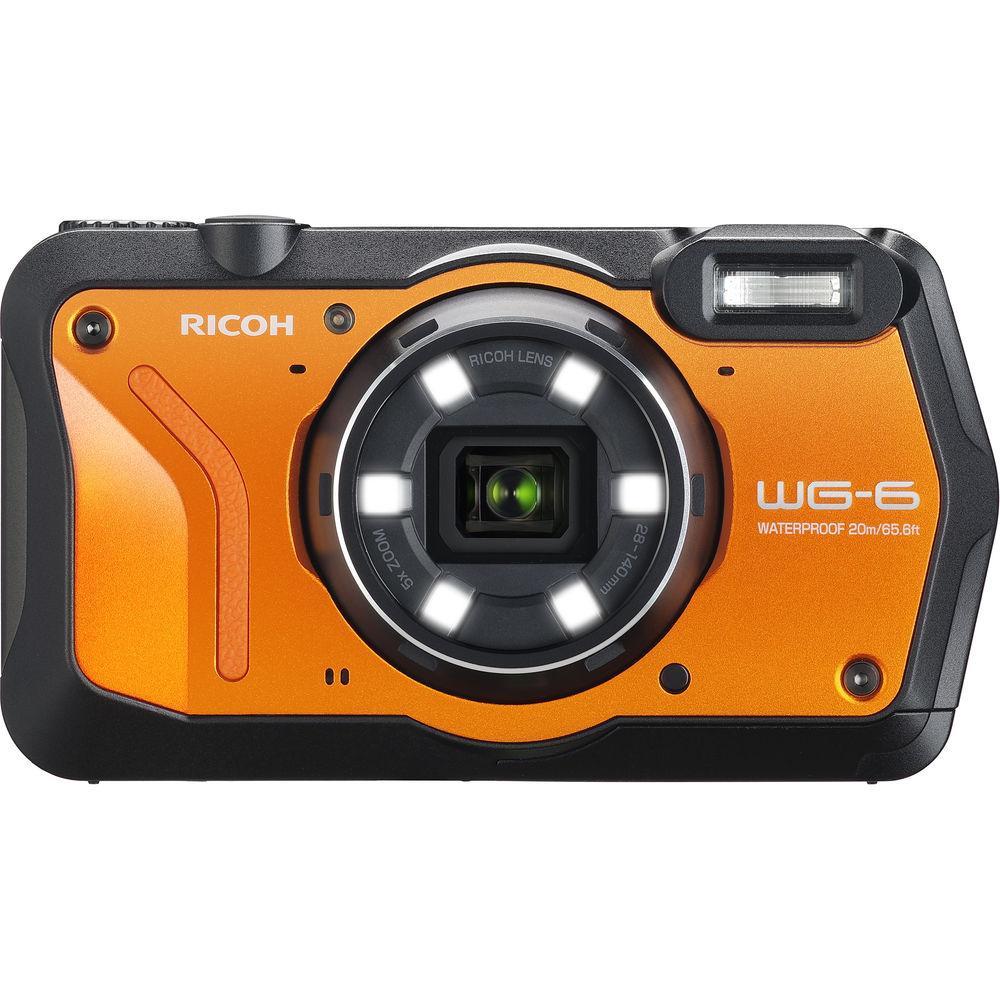

Product description Ricoh Announces GR III, WG-6, and G900 Digital Cameras Read More Dubbed an all-weather extreme compact camera, the orange Ricoh WG-6 is distinguished by its impressively rugged physical design, incorporation of useful shooting modes, and versatile imaging capabilities. Its durable exterior construction renders it waterproof to depths of 65.6', shockproof from heights of 6.6' as well as freezeproof, crushproof, dustproof, and resistant to chemical disinfection. In regard to imaging capabilities, the WG-6 features a 20MP BSI CMOS sensor, which enables high-resolution stills shooting, a sensitivity range from ISO 125-6400, and UHD 4K30 video recording as well as Movie SR+ and Movie SR stabilization modes to help steady video footage. A 5x optical zoom lens also contributes to this flexibility, and covers a wide-angle to telephoto 28-140mm equivalent focal length range. Additionally, the WG-6 incorporates a bright 3.0" 1.04m-dot AR-coated LCD monitor, an LED ring light to benefit photographing close-up subjects, and a high-accuracy GPS module to permit embedding location information within your image files. - Durable Design
- The WG-6 is designed to withstand a wide variety of conditions, ranging from harsh climates to everyday mishaps:
- Waterproof-rated for use underwater to depths of 65.6' / 20m
- Freezeproof to temperatures as low as 14°F / -10°C
- Shockproof to falls from 6.6' / 2m high
- Crushproof to withstand up to 220 lbf / 100 kgf of pressure
- Dustproof to protect the internal components of the camera
Additionally, similar to the G-series of cameras, the WG-6 is chemical resistant, for using ethanol disinfection, bleach disinfection, and chlorine dioxide to suit business, industrial, and construction site use. - 20MP CMOS Sensor
- Featuring a 20MP BSI CMOS sensor, the WG-6 is capable of recording high-resolution stills and UHD 4K30 video. The sensor's back-illuminated design offers improved clarity, reduced noise, and a sensitivity range from ISO 125-6400 to suit working in low-light conditions.
- Ricoh 5x Zoom Lens and LED Ring Light

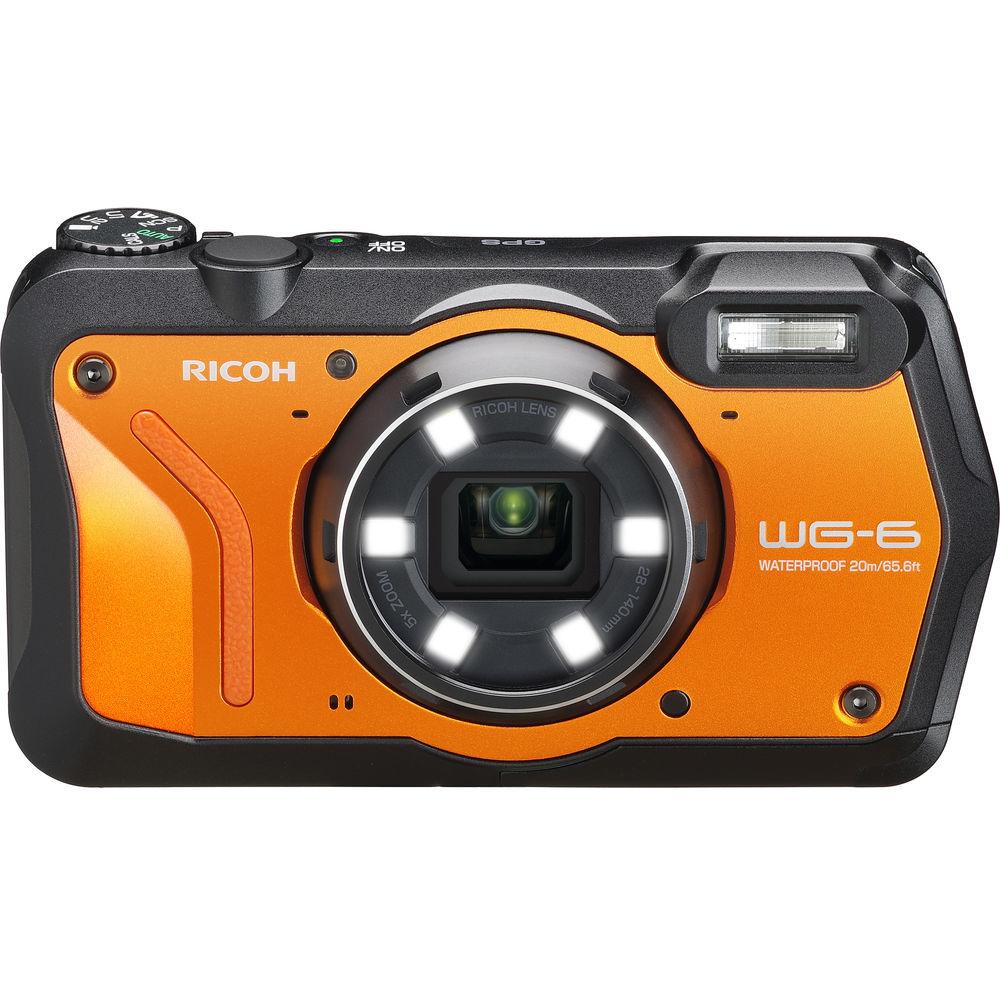

- Spanning wide-angle to telephoto focal lengths, the 5x optical zoom lens covers a 28-140mm equivalent range for photographing a wide array of subject types. Surrounding the lens is an LED ring light, which incorporates six individual LEDs, to produce bright and even lighting when photographing close-up subjects. Ten brightness levels are available to adjust the light output, the lighting pattern can be configured, and an enhanced Digital Microscope mode enables close focusing to 0.4".
- UHD 4K Video and Movie SR+
- UHD 4K30 video recording is supported for high-resolution playback and is benefitted by a Movie SR+ (Shake Reduction) setting, which offers "electronic gimbal" functionality to steady footage taken while moving. Conventional Movie SR can also be used for a more natural, less distorted look, and actively clips the frame to promote steadier shots.
- Body Design

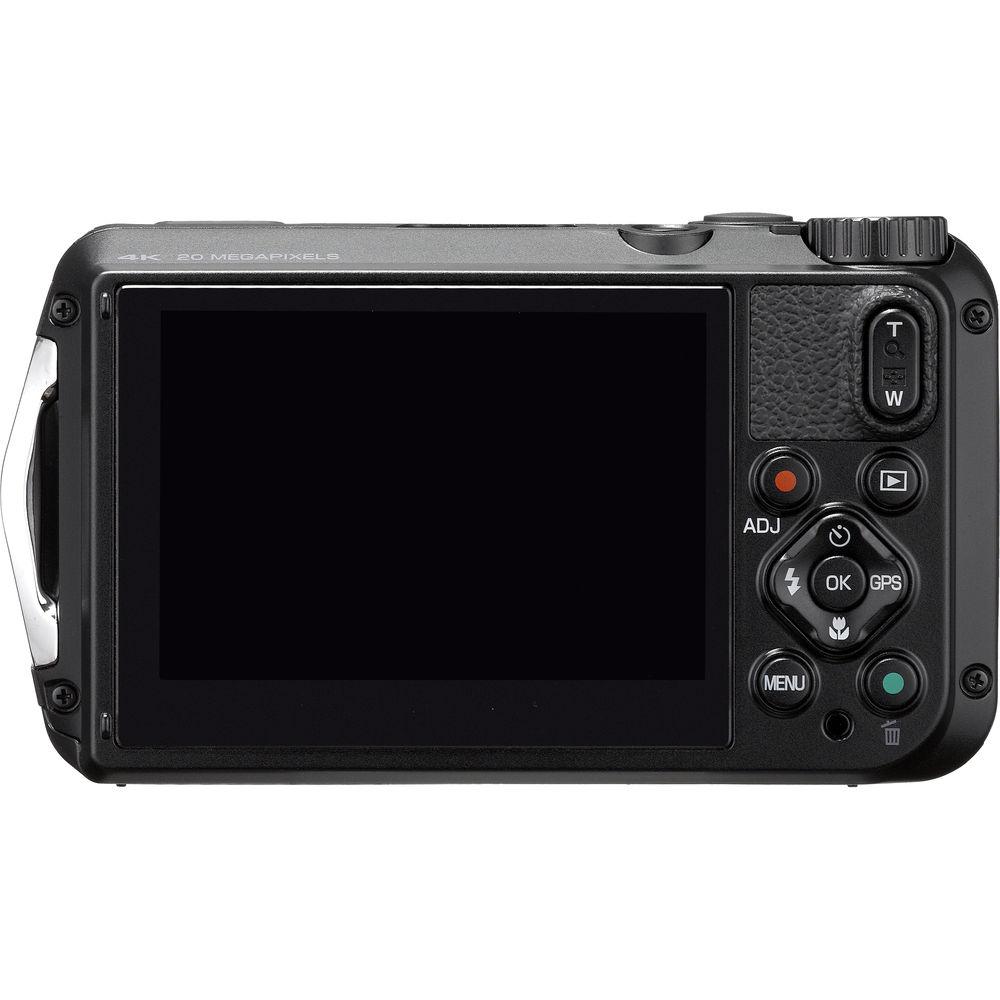

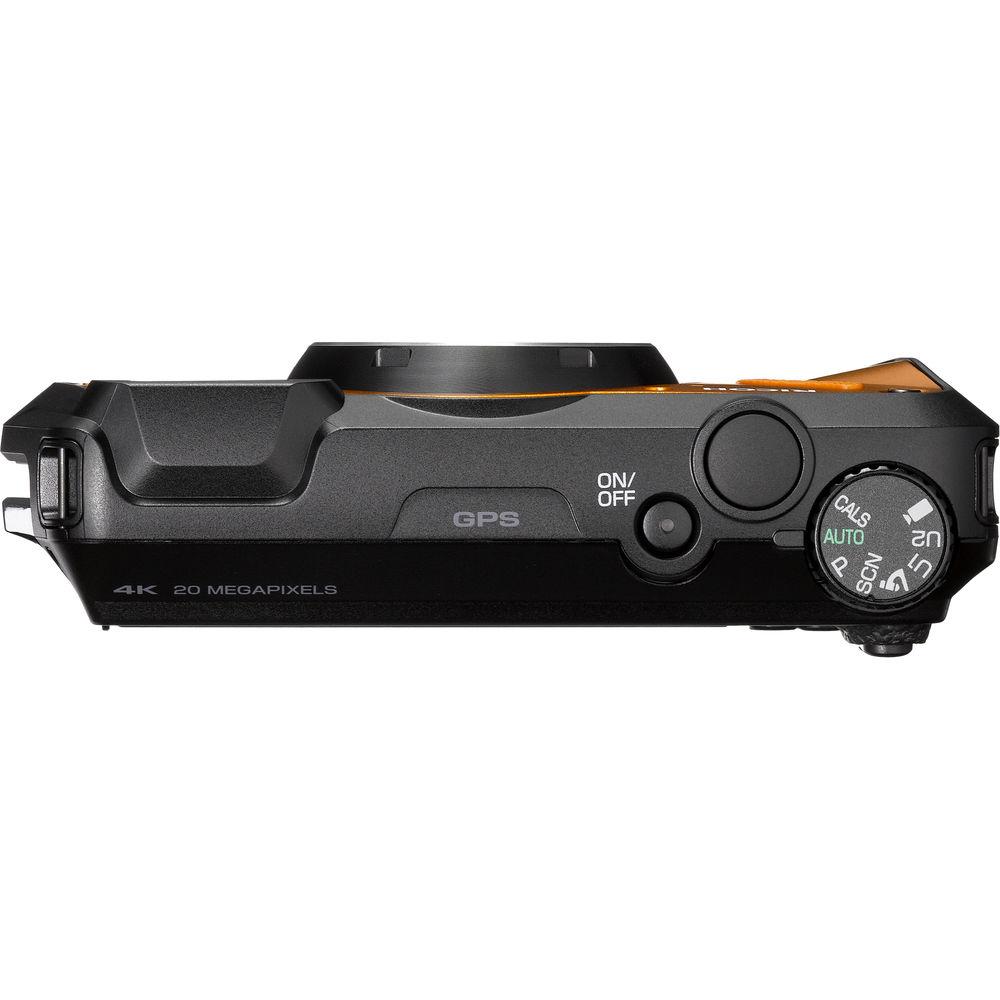

- The rugged exterior of the camera has been designed for easy operation in harsh conditions, even when wearing gloves. An assignable ADJ button offers instant access to oft-used camera functions and a top dial permits quick switching between shooting modes. The four-way controller also sports a more ergonomic, raised design with easier-to-press buttons and the rear 3.0" 1.04m-dot LCD has a bright design and AR coating for clear viewing in various lighting conditions. Additionally, date and copyright stamping on files is possible.
- GPS System
- Enhanced for greater accuracy, the integrated GPS module corresponds to the latest satellite navigation augmentation system, SBAS. QZSS is also supported for quick activation—approximately 1 minute from shut-down or 3 seconds from standby—and a dedicated GPS button is featured within the four-way controller for recording location information to images by the GPS memory function.
UPC: 026649759192 In the Box Ricoh WG-6 Digital Camera (Orange) DB-110 Rechargeable Lithium-Ion Battery (3.6V, 1350mAh) AC-U2 USB Power Adapter Power Plug I-USB173 USB Cable Hand Strap O-MS3 Macro Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh WG-6 Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRicoh WG-6 Specs | | | Pixels | 20 Megapixel | | Sensor | 1/2.3" CMOS | | File Formats | Still Images: JPEG
Movies: AVC/H.264 | | Aspect Ratio | 1:1, 3:2, 4:3 | | Image Stabilization | Digital | | | | Lens | 11 Elements in 9 Groups
5 Aspherical
Effective Focal Length: 5 to 25mm (35 mm Equivalent: 28 to 140mm)
Aperture: f/3.5 (W) to f/5.5 (T) | | Zoom | Optical: 5x
Digital: 8.1x
Intelligent Zoom: 7x
Intelligent Zoom: 40.5x | | Focus Range | Normal: 1.64' to Infinity / 50 cm to Infinity
Macro: 3.94" to 1.97' / 10 cm to 60 cm
Super-Macro: 0.39" to 11.81" / 1 cm to 30 cm | | | | ISO Sensitivity | Auto, 125 to 6400 | | Shutter | Type: Electronic & Mechanical
Speed: 1/4 to 1/4000 Second | | Exposure Metering | Center-Weighted, Multi, Spot | | Exposure Modes | Modes: Program
Compensation: -2 EV to +2 EV (in 1/3 EV Steps) | | White Balance | Auto, Cloudy, Daylight, Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (White), Manual, Ring Light, Shade, Tungsten | | Interval Recording | Yes | | | | Flash Modes | Flash On
Off
Red-Eye Reduction | | Built-In Flash | Yes | | Effective Flash Range | Wide:0.66 to 18.04' / 0.2 to 5.5 m
Telephoto:0.66 to 11.48' / 0.2 to 3.5 m | | | | Built-In Memory | 27 MB | | Memory Card Type | SD
SDHC
SDXC | | | | Video Recording | Yes, NTSC | | Resolution | 3840 x 2160p: 30 fps
1920 x 1080p: 30 fps
1280 x 720p: 120 fps, 60 fps, 30 fps | | | | Video Clip Length | Up to 25 Minute | | Audio Recording | Built-In Mic: With Video | | | | Screen | 3.0" LCD Rear Screen (1,040,000 Pixels) | | Screen Coverage | 100% | | | | Connectivity | HDMI D (Micro), USB 3.0, USB Type-C | | GPS | Yes | | | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Waterproofing | 65.6' / 20.0 m | | | | Battery | 1 x DB-110 Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1350 mAh | | AC Power Adapter | K-AC166U (Not Included) | | | | Dimensions (W x H x D) | 4.7 x 2.6 x 1.3" / 118.2 x 65.5 x 33.1 mm | | Weight | 8.68 oz / 246 g with battery and memory card |
