User Manual for Ricoh WXGA 3100-Lumen Portable Desk Edge DLP Projector Click to enlarge the picture
Contents of the user manual for the Ricoh WXGA 3100-Lumen Portable Desk Edge
- Product category: Multimedia Projectors Ricoh
- Brand: Ricoh
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ricoh Multimedia Projectors
 |
User manual for the Ricoh WXGA 3100-Lumen Portable Desk Edge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ricoh product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ricoh user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ricoh product will considerably shorten its lifespan!
|

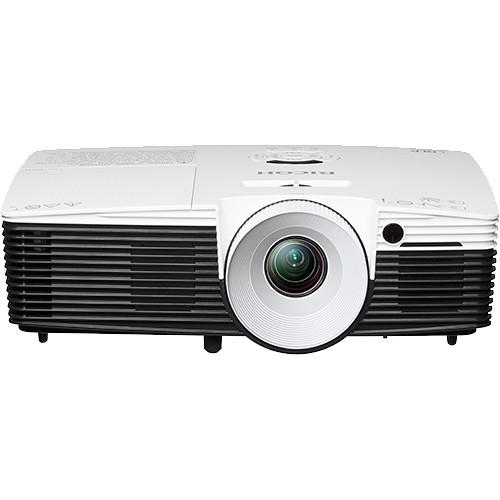

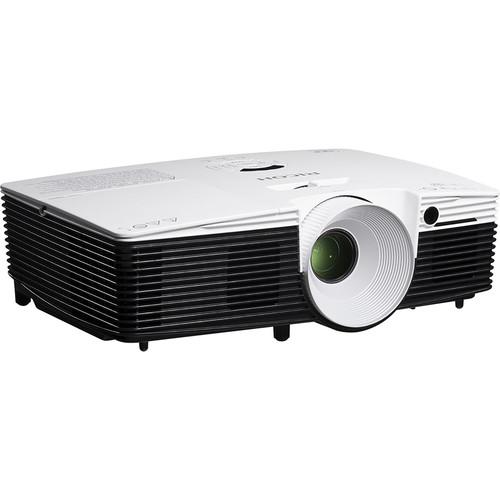

Product description The WXGA 3100-Lumen Portable/Desk Edge DLP Projector from Ricoh features a WXGA resolution of 1280 x 800, a 2000:1 contrast level, and long lamp life (up to 6000 hours in Eco mode). The remote control makes operation easy, and the wide choice of interface connections (including HDMI) allows input from a range of devices for maximum flexibility. With the included carrying case, this projector can be carried easily for set-up in any location. It can connect to up to two computers, and features an RS-232C port for PC control. - With WXGA (1280 x 800) resolution, more information can be displayed in widescreen format with crisp lines and stunning clarity when connected to digital and video cameras and DVD players
- With this portable and lightweight projector, you can move from one presentation location to the next with ease
- With a brightness rating of up to 3100 lumens, you can use the projector to produce vibrant presentations in almost any location, including rooms with dim lighting
- Clear audio at high volumes, but still runs quietly with a noise level below 34 dB

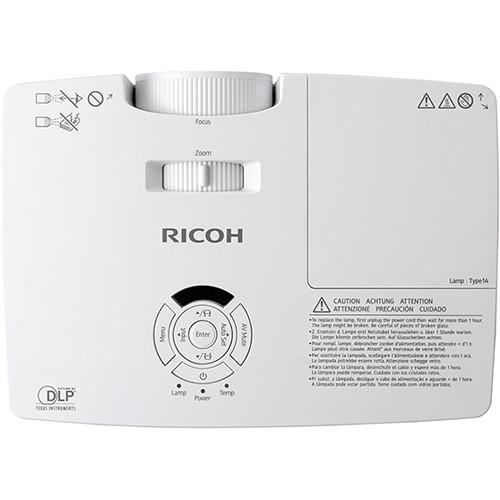

- You can fine-tune images with a focus lever conveniently placed on the top of the projection system

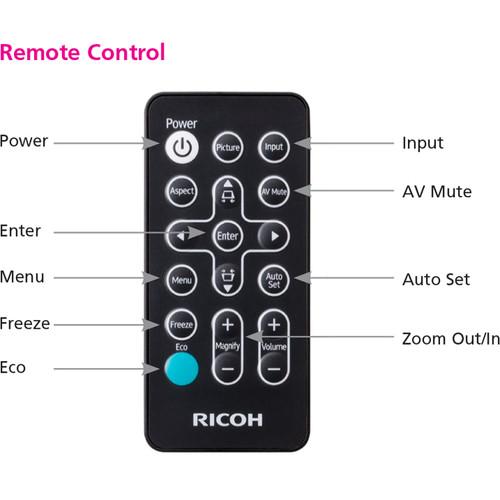

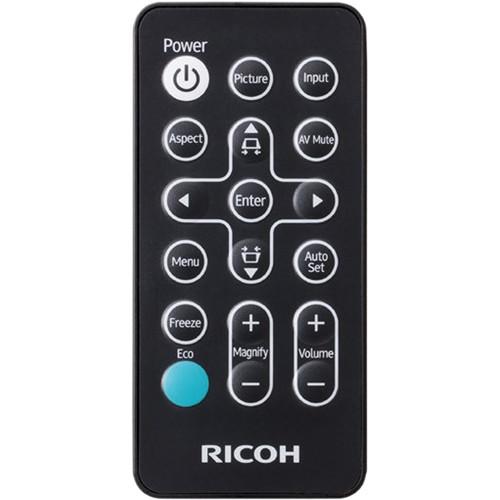

- With the included remote control, you can make other adjustments at any time, from anywhere in the room
In the Box Ricoh WXGA 3100-Lumen Portable/Desk Edge DLP Projector (No Lens) RGB Cable Power Cord Remote Control CR2025 Battery Carrying Case Limited 90-Day Warranty on Lamp Limited 3-Year Warranty on Projector Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh WXGA 3100-Lumen Portable Desk Edge DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

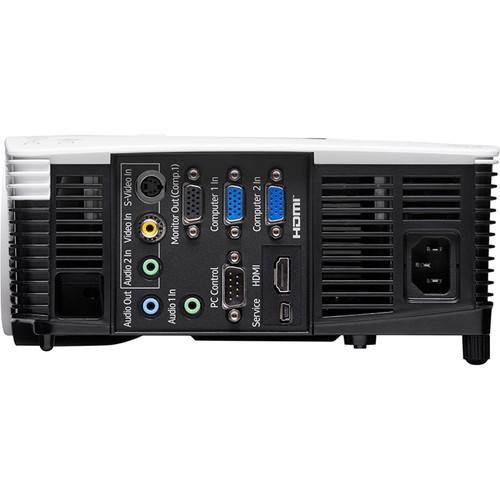

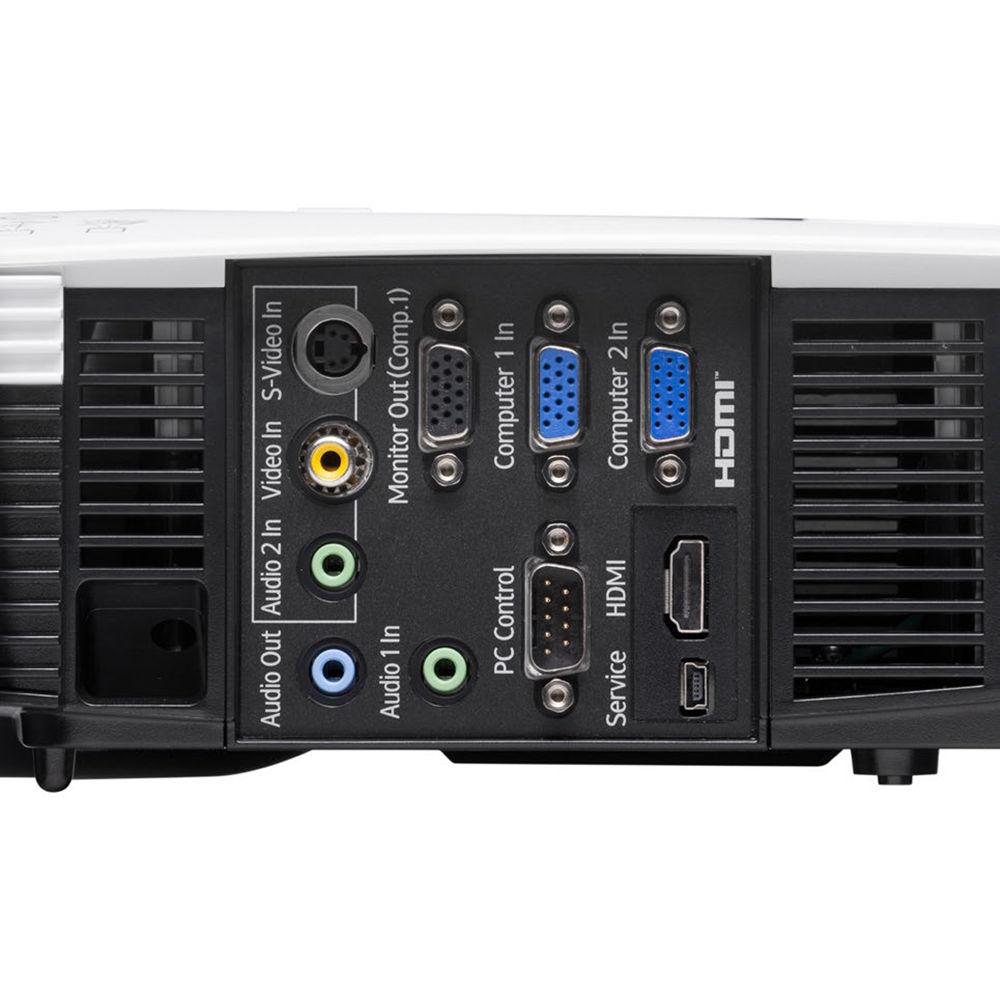

Technical parametersRicoh PJ WX2240 Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 3100 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 2000:1 | | DLP Link 3D | Yes | | | | Focus | Manual | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Rear Screen Projection | Yes | | | | Inputs/Outputs | 2 x VGA (DE-15) Video (Input)
1 x VGA (DE-15) Video (Output)
1 x S-Video (4-Pin DIN) Video
1 x Unspecified Signal (DE-9) Control
2 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Service
1 x HDMI Video (Input) 1 x RCA pin | | | | Lamp Power | 190 W | | Expected Lamp Life | Medium Brightness: 4500 Hours
Low Brightness: 6000 Hours | | Fan Noise | Medium Brightness: 34 dB
Low Brightness: 31 dB | | Security | Security Bar | | Power Consumption | Medium Brightness: 230 W
Low Brightness: 195 W
Standby Mode (Lamp Off): 0.5 W | | Temperature | Storage
-4 to 140°F (-20 to 60°C)
Humidity: 0 - 80% Transportation Temperature: 5 to 40°F (-15 to 4.4°C) | | Dimensions (W x H x D) | 12.4 x 8.8 x 4.0" / 31.5 x 22.4 x 10.2 cm | | Weight | 5.75 lb / 2.61 kg |
