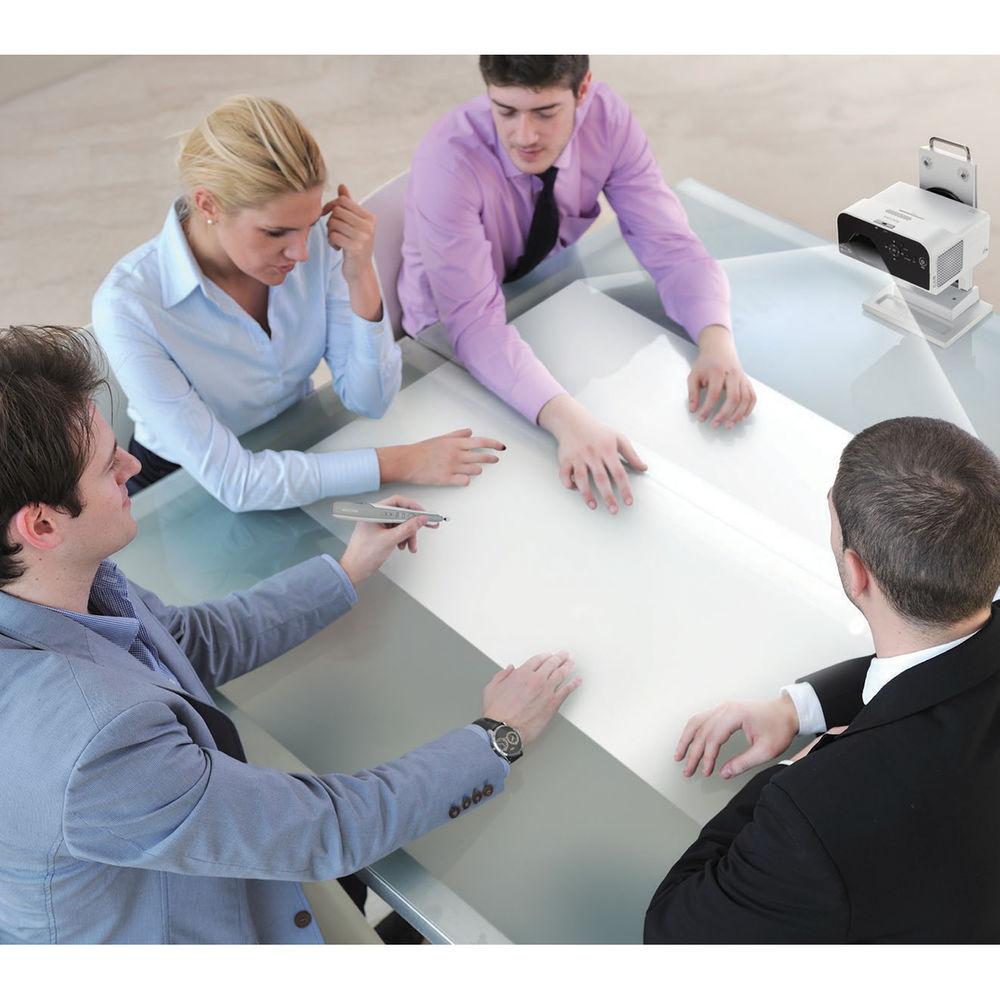

Product description The WXGA 3500-Lumen Ultra Short Throw DLP Projector from Ricoh allows you to project clear images from the edge of any table or stand. Intuitive controls, advanced connectivity, and a 360° viewing angle allows you to display critical information on the wall, ceiling, or floor of conference and training rooms. With Miracast support, you can share images and information directly from the screen of your personal Microsoft or Android device (device not included). You can also save files to a USB memory drive and plug it directly into the projector to begin your presentation (USB memory drive not included). With the included remote control you can access key features and menus at any time during the presentation. - Display images, movies, and more with up to a 1280 x 800 (WXGA) resolution
- 3500 lumens and dynamic contrast ratios up to 13,000:1
- Project images in more than one billion colors and two million pixels at 16:10 aspect ratio (widescreen) with proven DLP (Digital Light Processing) technology
- You can choose from multiple audio modes and customize the sound of the presentation to accommodate each presentation, room, or audience
- With Miracast support, you can share images and information directly from the screen of your personal Microsoft or Android device (device not included)
- 360° projection to adjust to your surroundings, and present in any direction, without distorting images on the screen
- Ricoh's web image monitor and embedded utility software to control administrative tasks remotely
- Detects keystone distortion and balances images automatically
- Simultaneous with wired and wireless LAN, Miracast, AV mute (blank), freeze, re-size (magnify), auto keystone correction, auto brightness, password protection, wall color mode, key lock, Kensington lock, user logo, eco mode, carbon meter, closed captioning, color universal design, presentation timer, power timer, sound mode (standard/narration/music), simple DICOM
- Ad Hoc and infrastructure wireless modes, network projection, multi-screen projection (1 PC to 4 projectors), 4-in-1 projection, projector management, PJLink, slide show mode, Pentax-Ricoh digital camera projection (USB), Ricoh web image monitor, Crestron RoomView compliant, AMX NetLinx compliant, Bluetooth image projection with DLNA server, Wi-Fi, UpnP, Ricoh smart presenter (with ad hoc connection) for remote iPad Users, Ricoh smart device connector, PC free presentation (JPEG/MPEG2 via USB port)
- Supported OS
Network Utility: Windows Vista SP2 or later 32/64-bit (Ultimate/Business/HomePremium/HomeBasic), Windows 7 SP1 32/64-bit (Ultimate/Enterprise/ Professional/HomePremium); Windows 8 and 8.1 Pro/Enterprise 32/64-bit; Windows10; Mac OS X 10.8-10.10
JPEG Conversion Tool: Windows Vista SP2 or later 32/64-bit (Ultimate/Business/HomePremium/HomeBasic); Windows 7 SP1 32/64-bit(Ultimate/Enterprise/Professional/Home Premium); Windows 8 and 8.1 Pro/Enterprise 32/64-bit; Windows 10
Projector Management Utility: Windows Vista SP2 or later 32/62-bit (Ultimate/Business/HomePremium/HomeBasic); Windows 7 SP1 32/64-bit (Ultimate/Enterprise/Professional HomePremium);Windows Server 2008 SP2 32/64-bit; Windows Server 2008R2 SP1 64-bit (standard edition); Windows 8 and 8.1 Pro/Enterprise 32/64-bit; Windows 10 In the Box Ricoh WXGA 3500-Lumen Ultra Short Throw DLP Projector 9.8' RGB Cable 9.8' 3-Pin Power Cord Soft-Side Carrying Case Remote Control with Battery Projector Management Utility CD-ROM Limited 90-Day Warranty on Lamp Limited 3-Year Warranty on Projector Table of Contents
|
Upload User Manual
Have you got an user manual for the Ricoh WXGA 3500-Lumen Ultra Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

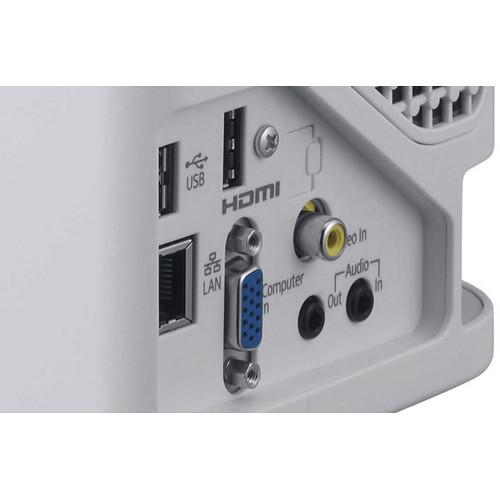

Technical parametersRicoh PJ WX4152N Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Max Brightness | 3500 Lumens | | Aspect Ratio | 16:10 | | Contrast Ratio | 13000:1 | | DLP Link 3D | Yes | | | | Focus | Manual | | Throw Ratio | 0.11 - 0.14:1 | | Projection Size | 48 - 80" / 121.92 - 203.20 cm | | | | Keystone Correction | Auto | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Closed Captioning | Yes | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x Component (3RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x USB Control (Input/Output)
1 x HDMI Audio/Video
1 x USB 2.0 Video (Input)
1 x Ethernet (RJ45) LAN | | Wireless LAN / Wi-Fi | Yes, Built-in | | | | Expected Lamp Life | Medium Brightness: 3500 Hours
Low Brightness: 5000 Hours | | Fan Noise | Medium Brightness: 38 dB
Low Brightness: 32 dB | | Security | Keypad Lock
Password Protection | | Supported Languages | Arabic
Czech
Danish
Dutch
English
French
German
Greek
Indonesian
Italian
Japanese
Norwegian
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Thai
Traditional Chinese
Turkish | | Power Consumption | Medium Brightness: <313 W
Low Brightness: 208 W
Standby Mode (Lamp Off): <0.3 W Standby Wired LAN: <1.4 W
Standby Wired LAN + Wireless LAN | | Temperature | Operating
41 to 95°F (5 to 35°C)
Humidity: 30 - 70% | | Dimensions (W x H x D) | 110.1 x 8.7 x 5.7" / 279.7 x 22.1 x 14.5 cm | | Weight | 6.6 lb / 3.0 kg |
