User Manual for RigWheels 10 Ton Bundle

• Product category: Cine Dollies RigWheels
• Brand: RigWheels
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for RigWheels Cine Dollies

Product description

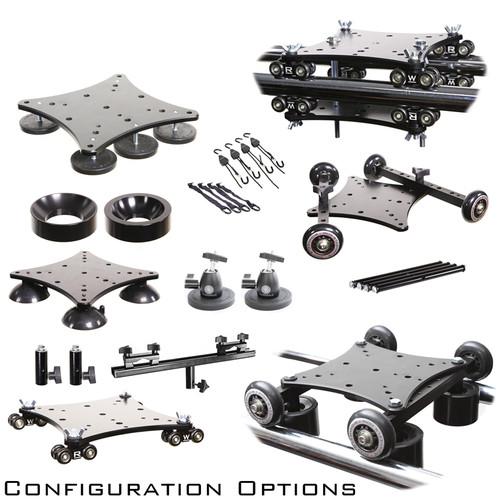

• RP01 RigPlate The RigWheels RP01 RigPlate serves as a resourceful component of the camera mounting hardware. Its first function is to serve as a mounting plate for attaching RigWheels. The RigPlate and 1 set of RigWheels (sold separately) provide with smooth movement as a tabletop / skater dolly that can be used on any smooth or hard surface.

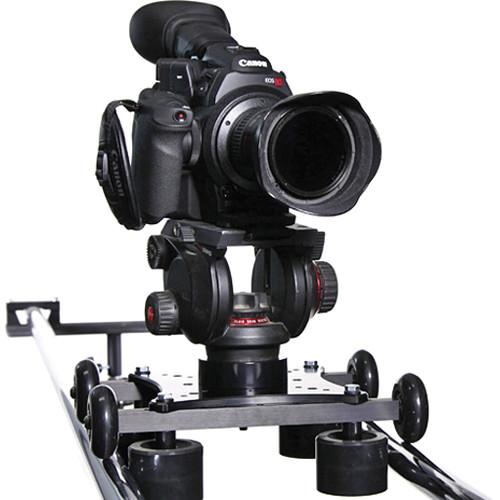

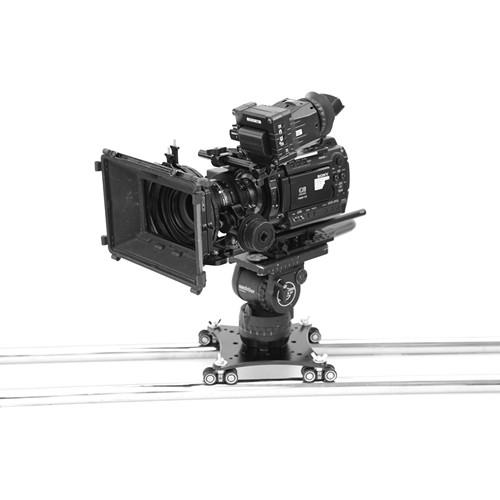

  Using the RigPlate as a pipe dolly gives a scalable slider / dolly option for the new generation of mid-size and compact cameras. Attaching 2 RigPlates together creates a captive-rail camera carriage that allows secure camera movement at any angle. Using the RigPlate in conjunction with RigAxels (sold separately) adds even more capability to this simple system with a more traditional tabletop dolly setup and a robust pipe-dolly option.

  The RigPlate is a camera support platform and can be used for much more than camera movement. A variety of several different mounting points allow you to attach a myriad of accessories. There are ten 1/4-20 and five 3/8-16 threaded holes (industry standard sizes) in addition to four 5/16" and five 3/8" pass-through holes.

  The RigPlate can be turned into a rock-solid suction mount by adding the A-Cups or B- Cups (sold separately). UPC: 854821004033
• RA01 1-RigAxle The RigWheels RA01 1-RigAxle is designed to be used in conjunction with the RigPlate (sold separately). It allows for several different additional configurations that provide with even more options for getting smooth camera movement with the RigWheels system (sold separately).

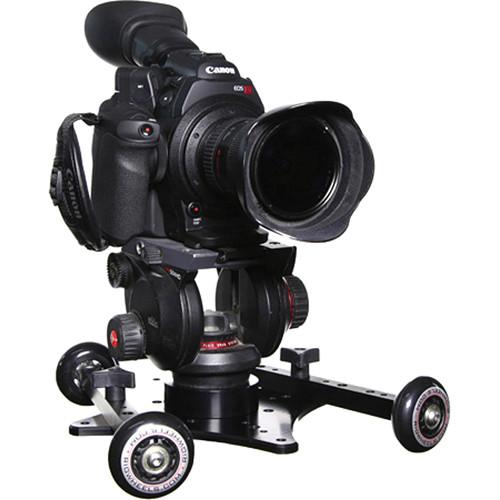

  With the custom inline wheels (sold separately) attached to the ends, you can use the RigAxle to convert the RigPlate (sold separately) into a more robust tabletop dolly with a larger footprint. This is a suitable solution for larger camera setups. Moreover, you can pivot the RigAxle to get curved dolly moves. If used with both RigPlate and RigWheels, it adds a bottom bar to make a captive rail pipe slider.

  The RigAxle and RigPlate can be used together with the RailRunner configuration. Four 1/4"-20 holes allow for easy attachment of the RigMount (sold separately) and A-Cups (sold separately). In this configuration, the RigAxle can serve as mounting points for the camera gear as well as stabilization outriggers when using the RigPlate as a camera mount. UPC: 854821004194

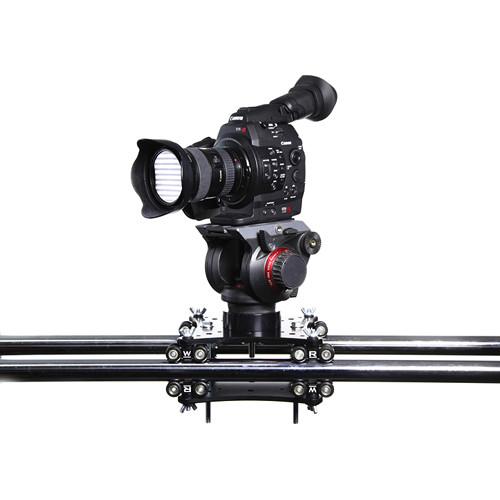

• MicroWheel Camera Dolly Wheels (4-Pack) This pack of four MicroWheel Camera Dolly Wheels from RigWheels are simple and versatile tools for constructing your own pipe dolly, skate dolly, and other DIY camera slider. Each MicroWheel carriage mounts to your dolly platform using a single bolt and features four bearing wheels to smoothly ride on any pipe with an outside diameter of 1 to 2". The machined 6061 aluminum wheel carriages and high quality bearings combine to allow each carriage to support loads up to 50 lb. In addition to riding on rails, the MicroWheels can also be used on table tops and other flat surfaces. You can even attach the wheels directly to 15mm rods using optional adapters, allowing you to turn your 15mm rod support rig into a compact and portable camera dolly/slider. UPC: 854821004316
• Inline Wheels (4-Pack) Designed to be not too hard and not too soft, this 4-pack of Inline Wheels from RigWheels is ideal for smooth dolly moves for film and video. Each wheel sports a 2.7" outside diameter and comes equipped with ABEC 7 bearings and spacers for inside the wheels. Additionally, they are easily mounted with either 5/16" or M8 bolts. UPC: 854821004231
• LW04 Longboard Wheels (4-Pack) The 4-pack LW04 Longboard Wheels from RigWheels are a suitable custom formulation for film and video applications. These wheels are neither too hard nor too soft. They include ABEC 7 bearings and hard-to-find spacers that go inside the wheels. UPC: 854821004255

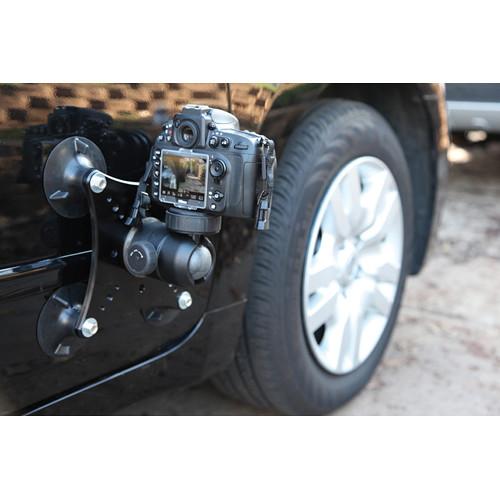

• A-Cups (4-Pack) The 4-pack of RigWheels A-Cups includes four industrial grade camera suction mounts with industry standard 1/4"-20 studs that screw directly into the optional RigPlate or RigAxels. Of the three different versions of suction cups that RigWheels offers, the A-Cups are the most general purpose and most cost effective model.
  • The A-Cups are the most general purpose and most cost effective of the three RigWheels suction mounts
  • Industrial grade camera suction mounts with industry standard 1/4"-20 studs
  • Screw directly into the RigPlate or RigAxels (both sold separately)
  UPC: 854821004217
• Rig Mount Magnetic Mount Long (Single) Designed as a magnetic alternative to a suction cup for the RigWheels RigPlate, this long stud version of the RigWheels RigMount provides the advantage of reduced vibration and immunity to extreme temperatures. Made of earth magnets and featuring a rubber coating to protect your mounting surface, it securely and safely attaches to metal surfaces and supports payloads up to 50 lb (in a vertical pull).

  Four or more are recommended to be used with the RigPlate at the same time to provide the security of balance. The RigPlate is sold separately. UPC: 854821004422

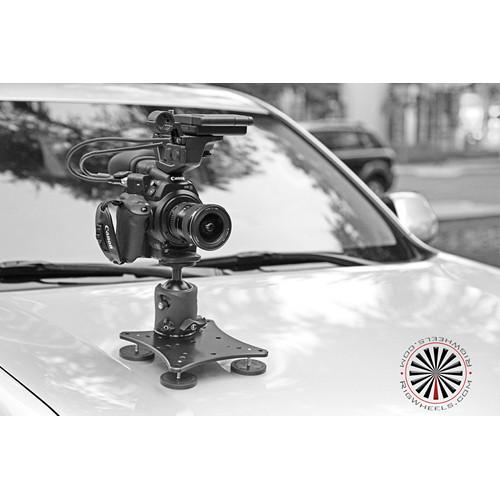

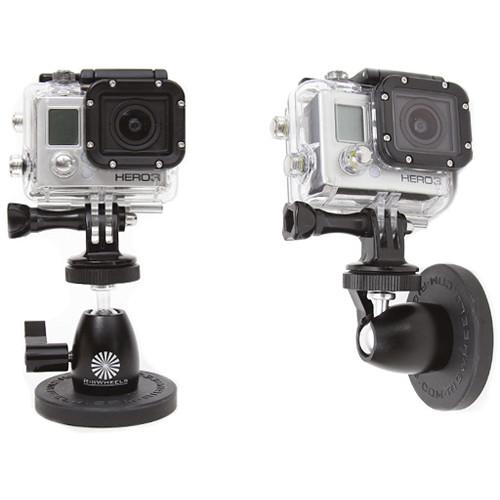

• RMS1 RigMount The RigWheels RMS1 RigMount is a magnetic camera car mount that uses rare earth magnets to achieve its high holding power (Up to 35 lb in a vertical pull). This mount has a shorter mounting bolt on the top, which is sized specifically for use with cameras and small ball heads. It has a specially formulated rubber coating to both protect the surface you mount to and to prevent slippage. The one thing about mounting a camera with this magnetic camera mount is that once it is safely attached to a steel surface it will not lose its holding power. When you mount your camera with the RigMount, you can be confident that your frame will stay exactly where you want it.

  Suction mounts are prone to vibration because of the rubber components. Because this magnetic camera car mount uses a durable rubber material that is just thick enough to protect the surface you're mounting to, there will be less vibration and your shots will be more stable. Since the RigMount has a flat base, it can also be used as a mini-tripod to place and position your camera. For point-and-shoot cameras, the RigMount makes a good travel tripod because of its versatility and all the different ways in which you can place it. One of the difficulties with most miniature tripods is that it can often be difficult to find a platform to put them on in order to get the camera to the correct height. The RigMount solves this problem with its ability to attach to steel surfaces (street signs, cars, mail boxes, and railings). Note: If you use a GoPro small action camera you will need an optional GoPro tripod adapter. UPC: 854821004019
• BA75 75mm Leveling Ball to Flat Surface Adapter Enabling you to quickly mount ball leveling heads to a flat surface, the Rig Wheels BA75 75mm Leveling Ball to Flat Surface Adapter is a collar that your tripod head's leveling ball fits into. Machined from 6061 aluminum, the collar secures your head, and supports standard 75mm heads along the bottom and sides, for a secure non-slip mount on a flat surface.
  • Anodized, machined 6061 aluminum, for strength, durability, and resistance to corrosion and wear
  • The shape of the collar's interior supports standard 75mm leveling balls, presenting a secure mounting surface
  UPC: 854821004293
• BA100 100mm Leveling Ball to Flat Surface Adapter Enabling you to quickly mount ball leveling heads to a flat surface, the Rig Wheels BA100 100mm Leveling Ball to Flat Surface Adapter is a collar that your tripod head's leveling ball fits into. Machined from 6061 aluminum, the collar secures your head, and supports standard 100mm heads along the bottom and sides, for a secure non-slip mount on a flat surface.
  • Anodized, machined 6061 aluminum, for strength, durability, and resistance to corrosion and wear
  • The shape of the collar's interior supports standard 100mm leveling balls, presenting a secure mounting surface

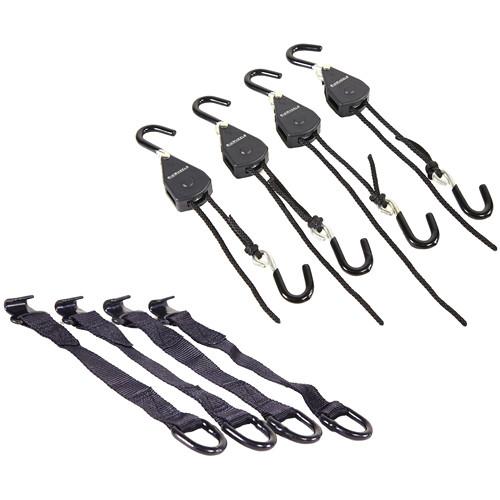

• HH01 Hood Hook Car Mounting Strap The HH01 Hood Hook Car Mounting Strap from RigWheels is designed to secure and mount cameras or other gear to the exterior of your car and can support up to 200 pounds. The mounting strap hooks on to the edges of the body panels and can provide a fixed connection to the car. The hook and d-ring components are rubber coated. UPC: 854821004507
• Small Ball Head Made for mounting cameras and other small accessories, this Small Ball Head from RigWheels uses a standard 1/4"-20 screw to connect to your gear and can support any equipment weighing up to 6.5 lb. Its female mount is also equipped with 1/4"-20 threads, allowing it to be installed on tripods and stands that use that same size. With a weight of 3 oz and a fixed height of 2.5", the ball head is capable of 360° panning and 90° tilting for nearly unrestricted movement. A single lever is used for locking and unlocking the head, with a ratcheting action and durable metal construction. UPC: 854821004279

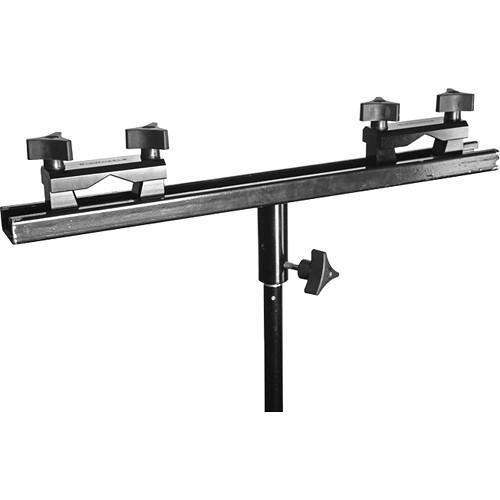

• Universal Rail Brackets with 18" Cross Bars Accommodating various track widths and pipe sizes, the Universal Rail Brackets with 18" Cross Bars from RigWheels can be used with a wide range of suspended rail type sliders and dollies. The package includes two 18" cross bars, each coming with a pair of rail brackets that support pipes with an outside diameter between 1 and 2". The brackets will also support square or rectangular rails up to 1.75" wide.

  For a truly universal system, the distance between the rails (center to center) is adjustable along the 18"" support, with a minimum distance of 5" and maximum distance of 16". The 18" bar is the ideal size for the RigWheels RailDolly configurations. For versatile mounting, the cross bar features 3/8"-16 threaded holes in the center and ends of the track. A pair light stand adapters are included for supporting the track using light stands with a 5/8" baby pin. UPC: 854821004446

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 4 x 5/16" Bolt (1.25" Long)

• 8 x 5/16" Nut

• 3/8" Bolt (0.75" Long)

• Limited 1-Year Warranty

• Bearings

• Spacers

• Limited 1-Year Warranty

• Bearings

• Spacers

• Limited 1-Year Warranty

• 4 x A-Cup Camera Suction Mounts

• 1-Year Limited Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2 x 18" Cross Bar

• 4 x Variable Size Pipe Clamp

• 2 x Baby Junior Adapter

• 8 x 3 Prong Knob with 5/16"-18 Screw

• 2 x 3 Prong Knob with 1/4"-20 Screw

• 8 x 5/16" Washer

• 2 x 3/8" x 3/4" Bolt

• 2 x 3/8" Split Washer

• 2 x 3/8" Washer

• Limited 1-Year Warranty

Also Includes

• 4 x RICR01
• 4 x Drum Stick 15mm Wheel Axle
• 8 x 3 Prong Knob - 5/16"-18
• 6 x 3 Prong Knob - 1/4"-20
• 20 x 5/16" Bolt - 1.25" Long
• 4 x 5/16" Bolt - 3.5" Long
• 16 x 5/16" Washer
• 12 x 5/16" Wing Nut
• 8 x Short 5/16" Wheel Spacer
• 4 x Long 5/16" Wheel Spacer
• 6 x 3/8" Bolt - 0.75" Long
• 2 x 3/8" Bolt - 6" Long
• 4 x 3/8" Wing Nut
• 6 x 3/8" Split Washer

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• RP01 RigPlate

  Box Dimensions (LxWxH)	12.2 x 8.5 x 0.4"

• RA01 1-RigAxle

  Box Dimensions (LxWxH)	10.9 x 8.7 x 0.4"

• MicroWheel Camera Dolly Wheels (4-Pack)

  Dimensions	2 x 4 x 6" (5.1 x 10.2 x 15.2 cm)
  Weight	12.8 oz (363 g)

  Box Dimensions (LxWxH)	7.8 x 5.4 x 1.0"

• Inline Wheels (4-Pack)

  Diameter	2.7" / 68 mm
  Mounting	5/16" or M8 bolts

  Box Dimensions (LxWxH)	9.0 x 5.6 x 0.9"

• LW04 Longboard Wheels (4-Pack)

  Box Dimensions (LxWxH)	11.4 x 8.5 x 1.9"

• A-Cups (4-Pack)

  Mount Type	Suction (general purpose use)
  Tripod Mounting Screw	1/4"-20
  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	9.2 x 8.6 x 2.0"

• Rig Mount Magnetic Mount Long (Single)

  Screw Type	1/4"-20, 1.5" long (3.8 cm)
  Mount Plate Diameter	2.5" (6.4 cm)

  Box Dimensions (LxWxH)	2.58 x 2.205 x 0.394"

• RMS1 RigMount

  Box Dimensions (LxWxH)	8.8 x 5.65 x 0.65"

• BA75 75mm Leveling Ball to Flat Surface Adapter

  Material of Construction	Anodized 6061 Aluminum
  Head Fitting	75 mm

  Box Dimensions (LxWxH)	3.75 x 3.75 x 1.0"

• BA100 100mm Leveling Ball to Flat Surface Adapter

  Material of Construction	Anodized 6061 Aluminum
  Head Fitting	100 mm

  Box Dimensions (LxWxH)	3.5 x 3.5 x 1.0"

• HH01 Hood Hook Car Mounting Strap

  Weight Range	Up to 200.0 lb / 90.7 kg
  Length	8" / 20.32 cm
  Weight	0.14 lb / 0.06 kg

  Box Dimensions (LxWxH)	8.5 x 5.5 x 0.8"

• Small Ball Head

  Bottom Mount	1 x 1/4"-20 Female
  Top Mount	1 x 1/4"-20 Male
  Dimensions	2.5" / 6.3 cm

  Box Dimensions (LxWxH)	8.75 x 5.6 x 1.25"

• Universal Rail Brackets with 18" Cross Bars

  Bar Length	18" (45.7 cm)
  Clamp Diameter	Pipe: 1 to 2" (24 to 50 mm) Square/Rectangular Rails: up to 1.75" (44.5 mm)

  Box Dimensions (LxWxH)	20.2 x 6.95 x 6.7"
