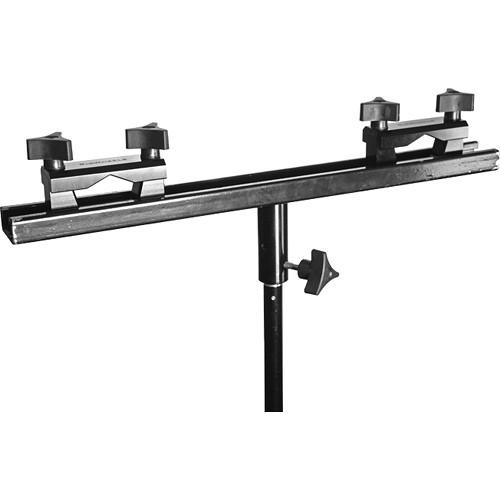

RigWheels 5 Ton Camera Movement Mounting

User Manual for RigWheels 5 Ton Camera Movement Mounting Bundle

• Product category: Cine Dollies RigWheels
• Brand: RigWheels
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for RigWheels Cine Dollies

Product description

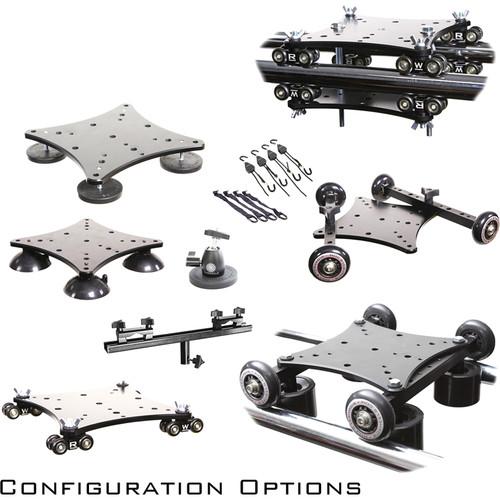

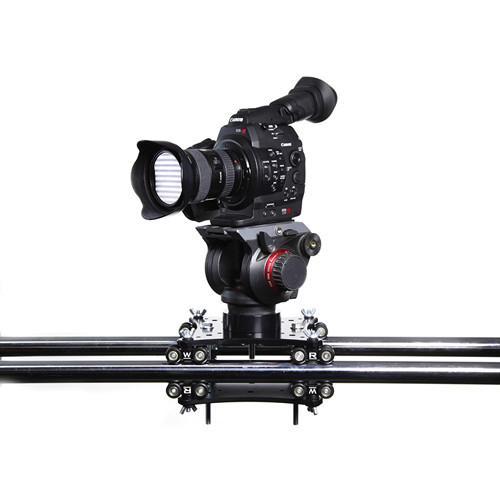

• RP01 RigPlate The RigWheels RP01 RigPlate serves as a resourceful component of the camera mounting hardware. Its first function is to serve as a mounting plate for attaching RigWheels. The RigPlate and 1 set of RigWheels (sold separately) provide with smooth movement as a tabletop / skater dolly that can be used on any smooth or hard surface.

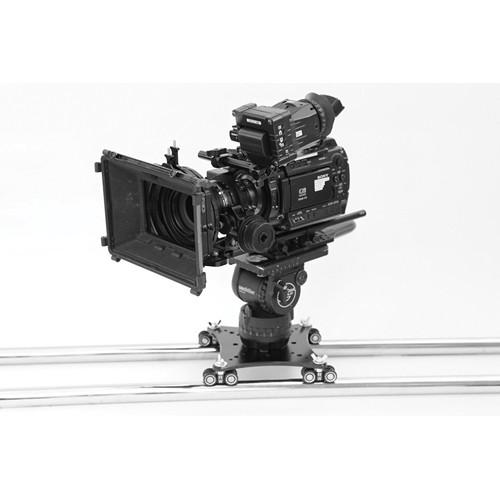

  Using the RigPlate as a pipe dolly gives a scalable slider / dolly option for the new generation of mid-size and compact cameras. Attaching 2 RigPlates together creates a captive-rail camera carriage that allows secure camera movement at any angle. Using the RigPlate in conjunction with RigAxels (sold separately) adds even more capability to this simple system with a more traditional tabletop dolly setup and a robust pipe-dolly option.

  The RigPlate is a camera support platform and can be used for much more than camera movement. A variety of several different mounting points allow you to attach a myriad of accessories. There are ten 1/4-20 and five 3/8-16 threaded holes (industry standard sizes) in addition to four 5/16" and five 3/8" pass-through holes.

  The RigPlate can be turned into a rock-solid suction mount by adding the A-Cups or B- Cups (sold separately). UPC: 854821004033
• RA02 2-RigAxels The RigWheels RA02 2-RigAxels are designed to be used in conjunction with the RigPlate (sold separately). These RigAxels allow for several different additional configurations that provide you with even more options for getting smooth camera movement with the RigWheels system (sold separately).

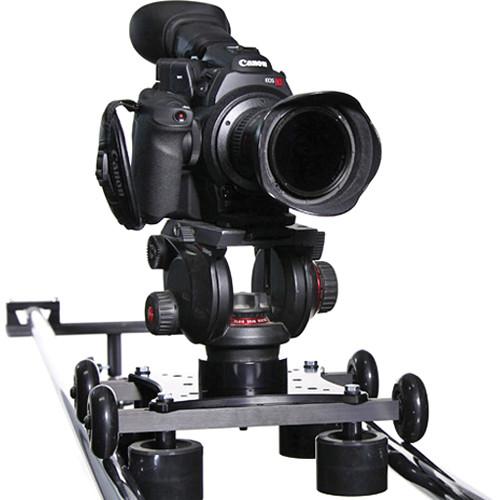

  With the custom inline wheels (sold separately) attached to the ends, you can use these RigAxels to convert the RigPlate (sold separately) into a more robust tabletop dolly with a larger footprint. This is a suitable solution for larger camera setups. Moreover, you can pivot the RigAxels to get curved dolly moves. When used with both the RigPlate and RigWheels, they add a bottom bar to make a captive rail pipe slider.

  These RigAxels and the RigPlate can be used together with the RailRunner configuration. Four 1/4"-20 holes allow for easy attachment of the RigMount (sold separately) and A-Cups (sold separately). In this configuration, the RigAxels can serve as mounting points for camera gear as well as stabilization outriggers when using the RigPlate as a camera mount. UPC: 854821004200
• MicroWheel Camera Dolly Wheels (4-Pack) This pack of four MicroWheel Camera Dolly Wheels from RigWheels are simple and versatile tools for constructing your own pipe dolly, skate dolly, and other DIY camera slider. Each MicroWheel carriage mounts to your dolly platform using a single bolt and features four bearing wheels to smoothly ride on any pipe with an outside diameter of 1 to 2". The machined 6061 aluminum wheel carriages and high quality bearings combine to allow each carriage to support loads up to 50 lb. In addition to riding on rails, the MicroWheels can also be used on table tops and other flat surfaces. You can even attach the wheels directly to 15mm rods using optional adapters, allowing you to turn your 15mm rod support rig into a compact and portable camera dolly/slider. UPC: 854821004316
• Inline Wheels (4-Pack) Designed to be not too hard and not too soft, this 4-pack of Inline Wheels from RigWheels is ideal for smooth dolly moves for film and video. Each wheel sports a 2.7" outside diameter and comes equipped with ABEC 7 bearings and spacers for inside the wheels. Additionally, they are easily mounted with either 5/16" or M8 bolts. UPC: 854821004231

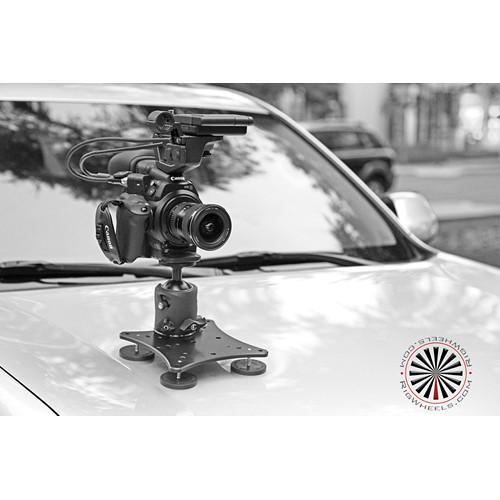

• Rig Mount Magnetic Mount Long (4-Pack) Designed as a magnetic alternative to a suction cup for the RigWheels RigPlate, this long stud version of the RigWheels RigMount provides the advantage of reduced vibration and immunity to extreme temperatures. Made of earth magnets and featuring a rubber coating to protect your mounting surface, it securely and safely attaches to metal surfaces and supports payloads up to 50 lb (in a vertical pull).

  This 4-pack will allow you to have the RigPlate secured on all four corners. You can use more than four if you'd like. The RigPlate is sold separately. UPC: 854821004187

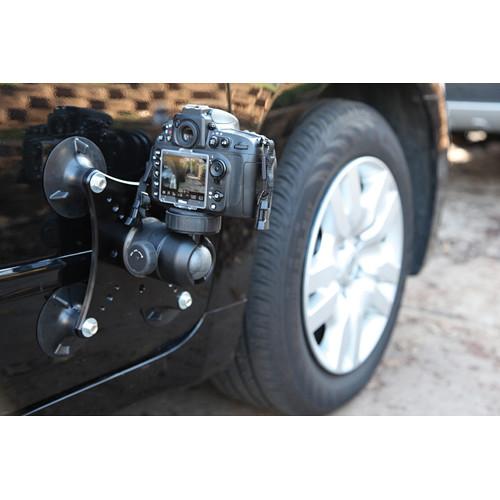

• A-Cups (4-Pack) The 4-pack of RigWheels A-Cups includes four industrial grade camera suction mounts with industry standard 1/4"-20 studs that screw directly into the optional RigPlate or RigAxels. Of the three different versions of suction cups that RigWheels offers, the A-Cups are the most general purpose and most cost effective model.
  • The A-Cups are the most general purpose and most cost effective of the three RigWheels suction mounts
  • Industrial grade camera suction mounts with industry standard 1/4"-20 studs
  • Screw directly into the RigPlate or RigAxels (both sold separately)
  UPC: 854821004217

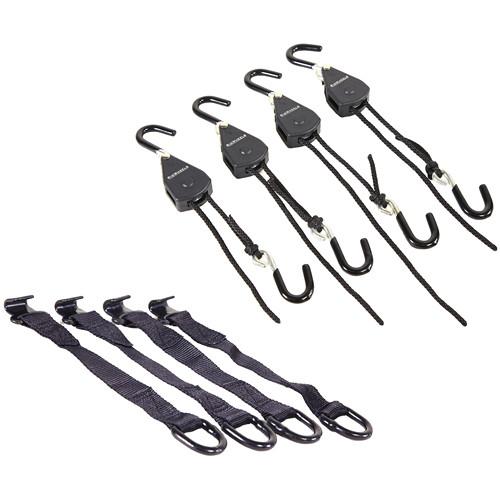

• CR01 CineRope Mounting Stabilizer The RigWheels CR01 CineRope Mounting Stabilizer is designed to help secure and stabilize, providing a secondary safety system to your camera mounting platform when mounted onto cars, mobile rigs, or other moving platforms. It features a weight range of up to 75 pounds, and the included nylon rope is approximately 6' long and threads through a latching pulley arrangement. This allows you to add tension to your safety using only one hand as the pulley has an automatic latch system that prevents the rope from loosening. You actuate the latch to release the tension and allow the rope to loosen.

  The typical application of the CineRope uses the two featured hooks for attachment to an optional RigPlate and Hood Hook. The attachment hooks are rubber-coated to help protect the finished surfaces of your vehicle during use.
  • • Weight capacity of 75 lb
    • Replaceable 6-foot long nylon rope
    • Rubber-coated contact points
    • Automatic locking latch system allows you to add tension using one hand
  UPC: 854821004514

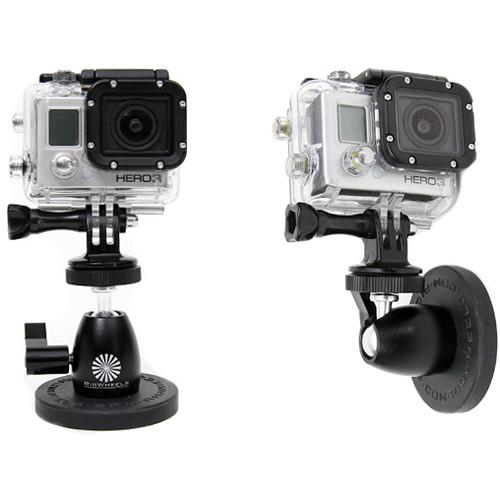

• Small Ball Head Made for mounting cameras and other small accessories, this Small Ball Head from RigWheels uses a standard 1/4"-20 screw to connect to your gear and can support any equipment weighing up to 6.5 lb. Its female mount is also equipped with 1/4"-20 threads, allowing it to be installed on tripods and stands that use that same size. With a weight of 3 oz and a fixed height of 2.5", the ball head is capable of 360° panning and 90° tilting for nearly unrestricted movement. A single lever is used for locking and unlocking the head, with a ratcheting action and durable metal construction. UPC: 854821004279
• HH01 Hood Hook Car Mounting Strap The HH01 Hood Hook Car Mounting Strap from RigWheels is designed to secure and mount cameras or other gear to the exterior of your car and can support up to 200 pounds. The mounting strap hooks on to the edges of the body panels and can provide a fixed connection to the car. The hook and d-ring components are rubber coated. UPC: 854821004507
• LW04 Longboard Wheels (4-Pack) The 4-pack LW04 Longboard Wheels from RigWheels are a suitable custom formulation for film and video applications. These wheels are neither too hard nor too soft. They include ABEC 7 bearings and hard-to-find spacers that go inside the wheels. UPC: 854821004255

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 4 x 5/16" Bolt (1.25" Long)

• 8 x 5/16" Nut

• 3/8" Bolt (0.75" Long)

• Limited 1-Year Warranty

• Bearings

• Spacers

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 4 x A-Cup Camera Suction Mounts

• 1-Year Limited Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Bearings

• Spacers

• Limited 1-Year Warranty

Also Includes

• Short RigMount Magnetic Mount
• 2 x Baby Junior Adapter
• 4 x 5/16" Long Bolt - 3-1/2"
• 12 x 5/16" Long Bolt - 3-1/2"
• 12 x 5/16" Washer
• 8 x 5/16" Wing Nut
• 8 x 5/16" Short Wheel Spacer
• 4 x 5/16" Long Wheel Spacer
• 4 x 1/4"-20 3 Prong Knob
• 8 x 5/16"-18 3 Prong Knob
• 4 x 3/8" Long Bolt 6"
• 3 x 3/8" Long Bolt 3/4"
• 15 x 3/8" Washer
• 8 x 3/8" Wing Nut
• 4 x 3/8" Split Washer
• 2 x 18" Cross Bar
• 4 x Variable Size Pipe Clamp
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• RP01 RigPlate

  Box Dimensions (LxWxH)	12.2 x 8.5 x 0.4"

• RA02 2-RigAxels

  Box Dimensions (LxWxH)	11.0 x 2.7 x 1.2"

• MicroWheel Camera Dolly Wheels (4-Pack)

  Dimensions	2 x 4 x 6" (5.1 x 10.2 x 15.2 cm)
  Weight	12.8 oz (363 g)

  Box Dimensions (LxWxH)	7.8 x 5.4 x 1.0"

• Inline Wheels (4-Pack)

  Diameter	2.7" / 68 mm
  Mounting	5/16" or M8 bolts

  Box Dimensions (LxWxH)	9.0 x 5.6 x 0.9"

• Rig Mount Magnetic Mount Long (4-Pack)

  Screw Type	1/4"-20, 1.5" long (3.8 cm)
  Mount Plate Diameter	2.5" (6.4 cm)

  Box Dimensions (LxWxH)	9.0 x 5.15 x 2.2"

• A-Cups (4-Pack)

  Mount Type	Suction (general purpose use)
  Tripod Mounting Screw	1/4"-20
  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	9.2 x 8.6 x 2.0"

• CR01 CineRope Mounting Stabilizer

  Length	6' / 1.8 m maximum 4" / 10.2 cm minimum
  Weight	0.18 lb / 0.08 kg

  Box Dimensions (LxWxH)	9.25 x 5.55 x 1.05"

• Small Ball Head

  Bottom Mount	1 x 1/4"-20 Female
  Top Mount	1 x 1/4"-20 Male
  Dimensions	2.5" / 6.3 cm

  Box Dimensions (LxWxH)	8.75 x 5.6 x 1.25"

• HH01 Hood Hook Car Mounting Strap

  Weight Range	Up to 200.0 lb / 90.7 kg
  Length	8" / 20.32 cm
  Weight	0.14 lb / 0.06 kg

  Box Dimensions (LxWxH)	8.5 x 5.5 x 0.8"

• LW04 Longboard Wheels (4-Pack)

  Box Dimensions (LxWxH)	11.4 x 8.5 x 1.9"
