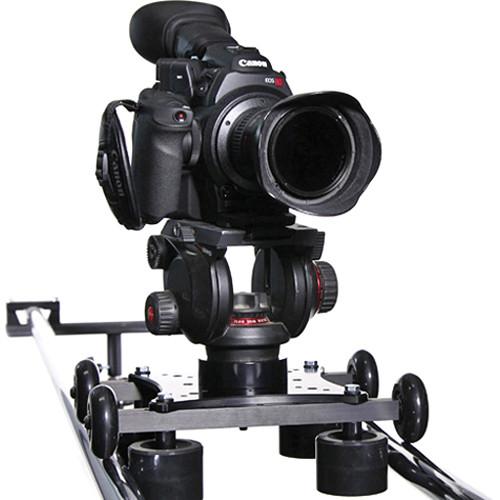

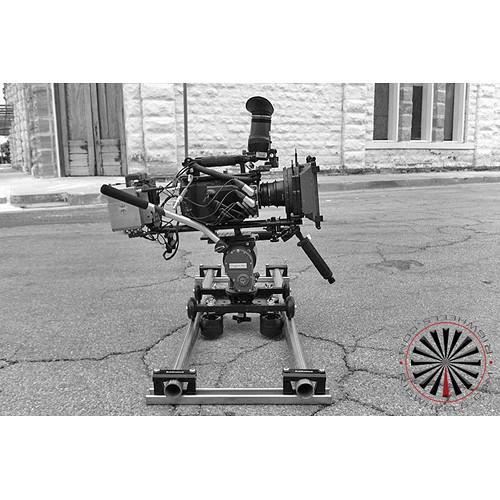

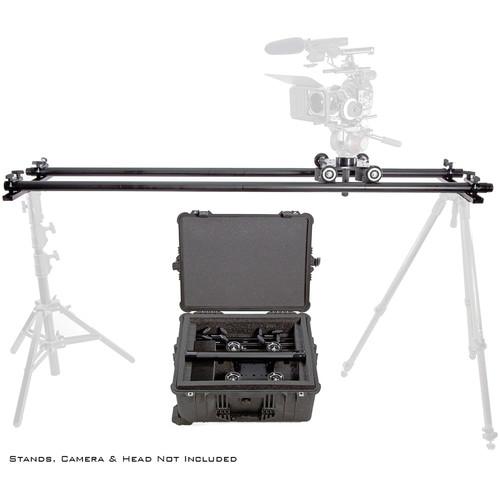

Product description The RigWheels Passport is an all-in-one, heavy-duty dolly system designed for travelling production professionals. Coming in at a flight ready 50 lb, it includes a collection of rails and camera support accessories that configure into various length dollies for loads up to 100 lb. All the components fit neatly into the included Pelican 1610 case, which features wheels and a wheel handle for simple transport.
Eight 19" rail sections are included and can be connected together to up to 6.3 ft of track. The rails are rigidly constructed from high-grade 6061 aluminum and connect seamlessly via threaded ends. At the full length of 6.3 ft, the rails have less than 1/8" of flex with a 40 lb load placed at the center. Optional 40" rails (available in a set that totals to 10 ft of track) can interchangeably be used for even longer track lengths.

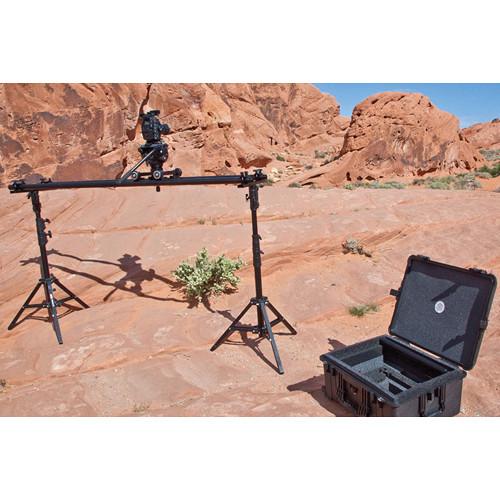

With an included support axel attached at each end, the track can be placed on top of various objects or directly on the ground. Camera support accessories include a multi-threaded, large mounting plate and 100mm and 75mm tripod head ball adapters. - Key Features
-
- All-in-one, heavy-duty dolly system for travelling professionals
- Eight 19" rail sections connect together to 6.3 ft of track
- 100 lb payload
- Rigid rail construction — less than 1/8" of flex with a 40 lb load
- 100mm and 75mm tripod head ball adapters included
- Flight ready 50 lb total weight
- Pelican 1610 case with wheels
UPC: 854821004545 In the Box RigWheels Passport Camera Dolly RP01 RigPlate fcstfcrbfvtexrqeuceszbefvrqvzerxc 2 x RA01 1-RigAxle 4 x Inline Wheels 4 x Longboard Wheels 8 x 19" (48 cm) PortaRail Rails 8 x PRC1 PortaRail Connector 16 x Rubber End Caps Pelican 1610 Passport Case 2 x Light Stand Adapter for Rail Brackets 2 x 18" (46 cm) Cross Bar 4 x Variable Size Pipe Clamp BA100 100mm Leveling Ball to Flat Surface Adapter BA75 75mm Leveling Ball to Flat Surface Adapter 8 x 3-Prong Knob (5/16"-18) 4 x 3-Prong Knob (1/4"-20) 4 x Long 5/16" Wheel Spacer 4 x 5/16" Bolt (3.5" / 8.9 cm Long) 4 x 5/16" Bolt (1.25" / 3.2 cm Long) 12 x 5/16" Washer 3 x 3/8" Bolt (0.75" / 1.9 cm Long) 3 x 3/8" Washer 2 x 3/8" Split Washer 4 x Wing Nut (5/16") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RigWheels Passport Camera Dolly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRigWheels PCD1 Specs | Max Track Length | 6.3 ft (1.9 m) | | Payload | 100 lb (45 kg) | | Material | Rails: High-grade 6061 aluminum | | Total Weight | 50 lb (22.7 kg) | | | | Package Weight | 53.2 lb | | Box Dimensions (LxWxH) | 26.0 x 19.8 x 12.4" |
