User Manual for RigWheels RailDolly Pro Kit Click to enlarge the picture
Contents of the user manual for the RigWheels RailDolly Pro Kit
- Product category: Cine Dollies RigWheels
- Brand: RigWheels
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RigWheels Cine Dollies
|
User manual for the RigWheels RailDolly Pro Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RigWheels product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RigWheels user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RigWheels product will considerably shorten its lifespan!
|

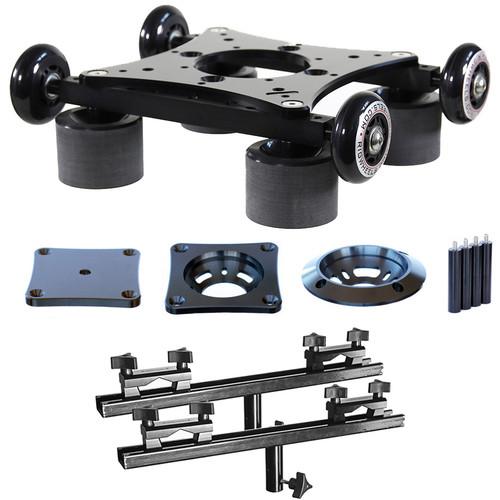

Product description The RailDolly Pro Kit from RigWheels is designed for uses where you can provide your own rails and support stands. The kit includes the RailDolly Carriage, Universal End Brackets with 18" crossbars, three Pro head adapter plates (flat, 75mm bowl, 100mm bowl), and a set of 3" plate risers. In keeping with RigWheels' multipurpose philosophy, the kit components can also be configured for use as the RigSkate Pro. - RailDolly Flexibility and ease of use are at the heart of Rig Wheel's Rail Dolly a multi-function camera slider/dolly. The heart of the rail dolly is the RigWheels RigPlate, which is a superellipse (square with inwardly curved sides) shaped metal plate that features 1/4", 3/8", and 5/16" through holes. The pre-drilled through holes allow you to mount a variety of optional accessories directly to the plate. The RailDolly glides silently on round, square, or rectangular track, riding on semi-soft skate wheels that incorporate ABEC 7 rated precision bearings.
The Rig Plate is black anodized and features chamfered edges. It features a threaded 3/8"-16 threaded hole in the center for mounting optional flat base tripod heads. Optional collars are available for mounting ball leveling fluid heads. The components included with the RailDolly allow you to configure it to ride on track or convert it to a tabletop skate dolly. - The RailDolly features a large footprint, which makes it suitable for supporting large cameras on track, smooth floors, or tabletops.
- The dolly wheels are configured straight down, as opposed to sets of wheels angled at 45 degrees. This allows the dolly to ride on square or rectangular track in addition to readily available round pipe from 1 to 2" in diameter. Four included wheel spacers provide side-to-side stability by riding along the inside of your track, preventing the RailDolly from slipping of the track.
- The semi-soft wheels feature ABEC 7 rated precision bearings for smooth, silent operation.
UPC: 854821004040 - Universal Rail Brackets with 18" Cross Bars Accommodating various track widths and pipe sizes, the Universal Rail Brackets with 18" Cross Bars from RigWheels can be used with a wide range of suspended rail type sliders and dollies. The package includes two 18" cross bars, each coming with a pair of rail brackets that support pipes with an outside diameter between 1 and 2". The brackets will also support square or rectangular rails up to 1.75" wide.
For a truly universal system, the distance between the rails (center to center) is adjustable along the 18"" support, with a minimum distance of 5" and maximum distance of 16". The 18" bar is the ideal size for the RigWheels RailDolly configurations. For versatile mounting, the cross bar features 3/8"-16 threaded holes in the center and ends of the track. A pair light stand adapters are included for supporting the track using light stands with a 5/8" baby pin. UPC: 854821004446 - 100mm Bowl Adapter for RigPlate Pro The RigWheels 100mm Bowl Adapter for RigPlate Pro enables you to quickly mount a ball-leveling tripod head to the versatile RigPlate Pro plate component. This adapter fastens to separately available 3" or 6" RigWheels risers for greater flexibility. UPC: 856601008439
- 75mm Bowl Adapter for RigPlate Pro The RigWheels 75mm Bowl Adapter for RigPlate Pro enables you to quickly mount a ball-leveling tripod head to the versatile RigPlate Pro plate component. This adapter fastens to separately available 3" or 6" RigWheels risers for greater flexibility. UPC: 856601008422
- Flat Mount Adapter for RigPlate Pro The RigWheels Flat Mount Adapter for RigPlate Pro enables you to quickly mount a flat-based tripod head to the versatile RigPlate Pro plate component. This adapter fastens to separately available 3" or 6" RigWheels risers for greater flexibility.
- 3" Stand Offs with 1/4"-20 Threads (Set of 4) One of several sizes offered by RigWheels, this set of four 3" Stand Offs with 1/4"-20 Threads can be used in a variety of camera or grip rigs. With a diameter of 5/8", these risers can be used with standard grip heads. UPC: 856601008330
In the Box Bundle Items RailDolly xttadxtstbsbzzvvaszuxxbtrwaad - LW04 Longboard Wheels (4-Pack)
- 4 x 5/16" Bolts, 3.5" Long
- 4 x 5/16" Bolts, 1.25" Long
Universal Rail Brackets with 18" Cross Bars - 4 x Variable Size Pipe Clamp
- 8 x 3 Prong Knob with 5/16"-18 Screw
- 2 x 3 Prong Knob with 1/4"-20 Screw
100mm Bowl Adapter for RigPlate Pro xttadxtstbsbzzvvaszuxxbtrwaad 75mm Bowl Adapter for RigPlate Pro Flat Mount Adapter for RigPlate Pro xttadxtstbsbzzvvaszuxxbtrwaad 3" Stand Offs with 1/4"-20 Threads (Set of 4) Table of Contents
|
Upload User Manual
Have you got an user manual for the RigWheels RailDolly Pro Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RailDolly
| Tracks | Rides On
Round: 1 to 2" / 2.54 to 5.1 cm
Square
Rectangular | | | | Box Dimensions (LxWxH) | 15.7 x 12.45 x 6.45" | - Universal Rail Brackets with 18" Cross Bars
| Bar Length | 18" (45.7 cm) | | Clamp Diameter | Pipe: 1 to 2" (24 to 50 mm)
Square/Rectangular Rails: up to 1.75" (44.5 mm) | | | | Box Dimensions (LxWxH) | 20.2 x 6.95 x 6.7" | - 100mm Bowl Adapter for RigPlate Pro
| Head Fitting | 100 mm bowl | | Material of Construction | Aluminum | | Dimensions | 5 x 5 x 3" / 12.7 x 12.7 x 7.6 cm | | Weight | 1 lb / 0.45 kg | | | | Box Dimensions (LxWxH) | 8.7 x 5.75 x 1.75" | - 75mm Bowl Adapter for RigPlate Pro
| Head Fitting | 75 mm bowl | | Material of Construction | Aluminum | | Dimensions | 5 x 5 x 3" / 12.7 x 12.7 x 7.6 cm | | Weight | 1 lb / 0.45 kg | | | | Box Dimensions (LxWxH) | 8.75 x 6.0 x 1.2" | - Flat Mount Adapter for RigPlate Pro
| Head Fitting | Flat | | Material of Construction | Aluminum | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 11.9 x 5.5 x 0.4" | - 3" Stand Offs with 1/4"-20 Threads (Set of 4)
| Mounting Threads | 1/4"-20 | | Thread Depth | 0.75" / 19 mm | | Dimensions (Ø x L) | 5/8" x 3" / 76.2 mm | | | | Box Dimensions (LxWxH) | 8.7 x 5.5 x 0.75" |
