User Manual for RigWheels RigMount XL Camera Mounting Platform with Sidecar and Hostess Tray Click to enlarge the picture
Contents of the user manual for the RigWheels RigMount XL Camera Mounting Platform
- Product category: Camera & Camcorder Mounts RigWheels
- Brand: RigWheels
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RigWheels Camera & Camcorder Mounts
|
User manual for the RigWheels RigMount XL Camera Mounting Platform contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RigWheels product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RigWheels user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RigWheels product will considerably shorten its lifespan!
|

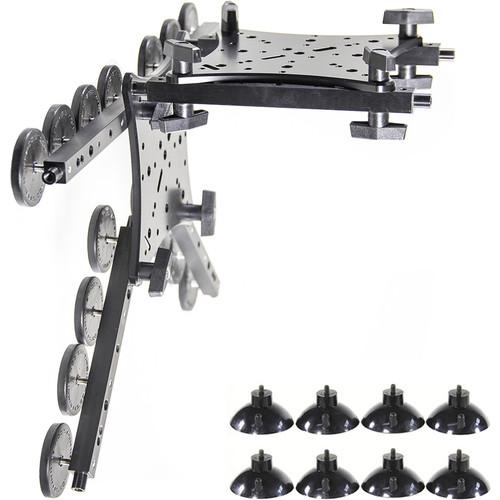

Product description Use the RigMount XL Camera Mounting Platform with Sidecar and Hostess Tray from RigWheels to mount your camera on the metal or glass side of a car, boat, or moving vehicle. The mount consists of two RigPlate cheese-style platforms, sixteen magnetic mounts, eight A-Cup suction mounts, six rig-mounting axles, and all the required connection hardware. The durable metal platform provides stability and weight distribution for large-format cameras, and the provided components are designed to mount on the side of a car or moving vehicle.
At the center of the mount are two versatile RigPlates, each providing ten 1/4"-20 and five 3/8"-16 threaded holes in addition to four 5/16" and five 3/8" pass-through holes for mounting your camera and accessories. The six axles connect to the plates with thumbscrews and can be adjusted in any configuration to balance your camera. The sixteen magnets and eight suction mounts can be used separately or intermixed to create a solid connection with the metal surface. The magnets have a thin, rubber coating to protect the surface and provide up to 50 pounds of vertical pull resistance for a secure bond.
Since the mounting kit components are modular, they can be used in various ways such as a hi-hat mount configuration, or more components can be purchased such as additional magnets for attaching to a glass surface, wheels, and dolly rails. All the hardware required for attaching the mount components is included. Note: This product should always be used with a secondary form of mounting. You should never leave a RigWheels suction mount unattended while in operation as there is always a chance that it may unexpectedly come loose and cause damage to your and/or others' property. RigWheels LLC is not liable for any damages arising from or caused by the use of this product. - RP01 RigPlate The RigWheels RP01 RigPlate serves as a resourceful component of the camera mounting hardware. Its first function is to serve as a mounting plate for attaching RigWheels. The RigPlate and 1 set of RigWheels (sold separately) provide with smooth movement as a tabletop / skater dolly that can be used on any smooth or hard surface.
Using the RigPlate as a pipe dolly gives a scalable slider / dolly option for the new generation of mid-size and compact cameras. Attaching 2 RigPlates together creates a captive-rail camera carriage that allows secure camera movement at any angle. Using the RigPlate in conjunction with RigAxels (sold separately) adds even more capability to this simple system with a more traditional tabletop dolly setup and a robust pipe-dolly option.
The RigPlate is a camera support platform and can be used for much more than camera movement. A variety of several different mounting points allow you to attach a myriad of accessories. There are ten 1/4-20 and five 3/8-16 threaded holes (industry standard sizes) in addition to four 5/16" and five 3/8" pass-through holes.
The RigPlate can be turned into a rock-solid suction mount by adding the A-Cups or B- Cups (sold separately). UPC: 854821004033 - RA01 1-RigAxle The RigWheels RA01 1-RigAxle is designed to be used in conjunction with the RigPlate (sold separately). It allows for several different additional configurations that provide with even more options for getting smooth camera movement with the RigWheels system (sold separately).
With the custom inline wheels (sold separately) attached to the ends, you can use the RigAxle to convert the RigPlate (sold separately) into a more robust tabletop dolly with a larger footprint. This is a suitable solution for larger camera setups. Moreover, you can pivot the RigAxle to get curved dolly moves. If used with both RigPlate and RigWheels, it adds a bottom bar to make a captive rail pipe slider.
The RigAxle and RigPlate can be used together with the RailRunner configuration. Four 1/4"-20 holes allow for easy attachment of the RigMount (sold separately) and A-Cups (sold separately). In this configuration, the RigAxle can serve as mounting points for the camera gear as well as stabilization outriggers when using the RigPlate as a camera mount. UPC: 854821004194 - Rig Mount Magnetic Mount Long (Single) Designed as a magnetic alternative to a suction cup for the RigWheels RigPlate, this long stud version of the RigWheels RigMount provides the advantage of reduced vibration and immunity to extreme temperatures. Made of earth magnets and featuring a rubber coating to protect your mounting surface, it securely and safely attaches to metal surfaces and supports payloads up to 50 lb (in a vertical pull).
Four or more are recommended to be used with the RigPlate at the same time to provide the security of balance. The RigPlate is sold separately. UPC: 854821004422 - A-Cups (4-Pack) The 4-pack of RigWheels A-Cups includes four industrial grade camera suction mounts with industry standard 1/4"-20 studs that screw directly into the optional RigPlate or RigAxels. Of the three different versions of suction cups that RigWheels offers, the A-Cups are the most general purpose and most cost effective model.
- The A-Cups are the most general purpose and most cost effective of the three RigWheels suction mounts
- Industrial grade camera suction mounts with industry standard 1/4"-20 studs
- Screw directly into the RigPlate or RigAxels (both sold separately)
UPC: 854821004217 In the Box Bundle Items 2 x RP01 RigPlate uwubrsdwuqxvycadtrqwdffxvtdvewwavtsq 6 x RA01 1-RigAxle 16 x Rig Mount Magnetic Mount Long (Single) 2 x A-Cups (4-Pack) - 4 x A-Cup Camera Suction Mounts
Also Includes - 6 x 5/16" Thumbscrew (0.75" Long)
- 4 x 5/16" Thumbscrew (2" Long)
- 4 x 5/16" Female Thumbscrew
- 4 x 5/16" Wingnut
- 6 x 5/16" Washer
- 5/16" Bolt (2" Long)
- 2 x 5/16" Bolt (0.87" Long)
- 3/8"-16 Bolt (0.75" Long)
- 3/8" Washer
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the RigWheels RigMount XL Camera Mounting Platform with Sidecar and Hostess Tray in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RP01 RigPlate
| | | Box Dimensions (LxWxH) | 12.2 x 8.5 x 0.4" | - RA01 1-RigAxle
| | | Box Dimensions (LxWxH) | 10.9 x 8.7 x 0.4" | - Rig Mount Magnetic Mount Long (Single)
| Screw Type | 1/4"-20, 1.5" long (3.8 cm) | | Mount Plate Diameter | 2.5" (6.4 cm) | | | | Box Dimensions (LxWxH) | 2.58 x 2.205 x 0.394" | - A-Cups (4-Pack)
| Mount Type | Suction (general purpose use) | | Tripod Mounting Screw | 1/4"-20 | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 9.2 x 8.6 x 2.0" |
