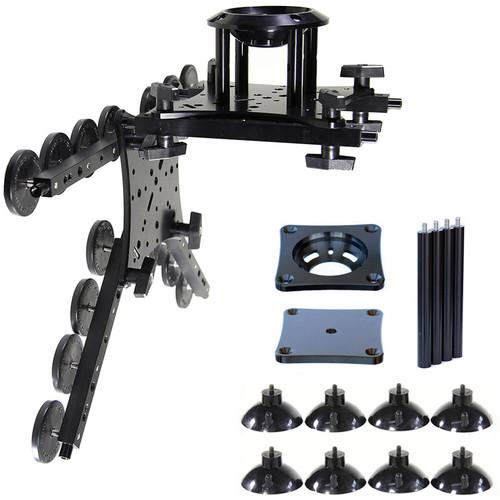

User Manual for RigWheels RigMount XL Camera Mounting Platform with Tripod Head Adapter Kit Click to enlarge the picture
Contents of the user manual for the RigWheels RigMount XL Camera Mounting Platform
- Product category: Camera & Camcorder Mounts RigWheels
- Brand: RigWheels
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RigWheels Camera & Camcorder Mounts
|
User manual for the RigWheels RigMount XL Camera Mounting Platform contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RigWheels product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RigWheels user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RigWheels product will considerably shorten its lifespan!
|
Product description Use the RigMount XL Camera Mounting Platform with Tripod Head Adapter Kit from RigWheels to mount your camera on the metal or glass side of a car, boat, or moving vehicle. The mount consists of two RigPlate cheese-style platforms, sixteen magnetic mounts, eight A-Cup suction mounts, six rig-mounting axles, 75 and 100mm tripod bowl head adapters, a flat adapter, four 3" stand offs (riser rods), four 6" stand offs, and all required connection hardware. The durable metal platform provides stability and weight distribution for large-format cameras, and the provided components are designed to mount on the side of a car or moving vehicle.
At the center of the mount are two versatile RigPlates, each providing ten 1/4"-20 and five 3/8"-16 threaded holes in addition to four 5/16" and five 3/8" pass-through holes for mounting your camera and accessories. The six axles connect to the plates with thumbscrews and can be adjusted in any configuration to balance your camera. The sixteen magnets and eight suction mounts can be used separately or intermixed to create a solid connection with the metal surface. The magnets have a thin rubber coating to protect the surface and provide up to 50 lb of vertical pull resistance for a secure bond.
This version of the XL mount includes 75 and 100mm tripod bowl head adapters and sets of 3 and 6" stand offs to raise the bowl head above the RigPlate to facilitate balancing. A flat adapter is also included to provide additional support.
Since the mounting kit components are modular they can be used in various ways such as a hi-hat mount configuration, or more components can be purchased such as additional magnets for attaching to a glass surface, wheels, and dolly rails. All the hardware required for attaching the mount components is included. Note: This product should always be used with a secondary form of mounting. You should never leave a RigWheels suction mount unattended while in operation as there is always a chance that it may unexpectedly come loose and cause damage to your and/or others' property. RigWheels LLC is not liable for any damages arising from or caused by the use of this product. UPC: 856601008064 In the Box RigWheels RigMount XL Camera Mounting Platform with Tripod Head Adapter Kit 2 x RP01 RigPlate 6 x RA01 1-RigAxle 16 x Rig Mount Magnetic Mount Long (Single) 2 x A-Cups (4-Pack) BA75 75mm Leveling Ball to Flat Surface Adapter 100mm Ball Head Adapter Flat Adapter 6 x 5/16" Thumbscrew (0.75") 6 x 5/16" Bolt (2") 5/16" Washer 3/8"-16 Bolt (0.75") 3/8" Washer 4 x 5/16" Wingnut 2 x 5/16" Bolt (0.87") 5/16" Female Thumbscrew 5/16" Thumbscrew (2") Set of Four 1/4"-20 Stand Offs (3") Set of Four 1/4"-20 Stand Offs (6") Limited 1-Year Warranty Table of Contents
|
