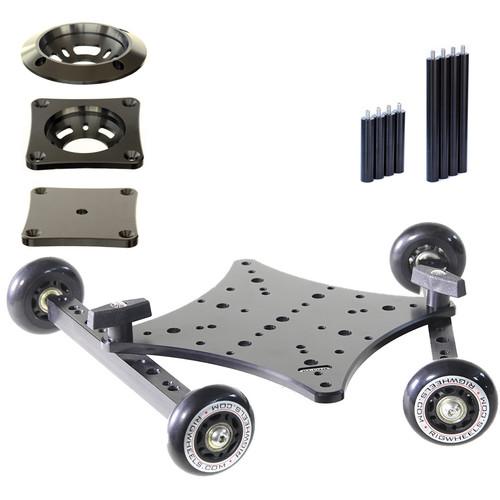

User Manual for RigWheels RigSkate 2 Tabletop Skater Dolly Complete Kit Click to enlarge the picture
Contents of the user manual for the RigWheels RigSkate 2 Tabletop Skater Dolly
- Product category: Cine Dollies RigWheels
- Brand: RigWheels
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RigWheels Cine Dollies
|
User manual for the RigWheels RigSkate 2 Tabletop Skater Dolly contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RigWheels product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RigWheels user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RigWheels product will considerably shorten its lifespan!
|
Product description The RigWheels RigSkate 2 Tabletop/Skater Dolly Complete Kit supports camera rigs up to 100 lb and includes flat as well as 75 and 100mm bowl tripod adapters. Use this skater dolly to create straight, smooth tabletop, or floor-based dolly shots. The inclusion of 3 and 6" riser sets adds even greater flexibility when using various heads to mount your camera on the skater dolly. - RP01 RigPlate The RigWheels RP01 RigPlate serves as a resourceful component of the camera mounting hardware. Its first function is to serve as a mounting plate for attaching RigWheels. The RigPlate and 1 set of RigWheels (sold separately) provide with smooth movement as a tabletop / skater dolly that can be used on any smooth or hard surface.
Using the RigPlate as a pipe dolly gives a scalable slider / dolly option for the new generation of mid-size and compact cameras. Attaching 2 RigPlates together creates a captive-rail camera carriage that allows secure camera movement at any angle. Using the RigPlate in conjunction with RigAxels (sold separately) adds even more capability to this simple system with a more traditional tabletop dolly setup and a robust pipe-dolly option.
The RigPlate is a camera support platform and can be used for much more than camera movement. A variety of several different mounting points allow you to attach a myriad of accessories. There are ten 1/4-20 and five 3/8-16 threaded holes (industry standard sizes) in addition to four 5/16" and five 3/8" pass-through holes.
The RigPlate can be turned into a rock-solid suction mount by adding the A-Cups or B- Cups (sold separately). UPC: 854821004033 - 75mm Bowl Adapter for RigPlate Pro The RigWheels 75mm Bowl Adapter for RigPlate Pro enables you to quickly mount a ball-leveling tripod head to the versatile RigPlate Pro plate component. This adapter fastens to separately available 3" or 6" RigWheels risers for greater flexibility. UPC: 856601008422
- Flat Mount Adapter for RigPlate Pro The RigWheels Flat Mount Adapter for RigPlate Pro enables you to quickly mount a flat-based tripod head to the versatile RigPlate Pro plate component. This adapter fastens to separately available 3" or 6" RigWheels risers for greater flexibility.
- 100mm Bowl Adapter for RigPlate Pro The RigWheels 100mm Bowl Adapter for RigPlate Pro enables you to quickly mount a ball-leveling tripod head to the versatile RigPlate Pro plate component. This adapter fastens to separately available 3" or 6" RigWheels risers for greater flexibility. UPC: 856601008439
- 3" Stand Offs with 1/4"-20 Threads (Set of 4) One of several sizes offered by RigWheels, this set of four 3" Stand Offs with 1/4"-20 Threads can be used in a variety of camera or grip rigs. With a diameter of 5/8", these risers can be used with standard grip heads. UPC: 856601008330
- 6" Stand Offs with 1/4"-20 Threads (Set of 4) One of several sizes offered by RigWheels, this set of four 6" Stand Offs with 1/4"-20 Threads can be used in a variety of camera or grip rigs. With a diameter of 5/8", these risers can be used with standard grip heads. UPC: 856601008347
- RA02 2-RigAxels The RigWheels RA02 2-RigAxels are designed to be used in conjunction with the RigPlate (sold separately). These RigAxels allow for several different additional configurations that provide you with even more options for getting smooth camera movement with the RigWheels system (sold separately).
With the custom inline wheels (sold separately) attached to the ends, you can use these RigAxels to convert the RigPlate (sold separately) into a more robust tabletop dolly with a larger footprint. This is a suitable solution for larger camera setups. Moreover, you can pivot the RigAxels to get curved dolly moves. When used with both the RigPlate and RigWheels, they add a bottom bar to make a captive rail pipe slider.
These RigAxels and the RigPlate can be used together with the RailRunner configuration. Four 1/4"-20 holes allow for easy attachment of the RigMount (sold separately) and A-Cups (sold separately). In this configuration, the RigAxels can serve as mounting points for camera gear as well as stabilization outriggers when using the RigPlate as a camera mount. UPC: 854821004200 - Inline Wheels (4-Pack) Designed to be not too hard and not too soft, this 4-pack of Inline Wheels from RigWheels is ideal for smooth dolly moves for film and video. Each wheel sports a 2.7" outside diameter and comes equipped with ABEC 7 bearings and spacers for inside the wheels. Additionally, they are easily mounted with either 5/16" or M8 bolts. UPC: 854821004231
In the Box Bundle Items RP01 RigPlate vuarxdqszssavzadw 75mm Bowl Adapter for RigPlate Pro Flat Mount Adapter for RigPlate Pro 100mm Bowl Adapter for RigPlate Pro 3" Stand Offs with 1/4"-20 Threads (Set of 4) 6" Stand Offs with 1/4"-20 Threads (Set of 4) vuarxdqszssavzadw RA02 2-RigAxels Inline Wheels (4-Pack)
Also Includes - 2 x Thumb Knob
- Hardware & Screws
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the RigWheels RigSkate 2 Tabletop Skater Dolly Complete Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RP01 RigPlate
| | | Box Dimensions (LxWxH) | 12.2 x 8.5 x 0.4" | - 75mm Bowl Adapter for RigPlate Pro
| Head Fitting | 75 mm bowl | | Material of Construction | Aluminum | | Dimensions | 5 x 5 x 3" / 12.7 x 12.7 x 7.6 cm | | Weight | 1 lb / 0.45 kg | | | | Box Dimensions (LxWxH) | 8.75 x 6.0 x 1.2" | - Flat Mount Adapter for RigPlate Pro
| Head Fitting | Flat | | Material of Construction | Aluminum | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 11.9 x 5.5 x 0.4" | - 100mm Bowl Adapter for RigPlate Pro
| Head Fitting | 100 mm bowl | | Material of Construction | Aluminum | | Dimensions | 5 x 5 x 3" / 12.7 x 12.7 x 7.6 cm | | Weight | 1 lb / 0.45 kg | | | | Box Dimensions (LxWxH) | 8.7 x 5.75 x 1.75" | - 3" Stand Offs with 1/4"-20 Threads (Set of 4)
| Mounting Threads | 1/4"-20 | | Thread Depth | 0.75" / 19 mm | | Dimensions (Ø x L) | 5/8" x 3" / 76.2 mm | | | | Box Dimensions (LxWxH) | 8.7 x 5.5 x 0.75" | - 6" Stand Offs with 1/4"-20 Threads (Set of 4)
| Mounting Threads | 1/4"-20 | | Thread Depth | 0.75" / 19 mm | | Dimensions (Ø x L) | 5/8" x 4" / 101.6 mm | - RA02 2-RigAxels
| | | Box Dimensions (LxWxH) | 11.0 x 2.7 x 1.2" | - Inline Wheels (4-Pack)
| Diameter | 2.7" / 68 mm | | Mounting | 5/16" or M8 bolts | | | | Box Dimensions (LxWxH) | 9.0 x 5.6 x 0.9" |
