User Manual for RigWheels RigSkate Table-Top Dolly Click to enlarge the picture
Contents of the user manual for the RigWheels RigSkate Table-Top Dolly
- Product category: Cine Dollies RigWheels
- Brand: RigWheels
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RigWheels Cine Dollies
 |
User manual for the RigWheels RigSkate Table-Top Dolly contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RigWheels product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RigWheels user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RigWheels product will considerably shorten its lifespan!
|

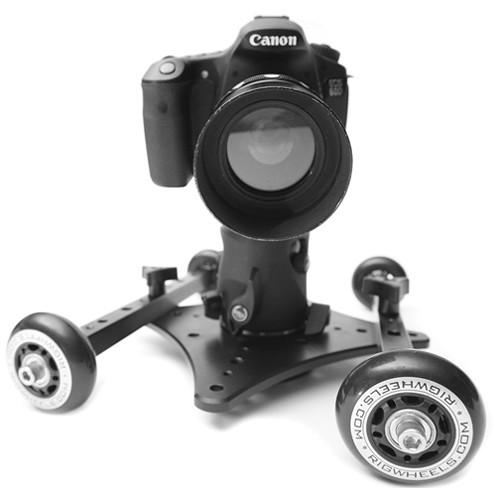

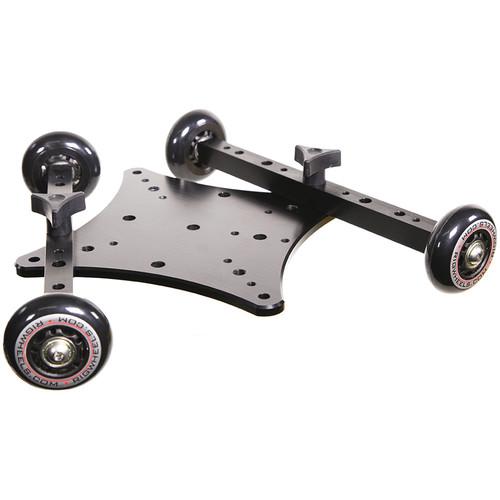

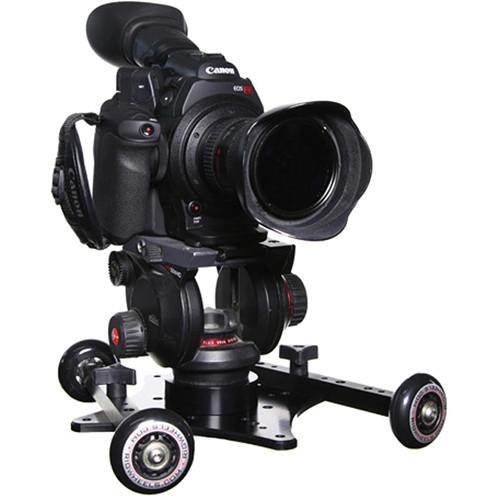

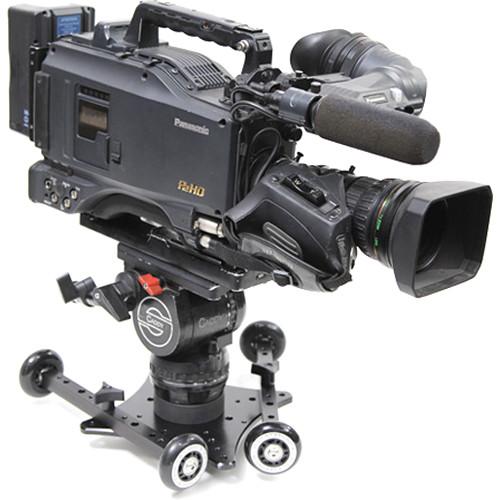

Product description The RigSkate Table-Top Dolly from RigWheels is designed for straight and curved table top dolly and floor shots for mid to large size cameras. This skater dolly setup has a large footprint making it more stable which gives you smother dolly shots. You can easily upgrade this table top dolly by adding 4 more wheels which turns it into our RailDolly. - RP01 RigPlate The RigWheels RP01 RigPlate serves as a resourceful component of the camera mounting hardware. Its first function is to serve as a mounting plate for attaching RigWheels. The RigPlate and 1 set of RigWheels (sold separately) provide with smooth movement as a tabletop / skater dolly that can be used on any smooth or hard surface.
Using the RigPlate as a pipe dolly gives a scalable slider / dolly option for the new generation of mid-size and compact cameras. Attaching 2 RigPlates together creates a captive-rail camera carriage that allows secure camera movement at any angle. Using the RigPlate in conjunction with RigAxels (sold separately) adds even more capability to this simple system with a more traditional tabletop dolly setup and a robust pipe-dolly option.
The RigPlate is a camera support platform and can be used for much more than camera movement. A variety of several different mounting points allow you to attach a myriad of accessories. There are ten 1/4-20 and five 3/8-16 threaded holes (industry standard sizes) in addition to four 5/16" and five 3/8" pass-through holes.
The RigPlate can be turned into a rock-solid suction mount by adding the A-Cups or B- Cups (sold separately). UPC: 854821004033 - RA02 2-RigAxels The RigWheels RA02 2-RigAxels are designed to be used in conjunction with the RigPlate (sold separately). These RigAxels allow for several different additional configurations that provide you with even more options for getting smooth camera movement with the RigWheels system (sold separately).
With the custom inline wheels (sold separately) attached to the ends, you can use these RigAxels to convert the RigPlate (sold separately) into a more robust tabletop dolly with a larger footprint. This is a suitable solution for larger camera setups. Moreover, you can pivot the RigAxels to get curved dolly moves. When used with both the RigPlate and RigWheels, they add a bottom bar to make a captive rail pipe slider.
These RigAxels and the RigPlate can be used together with the RailRunner configuration. Four 1/4"-20 holes allow for easy attachment of the RigMount (sold separately) and A-Cups (sold separately). In this configuration, the RigAxels can serve as mounting points for camera gear as well as stabilization outriggers when using the RigPlate as a camera mount. UPC: 854821004200 - Inline Wheels (4-Pack) Designed to be not too hard and not too soft, this 4-pack of Inline Wheels from RigWheels is ideal for smooth dolly moves for film and video. Each wheel sports a 2.7" outside diameter and comes equipped with ABEC 7 bearings and spacers for inside the wheels. Additionally, they are easily mounted with either 5/16" or M8 bolts. UPC: 854821004231
In the Box Bundle Items RP01 RigPlate dzsddtqxdedebc RA02 2-RigAxels Inline Wheels (4-Pack)
Also Includes - 2 x 3 Prong Knob - 1/4-20"
- 4 x 5/16" Long Bolt - 1-1/4"
- 3/8" Long Bolt - 3/4"
- 3/8" Washer
Table of Contents
|
Upload User Manual
Have you got an user manual for the RigWheels RigSkate Table-Top Dolly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - RP01 RigPlate
| | | Box Dimensions (LxWxH) | 12.2 x 8.5 x 0.4" | - RA02 2-RigAxels
| | | Box Dimensions (LxWxH) | 11.0 x 2.7 x 1.2" | - Inline Wheels (4-Pack)
| Diameter | 2.7" / 68 mm | | Mounting | 5/16" or M8 bolts | | | | Box Dimensions (LxWxH) | 9.0 x 5.6 x 0.9" |
