User Manual for RigWheels Universal Rail Brackets with 13" Cross Bars Click to enlarge the picture
Contents of the user manual for the RigWheels Universal Rail Brackets with 13"
- Product category: Cine Dolly & Track Accessories RigWheels
- Brand: RigWheels
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RigWheels Cine Dolly & Track Accessories
 |
User manual for the RigWheels Universal Rail Brackets with 13" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RigWheels product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RigWheels user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RigWheels product will considerably shorten its lifespan!
|

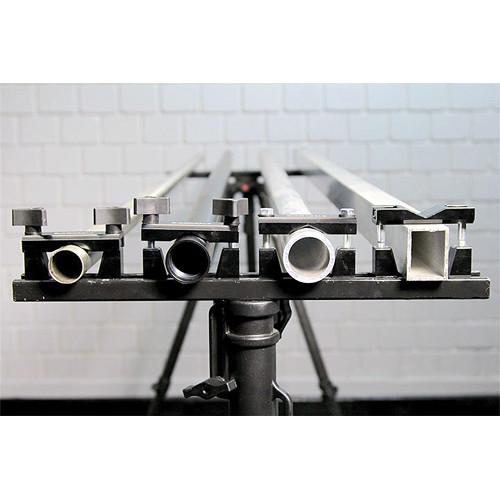

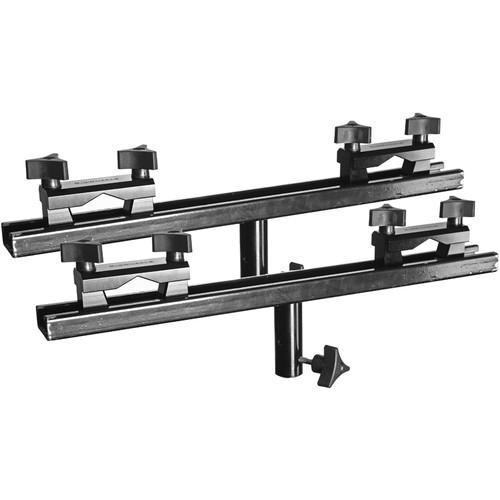

Product description Accommodating various track widths and pipe sizes, the Universal Rail Brackets with 13" Cross Bars from RigWheels can be used with a wide range of suspended rail type sliders and dollies. The package includes two 13" cross bars, each coming with a pair of rail brackets that support pipes with an outside diameter between 1 and 2". The brackets will also support square or rectangular rails up to 1.75" wide.

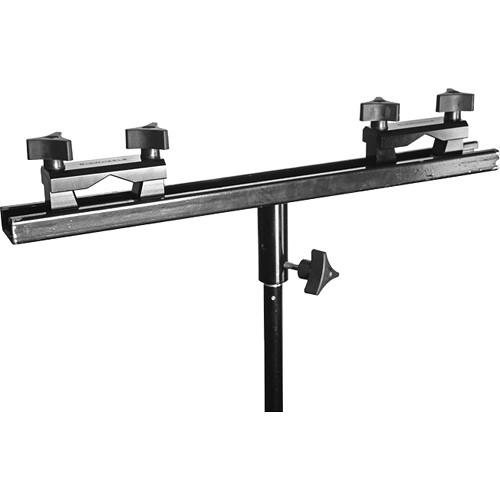

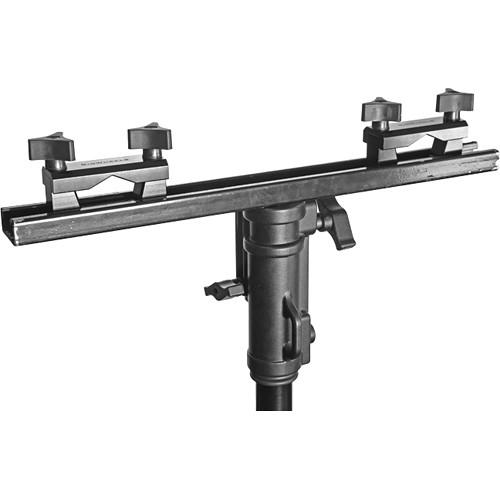

For a truly universal system, the distance between the rails (center to center) is adjustable along the 13"" support, with a minimum distance of 5" and maximum distance of 11". The 13" bar is the ideal size for the RigWheels MicroWheel Stage-1, Stage-2, and Stage-3 Camera Slider Carriages. For versatile mounting, the cross bar features 3/8"-16 threaded holes in the center and ends of the track. A pair light stand adapters are included for supporting the track using light stands with a 5/8" baby pin. UPC: 854821004439 In the Box RigWheels Universal Rail Brackets with 13" Cross Bars 2 x 13" Cross Bar 4 x Variable Size Pipe Clamp 2 x Baby Junior Adapter 8 x 3 Prong Knob with 5/16"-18 Screw 2 x 3 Prong Knob with 1/4"-20 Screw 8 x 5/16" Washer 2 x 3/8" x 3/4" Bolt 2 x 3/8" Split Washer 2 x 3/8" Washer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RigWheels Universal Rail Brackets with 13" Cross Bars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRigWheels EB13 Specs | Bar Length | 13" (33 cm) | | Clamp Diameter | Pipe: 1 to 2" (24 to 50 mm)
Square/Rectangular Rails: up to 1.75" (44.5 mm) | | | | Package Weight | 8.3 lb | | Box Dimensions (LxWxH) | 14.1 x 10.4 x 10.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
