RISE Vusion House Racer Ready-to-Fly FPV

Search your instruction manual in PDF to download

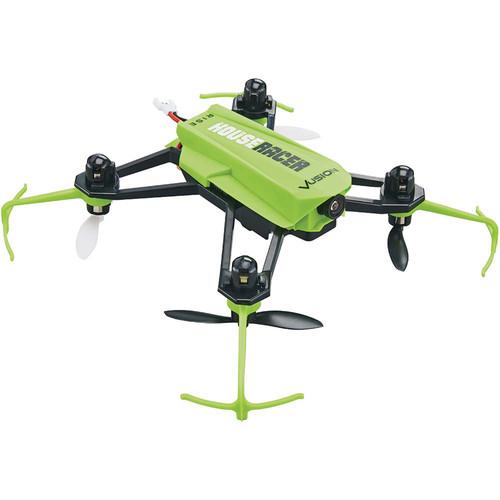

User Manual for RISE Vusion House Racer Ready-to-Fly FPV Indoor Drone

Click to enlarge the picture
RISE Vusion House Racer Ready-to-Fly FPV Indoor Drone Contents of the user manual for the RISE Vusion House Racer Ready-to-Fly FPV
  • Product category: See All Drones RISE
  • Brand: RISE
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for RISE See All Drones

User manual for the RISE Vusion House Racer Ready-to-Fly FPV contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any RISE product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official RISE user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a RISE product will considerably shorten its lifespan!



Product description

Aerial Photography and Drone Glossary Read More The RISE Vusion House Racer Ready-to-Fly FPV Indoor Drone features a built-in FPV video camera that can capture footage at a maximum resolution of 600 TVL. The included Tactic FPV-RM2 40-channel 5.8 GHz Receiver features a 4.3" LCD display and an external antenna. The drone offers a flight time of up to 8 minutes and runs on a 650mAh 1-cell LiPo battery.

The receiver features a built-in microSD card slot that can accept cards up to 32GB for storing video clips and still images. The drone package includes the J2000 2.4 GHz 6-Channel Radio System with a smartphone holder and a 5.8 GHz 40-channel video transmitter with a power output of 25mW. The drone also comes with the Tactic FPV-G1 Goggles that can hold a mobile device up to 3.1 x 5.9".

Performance

  • Tactic FPV-RM2 Receiver can be powered via 1S/3.7V 1400mAh LiPo battery
  • RP-SMA 3 dBi whip receiver antenna
  • Receiver Range: Up to 100 yard indoor and 273 yard outdoor (with minimal EPI and optional Cloverleaf Antenna/TACZ5305)

Modes

Mode 1

  • This mode has autolevel, mild roll rates, and limited tilt angles. It is suitable for a pilot who is moving up from an entry level quadcopter.

Mode 2

  • This mode still has autolevel, but has higher roll rates and higher control sensitivity. This mode is for the more experienced pilot.

Mode 3

  • This mode (rate mode) has no limits on tilt and faster roll rates. The quad will not autolevel in this mode. This mode offers the most maneuverability and the ability to manually roll and flip, but requires the pilot to be able to control the attitude of the quadcopter at all times.
UPC: 758241302079 In the Box RISE Vusion House Racer Ready-to-Fly FPV Indoor Drone
  • 5.8 GHz 25mW Raceband Video Transmitter
  • Tactic FPV-RM2 40-Channel 5.8 GHz FPV Receiver with 4.3" LCD & TACZ5152 Antenna
  • TACZ5200 Tactic FPV-G1 Goggles
  • RISE J2000 2.4 GHz 6-Channel Radio System with Smartphone Holder
  • 1S/3.7V 650mAh LiPo Battery
  • USB Charger
  • 4 x AA Batteries
  • Extra Blades
  • Wall Guards
  • Screwdriver
  • Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 959.2kb Table of Contents




    Upload User Manual

    Have you got an user manual for the RISE Vusion House Racer Ready-to-Fly FPV Indoor Drone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    RISE RISE0207 Specs

    Maximum Flight Time 8 Minutes
    GNSS Support None
    Vision System None
    Operating Frequency 5.8 GHz 5 bands (A, B, E, F and R); 40 channels
    Output Power 0.025 W
    Battery Chemistry Lithium-Ion Polymer (LiPo)
    Battery Capacity 1400 mAh
    Battery Configuration 1 S / 3.7 V
    Built-In Display Size 4.3"
    Display Resolution 480 x 272
    Video Format 640 x 480p at 30 fps
    Recording Media microSD (Up to 32 GB)
    Battery Chemistry Lithium-Ion Polymer (LiPo)
    Capacity 650 mAh / 2.4 Wh
    Battery Configuration 1 S / 3.7 V
    Number of Rotors 4
    Diagonal Size 4.7" / 119.38 mm
    Overall Dimensions 6.5 x 6.5 x 2.0" / 165.1 x 165.1 x 50.8 mm
    Weight 2.4 oz / 68 g
