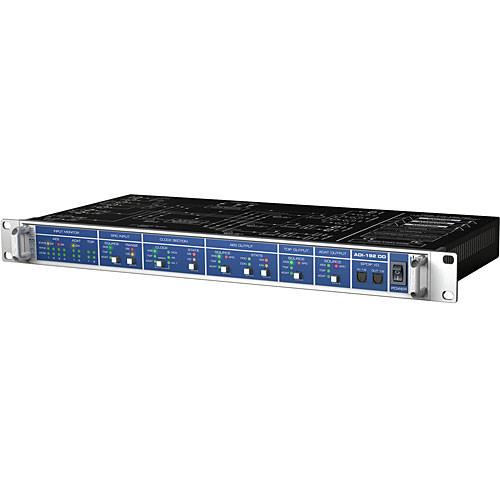

Product description The ADI-192 DD is a universal format and sample rate converter for use with any digital source/destination situation, but particularly as a digital front-end for RME's digital audio systems. The unit, housed in a single rack-space chassis consists of three, 8-channel format converters with 24-bit audio resolution. The three output formats ADAT, TDIF and AES independently access the three input formats and due to a free selection of inputs, signals can be copied and distributed between all connected devices without the need for repatching any cables. Four XLR AES/EBU inputs and outputs and two ADAT and TDIF inputs/outputs allow full 8-channel operation even at 24-bit/96kHz. At 192kHz, there are eight AES channels and four ADAT and TDIF channels. Switchable 24-bit/192kHz sample rate converters allow 8-channel sample rate conversion and clock decoupling of the highest quality. Due to the unlimited input selection, the unit not only transfers data to the same output format, but can, for example be operated as a quad AES/EBU sample rate converter. Applications - AES/EBU front-end for RME's digital I/O-cards that have ADAT optical I/O
- TDIF front-end for RME's digital I/O-cards that have ADAT optical I/O
- AES and ADAT front-end for DTRS machines
- Eight-channel AES, TDIF and ADAT input/output for digital mixers with ADAT/TDIF ports
- Operation of four SPDIF or AES devices with different sample rates in any digital audio network
- Converts Double and Quad Wire to Single Wire and vice versa, even with simultaneous sample rate conversion

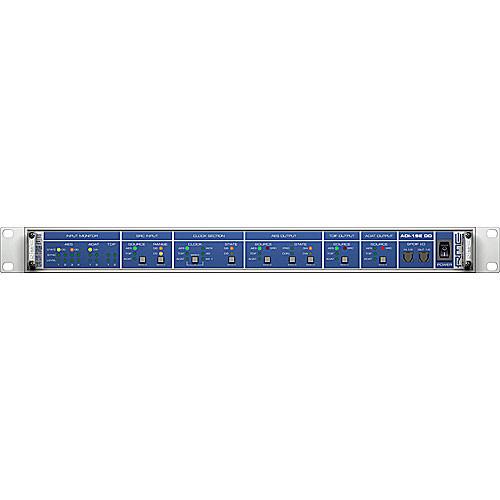

Visual Communication - Forty-eight LEDs clearly display the current status of the incoming and outgoing signals and the processing performed within the unit
- SyncCheck technology indicates whether the input signal is locked and whether all inputs are synchronized
General - Supports Double Wire, Quad Wire, S/MUX and S/MUX4, making it compatible to all methods of increasing sample rates by sample multiplexing on all platforms
- Convert between the three digital formats even while performing Sample Rate Conversion
- The AES output signal can be given a consumer or professional status. The first AES output (channels 1/2) is also available as optical TosLink
- Features an automatic distribution mode. If only one of the four AES inputs is used, the device will copy these two channels to the other three AES outputs
- Provides highly efficient jitter reduction. Any clock signal can be improved and refreshed and subsequently be used as reference clock at the word clock output
- If more than eight channels are required, several units can be cascaded and synchronized sample-accurately via word clock
In the Box RME ADI-192 DD - 8 Channel, 24 Bit/192kHz Triple Universal Format and Sample Rate Converter AC Power Cable Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME ADI-192 DD - 8 Channel, 24 Bit 192kHz Triple Universal Format and Sample Rate Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

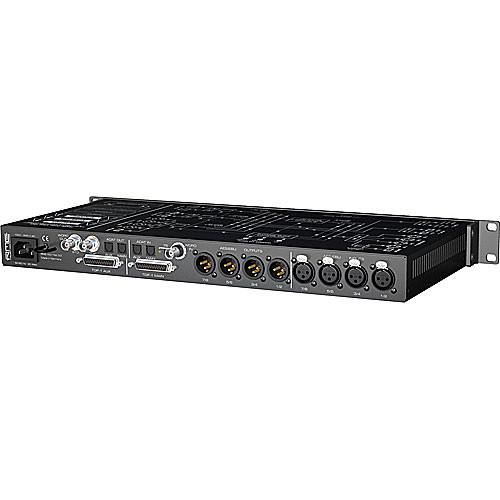

Technical parametersRME ADI-192 DD Specs | ADC | Not applicable | | DAC | Not applicable | | Sample Rates | Internal: 32, 44.1, 48, 88.2 and 96kHz
External: Accepts between 28kHz and 204kHz depending on clock source master | | Analog Inputs | No | | Analog Outputs | No | | Digital Input | 4 x XLR AES/EBU (24-bit up to 192kHz)
1 x TosLink optical S/PDIF (front panel)
2 x ADAT TosLink optical (24-bit up to 192kHz)
2 x 25-pin D-sub TDIF, shared with output (24-bit up to 192kHz) | | Digital Output | 4 x XLR AES/EBU (24-bit up to 192kHz)
1 x TosLink optical S/PDIF (front panel)
2 x ADAT TosLink optical (24-bit up to 192kHz)
2 x 25-pin D-sub TDIF, shared with input (24-bit up to 192kHz) | | Word Clock | 1 x BNC input
1 x BNC output
1 x BNC TDIF Wordclock output | | Dynamic Range | Sample Rate Converter: 140dB RMS unweighted, 143dBA | | Frequency Response | Not applicable | | THD + N | Sample Rate Converter: -140dB | | Dimensions (WxDxH) | 19" x 9 1/2" x 1 3/4" | | Weight | 4.4 lbs | | Specialties | All three digital outputs available simultaneously | | | | Package Weight | 8.7 lb | | Box Dimensions (LxWxH) | 22.1 x 12.6 x 4.5" |
