User Manual for RME ADI-2 - 2-Channel, High Performance A D and D A 24-bit 192kHz Converter Click to enlarge the picture
Contents of the user manual for the RME ADI-2 - 2-Channel, High Performance
- Product category: AD/DA Converters RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME AD/DA Converters
 |
User manual for the RME ADI-2 - 2-Channel, High Performance contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|

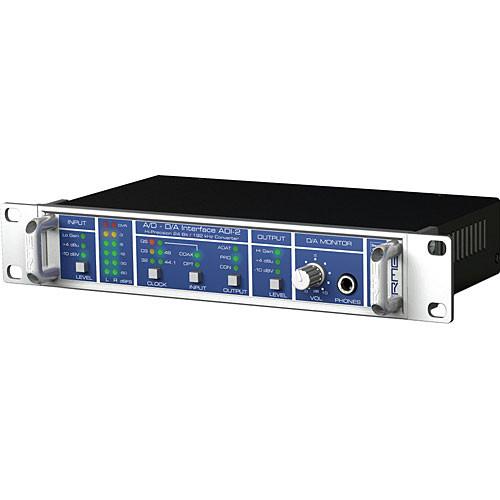

Product description The ADI-2 from RME is a compact and flexible two-channel analog-to-digital and digital-to-analog converter, providing conversion to and from S/PDIF, AES/EBU and ADAT. Balanced inputs and outputs and RME's proprietary "SteadyClock" internal clocking help maintain signal quality throughout the unit. A three-stage hardware input and output level control allows for accurately calibrating signal levels in the analog domain. The transformer-balanced coaxial SPDIF I/O has switchable "Channel Status" to make it fully AES/EBU compatible. The optical TOSLink I/Os can handle up to 192kHz and also serve as ADAT I/O with up to 96kHz sample rates. The ADI-2 comes with an external power supply. The unit's additional internal switching power supply has been specially designed and optimized for audio applications, and accepts any voltage from 7 to 30V, be it AC or DC, and even runs on regular batteries or rechargeable batteries. - Two-channel, high performance A/D and D/A converter
- Handles digital signals in S/PDIF and AES/EBU, as well as ADAT formats
- Balanced analog inputs and outputs
- SteadyClock technology ensures the very best sound quality even with a jittery external clock
- Headphone output offers additional monitoring facilities
- Choice of three different settings for the input and output levels allows for making perfect adjustments in the analog domain

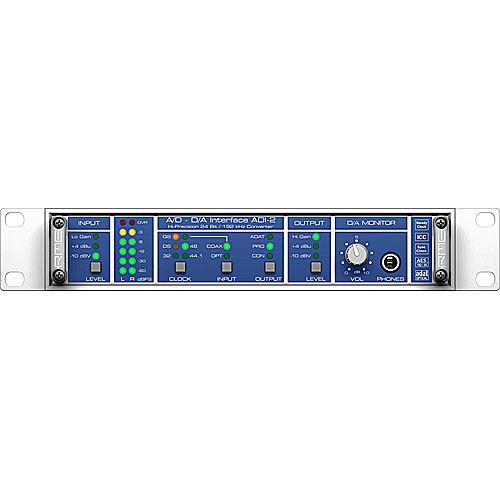

- Clearly laid out the front panel with a stereo, 6-LED level meter
UPC: 874792004122 In the Box RME ADI-2 - 2-Channel, High Performance A/D and D/A 24-bit/192kHz Converter External Power Supply Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME ADI-2 - 2-Channel, High Performance A D and D A 24-bit 192kHz Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME ADI-2 Specs | ADC | 24-bit | | DAC | 24-bit | | Sample Rates | 32, 44.1, 48, 64, 88.2 kHz, 96 kHz, 128, 176.4 and 192kHz(Internal)

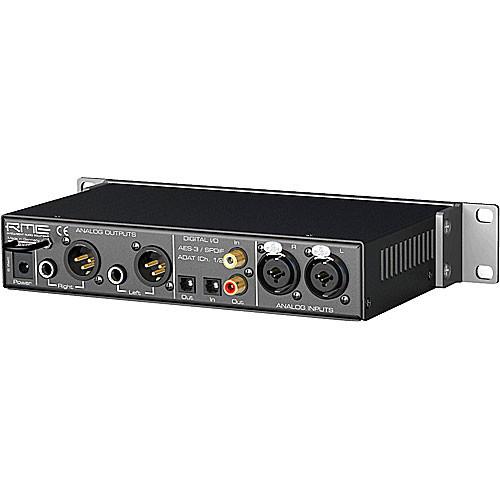

28kHz to 200kHz (Resolved to Wordclock input) | | Analog In | 2 x XLR-1/4" TRS Neutrik Combo Servo balanced, completely symmetrical DC-coupled audio path | | Analog Outputs | 2 XLR
2 x 1/4" TRS phone Servo balanced, completely symmetrical DC-coupled audio path | | Digital Input Connectors | 1 x ADAT optical
1 x RCA S/PDIF-AES coaxial SPDIF I/O has switchable Channel Status to make it fully AES/EBU compatible | | Digital Output Connectors | 1 x ADAT optical
1 x RCA S/PDIF-AES coaxial SPDIF I/O has switchable Channel Status to make it fully AES/EBU compatible | | Word Clock | BNC I/O | | Dynamic Range | A/D: 110 dB RMS unweighted
D/A: 116 dB RMS unweighted | | Frequency Response | 5Hz to 21.5kHz, -0.1dB @ 48kHz
5Hz to 43.5kHz, -0.5dB @ 96kHz
5Hz to 70kHz, -1dB @ 192kHz | | THD + N | <-104 dB (<0.00063%) | | Dimensions (WxHxD) | 8 1/2" x 5 1/8" x 1 3/4" | | Weight | 2.2 lbs | | Specialties | Choice of three input levels, selectable from the front panel | | | | Box Dimensions (LxWxH) | 14.0 x 8.0 x 4.0" |
