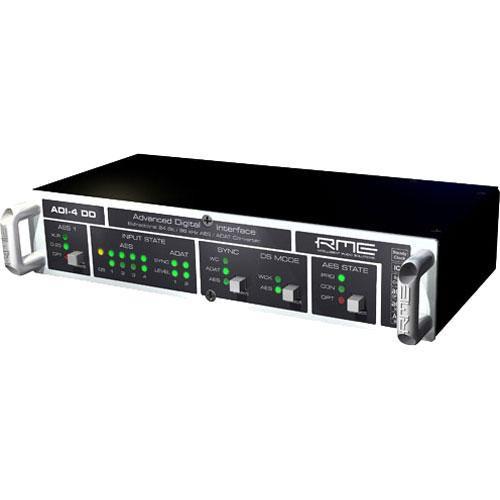

User Manual for RME ADI-4 DD - 8 Channel, 24 Bit 96kHz Digital Interface and Dual Format Converter Click to enlarge the picture
Contents of the user manual for the RME ADI-4 DD - 8 Channel,
- Product category: Format Converters RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Format Converters
|
User manual for the RME ADI-4 DD - 8 Channel, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|
Product description RME's ADI-4 DD is a highly cost-efficient AES to ADAT and ADAT to AES converter. The device basically consists of two converters - four AES-3 inputs (eight-channels) to double ADAT outputs and double ADAT inputs to four AES-3 outputs. Features include support for up to 96kHz sample rate and built-in jitter suppression. The double ADAT ports enable full eight channel support from 32kHz up to 96kHz (S/MUX). The actual state of the incoming and outgoing signals and ongoing operations within the unit are easily monitored via multiple, clear LEDs. SyncCheck not only shows if an input signal is locked, but also if multiple inputs are in synchronous lock. Furthermore SyncAlign technology prevents accidental errors of +/- single-sample misalignment between the AES/EBU inputs. The unit displays highly efficient jitter suppression that enables it to refresh and clean up any clock signal, and to provide the clock signal as reference clock at the word clock output. Additionally, Intelligent Clock Control (ICC) will maintain the last sample rate detected as valid, in case of fault and loss of input signal. The ADI-4 DD is housed in a compact single height, half-rack space enclosure. Applications - AES/EBU front-end for RME's digital I/O-cards that have ADAT optical I/O
- Eight-channel AES and ADAT I/O for all digital mixing desks with ADAT or AES ports
- Allows for operation of up to four seperate stereo S/PDIF or AES devices
- Converts between AES-3, S/PDIF and S/PDIF optical
- Removes jitter from AES-3 and ADAT signals
Visual Communication - Twenty-four LEDs clearly display the current status of the incoming and outgoing signals and the processing performed within the unit
- SyncCheck technology indicates whether the input signal is locked and whether all inputs are sychronized
General - Convert between two digital formats
- The AES output signal can be given a consumer or professional status. The first AES output (channels 1/2) is also available as optical TosLink
- Provides highly efficient jitter reduction. Any clock signal can be improved and refreshed and subsequently be used as reference clock at the word clock output
- If more than eight channels are required, several units can be cascaded and synchronized sample-accurately via word clock
- An internal jumper allows for simple change of pin-out configuration for the AES 25-pin D-sub connector
UPC: 874792004139 In the Box RME ADI-4 DD - 8 Channel, 24 Bit/96kHz Digital Interface and Dual Format Converter External Power Supply Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME ADI-4 DD - 8 Channel, 24 Bit 96kHz Digital Interface and Dual Format Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME ADI-4 DD Specs | ADC | Not applicable | | DAC | Not applicable | | Sample Rates | Internal: 32, 44.1, 48, 88.2 and 96kHz
External: Accepts between 27kHz and 105kHz depending on clock source master | | Analog Inputs | No | | Analog Outputs | No | | Digital Input | 1 x 25-pin D-sub four-pair AES/EBU (shared with output)
1 x XLR AES/EBU
2 x ADAT TosLink optical | | Digital Output | 1 x 25-pin D-sub four-pair AES/EBU (shared with input)
1 x XLR AES/EBU
2 x ADAT TosLink optical | | Word Clock | 1 x BNC input
1 x BNC output | | Dynamic Range | Not applicable | | Frequency Response | Not applicable | | THD + N | Not applicable | | Dimensions (WxDxH) | 8 1/2" x 4" x 1 3/4" | | Weight | 2.2 lbs | | Specialties | All settings are stored at power-off | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 11.9 x 7.0 x 4.3" |
