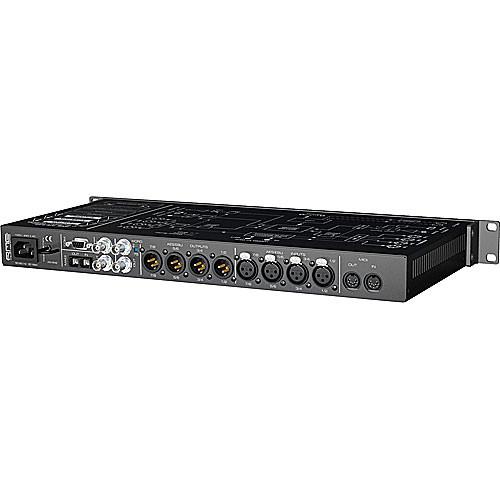

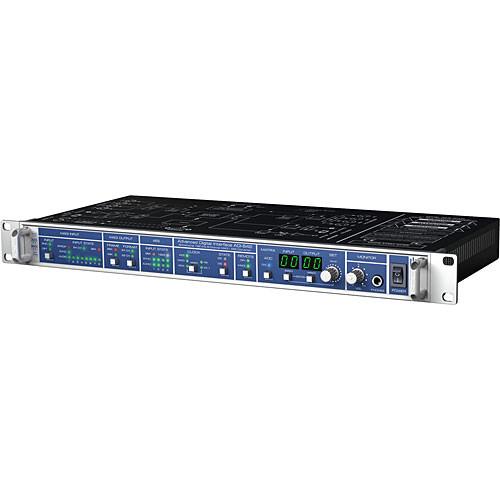

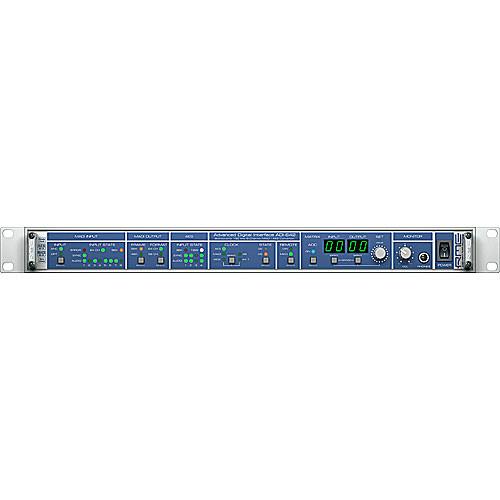

User Manual for RME ADI-642 - 8-Channel, 24-Bit 192kHz MADI AES Format Converter with 72 x 74 Routing Matrix Click to enlarge the picture
Contents of the user manual for the RME ADI-642 - 8-Channel, 24-Bit 192kHz
- Product category: Format Converters RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Format Converters
 |
User manual for the RME ADI-642 - 8-Channel, 24-Bit 192kHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|
Product description The ADI-642 is an eight-channel format converter from MADI to AES and vice versa. MADI handles sixty-four channels of 24-bit audio at sampling frequencies up to 48kHz, thirty-two channels up to 96kHz and sixteen channels at 192kHz. All channels are transferred across a single cable, using either a coaxial (BNC) or optical network cable. The AES/EBU channels are provided via 4 XLR inputs and outputs, respectively. Amongst other applications, the unit can serve as an AES/EBU front-end for RME's Hammerfall DSP MADI PCI card. An easy-to-use 72 x 74 routing matrix can assign any individual input channel to every single output channel, allowing for the free configuration of all sixty-four MADI channels and the eight AES channels. When the single-space rack-mount unit is serving as a format converter, cable lengths of more than 100 meters can be achieved. The ADI-642 accepts both fifty-six and sixty-four channel standards as well as 96k frame at its input and can be set to generate both these formats at its output. This way the ADI-642 can serve as an interface between otherwise incompatible MADI devices. - Eight-channel MADI/AES format converter
- MADI redistributor, patchbay and router
- Extensive status displays give information about Lock and Sync states, audio content and the physical quality of the incoming signal
- A fully automatic input selection between optical and coaxial input offers a useful redundancy mode for critical applications
- Supplies word clock in Single, Double and Quad Speed, distributes Double Wire 96kHz signals into the MADI data stream and to the AES ports and supports the double MADI sample rate (96k frame)
- SyncAlign and SyncCheck technologies ensure perfect synchronization and clear detection of errors
- Multiple units can be stacked and operated sample-aligned, using word clock.
- All settings are stored when the unit is switched off
- Sixteen MIDI channels can be transferred across MADI even with 64 audio channels
- The device can be fully remote controlled and configured via MIDI and all status displays can be queried through MIDI
- Each unit in a multiple-unit setup can be given a separate ID, allowing separate remote control of the devices utilizing only a single MIDI channel
UPC: 874792004214 In the Box RME ADI-642 - 8-Channel, 24-Bit/192kHz MADI / AES Format Converter with 72 x 74 Routing Matrix AC Power Cable Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME ADI-642 - 8-Channel, 24-Bit 192kHz MADI AES Format Converter with 72 x 74 Routing Matrix in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME ADI-642 Specs | ADC | Not applicable | | DAC | 24-bit | | Sample Rates | Internal: 32, 44.1, 48, 88.2, 96, 176.4 and 192kHz
External: Accepts between 28kHz and 204kHz depending on clock source master | | Analog Inputs | No | | Analog Outputs | 1 x 1/4" stereo monitor output | | Digital Input | 4 x XLR AES/EBU (24-bit up to 192kHz)
1 x MADI Optical via FDDI duplex SC connector
1 x BNC MADI | | Digital Output | 4 x XLR AES/EBU (24-bit up to 192kHz)
1 x MADI Optical via FDDI duplex SC connector
1 x BNC MADI | | Word Clock | 1 x BNC input
1 x BNC output | | Dynamic Range | Monitor: 140dB RMS unweighted, 143dBA | | Frequency Response | Monitor: 1Hz to 20.1kHz, -0.1dB @ 44.1kHz | | THD + N | Monitor: -85 dB, <0.005% | | Dimensions (WxDxH) | 19" x 9 1/2" x 1 3/4" | | Weight | 4.4 lbs | | Specialties | The routing matrix can assign any of the 36 stereo input pairs to the monitor | | | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 21.9 x 12.6 x 4.5" |
