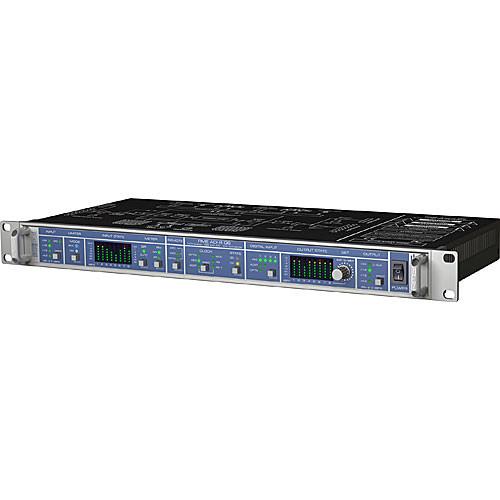

User Manual for RME ADI-8 QS - A D and D A Converter Click to enlarge the picture
Contents of the user manual for the RME ADI-8 QS - A D
- Product category: AD/DA Converters RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME AD/DA Converters
|
User manual for the RME ADI-8 QS - A D contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|
Product description The ADI-8 QS from RME is their top of the line, eight-channel analog-to-digital and digital-to-analog converter that balances excellent analog circuit design with the latest in converter technology. The combination provides conversion of the highest order along with a healthy supply of features. The unit is outfitted with both balanced 1/4" phone input/output connectors, along with 25-pin D-sub connectors, the latter providing slightly higher maximum output levels. Conversion is available to/from AES/EBU and ADAT optical at sample rates up to 192kHz for the AES/EBU streams and 96kHz for ADAT. Efficient jitter reduction via SteadyClock guarantees prestine sound quality while Intelligent Clock Control (ICC) will retain the last valid sample frequency in case of a loss of the input signal. SyncCheck ensures perfect synchronization and excellent detection of errors, allowing multiple units to be stacked and operated sample-aligned, using word clock. All settings are stored when the unit is switched off. - Eight-channel analog to digital converter with a completely symmetrical and DC-coupled audio path
- Eight-channel digital to analog converter, DC-coupled audio path and double balanced output
- Low latency conversion with only nine samples of delay (in double speed mode)
- Four stereo AES/EBU channels of input/output (sixteen total) via a D-sub connector, with eight channels total @ 192kHz
- ADAT 24-bit optical inputs, with RME's Bitclock PLL for sample accurate lock. Optical outputs fully compatible with all ADAT optical inputs and S/MUX compatible
- Digital input/output trim, with a range of 6dB per input/output
- SyncCheck technology checks clock synchronization
- Analog and digital limiter available for analog-to-digital conversion
- Sixteen LED level meters with seven LEDs per each meter
- Included remote control for store/recall, volume and DIM
- All settings are stored permanently
- Fully remote controllable via MIDI
UPC: 874792004276 In the Box RME ADI-8 QS - A/D and D/A Converter AC Power Cable 2m Optical Cable Remote Control Driver CD-ROM Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME ADI-8 QS - A D and D A Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME ADI8QS Specs | ADC | 24-bit, 128x oversampling | | DAC | 24-bit, 128x oversampling | | Sample Rates | 44.1, 48, 88.2, 96, 176.4 and 192kHz | | Analog In | 8 x 1/4" TRS phone
1 x 25-pin D-sub Servo balanced, completely symmetrical DC-coupled audio path | | Analog Outputs | 8 x 1/4" TRS phone
1 x 25-pin D-sub Servo balanced, completely symmetrical DC-coupled audio path | | Digital Input Connectors | 1 x 25-pin D-sub providing 4 AES/EBU pairs (shared with output)
2 x ADAT optical | | Digital Output Connectors | 1 x 25-pin D-sub providing 4 AES/EBU pairs (shared with output)
2 x ADAT optical | | Word Clock | BNC I/O | | Dynamic Range | <120dB, unmuted | | Frequency Response | 5Hz to 63.4kHz, -0.1dB (A/D to D/A @192kHz s/f) | | THD + N | AD: <-104dB (< 0,00063 %)
DA: <-102dB (<0.0008%) | | Dimensions (WxHxD) | 19 x 7.88 x 1.75" (483 x 200 x 45mm) | | Weight | 4.4 lbs (2 kg) | | Specialties | Fully remote controllable and configurable via MIDI | | | | Package Weight | 11.2 lb | | Box Dimensions (LxWxH) | 22.1 x 13.5 x 4.5" |
