User Manual for RME AEB4-I - 4 Analog Input Daughter Board for Expanding ADAT Capable RME Cards Click to enlarge the picture
Contents of the user manual for the RME AEB4-I - 4 Analog Input
- Product category: Accessories RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Accessories
|
User manual for the RME AEB4-I - 4 Analog Input contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|

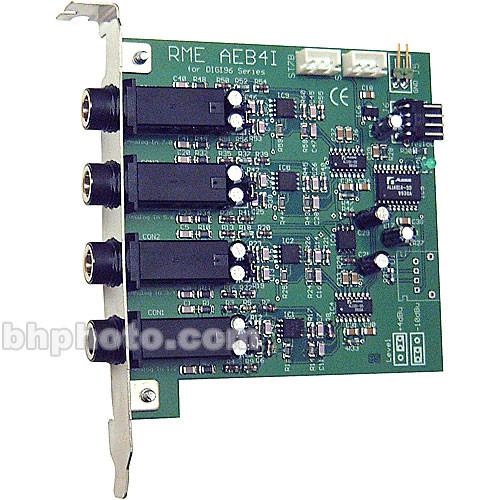

Product description The AEB4-I from RME is an expansion daughter board that adds four balanced analog inputs to any ADAT capable RME system. The later include the DIGI96/8 Series, the Hammerfall Series and the HDSP 9652. The card provides either +4dBu or -10dBV input level adjustment along with specifications that include a 107dBA signal to noise ratio and the highest suppression of PC-noise. The AEB4-I offers four 1/4" TRS phone connectors and installation is easy and convenient using the supplied bracket. A card slot is not required. Note: Multiface and Digiface use the Hammerfall DSP PCI card. This card has no internal inputs or outputs and therefore cannot utilize any expansion boards. DIGI96/8 - A single AEBx-I and one AEBx-O can be connected and operated simultaneously
Hammerfall or Hammerfall Light - One AEBx-I and two AEBx-O can be connected and operated simultaneously. Requires board revision 1.5 or higher
HDSP 9652 - Two AEBx-I and two AEBx-O can be connected and operated simultaneously
UPC: 874792002104 In the Box RME AEB4-I - 4 Analog Input Daughter Board for Expanding ADAT Capable RME Cards Clock Cable, 3-Core Data Cable, 2-Core Cable Adapter - 5 1/4" to 2 x 3 1/2" Set of Nuts Drill Template Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME AEB4-I - 4 Analog Input Daughter Board for Expanding ADAT Capable RME Cards in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME AEB-4-I Specs | Converters | 24-bit | | Sample Rates | 32kHz to 48kHz | | Analog Inputs | 4 x 1/4" TRS phone, servo balanced | | Analog Outputs | Not applicable | | Digital Inputs | No | | Digital Outputs | No | | MIDI In/Out | No | | Sync In/Out | No | | Headphone Output | No | | THD + N | -95dB (0.0017 %) | | Dynamic Range | 104dB, RMS unweighted, 107dBA | | Frequency Response | 10Hz to 21kHz, -0.1dB | | System Requirements | As per host system | | Specialties | No slot needed on the motherboard |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
