User Manual for RME AO4S-192 AIO - Analog Output Expansion Board Click to enlarge the picture
Contents of the user manual for the RME AO4S-192 AIO - Analog Output
- Product category: Accessories RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Accessories
|
User manual for the RME AO4S-192 AIO - Analog Output contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|

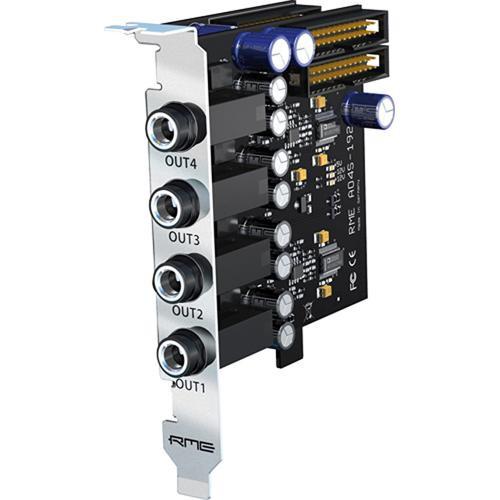

Product description The AO4S-192 from RME is an analog expansion board that adds 4 professional quality analog outputs to the company's HDSPe AIO PCIe card. Level adjustment, balanced circuit design, 118dBA signal to noise ratio, and the highest level of PC-noise suppression guarantee perfect sound quality. The converters offer the same performance as the on-board stereo analog I/O of the HDSPe AIO - up to 192 kHz resolution, balanced connection, and the choice of 3 different reference levels, selected in the settings dialog. The expansion board can be used with the HDSPe AIO and the HDSP 9632 to provide a maximum of 6 channels of audio output when combined with the 2 channels of I/O available on the main board. However, no more than one AO4S-192 AIO can be connected to each card, although a combination of an input and output card is possible. - Analog output expansion card for the HDSPe AIO and the HDSP 9632, adding an additional 4 outputs to the system
- Servo balanced outputs on 1/4" TRS connectors
- Choice of 3 different reference levels
- Up to 24-bit/192kHz resolution
- Can be combined with similar input expansion board
UPC: 874792002302 In the Box RME AO4S-192 AIO - Analog Output Expansion Board 26-pin Flat Ribbon Cable Mounting Hardware Drill Template Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME AO4S-192 AIO - Analog Output Expansion Board in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME AO4S-AIO Specs | ADC | Not applicable | | DAC | 24-bit | | Sample Rates | Supports up to 192kHz | | Analog Inputs | No | | Analog Outputs | 4 x 1/4" TRS phone | | Digital Input | Not applicable | | Digital Output | Not applicable | | Word Clock | Not applicable | | Maximum Output Level | +19dBu | | Dynamic Range | Not specified by manufacturer | | Frequency Response | 1Hz to 22kHz, -0.5dB @44.1kHz
1Hz to 34kHz, -0.5dB @96kHz
1Hz to 50kHz, -0.5dB @192kHz | | THD + N | <-102dB, <0.0008% | | Power Requirements | Supplied via ribbon cable | | Dimensions | 3.5 x 3.7" (90 x 95mm) | | Weight | Not specified by manufacturer | | Specialties | Works with both the HDSPe AIO and the HDSP 9632 | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 9.2 x 6.8 x 2.0" |
