User Manual for RME ARC USB Advanced Remote Control for TotalMix FX Click to enlarge the picture
Contents of the user manual for the RME ARC USB Advanced Remote Control
- Product category: Accessories RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Accessories
 |
User manual for the RME ARC USB Advanced Remote Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|

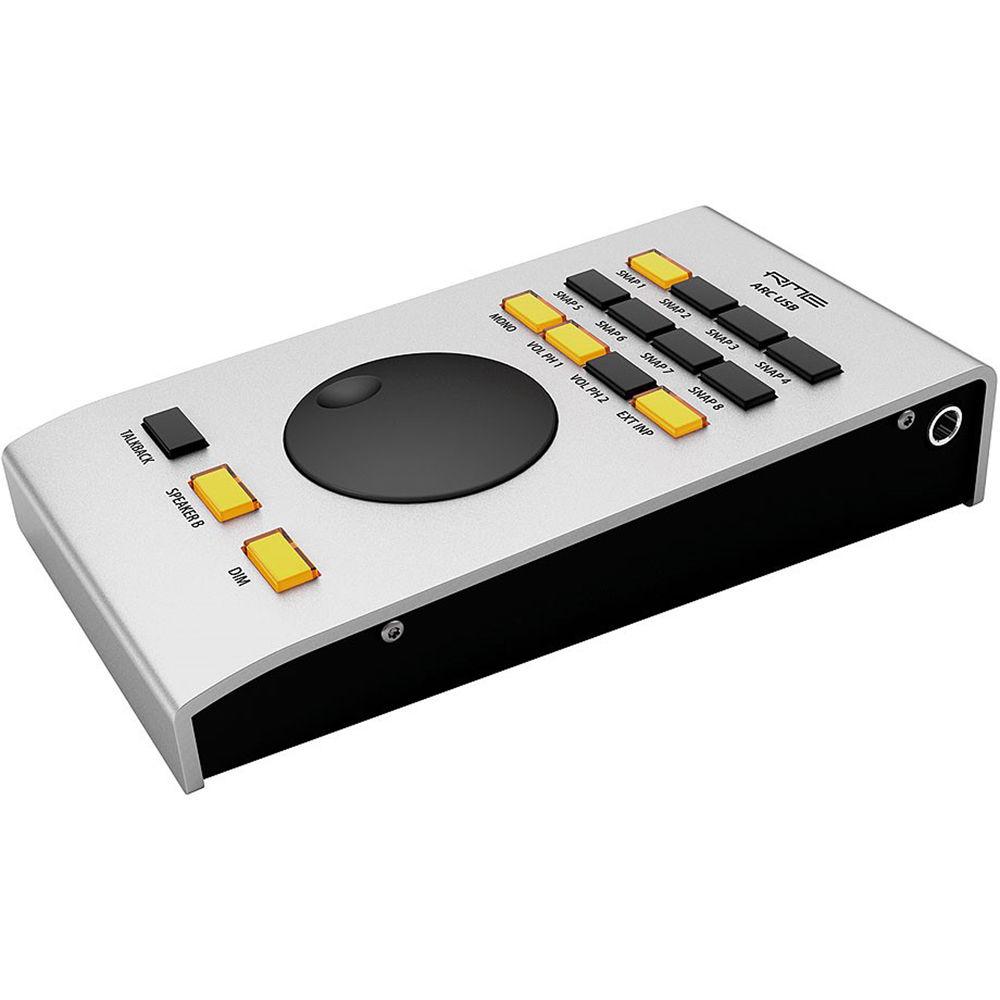

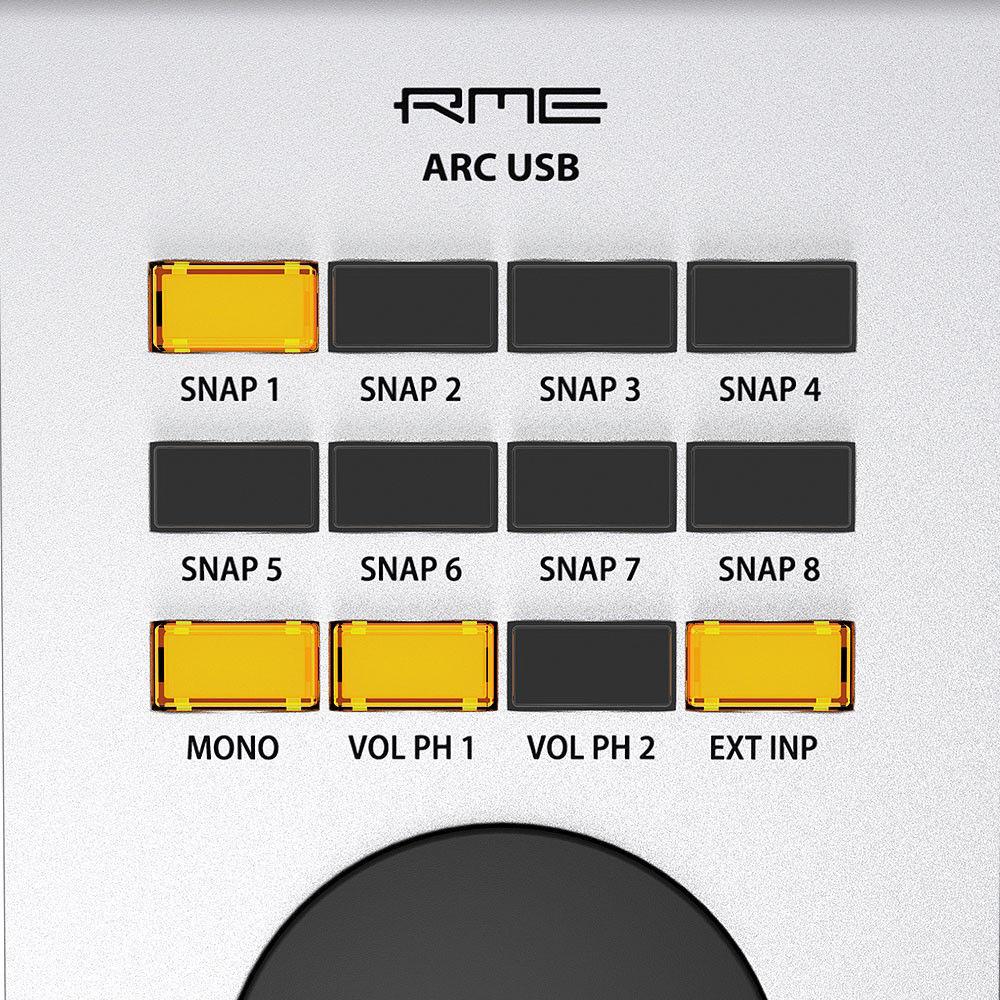

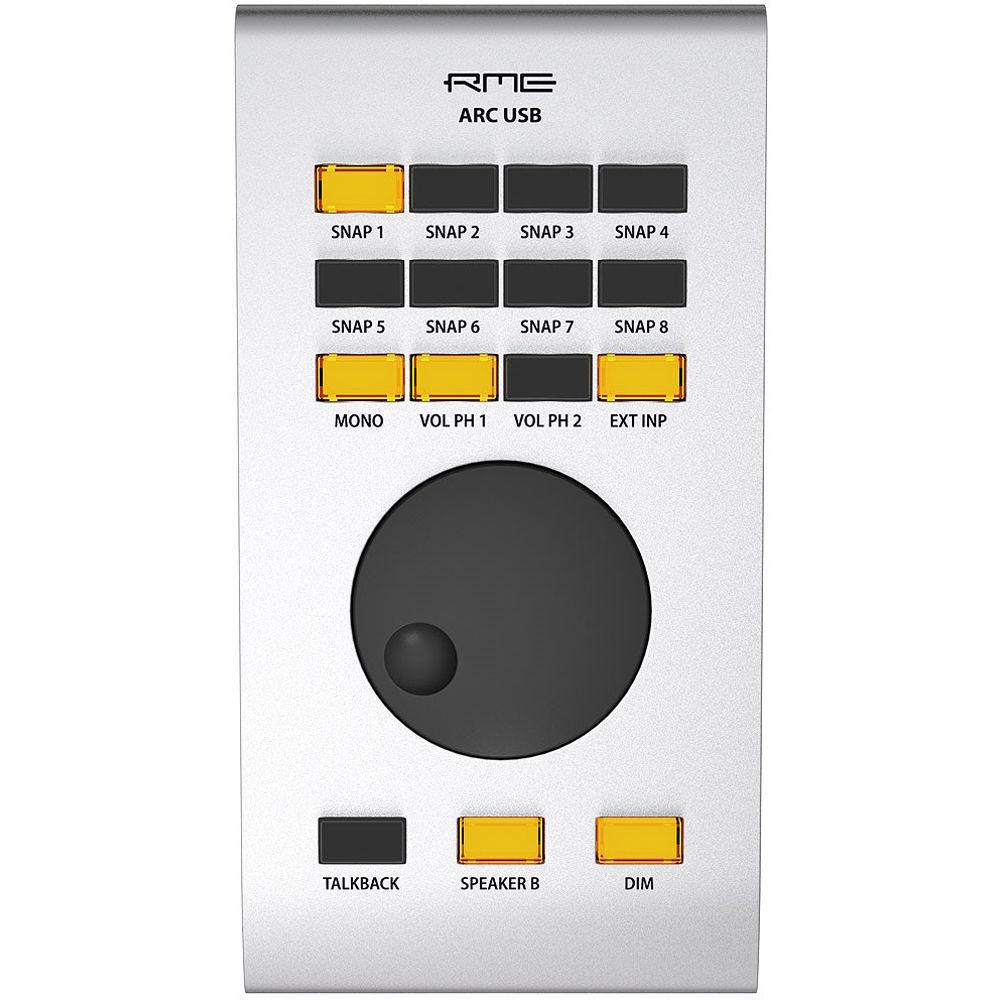

Product description The ARC USB is a wired, USB 1.1 advanced remote control that provides direct access to the most-frequently used actions and commands in TotalMix FX. It is compatible with all RME devices supported by TotalMix FX, via a Windows or Mac computer. The unit can also be connected directly to a Fireface UFX+ or Fireface UFX II, when operating these interfaces in standalone mode. The ARC USB features a flexible Key Command Settings menu that lets you assign more than 36 different functions to any of the 15 keys. The behavior of each individual key/button can be changed between push, toggle, enable, and disable, depending on the base function. Available commands include Global Mute, Solo, Mute Group, Fader Group, Speaker B, DIM, Mute FX, Mono, Talkback, Snapshot 1-8, Mic Gain, and more. A large rotary encoder wheel lets you change the value of parameters, and is also programmable in TotalMix FX. A set of stickers with all currently available commands is included and can be used to label the keys to reflect the current user configuration. - Wired USB 1.1 MIDI remote control – provides direct access to the most-frequently used actions and commands in TotalMix FX
- Compatible with all RME devices supported by TotalMix FX (via computer)
- Can be connected directly to Fireface UFX+ and Fireface UFX II, in standalone mode operation
- Flexible Key Command Settings menu in TotalMix FX lets you assign more than 36 different functions to any of the 15 keys
- Behavior of each individual key/button can be changed between push, toggle, enable, and disable, depending on the base function
- Functions include: Global Mute, Solo, Mute Group, Fader Group, Speaker B, DIM, Mute FX, Mono, Talkback, Snapshot 1-8, Mic Gain, and more
- Rotary encoder wheel is used to change various parameters
- Standard footswitch can be connected to 1/4" TS jack on left side of unit and configured for any command
- Control several interfaces simultaneously
- Non-critical USB 1.1 connection allows for use of long cables
- Natively compatible with Windows and Mac OS X
- Solid metal case with user-friendly desktop design
- A set of stickers with all currently available TotalMix FX commands is included
In the Box RME ARC USB Advanced Remote Control for TotalMix FX USB Cable, 6' (1.8m) Set of Key-Label Stickers Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME ARC USB Advanced Remote Control for TotalMix FX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME ARC-USB Specs | Compatibility | Fireface UFX+ (directly)
Fireface UFX II (directly)
All devices with TotalMix FX (via computer) | | System Requirements | Mas OS X
Windows
USB 1.1 (UAC 1)
Fireface UFX+, Fireface UFX II (in standalone mode) | | Power | Buss-powered by computer, or UFX+, UFX II (in standalone mode) | | Power Consumption | 0.3 W | | Temperature Range | 41 to 122° F / 5 to 50° C | | Relative Humidity | < 75%, non-condensing | | Dimensions (W x H x D) | 3.5 x 1.3 x 6.7" / 90 x 33 x 170 mm | | Weight | 0.7 lb / 0.3 kg | | | | Package Weight | 1.525 lb | | Box Dimensions (LxWxH) | 8.7 x 7.35 x 2.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
