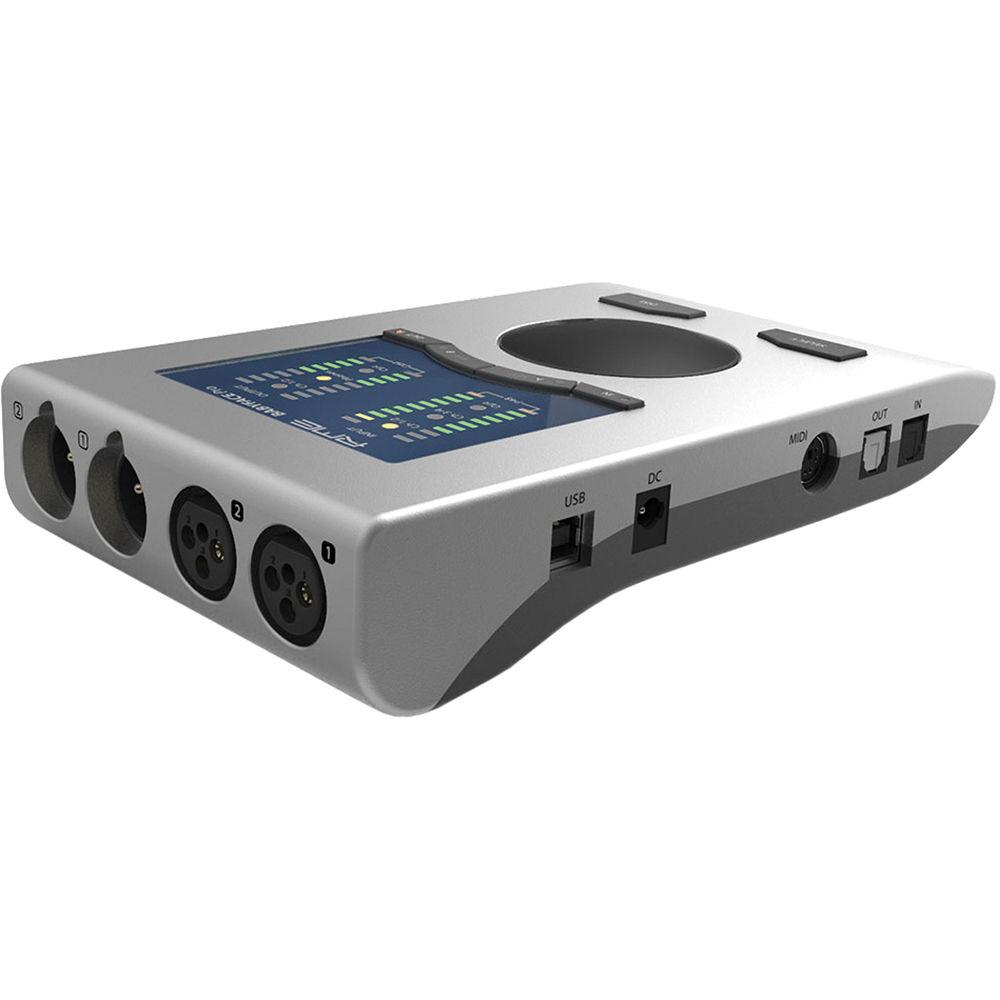

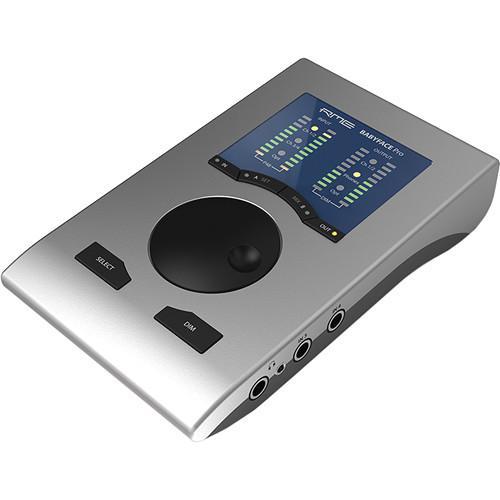

User Manual for RME Babyface Pro 24-Channel 192 kHz USB Bus-Powered Audio Interface Click to enlarge the picture
Contents of the user manual for the RME Babyface Pro 24-Channel 192 kHz
- Product category: Audio Interfaces & Systems RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Audio Interfaces & Systems
 |
User manual for the RME Babyface Pro 24-Channel 192 kHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|

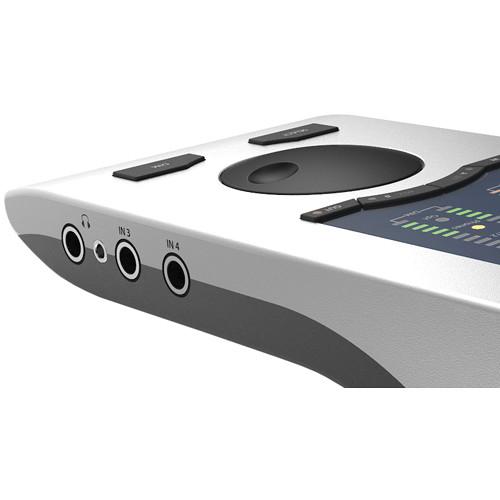

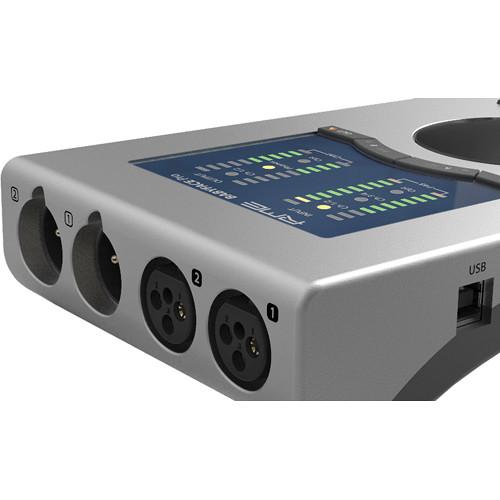

Product description The RME Babyface Pro 24-Channel 192 kHz USB Bus-Powered Audio Interface is designed for a wide variety of studio and live recording applications. Expertly crafted from a block of aluminum, this portable interface features a new XLR socket that integrates seamlessly into the housing. Parallel 6.3mm TRS and 3.5mm mini headphone jacks feature separate driver stages to match low and high impedance headphones.
The interface ships with the company's TotalMix FX, a software mixer available for Windows, Mac OS X and iOS on an iPad. When using the device with an iPad, an external power adapter must be used, as the iPad alone is unable to power the interface. The mixer software allows you to use the interface in a wide variety of situations, from simple mixing of signals to more complicated routing configurations.
The unit's FPGA-based DSP mixer adds a flexible 3-band parametric equalizer on all inputs and outputs. Combined with the unit's low latency AD/DA converters and the company's unique SteadyClock technology to reduce jitter, the interface offers a professional recording solution in a compact form factor. - FPGA Chip
- Uses a field-programmable gate array (FPGA) which enables flexible DSP processing
- Class Compliant
- Enables native support by operating systems such as Windows, Mac OS X, Linux, and hardware like Apple's iPad, without the need for proprietary drivers
- SteadyClock
- Uses a highly efficient jitter reduction circuit to allow the converters to operate as if they were working with an internal clock at all times
- TotalMix FX
- Provides fully flexible mixing/routing for both studio and live applications via the company's hardware mixer
In the Box RME Babyface Pro 24-Channel 192 kHz USB Bus-Powered Audio Interface Limited 2-Year Warranty User Manual PDF 1.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the RME Babyface Pro 24-Channel 192 kHz USB Bus-Powered Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME BABYFACE PRO Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | 1 x USB Type-B (USB 2.0) | | Analog I/O | 2 x XLR 3-Pin Mic Input
2 x 1/4" (6.3 mm) Line/Hi-Z Input
2 x XLR 3-Pin Output
1 x 1/4" (6.3 mm) TRS Headphone Output | | Digital I/O | 1 x TOSLINK / ADAT, S/PDIF Input
1 x TOSLINK / ADAT, S/PDIF Output
1 x TOSLINK / ADAT, S/MUX, S/MUX4, S/PDIF Input
1 x TOSLINK / ADAT, S/MUX, S/MUX4, S/PDIF Output | | MIDI I/O | 1 x 5-Pin MIDI In (On Breakout Cable)
2 x 5-Pin MIDI Out (On Breakout Cable) | | | | Frequency Response | Line Inputs:
5 Hz to 20.8 kHz -0.1 dB (at 44.1 kHz)
3 Hz to 45.8 kHz -0.5 dB (at 96 kHz)
2 Hz to 92 kHz -1 dB (at 192 kHz)
Line/Hi-Z Inputs:
5 Hz to 20.8 kHz -0.1 dB (at 44.1 kHz)
3 Hz to 45.8 kHz -0.5 dB (at 96 kHz)
2 Hz to 92 kHz -1 dB (at 192 kHz)
Line Outputs:
0 Hz to 20.8 kHz -0.5 dB (at 44.1 kHz)
0 Hz to 45 kHz -0.5 dB (at 96 kHz)
0 Hz to 89 kHz -1 dB (at 192 kHz)
Mic/Line Inputs:
18 Hz to 20.8 kHz -0.1 dB (at 44.1 kHz)
7 Hz to 45.8 kHz -0.5 dB (at 96 kHz)
5 Hz to 92 kHz -1 dB (at 192 kHz) | | Gain Range | Mic/Line Inputs:
-11 dB to +65 dB | | Max Input Level | Line/Hi-Z Inputs:
+13 dBu (+4 dBu, Min Gain)
-5 dBu (-10 dBV, Max Gain)
Line Inputs:
+13 dBu (+4 dBu)
-5 dBu (-10 dBV)
Mic/Line Inputs:
+8 dBu (Min Gain)
+19 dBu (Min Gain, Pad On)
-57 dBu (Max Gain)
-46 dBu (Max Gain, Pad On) | | Headphone Output Power | 70 mW (Max) | | Dynamic Range | Line Outputs:
115 dB RMS
118 dBA | | Impedance | Headphone Outputs:
10 Ohms
2 Ohms
Line Inputs:
470 kOhms
Line Outputs:
300 Ohms (Balanced)
150 Ohms (Unbalanced)
Mic/Line Inputs:
2 kOhms (Balanced)
1 kOhm (Unbalanced) Impedance for 1/4" and 1/8" Headphone Outputs respectively. | | THD+N | Line Outputs:
-102 dB (0.0008%)
Mic/Line Inputs:
< -104 dB (< 0.00063%) | | THD | Headphone Outputs:
< 0.1%
Line Outputs:
-106 dB (0.0005%)
Mic/Line Inputs:
< -110 dB (<0.00032%) | | SNR | Line Inputs:
114 dB RMS
117 dBA
Mic/Line Inputs:
113 dB RMS
116 dBA | | Channel Separation | Line Outputs:
>110 dB
Mic/Line Inputs:
>110 dB | | | | Sample Rates | Up to 200 kHz | | Sync Sources | ADAT, Internal, S/PDIF | | | | Power Requirements | AC/DC Power Adapter (Not Included) or USB Bus-Power | | Power Consumption | 2.9 W (Typical)
4.6 W (Maximum) | | | | Operating Humidity | 0 to 75% Non-Condensing | | Operating Temperature | 41 to 122°F / 5 to 50°C | | | | Dimensions | 4.25 x 1.4 x 7.1" / 108 x 35 x 181 mm | | Weight | 1.5 lb / 680.0 g | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 11.575 x 6.221 x 3.307" |
