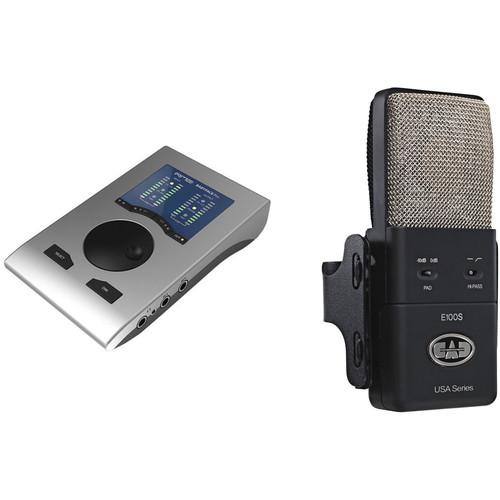

User Manual for RME Babyface Pro 24-Channel Interface & Condenser Microphone Kit

Click to enlarge the picture
RME Babyface Pro 24-Channel Interface & Condenser Microphone Kit Contents of the user manual for the RME Babyface Pro 24-Channel Interface &
  • Product category: Audio Interfaces & Systems RME
  • Brand: RME
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for RME Audio Interfaces & Systems

User manual for the RME Babyface Pro 24-Channel Interface & contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any RME product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!



Product description

The RME Babyface Pro 24-Channel Interface & Condenser Microphone Kit from B&H includes a Babyface 192 kHz USB bus-powered audio interface, a CAD Equitek E100S supercardioid condenser microphone, a shock mount, and a storage case. The kit can be used for a wide variety of studio and live recording applications.The RME Babyface is designed to work with a Mac or Windows computer and can also be used with an iPad with an external power adapter. It ships with a TotalMix FX software mixer, which adds a flexible 3-band parametric equalizer on all inputs and outputs. Featuring low latency AD/DA converters, the interface provides SteadyClock technology to reduce jitter and offers a professional recording solution in a compact form factor.The Cad Equitek condenser microphone is built with a large diaphragm. It provides a low-noise floor and a smooth, vintage tone. The full differential Quadra-FET front end delivers high sensitivity and low distortion. There is an 80 Hz hi-pass filter and a 10-dB pad. Also included is a woodgrain cherry case and a stealth shock mount. This microphone requires 48V of phantom power for operation.
  • RME Babyface Pro 24-Channel 192 kHz USB Bus-Powered Audio Interface
    • babyface
    The RME Babyface Pro 24-Channel 192 kHz USB Bus-Powered Audio Interface is designed for a wide variety of studio and live recording applications. Expertly crafted from a block of aluminum, this portable interface features a new XLR socket that integrates seamlessly into the housing. Parallel 6.3mm TRS and 3.5mm mini headphone jacks feature separate driver stages to match low and high impedance headphones.

    The interface ships with the company's TotalMix FX, a software mixer available for Windows, Mac OS X and iOS on an iPad. When using the device with an iPad, an external power adapter must be used, as the iPad alone is unable to power the interface. The mixer software allows you to use the interface in a wide variety of situations, from simple mixing of signals to more complicated routing configurations.

    The unit's FPGA-based DSP mixer adds a flexible 3-band parametric equalizer on all inputs and outputs. Combined with the unit's low latency AD/DA converters and the company's unique SteadyClock technology to reduce jitter, the interface offers a professional recording solution in a compact form factor.
      FPGA Chip
    • Uses a field-programmable gate array (FPGA) which enables flexible DSP processing
      Class Compliant
    • Enables native support by operating systems such as Windows, Mac OS X, Linux, and hardware like Apple's iPad, without the need for proprietary drivers
      SteadyClock
    • Uses a highly efficient jitter reduction circuit to allow the converters to operate as if they were working with an internal clock at all times
      TotalMix FX
    • Provides fully flexible mixing/routing for both studio and live applications via the company's hardware mixer
  • CAD Equitek E100S Supercardioid Condenser Microphone
    • babyface
    The Equitek E100S Supercardioid Condenser Microphone from CAD features a large diaphragm, providing a low noise floor of 3.7 dB and a smooth, vintage tone with a robust low end. The bootstrapped, full differential Quadra-FET front end delivers high sensitivity and low distortion. The nickel plated 1.0" capsule offers accurate phasing on instruments and a full rich vocal tone accentuated by the extended low frequency response. There is an 80 Hz hi-pass filter and a 10 dB pad. The package includes a vintage woodgrain cherry case and a stealth shock mount. The microphone requires 48V of phantom power for operation.
    • Nickel plated 1.0" capsule provides a full, rich tone with an extended low frequency response
    • A full differential Quadra-FET front end delivers high sensitivity and low distortion for picking up high-volume sound sources
    • Low noise floor of 3.7 dB for clean recordings
    • Supercardioid pickup pattern provides maximum off-axis noise rejection
    • 80Hz high pass filter to reduce low-end hum
    • -10 dB pad increases headroom when recording loud sounds
    • Operates on standard 48V phantom power
    • Shock mount and vintage cherry woodgrain case included
    UPC: 631922104394
In the Box
  • Babyface Pro 24-Channel 192 kHz USB Bus-Powered Audio Interface wfduzuzzuaeeeyruszyqecrywyvxwyudtrb
  • Limited 2-Year Warranty
  • CAD - Equitek E100S Supercardioid Condenser Microphone
Table of Contents




Upload User Manual

Have you got an user manual for the RME Babyface Pro 24-Channel Interface & Condenser Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • RME Babyface Pro 24-Channel 192 kHz USB Bus-Powered Audio Interface
    Max Sample Rate/Resolution 192 kHz / 24-Bit
    Host Connection 1 x USB Type-B (USB 2.0)
    Analog I/O 2 x XLR 3-Pin Mic Input
    2 x 1/4" (6.3 mm) Line/Hi-Z Input
    2 x XLR 3-Pin Output
    1 x 1/4" (6.3 mm) TRS Headphone Output
    Digital I/O 1 x TOSLINK / ADAT, S/PDIF Input
    1 x TOSLINK / ADAT, S/PDIF Output
    1 x TOSLINK / ADAT, S/MUX, S/MUX4, S/PDIF Input
    1 x TOSLINK / ADAT, S/MUX, S/MUX4, S/PDIF Output
    MIDI I/O 1 x 5-Pin MIDI In (On Breakout Cable)
    2 x 5-Pin MIDI Out (On Breakout Cable)
    Frequency Response Line Inputs:
    5 Hz to 20.8 kHz -0.1 dB (at 44.1 kHz)
    3 Hz to 45.8 kHz -0.5 dB (at 96 kHz)
    2 Hz to 92 kHz -1 dB (at 192 kHz)
    Line/Hi-Z Inputs:
    5 Hz to 20.8 kHz -0.1 dB (at 44.1 kHz)
    3 Hz to 45.8 kHz -0.5 dB (at 96 kHz)
    2 Hz to 92 kHz -1 dB (at 192 kHz)
    Line Outputs:
    0 Hz to 20.8 kHz -0.5 dB (at 44.1 kHz)
    0 Hz to 45 kHz -0.5 dB (at 96 kHz)
    0 Hz to 89 kHz -1 dB (at 192 kHz)
    Mic/Line Inputs:
    18 Hz to 20.8 kHz -0.1 dB (at 44.1 kHz)
    7 Hz to 45.8 kHz -0.5 dB (at 96 kHz)
    5 Hz to 92 kHz -1 dB (at 192 kHz)
    Gain Range Mic/Line Inputs:
    -11 dB to +65 dB
    Max Input Level Line/Hi-Z Inputs:
    +13 dBu (+4 dBu, Min Gain)
    -5 dBu (-10 dBV, Max Gain)
    Line Inputs:
    +13 dBu (+4 dBu)
    -5 dBu (-10 dBV)
    Mic/Line Inputs:
    +8 dBu (Min Gain)
    +19 dBu (Min Gain, Pad On)
    -57 dBu (Max Gain)
    -46 dBu (Max Gain, Pad On)
    Headphone Output Power 70 mW (Max)
    Dynamic Range Line Outputs:
    115 dB RMS
    118 dBA
    Impedance Headphone Outputs:
    10 Ohms
    2 Ohms
    Line Inputs:
    470 kOhms
    Line Outputs:
    300 Ohms (Balanced)
    150 Ohms (Unbalanced)
    Mic/Line Inputs:
    2 kOhms (Balanced)
    1 kOhm (Unbalanced) Impedance for 1/4" and 1/8" Headphone Outputs respectively.
    THD+N Line Outputs:
    -102 dB (0.0008%)
    Mic/Line Inputs:
    < -104 dB (< 0.00063%)
    THD Headphone Outputs:
    < 0.1%
    Line Outputs:
    -106 dB (0.0005%)
    Mic/Line Inputs:
    < -110 dB (<0.00032%)
    SNR Line Inputs:
    114 dB RMS
    117 dBA
    Mic/Line Inputs:
    113 dB RMS
    116 dBA
    Channel Separation Line Outputs:
    >110 dB
    Mic/Line Inputs:
    >110 dB
    Sample Rates Up to 200 kHz
    Sync Sources ADAT, Internal, S/PDIF
    Power Requirements AC/DC Power Adapter (Not Included) or USB Bus-Power
    Power Consumption 2.9 W (Typical)
    4.6 W (Maximum)
    Operating Humidity 0 to 75% Non-Condensing
    Operating Temperature 41 to 122°F / 5 to 50°C
    Dimensions 4.25 x 1.4 x 7.1" / 108 x 35 x 181 mm
    Weight 1.5 lb / 680.0 g
    Box Dimensions (LxWxH) 11.575 x 6.221 x 3.307"
  • CAD Equitek E100S Supercardioid Condenser Microphone
    Transducer Condenser
    Diaphragm 1.0" / 25.40 mm
    Polar Pattern Supercardioid
    Frequency Range 40 Hz to 18 kHz
    Equivalent Noise Level 3.7 dB A-Weighted
    Maximum SPL 140 dB SPL
    Pad -10 dB
    Impedance 150 Ohms
    Sensitivity 28 mV/Pa
    Low-Cut Filter @ 80 Hz
    Operating Voltage 48 V
    Box Dimensions (LxWxH) 10.0 x 6.5 x 6.0"
