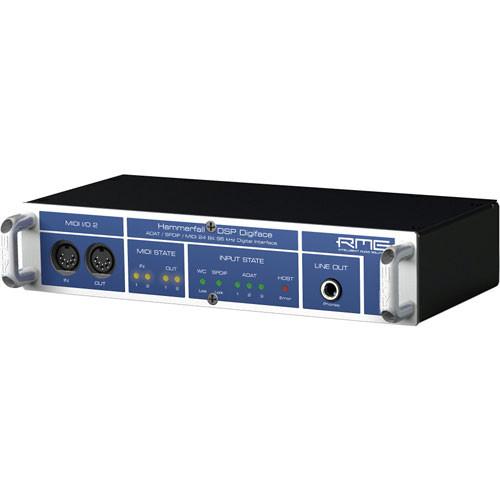

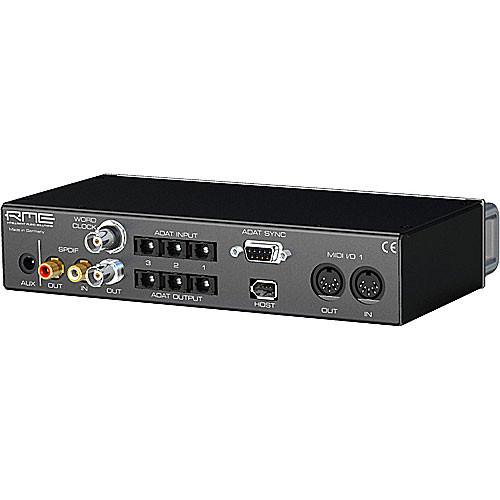

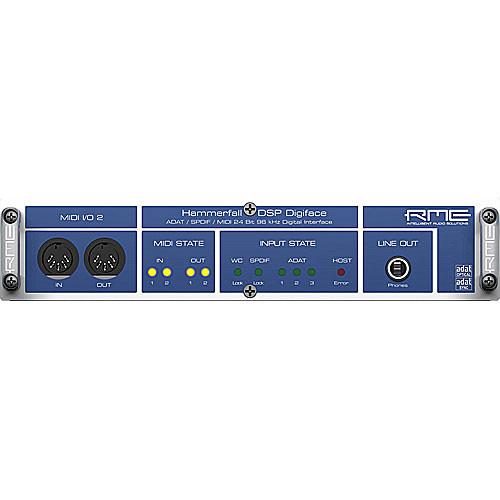

Product description The HDSP System, from RME consists of either a PCI card or a CardBus PCMCIA interface, plus an external I/O-box, that together can operate on either a desktop or a laptop computer. The Digface is a digital input/output box housed in a small, compact enclosure. It provides three ADAT optical I/Os, ADAT-Sync In, S/PDIF I/O and Word clock I/O, along with two MIDI I/Os and a separate stereo analog line out. Since the parts of the Hammerfall DSP System can be combined freely, the Digiface can be used both with notebooks as well as desktop computers and provides "Zero CPU Load" technology that guarantees high performance and low latency. Note: To make a complete system, an optional computer interface, such as the HDSP PCI card or HDSP PCMCIA CardBus interface has to be purchased - Fifty-two channel S/PDIF-ADAT interface for use in RME HDSP computer audio systems
- Zero CPU load, even using all fifty-two ASIO channels
- Zero Latency monitoring for latency-free submixes and perfect ASIO direct monitoring
- Analog, ADAT and S/PDIF I/Os can be used simultaneously
- Automatic and intelligent master/slave clock control
- ADAT Sync In (9-pin D-sub) for sample-accurate transfers with unsurpassed Bitclock PLL (audio synchronization) in ADAT mode
- SyncCheck tests and reports the synchronization status of input signals
- Software based TotalMix 1,456 channel mixer with 40-bit internal resolution
UPC: 874792004153 In the Box RME Digiface - 52 Channel 24-Bit/96kHz I/O Box for Mac OS X and Windows 2000/XP 1 x 6.6 ft Optical Cable RME Driver CD ROM Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME Digiface - 52 Channel 24-Bit 96kHz I O Box for Mac OS X and Windows 2000 XP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME Digiface Specs | Converters | 24-bit | | Sample Rates | 32, 44.1, 48, 88.2 and 96kHz - internal
28 to 103kHz - external, via Wordclock | | Analog Input | No | | Analog Output | 1 x 1/4" TRS phone | | Digital Input | 3 x TosLink ADAT optical
1 x RCA S/PDIF coaxial | | Digital Output | 3 x TosLink ADAT optical
1 x RCA S/PDIF,AES coaxial | | MIDI In/Out | 2 x I/O (16-channels) | | Sync In/Out | 2 x BNC Wordclock (I/O)
S/PDIF
ADAT 9-pin sync-in | | Headphone Output | Yes | | THD + N | -100dB, 0.001% | | Dynamic Range | 108dB (RMS unweighted, unmuted) 112dBA | | Frequency Response | D/A: 20Hz to 20.8kHz, -0.1dB @ 44,1kHz
D/A: 10Hz to 44.0kHz, -0.5dB @ 96kHz | | System Requirements | Windows 2000 SP4/XP
Mac OS X 10.28 or higher | | Specialties | Bitclock PLL for trouble-free varispeed ADAT operation | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 12.0 x 7.0 x 4.0" |
