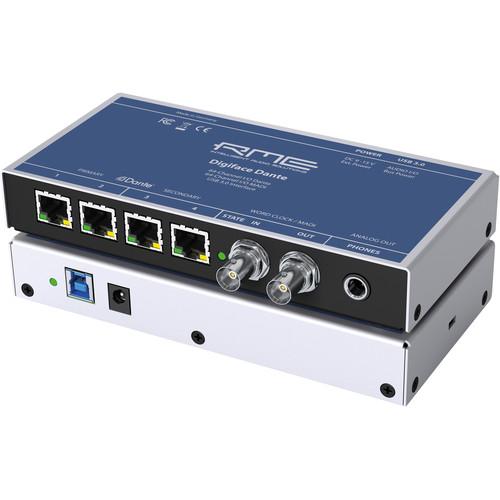

Product description The RME Digiface Dante is an audio interface that combines USB 3.0, MADI, and DANTE formats to give you up to 256 channels of digital connectivity. As such, you can route and mix digital audio coming from multiple sources. It does this at low latency and also gives you the TotalMix FX bundle to apply processing to all of your submixes. With various channel configurations, it can operate at sample rates of up to 192 kHz and at resolutions of 24 bits.

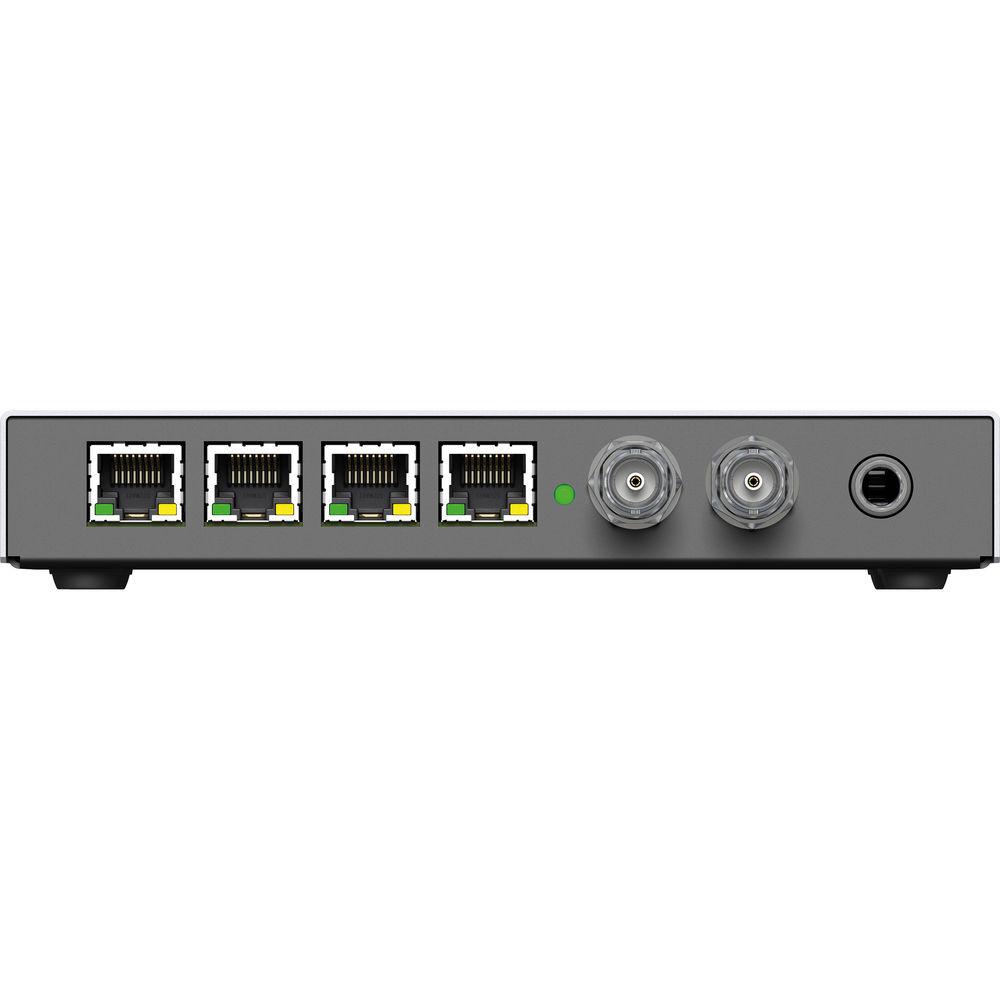

On the front of the unit, you'll find four RJ45 Ethernet ports for Dante connections. These ports support both 100 Mb/s and 1 Gb/s, and can be used in Switched or Redundancy modes. You'll also note 2 BNC sockets for MADI I/O or wordclock connections and a 1/4" headphone output. The headphone output can monitor any audio channel and can also supply an analog stereo mix-down connection.

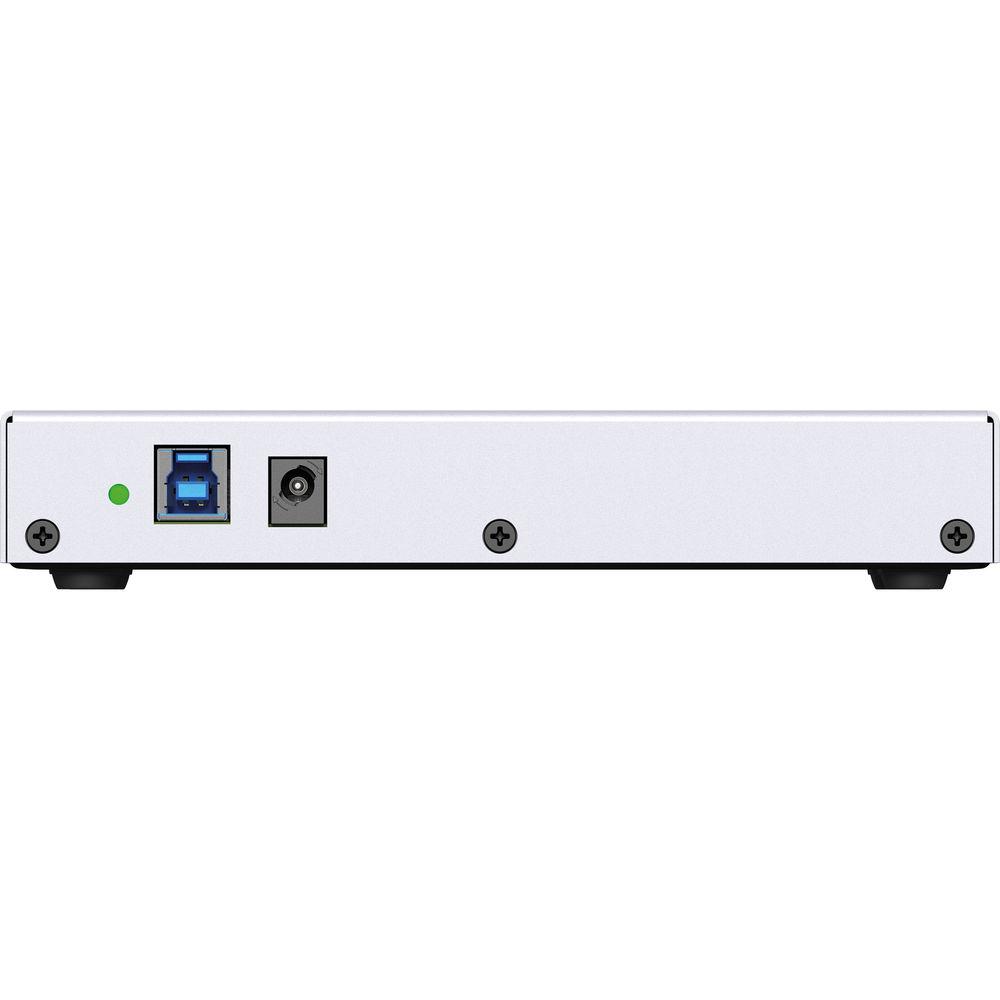

The rear of the Digiface Dante sports a USB connection for USB 3.0 and USB 2.0 at reduced channel counts (64 channels, Dante only). You can also bus-power the unit over USB, though it's recommended that you use the included power supply if you're running all four network connections and the headphone output at once.
Use this device with your Mac or Windows computer over USB, or operate the unit in standalone. In standalone, the Digiface Dante turns into a 64-channel Dante/MADI converter.
To aid you in routing and mixing signals, the Digiface Dante ships with TotalMix FX. Also included is DiGiCheck DSP, utility software that provides tools to test, measure, and analyze digital audio streams. These tools include peak metering, RMS metering, standardized loudness metering, a vector audio scope, bit statistics, a spectral analyzer, and more. - Select Features at a Glance
-
- All settings can be changed in real-time
- 64 channels Dante (AES67), 64 channels MADI
- 32 channels 24-bit / 96 kHz of record/playback on both Dante and MADI
- 16 channels 24-bit / 192 kHz of record/playback on both Dante and MADI
- Slave and Master clock modes
- MADI, internal, or Dante clock sources
- 4 x Gigabit Ethernet port, 100 Mb/s compatible
- TotalMix 4096 channel mixer with 46-bit internal resolution, for latency-free submixes and ASIO Direct Monitoring
- Analog/Line headphone output, separate output for independent submix
- DIGICheck DSP for metering needs
- Standalone mode with Dante-to-MADI/MADI-to-Dante converter functionality
- USB error analysis, displayed in the Settings dialog
In the Box RME Digiface Dante - 256-Channel Dante to MADI Audio Interface with USB USB 3.0 Cable (6.0' / 1.8m) RME Driver CD Switched Power Supply with Lockable Connector Power Cord Limited 2-Year Warranty User Manual PDF 780.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the RME Digiface Dante - 256-Channel Dante to MADI Audio Interface with USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME Digiface Dante Specs | | | Channels of I/O | Digital:
128 Inputs / 128 Outputs | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | 1 x USB Type-B (USB 3.0) | | Analog I/O | 1 x 1/4" (6.3 mm) TRS Unbalanced Headphone Output | | Phantom Power | None | | Digital I/O | 4 x RJ45 / Dante (I/O) In/Out
2 x BNC / Coaxial MADI (I/O, Word Clock) In/Out | | MIDI I/O | None | | Memory Card Slot | None | | | | Frequency Response | Headphone Outputs:
0 Hz to 20.8 kHz /-5 (at 44.1 kHz)
Headphone Outputs:
0 Hz to 45 kHz /-5 (at 96 kHz)
Headphone Outputs:
0 Hz to 89 kHz /-1 (at 192 kHz) | | Headphone Output Power | 50 mW into 2 kOhms | | THD+N | Headphone Outputs:
-95 dB (0.0017%) | | THD | Headphone Outputs:
-96 dB (0.0016%) | | Channel Separation | Headphone Outputs:
>100 dB | | | | Sample Rates | Up to 192 kHz (Digital Output) | | Bit Depth | Up to 24-Bit (AD/DA Conversion) | | Sync Sources | Dante, Internal, MADI | | Word Clock Input Termination | 75 Ohms, Switchable | | | | OS Compatibility | Windows 7 or Later
macOS 10.11 or Later | | Required Hardware | Available USB 2.0 Port, USB 3.0 Port USB 2.0 requires a computer with at least Intel Core i3 CPU, and provides a reduced channel count. | | | | Power Requirements | AC/DC Power Adapter (Included), USB Bus-Power | | AC/DC Power Adapter | 12 VDC (Included) | | Power Consumption | 6 W (Maximum) | | | | Operating Temperature | 41 to 122°F / 5 to 50°C | | | | Dimensions | 6.69 x 3.31 x 1.02" / 170 x 84 x 26 mm | | Weight | 1.1 lb / 500.0 g | | | | Package Weight | 2.635 lb | | Box Dimensions (LxWxH) | 11.8 x 6.6 x 3.9" |
