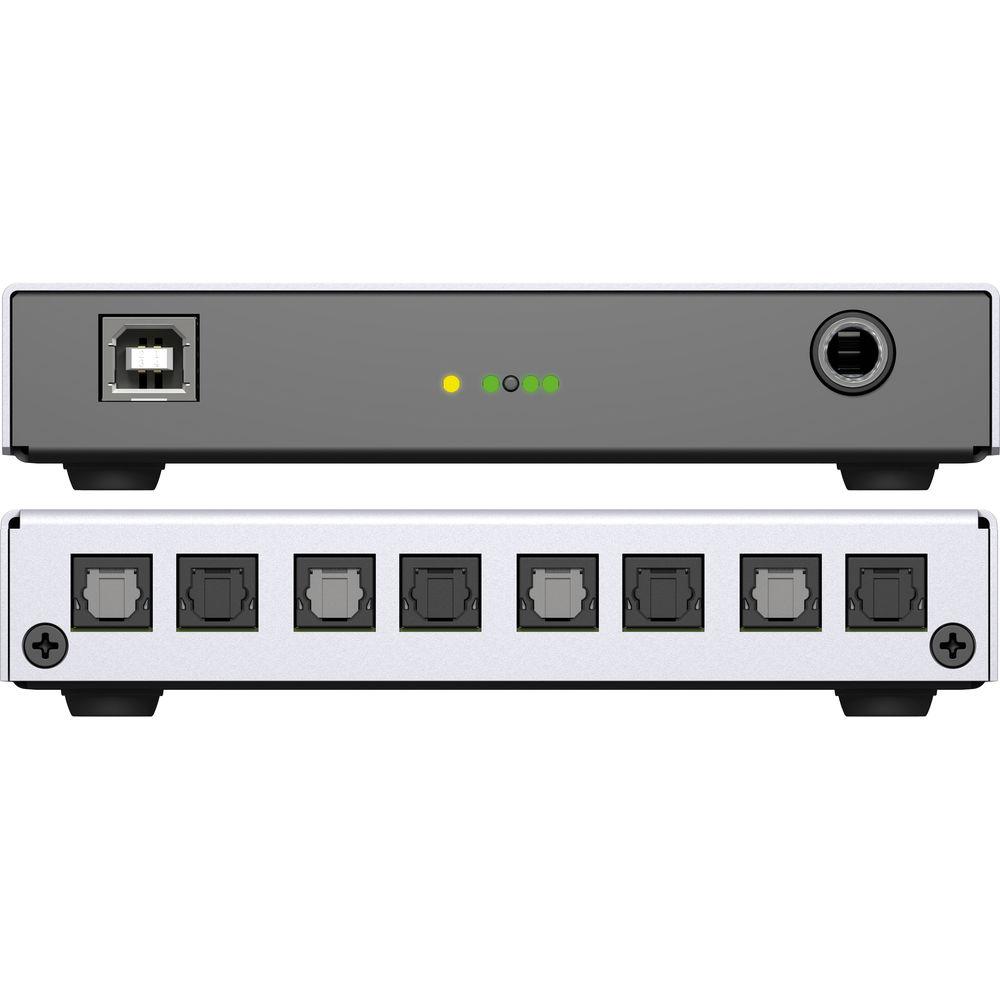

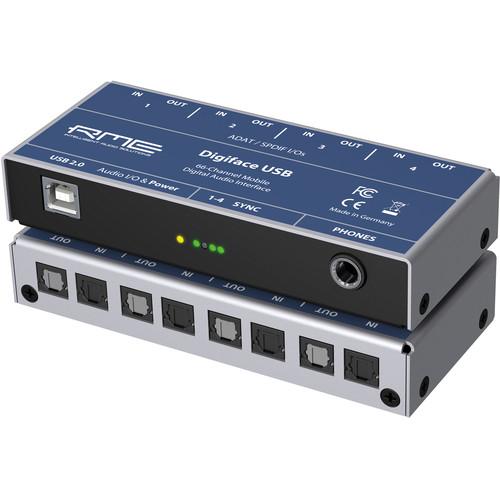

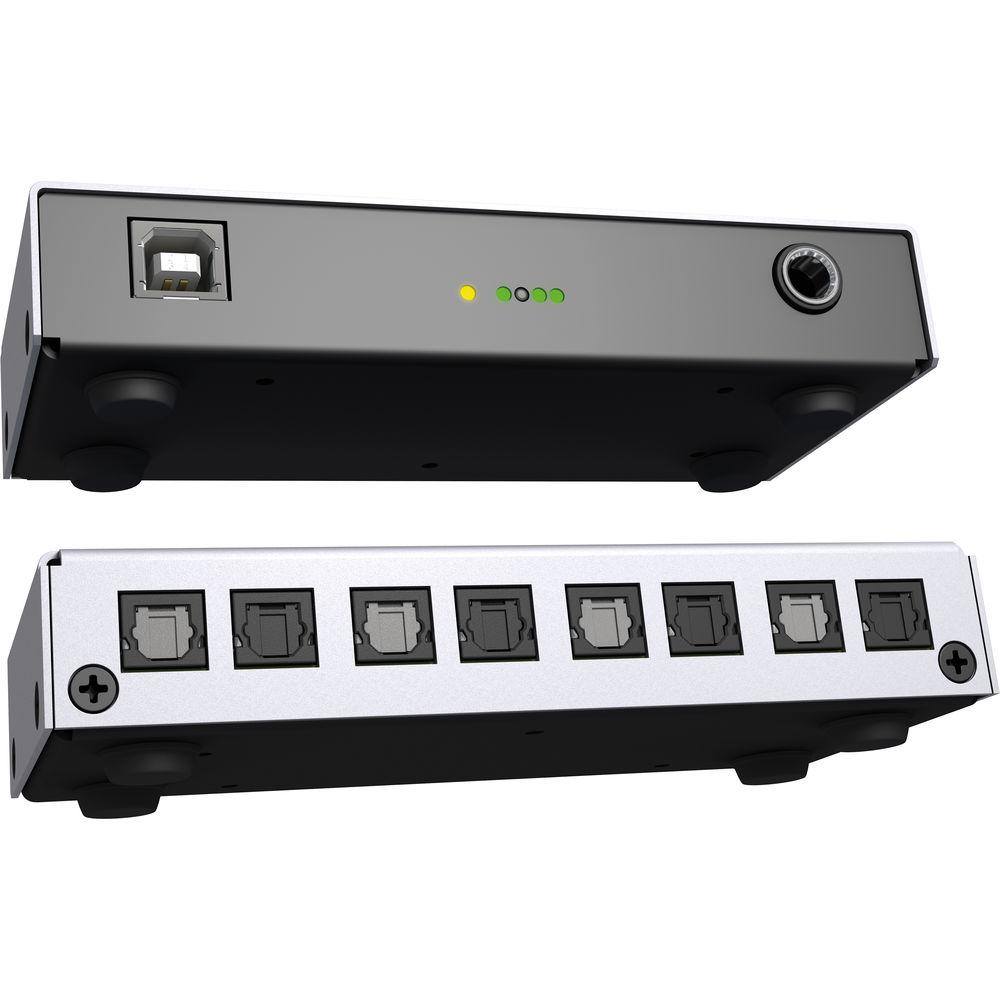

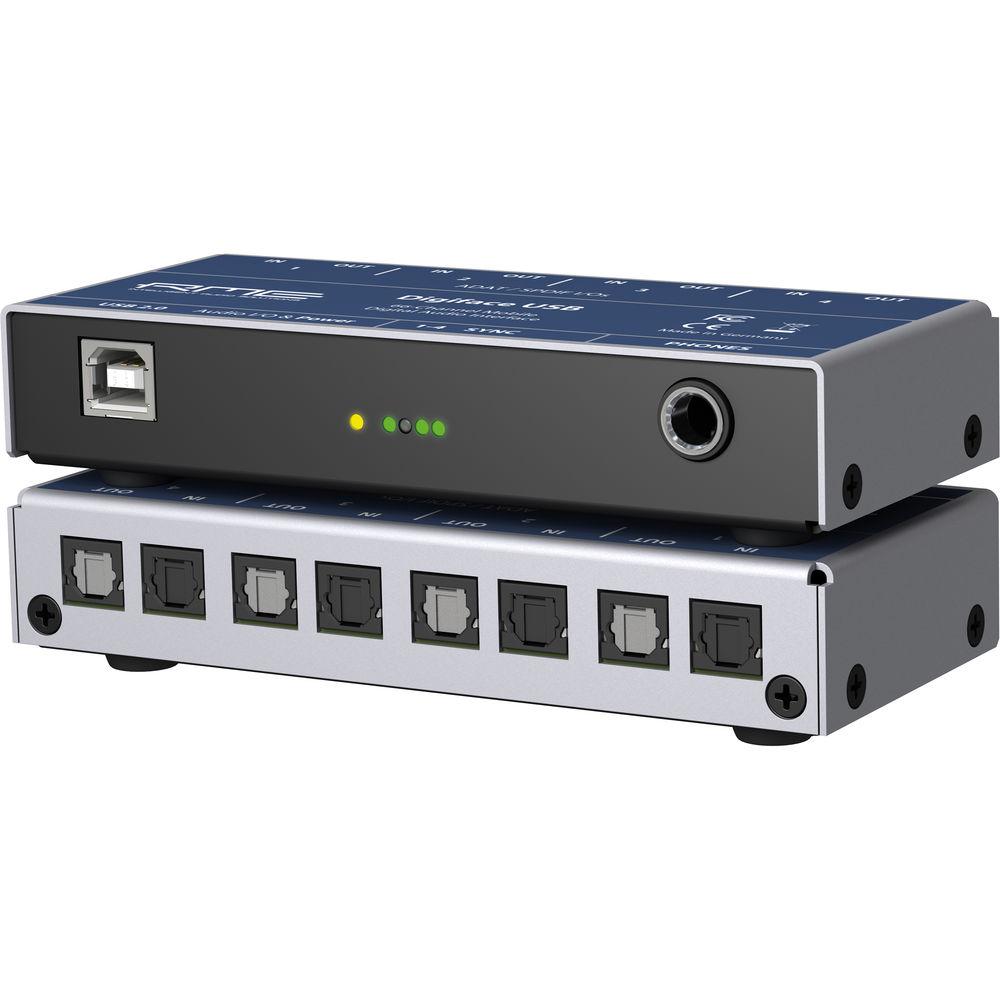

Product description The Digiface USB from RME is a portable USB 2.0 audio interface designed to quickly and efficiently transfer 24-bit / 192 kHz digital audio data in ADAT and S/PDIF format to Windows and Mac computers. Lightweight (at 0.49 lb), compact, and bus-powered, it is well suited for mobile recording/mixing applications or remote monitoring solutions. The Digiface USB offers four optical ADAT / S/PDIF I/Os and a high-quality analog line/phone stereo output via a 1/4" TRS jack, for a total of 32 inputs and 34 outputs when using ADAT optical. It also comes with the real-time mixer software TotalMix which allows you to mix and route all inputs and playback channels simultaneously, to any hardware outputs. The software features a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and more. The included DIGICheck utility software provides a suite of tools to test, measure, and analyze digital audio streams with a high-precision peak/RMS level meter, a spectral analyzer, a vector audio scope, and more. -
- Interface: USB 2.0, bus-powered, no external power supply required
- Sample rates: 28 kHz to 200 kHz
- 66 channels: 32 in / 34 out
- 4 x ADAT / S/PDIF optical input ports
- 4 x ADAT / S/PDIF optical output ports
- Standard speed: 32 channels, 24-bit/up to 48 kHz, record/playback via ADAT optical
- Double speed: 16 channels, 24-bit/96 kHz, record/playback via ADAT optical (S/MUX)
- Quad speed: 8 channels, 24-bit/192 kHz, record/playback via ADAT optical (S/MUX4)
- Each single optical port can use either ADAT (up to 8 channels) or S/PDIF (stereo)
- ADAT and S/PDIF I/Os can be used simultaneously
- One analog line/headphone stereo output, provides separate output for independent submix
- All settings can be changed in real-time
- TotalMix allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs, with 46-bit internal resolution
- TotalMix for latency-free submixes and ASIO Direct Monitoring
- Compact, portable, and lightweight audio interface
- Slave and master clock modes – Internal, ADAT input, S/PDIF input
- Buffer sizes/latencies 32 to 8192 samples, selectable
- Automatic and intelligent master/slave clock control
- SteadyClock: Jitter-immune, super-stable digital clock
- SyncAlign guarantees sample-aligned and never-swapping channels
- SyncCheck tests and reports the synchronization status of input signals
- DIGICheck DSP: Level meter in hardware with peak and RMS calculation
- High-resolution Bitclock PLL (audio synchronization) in ADAT mode, even in vari-speed operation
- Near-zero effective clock jitter influence on A/D and D/A conversion
- PLL ensures zero dropout, even at more than 100 ns jitter
- Low-Jitter Design: < 1 ns in PLL mode, all inputs
- Driver CD contains drivers for Windows Vista / 7 / 8 / 10 and Mac OS X (x86 Intel)
In the Box RME Digiface USB 66-Channel ADAT to USB Optical Audio Interface USB Cable, 6' / 1.8 m Driver CD Limited 2-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the RME Digiface USB 66-Channel ADAT to USB Optical Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME DIGIFACE USB Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | None | | Digital I/O | 4 x TOSLINK / ADAT, S/PDIF Input
4 x TOSLINK / ADAT, S/PDIF Output | | MIDI I/O | None | | | | Frequency Response | Headphone Outputs:
0 Hz to 20.8 kHz -0.5 dB (at 44.1 kHz)
0 Hz to 45 kHz -0.5 dB (at 96 kHz)
0 Hz to 89 kHz -1 dB (at 192 kHz) | | Headphone Output Power | 50 mW (Max) | | Dynamic Range | Headphone Out:
113 dBA
110 dB RMS | | Impedance | Headphone Outputs:
2 Ohms | | THD+N | Headphone Outputs:
-95 dB (0.0017%) | | THD | Headphone Outputs:
-96 dB (0.0016%) | | Channel Separation | Headphone Outputs:
>100 dB | | | | Sample Rates | Up to 200 kHz | | Sync Sources | ADAT, Internal, S/PDIF | | | | OS Compatibility | macOS 10.6 or Later
Windows Vista or Later | | Processor Requirement | Intel Pentium Duo | | Required Hardware | Available USB 2.0 Port or USB 3.0 Port | | | | Power Requirements | USB Bus-Power | | Power Consumption | 1.2 W (Typical)
2 W (Maximum) | | | | Operating Humidity | 0 to 75% Non-Condensing | | Operating Temperature | 41 to 122°F / 5 to 50°C | | | | Dimensions | 5.04 x 0.87 x 2.2" / 128 x 22 x 55 mm | | Weight | 0.5 lb / 220.0 g | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 11.6 x 6.9 x 3.8" |
