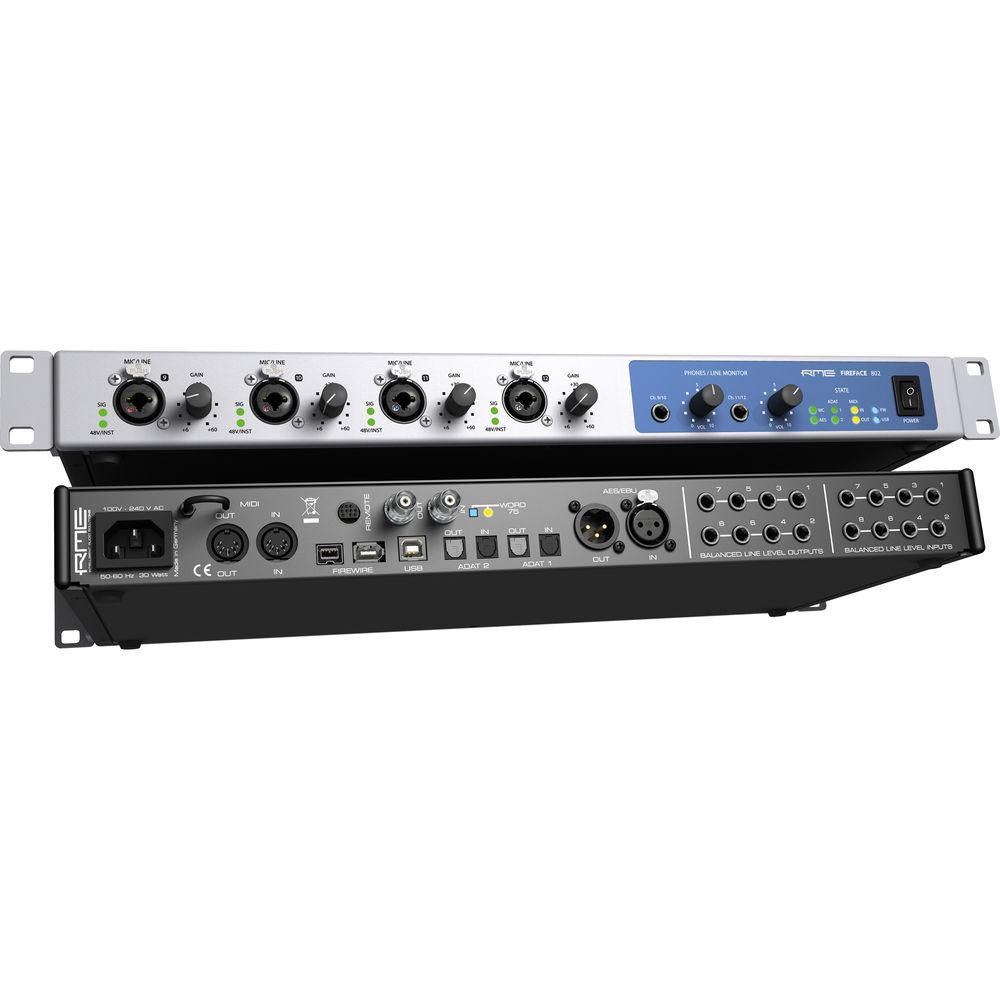

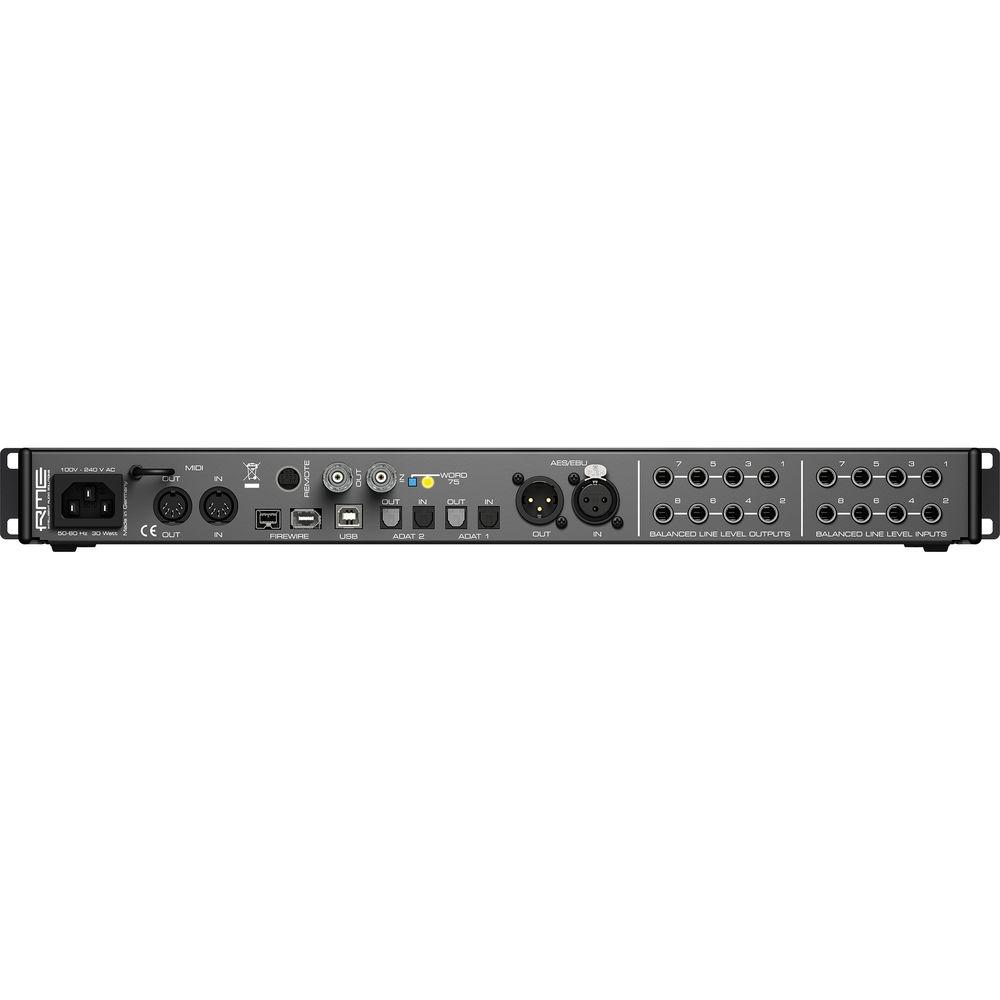

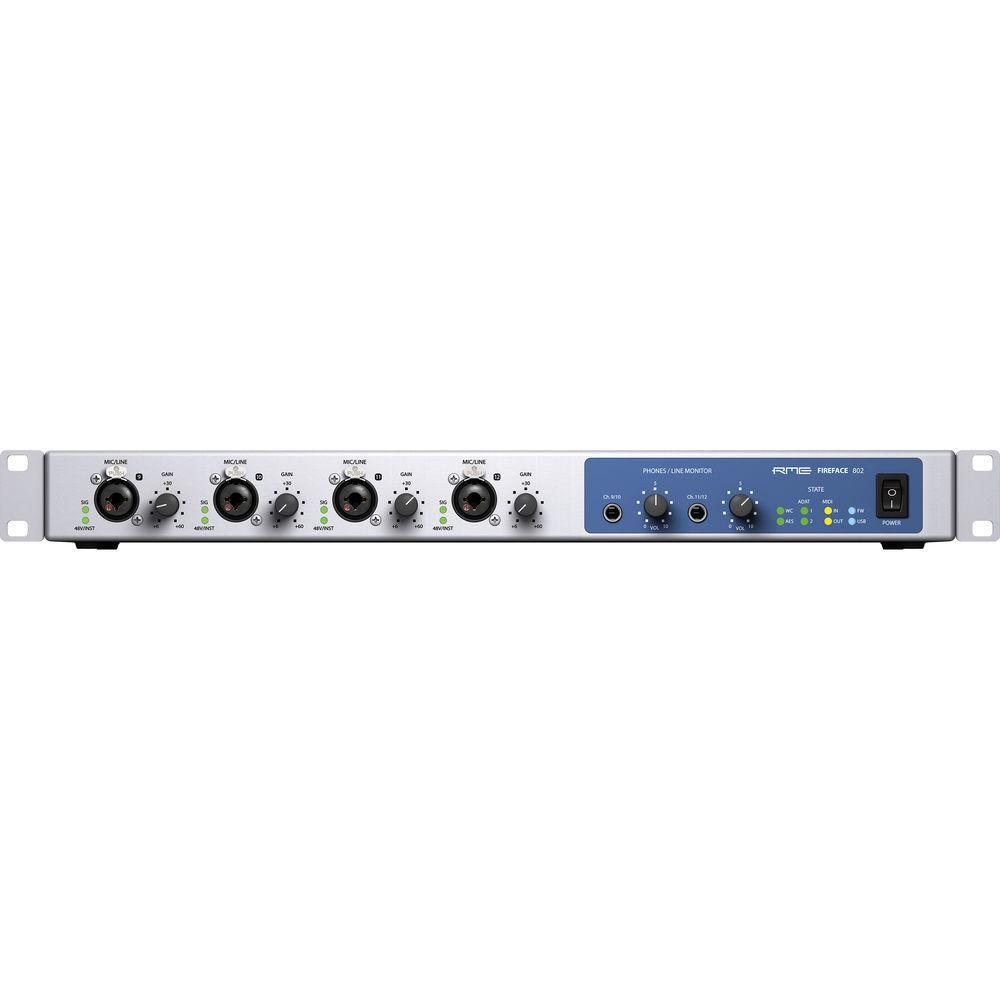

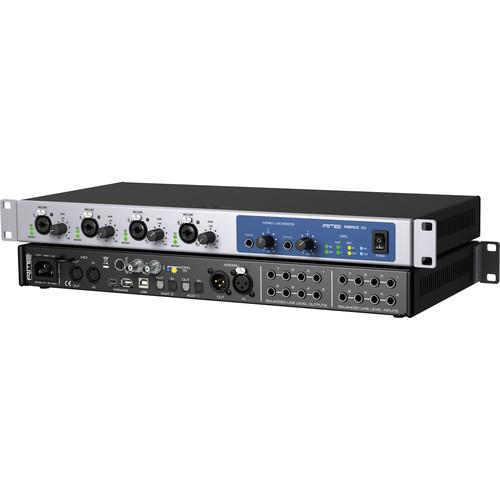

User Manual for RME Fireface 802 USB FireWire Audio Interface Click to enlarge the picture
Contents of the user manual for the RME Fireface 802 USB FireWire Audio
- Product category: Audio Interfaces & Systems RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Audio Interfaces & Systems
 |
User manual for the RME Fireface 802 USB FireWire Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|
Product description The Fireface 802 from RME-Audio is a high-definition, 60-channel audio interface with 4 professional quality preamps and reference class converters. The 802 features 12 analog and 18 digital inputs and outputs, all available simultaneously. Low latency operation and stability stem from RME's own proprietary USB and FireWire hardware and drivers. The SteadyClock jitter suppression technology ensures high quality sound from input to output. Should an external clock source fail, the Intelligent Clock Control (ICC) will retain the last valid input sample rate. All of the Fireface 802's hardware and software are fully compatible with Windows and Mac operating systems. Driven by two DSP chips, the TotalMix FX software offers a complete digital mixer and signal router with integrated EQ, dynamics and reverb/echo. The software's built-in monitor controller allows for any physical output to be assigned as main or phones output. Talkback, listenback, mono, dim, recall and external inputs will work automatically on the assigned monitor control channels. The 802 also offers 6 memory slots for permanently saving different TotalMix configurations, which may be recalled without a computer. The TotalMix FX app for iPad allows for complete control over all functions without a computer connection. The Fireface 802 ships with driver CD, USB cable, IEC power cable, and optical cable. -
- 30 Input / 30 Output channels
- 12 x Analog I/O
- 4 x Mic/Instrument preamps
- 1 x AES/EBU I/O
- 2 x ADAT I/O
- 1 x SPIDIF (Available through ADAT 2 port)
- 1 x Word Clock I/O
- 1 x MIDI I/O
- FireWire or USB operation
- TotalMix FX software with monitor management
- SteadyClock jitter suppression
- Intelligent Clock Control (ICC) retains sample rate in case of external clock failure
- DigiCheck software offers comprehensive tools for metering, testing, measuring and analyzing audio streams
- Stand-alone operation with setup recall
- Universal power supply ensures worldwide compatibility
In the Box RME Fireface 802 USB / FireWire Audio Interface USB 2.0 Cable (6' / 1.8 m) RME Driver CD IEC Power Cable TOSLINK Optical Cable (6.6' / 2 m) Limited 2-Year Warranty User Manual PDF 1.3mbrxzssfrsftss Table of Contents
|
Upload User Manual
Have you got an user manual for the RME Fireface 802 USB FireWire Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME FF802 Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | 1 x USB Type-B (USB 2.0)
1 x 6-Pin FireWire (FireWire 400)
1 x 9-Pin FireWire (FireWire 800) | | Analog I/O | 4 x Combo XLR / 1/4" TRS Input
8 x 1/4" (6.3 mm) TRS Input
8 x 1/4" (6.3 mm) TRS Output
2 x 1/4" (6.3 mm) TRS Headphone Output | | Digital I/O | 1 x XLR 3-Pin Female / AES/EBU Input
1 x XLR 3-Pin Male / AES/EBU Output
2 x TOSLINK / ADAT, S/MUX, S/PDIF Input
2 x TOSLINK / ADAT, S/MUX, S/PDIF Output
1 x BNC (Word Clock) Input
1 x BNC (Word Clock) Output | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | Frequency Response | Hi-Z Inputs:
5 Hz to 20.8 kHz -0.5 dB (at 44.1 kHz)
5 Hz to 35 kHz -0.5 dB (at 96 kHz)
5 Hz to 55 kHz -1 dB (at 192 kHz)
Line Outputs:
5 Hz to 20.8 kHz +0/-0.5 dB (at 44.1 kHz)
5 Hz to 45 kHz +0/-0.5 dB (at 96 kHz)
5 Hz to 89 kHz +0/-1 dB (at 192 kHz)
Mic/Line Inputs:
5 Hz to 20.8 kHz +0/-0.1 dB (at 44.1 kHz)
5 Hz to 45.8 kHz +0/-0.5 dB (at 96 kHz)
5 Hz to 92 kHz +0/-1 dB (at 192 kHz) | | Gain Range | Mic Inputs:
54 dB | | Max Input Level | Mic Inputs:
+10 dBu
Hi-Z Inputs:
+21 dBu | | Max Output Level | Headphone Outputs:
+16.8 dBu at 0 dBFS (High Gain)
+2 dBV at 0 dBFS (Low Gain) | | Dynamic Range | Line Outputs:
118 dBA
115 dB RMS | | Impedance | Headphone Outputs:
30 Ohms
Headphone Outputs:
30 Ohms
Hi-Z Inputs:
800 kOhms
Line Outputs:
75 Ohms
Mic Inputs:
3.4 kOhms | | THD+N | Inputs:
-104 dB (< 0.00063%)
Outputs:
-100 dB (< 0.00063%) | | THD | Inputs:
-110 dB (<0.00032%)
Outputs:
-104 dB (<0.00032%) | | SNR | Hi-Z Inputs:
112 dB RMS
115 dBA
Line Inputs:
113 dB RMS
116 dBA
Mic Inputs:
112 dB RMS
116 dBA | | Channel Separation | >110 dB | | | | Sample Rates | 44.1, 48, 88.2, 96, 176.4, and 192 kHz | | Bit Depth | 24-Bit | | Word Clock Input Termination | 75 Ohms, Switchable | | | | OS Compatibility | macOS 10.6 or Later
Windows 8
Windows 7
Windows Vista
Windows XP | | Processor Requirement | Intel Pentium Duo | | Required Hardware | Available FireWire 400 Port, FireWire 800 Port, or USB 2.0 Port | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | AC/DC Power Adapter | Included | | Power Consumption | 22 W (Typical) | | | | Rackmount Size | 1RU | | Dimensions | 19 x 1.7 x 9.5" / 48.3 x 4.4 x 24.1 cm | | Weight | 6.6 lb / 3.0 kg | | | | Package Weight | 11.75 lb | | Box Dimensions (LxWxH) | 22.2 x 12.5 x 4.5" |
