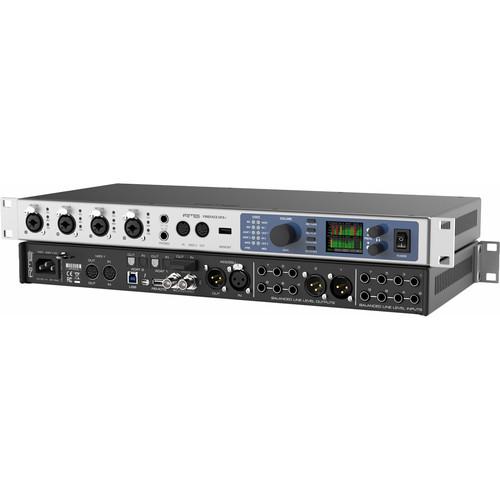

Product description The Fireface UFX+ from RME is an audio interface that combines analog, ADAT, MADI, AES, S/PDIF, USB 2, USB 3 and Thunderbolt connectivity, with the ability to handle up to 94 channels of audio I/O with ease. Also included are DURec (Direct USB Recording) and RME's renowned low-latency hardware and driver designs, making the interface especially suitable for situations where large amounts of data need to be moved about. For monitoring, low impedance Hi-Power headphone outputs provide ample power for driving any high- or low-impedance headphones. - Comprehensive MADI connectivity
- In USB 2 mode, which is limited to 30 channels I/O (12 analog plus 16 ADAT plus AES), the MADI I/O is still available via RME's TotalMix FX digital mixer
- Wordclock I/O (BNC) can be switched to MADI I/O (coaxial), and a special split mode supports the use of both MADI I/Os simultaneously, with 32 channel each on optical and coaxial
- DURec, available on the front of the interface, offers second generation hardware with improved USB functionality and compatibility, providing greater reliability even with slower or multi-partitioned USB thumb drives
- The maximum number of recordable channels has been raised to 76, meaning all 12 analog inputs plus 64 MADI channels can be recorded simultaneously
- An internal Realtime Clock (RTC) delivers time-stamped files
- TotalMix provides unlimited routing and mixing to the interface, with the capability to create as many independent submixes as output channels are available, and includes a complete effects system
- TotalMix FX for iPad (available separately) adds full control over the mixer and DSP effects
In the Box RME Fireface UFX+ USB 3.0 and Thunderbolt Audio Interface AC Power Cable 6' USB 3.0 Cable RME Driver CD Limited 2-Year Warranty User Manual PDF 1.8mbwybzeuadwdcvbscsuuuzwvcuerbysbebe Table of Contents
|
Upload User Manual
Have you got an user manual for the RME Fireface UFX USB 3.0 and Thunderbolt Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME FIREFACE UFX+ Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | Thunderbolt (MDP) (Thunderbolt 1) | | Analog I/O | 6 x 1/4" (6.3 mm) TRS Balanced Input
2 x XLR 3-Pin Balanced Output
2 x 1/4" (6.3 mm) TRS Unbalanced Headphone Output | | Digital I/O | 1 x XLR 3-Pin Female / AES/EBU, S/PDIF Input
1 x XLR 3-Pin Female / AES/EBU, S/PDIF Output
1 x BNC / Coaxial MADI, S/MUX Input
1 x BNC / Coaxial MADI, S/MUX Output
1 x Duplex SC-Plug / Optical MADI, S/MUX In/Out
2 x TOSLINK / ADAT, S/MUX, S/MUX4, S/PDIF Input
2 x TOSLINK / ADAT, S/MUX, S/MUX4, S/PDIF Output | | MIDI I/O | 2 x 5-Pin MIDI In
2 x 5-Pin MIDI Out 1 x MIDI I/O via MADI | | | | Frequency Response | Inputs:
5 Hz to 20.8 kHz -0.1 dB (at 44.1 kHz)
3 Hz to 45.8 kHz -0.5 dB (at 96 kHz)
2 Hz to 92 kHz -1 dB (at 192 kHz)
Line Outputs:
5 Hz to 20.8 kHz -0.5 dB (at 44.1 kHz)
5 Hz to 45 kHz -0.5 dB (at 96 kHz)
5 Hz to 89 kHz -1 dB (at 192 kHz) | | Gain Range | Hi-Z Inputs:
42 dB
Hi-Z Inputs:
42 dB
Inputs:
0 to +12 dB
Line Inputs:
0 to +12 dB
Mic Inputs:
75 dB | | Max Input Level | Hi-Z Inputs:
+21 dBu (Min Gain)
-21 dBu (Max Gain)
Line Inputs:
+19 dBu
Mic Inputs:
+18 dBu (Min Gain)
-57 dBu (Max Gain) | | Max Output Level | Line Outputs:
+19 dBu
XLR Outputs:
+24 dBu
Monitor/Line Outputs:
+19 dBu
Headphone Outputs:
+19 dBu at 0 dBFS (High Gain)
+2 dBV at 0 dBFS (Low Gain) | | Headphone Output Power | 210 mW per Channel into 32 Ohms | | Dynamic Range | Outputs:
118 dBA
115 dB RMS | | Impedance | Hi-Z Inputs:
1 MOhm
Line Inputs:
8 kOhms (Unbalanced)
Line Inputs:
12 kOhms (Balanced)
Mic Inputs:
3.4 kOhms
Headphone Outputs:
2 Ohms | | THD+N | Line Inputs:
< -104 dB (< 0.00063%)
Outputs:
< -104 dB (< 0.00063%) | | THD | Line Inputs:
< -110 dB (<0.00032%)
< -110 dB (<0.00032%) | | SNR | Hi-Z Inputs:
114 dB RMS
118 dBA
Line Inputs:
113 dB RMS
116 dBA
Mic Inputs:
115 dB RMS
118 dBA | | Channel Separation | Line Inputs:
>110 dB
Line Outputs:
>110 dB | | | | Sample Rates | Up to 200 kHz | | Word Clock Input Termination | 75 Ohms, Switchable | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 19 W (Idle)
25 W (Typical) | | | | Operating Humidity | 0 to 75% Non-Condensing | | Operating Temperature | 41 to 122°F / 5 to 50°C | | | | Dimensions | 19 x 8.5 x 1.73" / 483 x 210 x 44 mm With Rack Ears | | Weight | 6.6 lb / 3.0 kg | | | | Package Weight | 12.5 lb | | Box Dimensions (LxWxH) | 22.0 x 12.4 x 4.6" |
