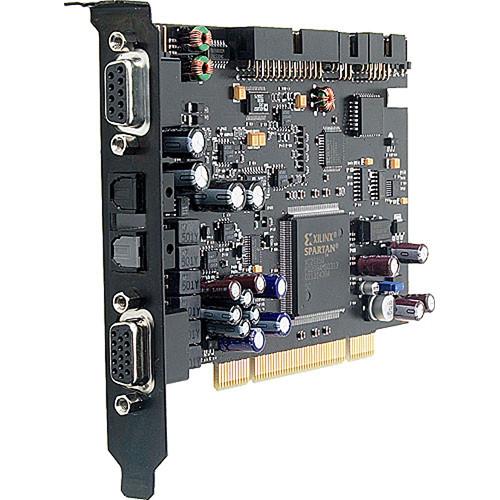

User Manual for RME HDSP 9632 - PCI Digital Audio Card Click to enlarge the picture
Contents of the user manual for the RME HDSP 9632 - PCI Digital
- Product category: Audio Interfaces & Systems RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Audio Interfaces & Systems
|
User manual for the RME HDSP 9632 - PCI Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|
Product description The Hammerfall DSP 9632 from RME is a PCI form audio interface for both Mac and Windows that makes the dream of an "all-in-one solution" for every possible audio application come true. The card includes the latest 192kHz capable analog-to-digital and digital-to-analog converters with more than 110dB signal to noise ratio, with all inputs and outputs (available via included breakout cables,) simultaneously operational. Easy-to-install optional high quality analog expansion boards, TotalMix software and a clock section with maximum jitter suppression of external clock signals all combine to provide a versatile and fully featured soundcard. - Zero CPU load, even using all thirty-two ASIO channels
- Analog, ADAT and SPDIF I/Os can be used simultaneously
- All settings can be changed in real-time
- Four channels of 24-bit/96kHz record/playback possible via ADAT optical (S/MUX)
- Slave and master clock modes with automatic and intelligent master/slave clock control
- TotalMix software for latency-free submixes and perfect ASIO Direct Monitoring
- SyncCheck tests and reports the synchronization status of input signals
- Sixteen channels high-speed MIDI
- Optional word clock input and output
UPC: 874792002067 In the Box RME HDSP 9632 - PCI Digital Audio Card Digital Adapter Cable Analog Adapter Cable 1 Optical Cable (TosLink) Internal Cable RME Driver CD Two (2) Year Warranty User Manual PDF 806.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the RME HDSP 9632 - PCI Digital Audio Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME HDSP 9632 Specs | Converters | 24-bit | | Sample Rates | Internally: 32, 44.1, 48, 64, 88.2, 96, 176.4 and 192kHz
Externally: 28kHz to 200kHz | | Analog In | 2 x RCA phono (unbalanced) on breakout cable | | Analog Outputs | 2 x RCA phono (unbalanced) on breakout cable
1 x 1/4" TRS phone Headphone Out | | Digital Input Connectors | 1 x TosLink ADAT Lightpipe (can be configured for S/PDIF)
1 x RCA coaxial S/PDIF on breakout cable | | Digital Output Connectors | 1 x TosLink ADAT Lightpipe (can be configured for S/PDIF)
1 x RCA coaxial S/PDIF on breakout cable | | MIDI In/Out | 1 set of I/O (16 channels) | | Sync In/Out | S/PDIF | | Headphone Output | Yes (on breakout cable) | | THD + N | A/D: -99 dB, <0.0015 %, @ -3dBFS
D/A:<-102dB, <0.0008 % | | Dynamic Range | Not specified by manufacturer | | Frequency Response | A/D:- 5Hz to 21.5kHz, -0.5dB @ 44.1kHz
- 5Hz to 45.3kHz, -0.5dB @ 96kHz
- 5Hz to 74.0kHz, -1.0dB @ 192kHz
D/A:- 1Hz to 21.1kHz, -0.5dB @ 44.1kHz
- 1Hz to 43.5kHz, -0.5dB @ 96kHz
- 1Hz to 70.0kHz, -1.0dB @ 192kHz
| | Minimum System Requirements | Windows 2000 SP4/XP
Mac OS X (10.2.8 or higher)
Free PCI rev. 2.1 Busmaster slot | | Specialties | TotalMix software with 512 channel mixer with 40 bit internal resolution | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 11.7 x 6.8 x 3.9" |
