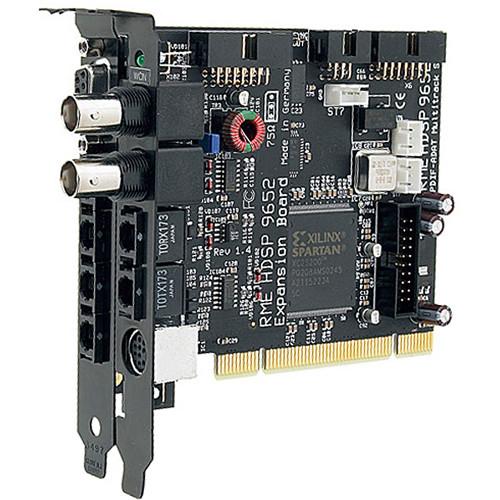

User Manual for RME HDSP 9652 Hammerfall - 26 Input 26 Output 24-bit 96kHz PCI card with ADAT and S PDIF I O, MIDI I O and ADAT Sync for Mac and Windows Click to enlarge the picture
Contents of the user manual for the RME HDSP 9652 Hammerfall - 26
- Product category: Audio Interfaces & Systems RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Audio Interfaces & Systems
|
User manual for the RME HDSP 9652 Hammerfall - 26 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|
Product description The HDSP 9652 from RME is a digital I/O PCI card for use with both Windows and Mac OS based computers. It offers three sets of ADAT optical I/O, ADAT-Sync In, SPDIF I/O and word clock I/O. Also included are two MIDI inputs and outputs (for a total of thirty-two channel) and TotalMix, a DSP-based real-time software mixer/router. A clear structured and easy to understand set-up window plus an informative status windows for input signal, clock mode, sample rate and time code make working with the HDSP 9652 a real pleasure. When working with several digital sources it is not only necessary to know if these are properly locked, but also if they are totally synchronized. RME's SyncCheck function checks all input signals and displays their actual state. A display of the time code at the ADAT Sync-In port offers a quick check of the communication between external device and the card. The HDSP 9652's Secure BIOS Technology allows the user to perform hardware updates via software/drivers without any risk. And because of its "Zero CPU Load" technology the card provides high performance and low latency. - Fifty-two channel Input/Output PCI card
- Eight buffer size/latencies available
- ASIO zero CPU load technology when using ALL 52 channels
- Slave and master clock modes with automatic and intelligent master/slave clock control
- Unsurpassed Bitclock PLL (audio synchronization) in ADAT mode
- All settings changeable in realtime
- Includes DIGICheck, a software tool for measuring, analysis and testing of various functions of the data stream
UPC: 874792002050 In the Box RME HDSP 9652 Hammerfall - 26 Input / 26 Output 24-bit/96kHz PCI card with ADAT and S/PDIF I/O, MIDI I/O and ADAT Sync for Mac and Windows Software and Driver CD ROM Two (2) Year Warranty User Manual PDF 729.5kbdavsqvtcxydbvvdqetfrtwru Table of Contents
|
Upload User Manual
Have you got an user manual for the RME HDSP 9652 Hammerfall - 26 Input 26 Output 24-bit 96kHz PCI card with ADAT and S PDIF I O, MIDI I O and ADAT Sync for Mac and Windows in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME HDSP 9652 Specs | Converters | 24-bit | | Sample Rates | 32, 44.1, 48, 88.2 and 96kHz, variable | | Analog In | No | | Analog Outputs | No | | Digital Input Connectors | 3 x ADAT Toslink
1 x RCA S/PDIF coaxial | | Digital Output Connectors | 3 x ADAT Toslink
1 x RCA S/PDIF coaxial | | MIDI In/Out | 2 x MIDI I/O (32 channels) | | Sync In/Out | ADAT
S/PDIF
Wordclock I/O on included expansion board | | Headphone Output | No | | THD + N | Not applicable | | Dynamic Range | Not applicable | | Frequency Response | Not applicable | | Minimum System Requirements | Includes drivers for:- Windows 98/ME (MME with multi-client operation, ASIO 2.0, GSIF)
- Windows 2000/XP (full multi-client operation of MME, GSIF and ASIO 2.0)
- Mac OS 9.x (ASIO 2.0)
- Mac OS X (Core Audio, Core MIDI)
| | Specialties | S/MUX supported with 12 channels 96kHz/24-bit for record and playback on ADAT optical | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 11.9 x 7.0 x 4.1" |
