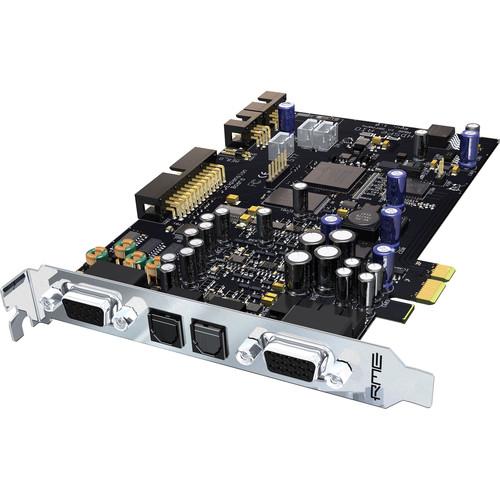

Product description The HDSPe AIO from RME is a PCIe Express audio interface for both Mac and Windows that makes the dream of an "all-in-one solution" for every possible audio application come true. Based on the HDSP 9632, the HDSPe AIO delivers significant performance gains in multi-track audio and lower latency. The card includes the latest 192kHz capable analog-to-digital and digital-to-analog converters with more than 112dB signal to noise ratio, with all inputs and outputs, including digital (and all available via included breakout cables) simultaneously operational. Easy-to-install optional high quality analog expansion boards, TotalMix software and a clock section with maximum jitter suppression of external clock signals all combine to provide a versatile and fully featured soundcard. RME's secure flash update technology allows for firmware improvements, adjustments and bug fixes to be installed easily at any time. - PCIe Express card for digital audio applications
- Card functions in native PCI Express format with no PCI to PCI Express bridge used
- 2 channels of unbalanced analog I/O with RCA connectors on breakout cable
- Analog, AES/EBU, ADAT and SPDIF I/Os can be used simultaneously
- All analog I/Os capable of 192kHz, across all available channels
- ADAT digital I/O supportes sample rates up to 192kHz via S/MUX4 operation
- Stereo headphone output utilizes separate digital-to-analog converter
- All settings can be changed in real-time
- Slave and master clock modes with automatic and intelligent master/slave clock control
- TotalMix 760 channel mixer software for latency-free submixes and perfect ASIO direct monitoring
- SyncCheck tests and reports the synchronization status of input signals
- 16 channels high-speed MIDI
- Optional Wordclock input and output
- Optional analog expansion boards with 4 balanced inputs or outputs
UPC: 874792002272 In the Box RME HDSPe AIO - PCIe Digital Audio Card Digital Adapter Cable Analog Adapter Cable 1 Optical Cable (TosLink) Internal Cable RME Driver CD Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME HDSPe AIO - PCIe Digital Audio Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME HDSPe AIO Specs | Converters | 24-bit | | Sample Rates | Internally: 32, 44.1, 48, 64, 88.2, 96, 176.4 and 192kHz
Externally: 28kHz to 200kHz | | Analog In | 2 x RCA phono (unbalanced) on breakout cable | | Analog Outputs | 2 x RCA phono (unbalanced) on breakout cable
1 x 1/4" TRS phone Headphone Out | | Digital Input Connectors | 1 x TosLink ADAT Lightpipe (can be configured for S/PDIF)
1 x RCA coaxial S/PDIF on breakout cable
1 x XLR AES/EBU on breakout cable | | Digital Output Connectors | 1 x TosLink ADAT Lightpipe (can be configured for S/PDIF)
1 x RCA coaxial S/PDIF on breakout cable
1 x XLR AES/EBU on breakout cable | | MIDI In/Out | 1 set of I/O (16 channels) | | Sync In/Out | S/PDIF | | Headphone Output | Yes (on breakout cable) | | THD + N | Not specified by manufacturer | | Dynamic Range | Not specified by manufacturer | | Frequency Response | A/D:
5Hz to 21.5kHz, -0.5dB @ 44.1kHz
5Hz to 45.3kHz, -0.5dB @ 96kHz
5Hz to 74.0kHz, -1.0dB @ 192kHzD/A:
1Hz to 21.1kHz, -0.5dB @ 44.1kHz
1Hz to 43.5kHz, -0.5dB @ 96kHz
1Hz to 70.0kHz, -1.0dB @ 192kHz | | Minimum System Requirements | Windows XP
Mac OS X (10.4 or higher)
Free PCIe Express slot | | Specialties | TotalMix software with 512 channel mixer with 40 bit internal resolution | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 11.6 x 6.8 x 4.0" |
