User Manual for RME HDSPe RayDAT - 36 Channel Digital Audio & MIDI PCI Express Card System Click to enlarge the picture
Contents of the user manual for the RME HDSPe RayDAT - 36 Channel
- Product category: Audio Interfaces & Systems RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Audio Interfaces & Systems
 |
User manual for the RME HDSPe RayDAT - 36 Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|

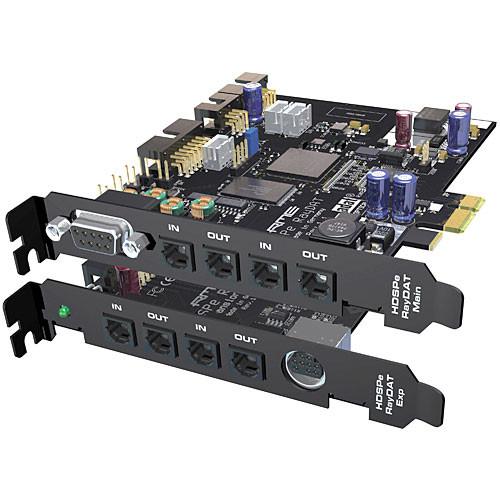

Product description The HDSPe RayDAT from RME is a PCI express card system for Mac and Windows computers that's capable of handling 36 inputs and 36 outputs simultaneously. It provides 4 optical ADAT inputs and outputs, which support S/MUX technology making high-resolution 192 kHz recording and playback possible. It also features simultaneous operation of S/PDIF and AES/EBU ports, and two MIDI inputs and outputs on included breakout cables. There are two Express cards included with the HDSPe RayDAT, a main card and an expansion card. If you don't need the two additional ADAT inputs and outputs, or MIDI connectivity, then you can just use the main card. The system utilizes the latest plug-and-play technology to make installation as easy as possible, even for beginners. In situations where you need even more I/O, up to four sets of HDSPe RayDAT cards can be used at once. The HDSPe RayDAT includes the powerful real-time software mixer TotalMix, which allows any input and output routing and mixing configurations, provides zero-latency monitoring, enables you to create up to 18 independent stereo submixes, and much more. Also included is DIGICheck software, which is a high-quality spectral analyzer, level meter (for 2, 8, or 36 channels), a vector audio scope, and various other useful analysis tools. The HDSPe RayDAT equips you with an impressive amount of I/O, as well as giving you the flexibility of TotalMix technology and the ultra high-quality audio performance RME is famous for. - 4 x ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
- 1 x S/PDIF digital I/O, 192 kHz capable
- 1 x AES/EBU digital I/O, 192 kHz capable
- 2 x MIDI I/O, 32 channels high-speed MIDI via breakout cable
- Up to 36 inputs and 36 outputs can be used simultaneously
- Includes DIGICheck, RME's unique metering and analyzing tool
- Includes TotalMix: a 2592 channel software mixer with 42-bit internal resolution
- Native PCI Express - no PCI to PCI Express bridge used
- S/MUX poured in hardware: 16 channels 24-bit/96 kHz for record and playback on ADAT optical
- All settings can be changed in real-time
- AES and S/PDIF I/Os can be used simultaneously
- Automatic and intelligent master/slave clock control
- SyncAlign guarantees sample aligned and never swapping channels
- SyncCheck tests and reports the synchronization status of input signals
- Includes SteadyClock: a Jitter-immune, super-stable digital clock
- Optional Time Code module (TCO) for external Video/SMPTE synchronization
UPC: 874792002289 In the Box RME HDSPe RayDAT - 36 Channel Digital Audio & MIDI PCI Express Card System HDSPe RayDAT PCI Express Card HDSPe RayDAT Expansion Board Digital Breakout Cable (XLR / Phono) MIDI Breakout Cable Internal Cable (3-Pin) Flat Ribbon Cable (14-Pin) 2 x Optical Cables (TOSLINK), 2 m (6.6') Quick Info Guide RME Driver CD 2 Year Warranty User Manual PDF 674.6kberttstbxfecdzvtuvuuazy Table of Contents
|
Upload User Manual
Have you got an user manual for the RME HDSPe RayDAT - 36 Channel Digital Audio & MIDI PCI Express Card System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME HDSPe RayDAT Specs | Card Type | PCI Express | | Inputs | 4 x Optical ADAT (TOSLINK)
1 x Stereo S/PDIF (via 9-pin breakout cable)
1 x Stereo AES/EBU (via 9-pin breakout cable)
2 x MIDI In (via 9-pin breakout cable) | | Outputs | 4 x Optical ADAT (TOSLINK)
1 x Stereo S/PDIF (via 9-pin breakout cable)
1 x Stereo AES/EBU (via 9-pin breakout cable)
2 x MIDI Out (via 9-pin breakout cable) | | Digital Connections | AES/EBU:
2 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
High-sensitivity input stage (< 0.3 Vpp)
S/PDIF compatible (IEC 60958)
Accepts consumer and professional format, copy protection will be ignored
Lock range: 28 kHz - 200 kHz
Jitter suppression: > 30 dB (2.4 kHz)
Jitter when synced to input signal: < 1 ns S/PDIF:
2 x RCA, transformer-balanced, according to IEC 60958
High-sensitivity input stage (< 0.3 Vpp)
AES/EBU compatible (AES3-1992)
Accepts Consumer and Professional format, copy protection will be ignored
Lock range: 28 kHz - 200 kHz
Jitter suppression: > 30 dB (2.4 kHz)
Jitter when synced to input signal: < 3 ns ADAT Optical:
4 x TOSLINK, format according to Alesis specification
Standard: 32 channels 24 bit, up to 48 kHz
Double Speed (S/MUX): 16 channels 24 bit 96 kHz
Quad Speed (S/MUX4): 8 channels 24 bit 192 kHz
Bitclock PLL ensures perfect synchronization even in varispeed operation
Lock range: 31.5 kHz - 50 kHz
Jitter suppression: > 30 dB (2.4 kHz)
Jitter when synced to input signal: < 1 ns | | Sample Rates | Internal:
32, 44.1, 48, 64, 88.2, 96, 176.4, and 192 kHz External:
28 - 200 kHz | | Buffer Size | 0.7 ms, 1.5 ms, 3 ms, 6 ms, 12 ms, 23 ms, 46 ms, 93 ms | | System Requirements | Windows 2000 SP4 or higher Mac OS X Intel (10.4.8 or higher) PCI Express Interface: one free PCI Express slot, 1 Lane, version 1.1 | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 11.6 x 6.8 x 3.9" |
