User Manual for RME I64 MADI Card - MADI Option for Micstasy and ADI-8 QS Click to enlarge the picture
Contents of the user manual for the RME I64 MADI Card - MADI
- Product category: Accessories RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Accessories
|
User manual for the RME I64 MADI Card - MADI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|

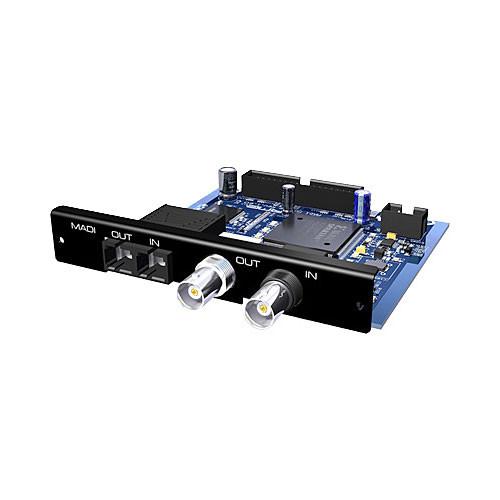

Product description The I64 MADI Card from RME is an optional interface card that provides both the eight-channel Micstasy microphone preamp, and the ADI-8 QS AD/DA converter, with sixty-four channels of MADI input and output, and features optical and coaxial MADI I/O. The input automatically switches operation according to which input detects a valid input signal, ensuring full redundancy in the event of loss of input signal. Both outputs operate in parallel to the regular AES/EBU and ADAT output of the two units and deliver exactly the same data. The MADI input will operate as an optional clock source as well as a throughput. Since each Micstasy or ADI-8 QS uses only eight channels, up to fifty-six channels can be passed through, allowing for serial cascading of up to eight units. Incoming MADI data is passed through unchanged, with only one block of eight channels being replaced. All sixty-four combined channels are available at the last device's MADI output. The card also allows for remote control of the units via the MADI stream. In the Box RME I64 MADI Card - MADI Option for Micstasy and ADI-8 QS Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME I64 MADI Card - MADI Option for Micstasy and ADI-8 QS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME MOC-M Specs | Connectors | 2 x BNC
2 x MADI optical | | | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 5.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
