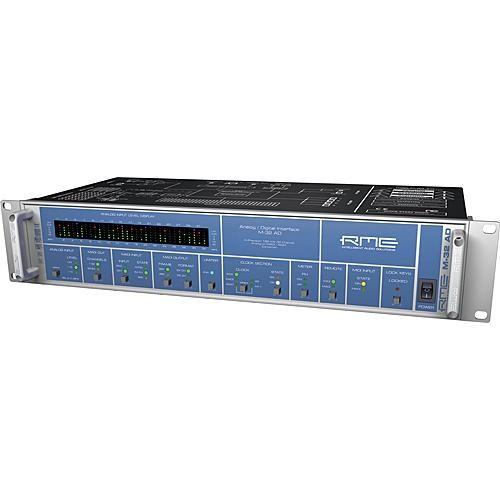

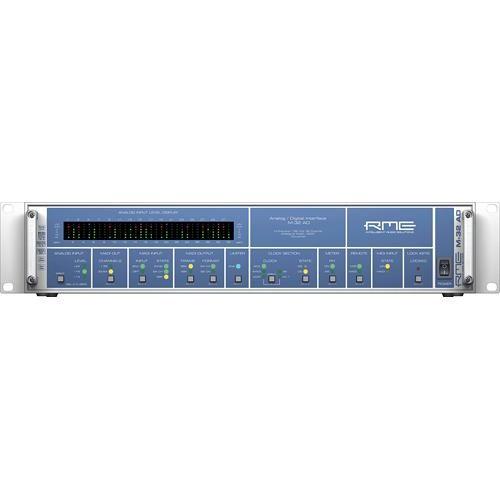

User Manual for RME M-32 AD - 32-Channel High-End Analog to MADI ADAT Converter Click to enlarge the picture
Contents of the user manual for the RME M-32 AD - 32-Channel High-End
- Product category: AD/DA Converters RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME AD/DA Converters
 |
User manual for the RME M-32 AD - 32-Channel High-End contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|
Product description The M-32 AD from RME is an extremely high-quality 32-channel A/D converter. It utilizes MADI (Multi-channel Audio Digital Interface) technology, which allows up to 64 channels of audio to flow freely without the shortcomings of multi-core cable-based digital audio technology. Not only does the M-32 AD provide pristine audio circuitry, the great converters, and RME's famous SteadyClock technology, but the MADI protocol also enables incredibly long cable runs of over 1 mile (2000 meters)!In order to put the M-32 AD to use, you need to have a computer with either an internal RME MADI card (such as the HDSP MADI), or an external RME MADI interface (like the HDSPe MADIface). If you're setting up a system where you'll need MADI D/A conversion on the other end, you can use the 32-channel M-32 DA or the 16-channel M-16 DA.The additional MADI port on the rear of the M-32 AD facilitates stacking multiple units together, which makes it possible to take advantage of the full 64-channels that this system is capable of delivering. With that magnitude of power, combined with the ability to send these signals great distances, makes this system a powerful tool for a wide range of professional applications. Live location recording, recording studio facilities, and installed systems in stadiums and theaters can all benefit from the excellent caliber of sound quality that RME is known for and that the M-32 AD will provide. - 32-channel A/D converter, symmetrically designed in a 2 rack-space enclosure
- Utilizes MADI (Multi-channel Audio Digital Interface) technology which allows up to 64 channels of audio to flow freely without the shortcomings of multi-core cable-based digital audio technology
- Digital audio protocol enables cable runs of up 1.25 miles (2000 meters)
- Fully MIDI controllable by sending MIDI messages over the MADI connection
- During power on and power off, all noise is suppressed in the analog section
- Zero delay compensation is necessary when stacking multiple units
UPC: 874792004368 In the Box RME M-32 AD - 32-Channel High-End Analog to MADI/ADAT Converter Control Software (Mac & Windows Compatible) 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME M-32 AD - 32-Channel High-End Analog to MADI ADAT Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

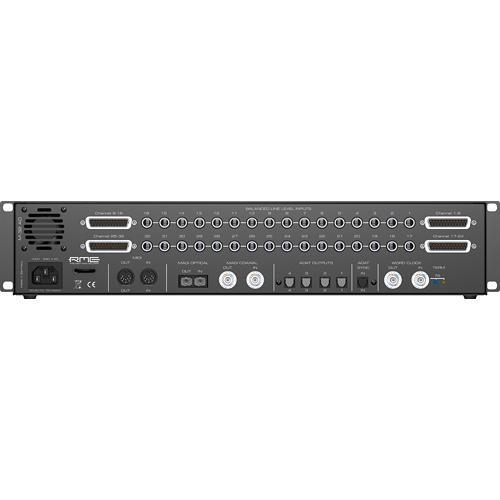

Technical parametersRME M-32 AD Specs | Inputs | 32 x 1/4" TRS Jacks
4 x 25-Pin D-Sub Servo Balanced Input Connectors, Completely Symmetrical Audio Path | | Outputs | 4 x ADAT Optical
1 x MADI Optical and Coaxial | | Signal to Noise Ratio | 113 dB RMS Unweighted, 116 dBA | | Total Harmonic Distortion (THD) | < -110 dB (< 0.00032 %) | | THD + Noise | < -104 dB (< 0.00063 %) | | Crosstalk | > 130 dB | | Frequency Response | -0.1 dB: 10 Hz - 23.2 kHz (sf 48 kHz)
-0.5 dB: < 5 Hz - 45 kHz (sf 96 kHz)
-1 dB: < 5 Hz - 80 kHz (sf 192 kHz) | | Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz, Variable (Sync/WC) | | Jitter | Typical < 1 ns for internal, Word Clock, ADAT and MADI input | | Power Supply | Internal Switching, 100V - 240V AC, 60 Watts | | Dimensions | 19 x 3.5 x 7.8" (483 x 88 x 200 mm) | | Weight | Not Specified By Manufacturer | | | | Package Weight | 13.45 lb | | Box Dimensions (LxWxH) | 22.2 x 12.5 x 6.0" |
