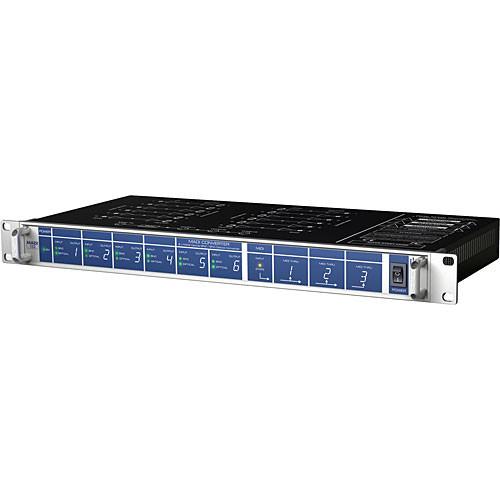

User Manual for RME MADI Converter - 6 x MADI Optical to BNC BNC to Optical Converter Click to enlarge the picture
Contents of the user manual for the RME MADI Converter - 6 x
- Product category: Format Converters RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Format Converters
 |
User manual for the RME MADI Converter - 6 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|
Product description The MADI Converter from RME contains six, fully independent, bi-directional converters, that can be used to convert MADI digital audio streams from optical format to coaxial, and vice versa. The main use for this unit is in live and installed setups to integrate various MADI sources/destinations that utilize different MADI formats, and to provide for longer cable runs. It is also an ideal companion to RME's MADI Bridge, a 8 x 64 channel MADI switcher/router. The MADI Converter also has a built-in 1 x 3 MIDI distribution amplifier, for routing a MIDI input to three independent outputs. - Six, bi-directional MADI optical to BNC / BNC to optical converters, housed in a single space rack-mount chassis

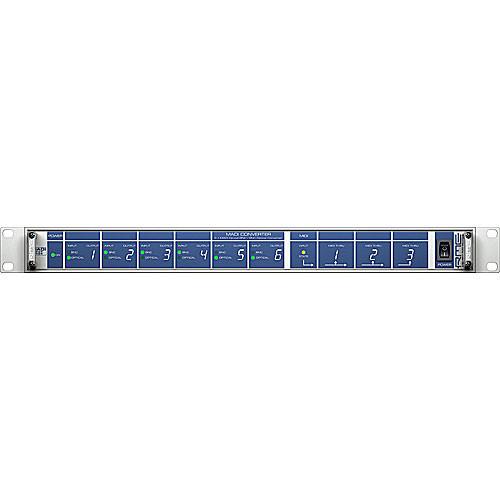

- All twelve inputs are equipped with status LEDs on the front panel
- Input signal pass through unaltered
- Supports any format, 56 or 64 channels, at any sample rates
- Not affected by embedded invisible control commands, out-of-spec data rates, or violations of the MADI protocol
- Through the use of equalizing and highly sensitive input stages, coaxial cable lengths of 100 meters can be achieved
- Includes a 1 input, 3 output MIDI distributor
- Internal switching power supply allows operation with voltages ranging from 100 to 240 AC Volts
- Short-circuit-proof, has an integrated line-filter, is fully regulated against voltage fluctuations and suppresses mains interference
UPC: 874792004245 In the Box RME MADI Converter - 6 x MADI Optical to BNC / BNC to Optical Converter AC Power Cable Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME MADI Converter - 6 x MADI Optical to BNC BNC to Optical Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

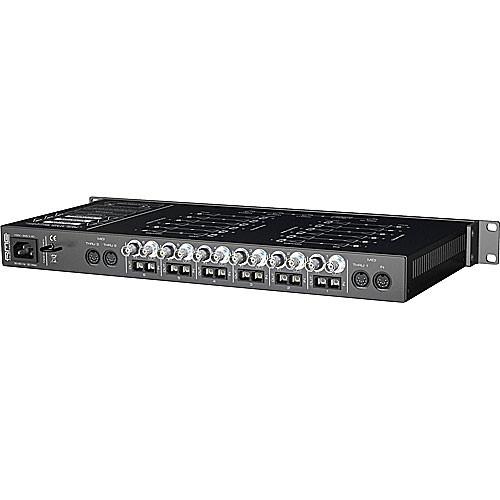

Technical parametersRME CONVERTER1 Specs | ADC | Not applicable | | DAC | Not applicable | | Sample Rates | Any | | Analog In | No | | Analog Outputs | No | | Digital Input Connectors | 6 x BNC
6 x MADI Optical via FDDI duplex SC connectors | | Digital Output Connectors | 6 x BNC
6 x MADI Optical via FDDI duplex SC connectors | | Word Clock | No | | Dynamic Range | Not applicable | | Frequency Response | Not applicable | | THD + N | Not applicable | | Dimensions (WxDxH) | 19 x 9/1-2 x 1-3/4" (483 x 242 x 45 mm) | | Weight | 4.4 lbs (2 kg) | | Specialties | Universal, internally switching power supply | | | | Package Weight | 8.7 lb | | Box Dimensions (LxWxH) | 22.0 x 12.5 x 4.8" |
