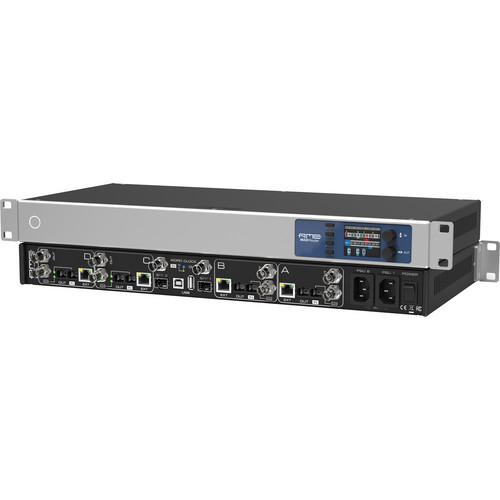

User Manual for RME MADI-RT 12-Channel Digital Patch Bay Router and Format Converter Click to enlarge the picture
Contents of the user manual for the RME MADI-RT 12-Channel Digital Patch Bay
- Product category: AD/DA Converters RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME AD/DA Converters
|
User manual for the RME MADI-RT 12-Channel Digital Patch Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|
Product description The 1RU MADI-RT 12-Channel Digital Patch Bay Router and Format Converter from RME Audio is designed to interconnect MADI devices of any manufacturer, providing flexible signal routing. It serves as a format converter between optical and electrical signals, as a signal repeater, and as a distributor and merger of several MADI signals. The MADI Router combines advantages of point-to-point audio connections, such as low latency and fast recovery time from signal line interruptions, with the flexibility of networked audio connections in which any device has access to any channel available on the network of connected devices.
At the most basic level, input signals are passed on to the desired output unaltered. This type of connection is beneficial when manufacturers have embedded additional status or remote control data information in the MADI stream. It is also possible to create new arrangements of audio channels within a MADI output stream. For this purpose four independent matrices are provided, each one reflecting 768 IN x 64 OUT audio channels. Any channel of any valid MADI input stream may act as source to each crosspoint matrix. The output of each matrix can then be passed on to any of the 12 MADI Router's outputs. - Can be programmed and controlled independently, via four buttons, two rotary encoders, and a TFT display on the front panel.
- Switch for internal termination 75 ohm
- Automatic double/quad speed detection
- SteadyClock guarantees super-low jitter synchronization
- Capacitive-coupled, galvanically isolated input
- Signal Adaptation Circuit: signal refresh through auto-center and hysteresis
- 15 internal presets let you save, recall, preview, and preselect routings
- Settings are automatically saved via the Autosave feature, and can be automatically recalled within ten seconds after the unit is switched back on
- Four optical and four coaxial MADI inputs accept MADI signals at any sampling rate and channel format
- The MADI signal can be carried over distances of up to 656.2' (coaxial) or 1.2 miles (optical)
- Four MADI TP ports can directly connect MADI TP devices over distances of up to 492' over twisted pair network cables and can pass on power along with the MADI signals
- The 12 MADI ports are independent but grouped in four sections 'A' to 'D' for quick identification
- The word clock input may be used as reference to any of the four routing matrices or be refreshed and passed on to the output
- Two redundant 100W switching power supplies provide sufficient power for the MADI Router plus up to eight additional passive devices that draw their power from the MADI TP connections
In the Box RME MADI-RT 12-Channel Digital Patch Bay Router and Format Converter (1RU) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME MADI-RT 12-Channel Digital Patch Bay Router and Format Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME MADI-RT Specs | Input Connectors | MADI
4 x BNC; 75 ohm, < 0.2 Vpp, AES10-1991
4 x Duplex SC optical FDDI; 62.5/125 and 50/125 multimode compatible
Note: Both Optical and Coaxial ports accept any MADI signal
4 x RJ45; 8-pin twisted pair (input and output)*
Word Clock
1 x BNC; input not terminated (10 kOhm), level range 0.7 - 3.3 Vpp
*Twisted Pair implementation uses standard Ethernet technology such as 8b/10b encoding for DC-balance, which is important to achieve stability over long cable runs. | | Input Control | 1 x switch; internal termination 75 ohm | | Output Connectors | MADI
4 x BNC; 75 ohm, 750 mVpp, AES10-1991
4 x Duplex SC optical FDDI; 62.5/125 and 50/125 multimode compatible
Wordclock
1 x BNC; 10 ohm impedance, 27 – 200 kHz
Output Voltage @ 75 ohm: 1.65 Vpp
Max. Output Voltage: 3.3 Vpp | | Maximum Cable Length | Coaxial (BNC): 656.2' (200 m)
Fiber (Duplex SC): 6,561.7' (2,000 m) | | Power Supply | 100 - 240 VAC, 100 W (maximum), 2 x internal redundant power supplies | | Operating Temperature | 41 to 122°F (5 to 50°C) | | Relative Humidity | < 75% | | Dimensions (W x H x D) | Without Rack Ears: 17.3 x 1.73 x 9.45" (44.0 x 4.4 x 24.0 cm) | | Weight | 6.2 lb (2.8 kg) | | | | Package Weight | 10.4 lb | | Box Dimensions (LxWxH) | 22.7 x 11.6 x 3.9" |
