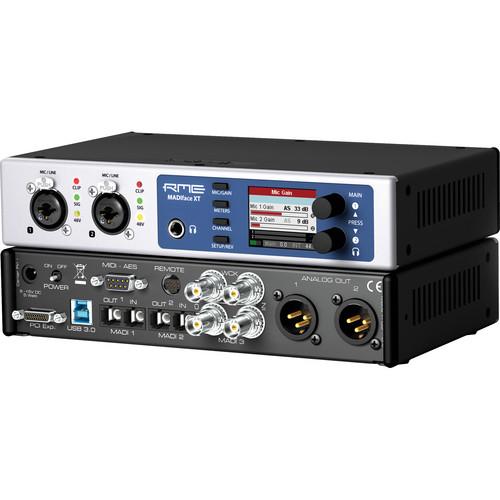

User Manual for RME MADIface XT USB 3.0 Audio Interface Click to enlarge the picture
Contents of the user manual for the RME MADIface XT USB 3.0 Audio
- Product category: Audio Interfaces & Systems RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Audio Interfaces & Systems
 |
User manual for the RME MADIface XT USB 3.0 Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|
Product description The MADIface XT from RME is a USB 3.0 audio interface that features recording up to 192 kHz and offers support of the powerful MADI multi-channel audio protocol. It allows for 196 input channels and 198 output channels in total, plus it feature's RME's Hammerfall DSP and & TotalMix FX virtual mixer, allowing for complex routing and delay-free submixes that can be used for headphone mixes, effects groups and more.

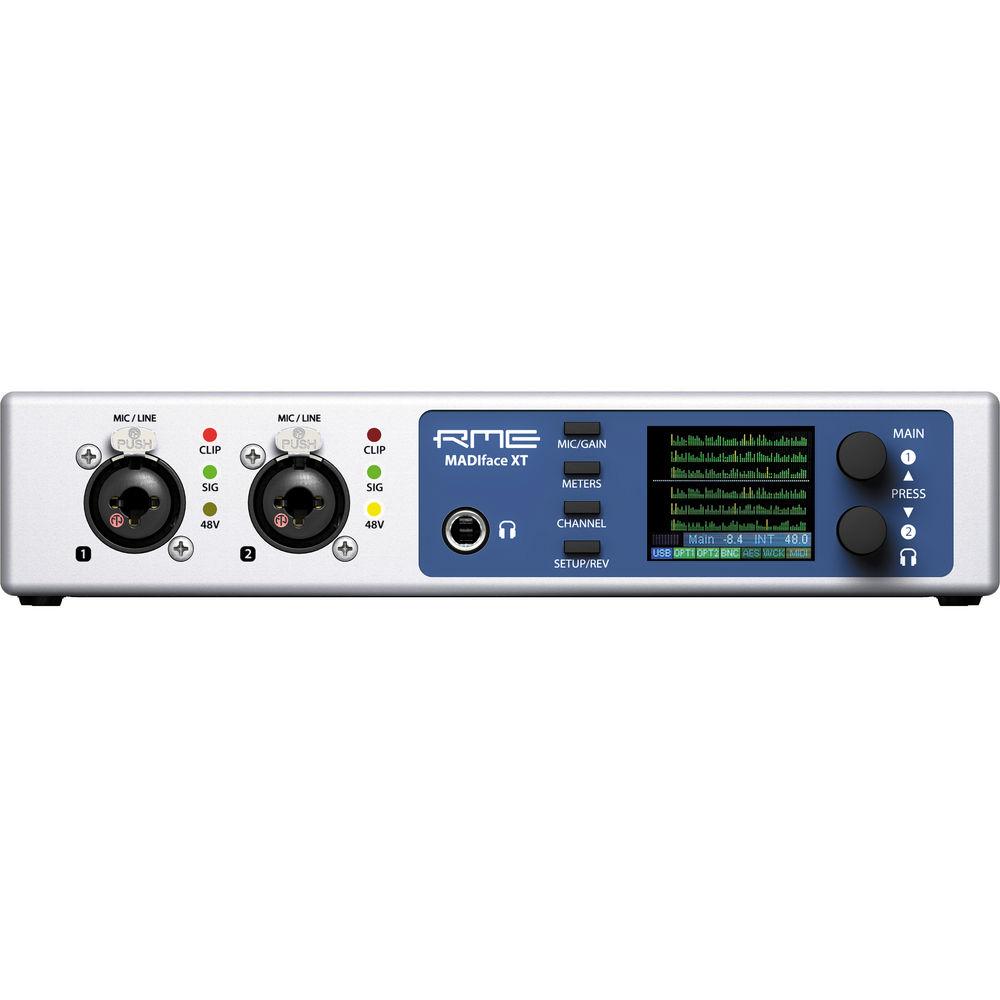

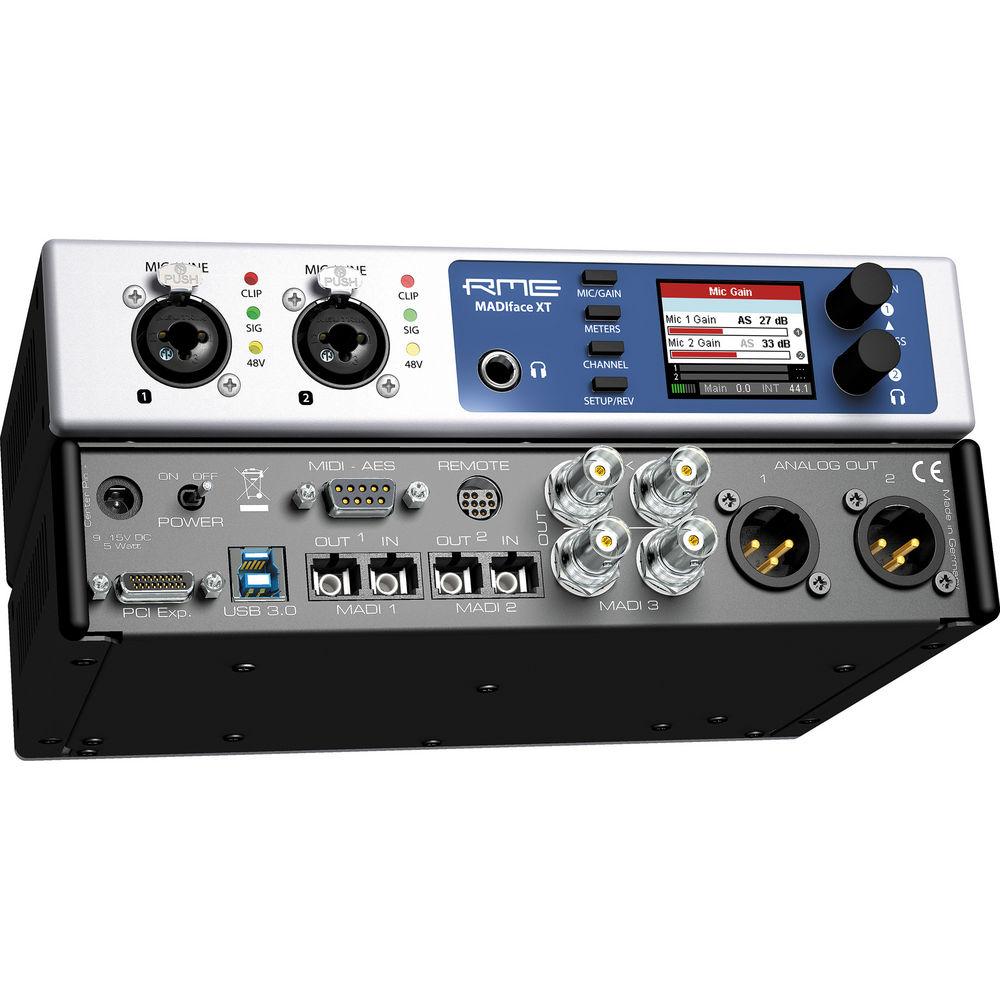

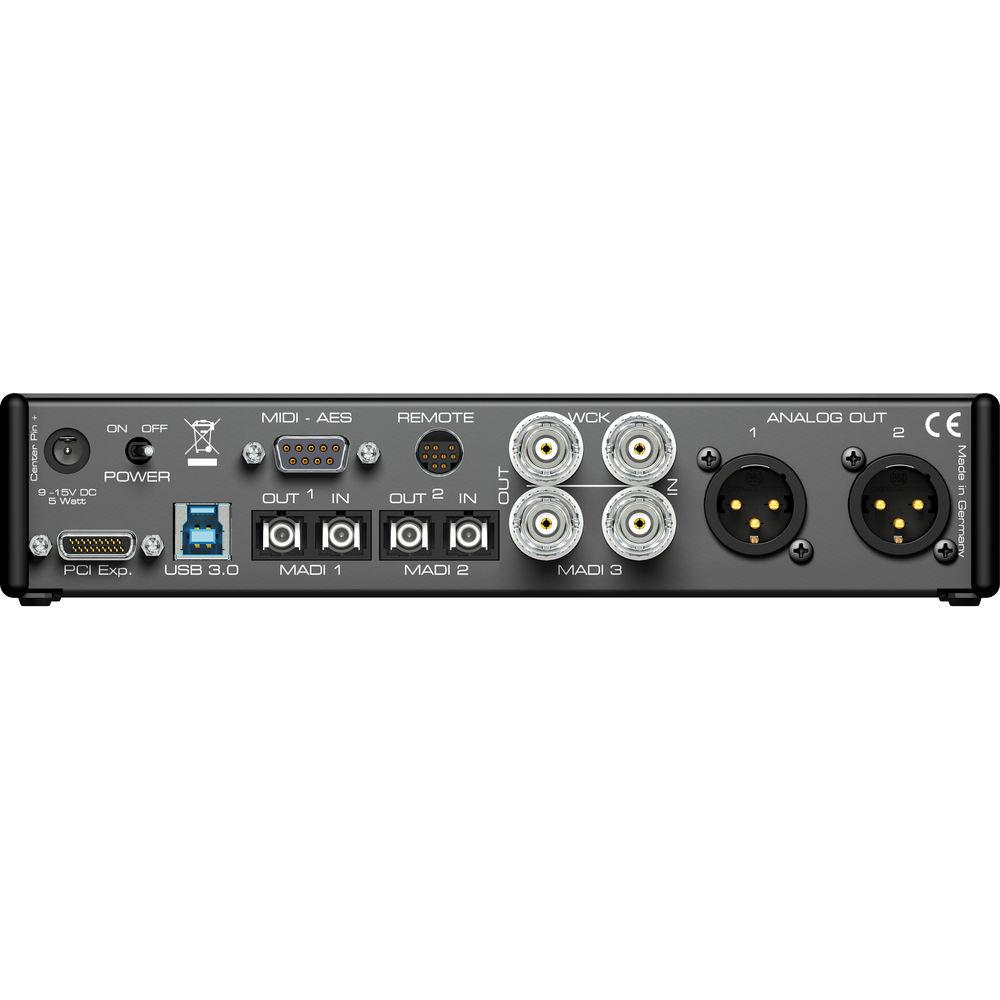

The MADIface XT is equipped with two optical MADI I/O ports and one coaxial MADI I/O port for interfacing with other MADI equipment. In addition, the interface boasts two XLR/TRS combo mic/line inputs, each with a high-quality digitally controlled preamp. It also features stereo XLR main outputs and a 1/4" headphone out.
Furthermore, the unit features a 9-pin D-sub port that connects to an included breakout cable which is equipped with an XLR connector for AES/EBU digital I/O and a 5-pin DIN connector for MIDI I/O. The MADIface XT is also capable of providing three additional sets of MIDI I/O virtually via MADI. - PCI Express port for connecting to external PCI Express cards as well as adapters to Thunderbolt
- Remote mini-DIN port for connecting the optional Advanced Remote Control
- Switchable +48V phantom power per channel
- Backwards compatible with USB 2.0 (computer I/O limited to 70 channels)
In the Box RME MADIface XT USB 3.0 Audio Interface Breakout Cable Software CD-ROM Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME MADIface XT USB 3.0 Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME MADIface XT Specs | Computer Interface | External PCI Express, USB 3.0 and USB 2.0 | | Sample Rate | 32 kHz up to 192 kHz, variable (Sync/word clock) | | Input Gain | 60 dB | | Signal to Noise Ratio | Input: 108 dB RMS unweighted, 111 dBA
Output: 112 dB RMS unweigthed, 115 dBA | | MIDI | 3 virtual MIDI over MADI I/Os, one external MIDI I/O | | Mixer | TotalMix: 4096-channel mixer with 46-bit internal resolution | | Clock | SteadyClock | | Stand-Alone | Full stand-alone operation, including MIDI remote control | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 4.85 lb | | Box Dimensions (LxWxH) | 13.9 x 7.9 x 3.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
