User Manual for RME Micstasy - 8 Channel Microphone Preamp with 192kHz Analog to Digital Converters Click to enlarge the picture
Contents of the user manual for the RME Micstasy - 8 Channel Microphone
- Product category: Microphone Preamps RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Microphone Preamps
 |
User manual for the RME Micstasy - 8 Channel Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|

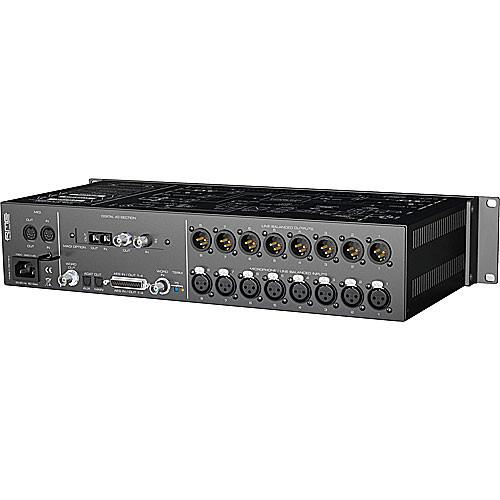

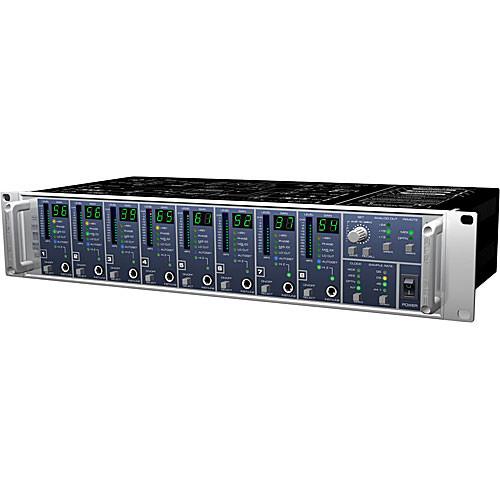

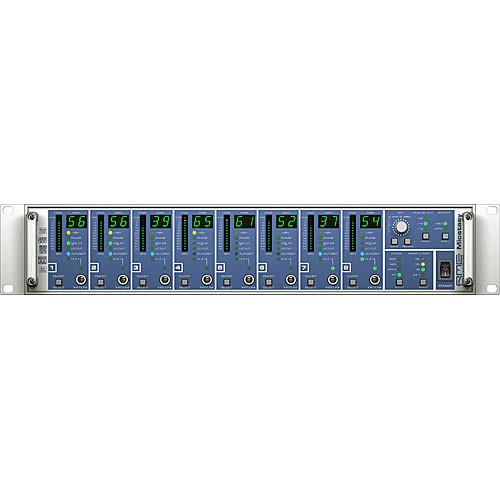

Product description The Micstasy from RME is a full range, hi-end eight channel microphone/line preamp combined with an analog to digital converter. The unit allows for amplification and digitization of all analog signal sources, including high-level stage signals, studio signals, lower level and high-impedance instruments, or dynamic, condenser or ribbon microphones. The analog and digital outputs can be used simultaneously. Microphone and line inputs are available on the rear panel, while instrument inputs are available for all eight channels on the front panel. Each channel can be controlled individually in respect to input levels and phase, phantom power and filter switching, or grouped in any combination, up to all eight channels. Digital outputs include eight channels of AES/EBU and dual ADAT Lightpipe connectors. Both formats can function at high sample rates. Wordclock I/O is available on dedicated BNC connectors. To avoid degrading signal integrity, RME chose to avoid the use of limiters and provide instead automatic gain reduction with selectable threshold. Even with this feature engaged, any channel can still be adjusted manually. The Micstacy will function equally well on the road as in the studio. Aside from a microphone preamp, the unit can function as a splitter box for stage use, distribute digital signal and also includes features like Intelligent Clock Control (ICC), SyncCheck, SteadyClock, TotalGain, AutoSet, MIDI over MADI and remote control via MADI and MIDI. - Eight channel microphone preamp with balanced XLR microphone/line inputs and 85dB of gain range
- Analog to digital converters per channel, with eight channel AES/EBU output (up to 192kHz,) dual-eight channel ADAT Lightpipe outputs (at 48kHz) or eight channels (at 96kHz)
- Eight balanced TRS line/instrument inputs with Hi-Z option
- High-end circuitry with four relays per channel and low-noise microphone front-end
- Large frequency range (200kHz) with EMI input filtering
- Symmetrical hi-pass filter per channel
- Provides near click-free gain changes
- Eight balanced XLR line outputs
- Automatic gain reduction with multiple channel linking
- Wordclock input and output
- SyncCheck tests and reports the synchronization status of the clock signals
- M/S encoding available for the digital output
- The current state of the unit can be stored in eight user preset locations
- LED level meter with thirteen LEDs per channel
- Fully remote controllable via MIDI
- Noise suppression on power-on and power-off at the analog outputs
- Optional MADI I/O card available
In the Box RME Micstasy - 8 Channel Microphone Preamp with 192kHz Analog to Digital Converters AC Power Cable 2 m Optical Cable Driver Software CD-ROM Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME Micstasy - 8 Channel Microphone Preamp with 192kHz Analog to Digital Converters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME Micstasy Specs | Number of Channels | 8 | | Inputs | 8 x XLR Microphone/Line
8 x 1/4" TRS Instrument/Line (front-panel)
1 x BNC Wordclock | | Output | 8 x XLR
1 x 25-pin D-sub AES/EBU
2 x ADAT Lightpipe
1 x BNC Wordclock | | Phantom Power | Yes | | Multi Function | Analog to digital converter | | Gain Range | 85dB | | Maximum Output Level | +27dBu | | Frequency Response | 20Hz to 100kHz, -0.1dB | | Noise | 112.4dB RMS, unweighted | | Dimensions (WxDxH) | 19 x 9-1/2 x 3-1/2" (483 x 242 x 89 mm) | | Weight | 6.6 lbs (3 kg) | | Specialties | 24-bit analog to digital converter with 8 channels of AES/EBU output at sample rates of up to 192kHz
Two ADAT Lightpipe outputs deliver 8 channels at 96kHz, or act as an ADAT splitter at 48kHz |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
