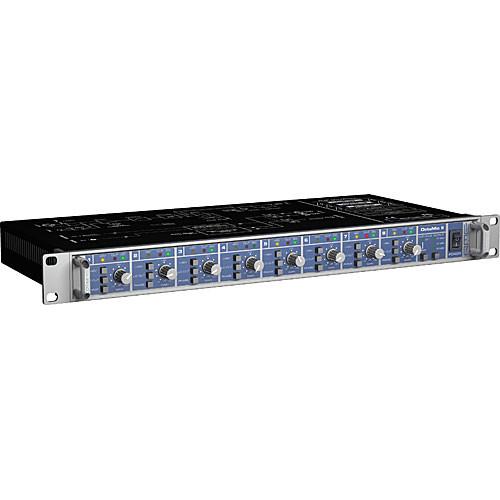

User Manual for RME OctaMic II - Microphone Line Preamp with ADC Click to enlarge the picture
Contents of the user manual for the RME OctaMic II - Microphone Line
- Product category: Microphone Preamps RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Microphone Preamps
|
User manual for the RME OctaMic II - Microphone Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|
Product description The OctaMic II from RME is an 8 channel microphone/line preamplifier that also provides pristine analog-to-digital conversion of all channels. Low distortion, excellent signal-to-noise ration and highly linear frequency response all contribute to the ability of the unit to transmit and amplify an accurate representation of the source. The analog-to-digital converter delivers 8 channels of pristine digital output, available as double ADAT output (S/MUX up to 96kHz) and simultaneously as 4 AES outputs (up to 192kHz) via a DB-25 connector. The converter can be clocked internally as a master, or externally via word clock and AES sync, while SteadyClock technology ensures the very best sound quality even with a jittery external clock. - 8-channel microphone/line preamp with 8-channels of analog-to-digital conversion
- Low distortion with linear frequency response provides clear and transparent preamplification
- Each channel features a gain control along with switches for enabling phantom power, a high-pass filter and phase reverse
- Per channel LEDs indicate phantom power status, signal presence and a clip indicator
- When activated, a "Clip Hold" button prompts any corresponding clip LED to flash once a second when an overload is detected on that particular channel
- 8, short-circuit protected, low-impedance and servo-balanced line outputs can have their reference level changed simultaneously, via a front panel switch, to aid in maintaining optimum output levels
- The 8-channel analog-to-digital conversion operates at up to 192kHz
- Digital output is available simultaneously at the two ADAT outputs, allowing for S/MUX operation up to 96kHz, and at a DB-25 connector delivering 4 AES/EBU outputs, up to 192kHz
- Analog outputs and both digital outputs operate simultaneously
- SteadyClock ensures near perfect conversion by almost completely removing jitter on any external sync source
UPC: 874792004290 In the Box RME OctaMic II - Microphone/Line Preamp with ADC AC Power Cable Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RME OctaMic II - Microphone Line Preamp with ADC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME OctaMic II Specs | Number of Channels | 8 | | Inputs | 8 x Neutrik Combo, electronically balanced
1 x AES/SPDIF sync input only on 25-pin D-Sub
1 x BNC Wordclock | | Output | 8 x 1/4" TRS phone
4 x AES/EBU (stereo) on 25-pin D-Sub | | Phantom Power | +48V, switchable per channel | | Multi Function | 8-channel analog-to-digital converter | | Gain Range | +6dB to +60dB | | Maximum Output Level | +21dBu | | Frequency Response | 10Hz to 150kHz, -0.3dB | | Noise | SNR: 129dB EIN @ 150Ω | | Power Requirements | 100 - 240VAC, 20W (internal switching) | | Dimensions (WxDxH) | 19 x 9.5 x 3.5" (483 x 242 x 89mm) | | Weight | 4.4 lbs (2kg) | | Specialties | 28kHz up to 200kHz supported sample rates | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 22.2 x 12.7 x 4.5" |
