User Manual for RME OctaMic XTC 8-Channel Digital Mic Preamp and USB 2.0 Interface Click to enlarge the picture
Contents of the user manual for the RME OctaMic XTC 8-Channel Digital Mic
- Product category: Audio Interfaces & Systems RME
- Brand: RME
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RME Audio Interfaces & Systems
 |
User manual for the RME OctaMic XTC 8-Channel Digital Mic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RME product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RME user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RME product will considerably shorten its lifespan!
|

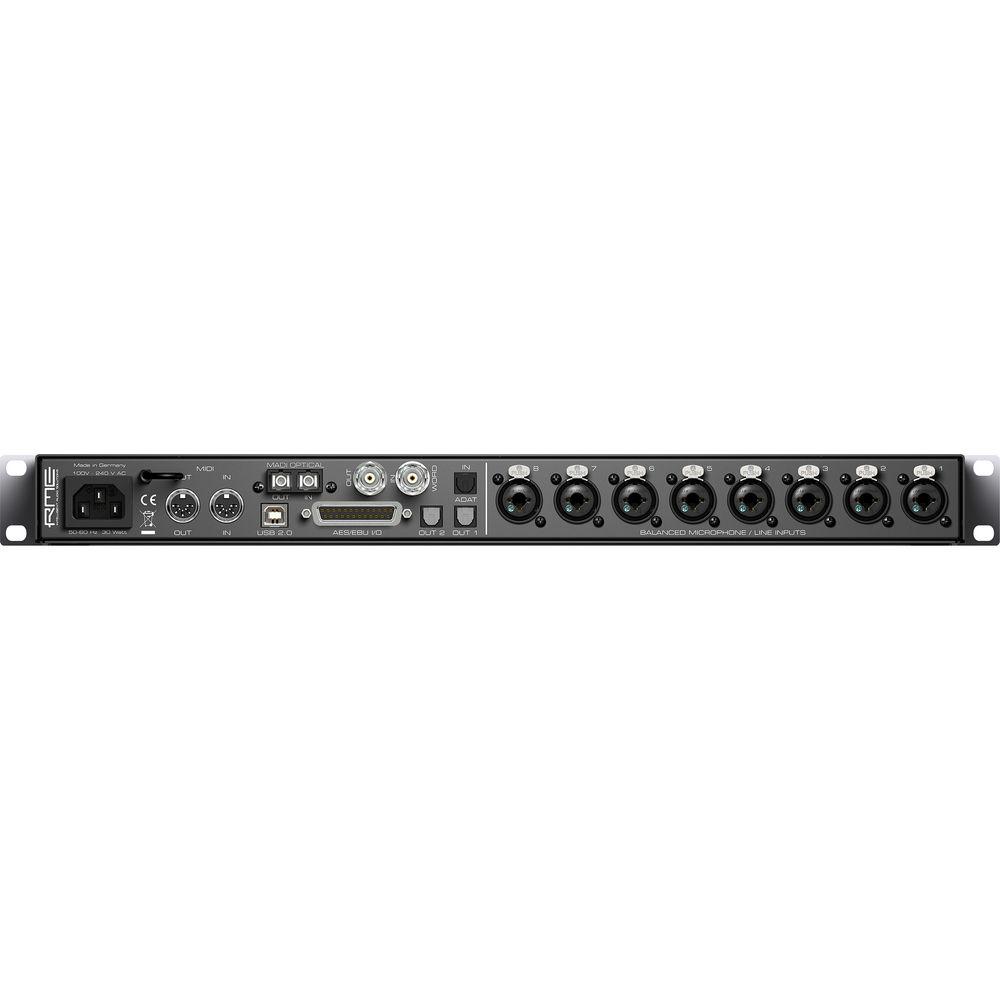

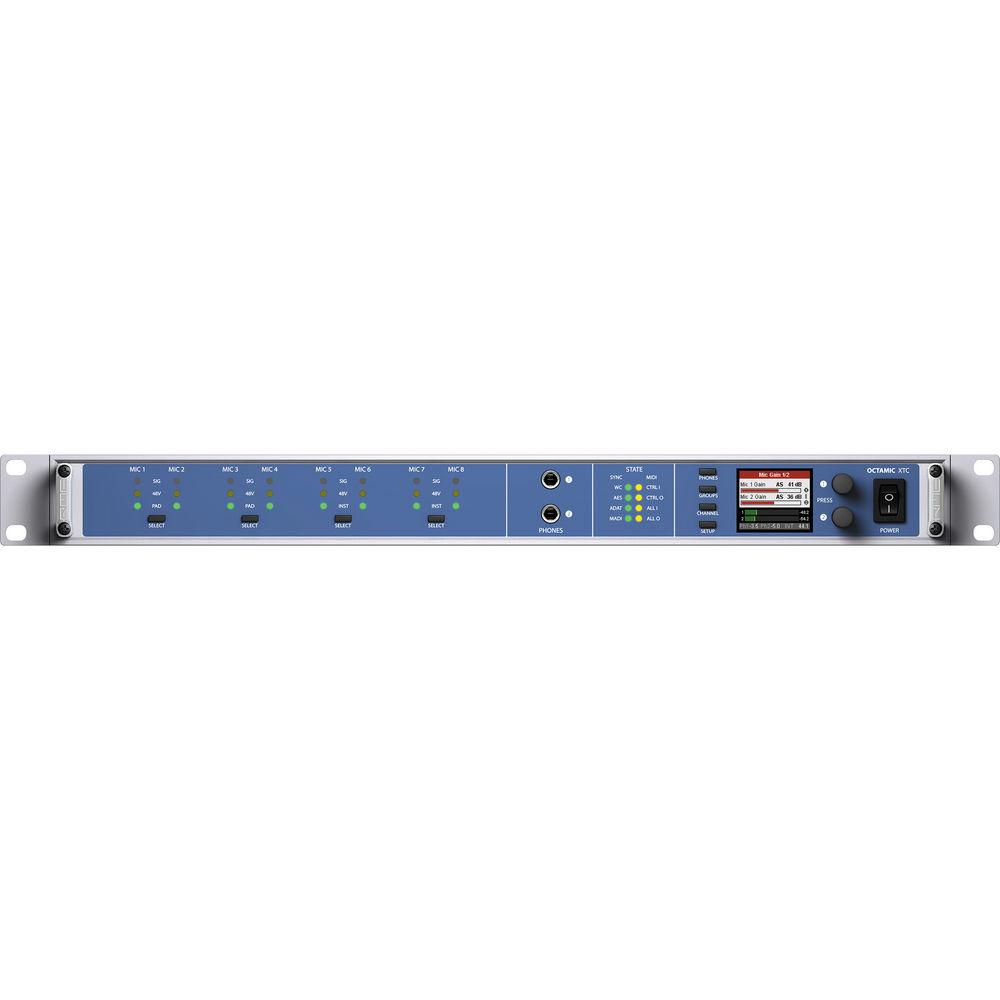

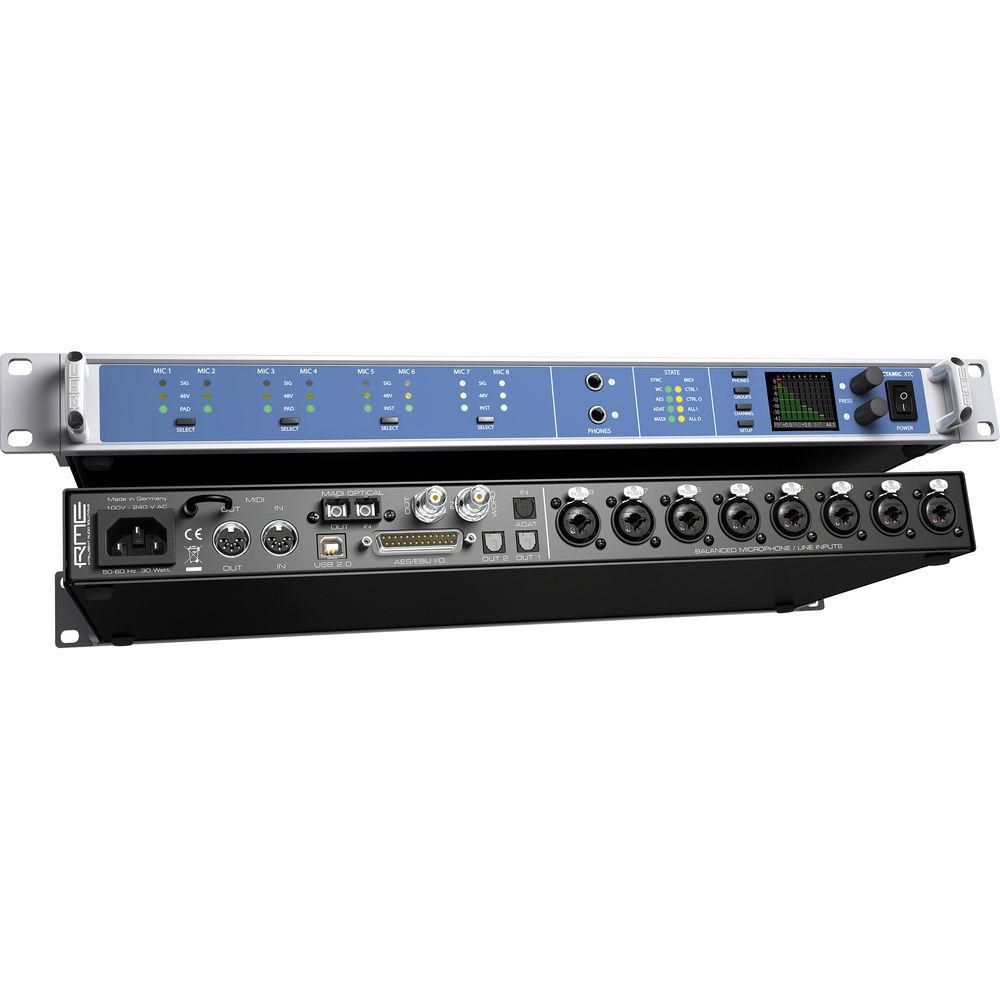

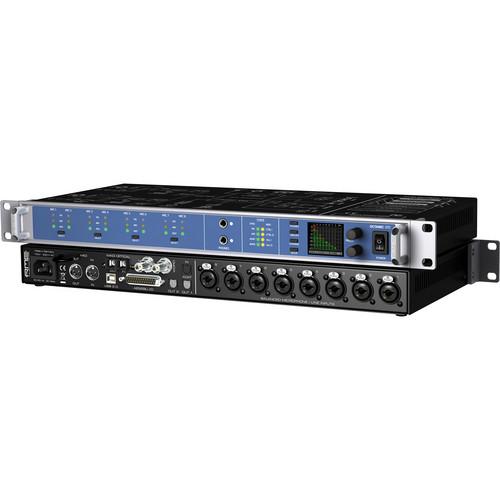

Product description The OctaMicXTC from RME is a professional 8-channel digital microphone preamp and USB 2.0 interface that features recording up to 192 kHz, offers AES/EBU and ADAT digital I/O, and supports the powerful MADI multi-channel audio protocol.
The OctaMic XTC is equipped with one MADI optical port that provides up to 64 channels of MADI I/O at 48 kHz. It also boasts eight balanced XLR/TRS mic/line inputs. Four of these inputs feature a pad for recording loud sound sources, and the other four can be switched to accept direct Hi-Z input from electric guitars and basses. Each of the eight inputs are fitted with a high-quality digitally controlled preamp.
Furthermore, the unit features a D-sub 25 connector that provides four AES/EBU inputs and four AES/EBU outputs. It also has one optical ADAT input and two ADAT outputs, each of which are capable of carrying eight channels of digital audio a piece.
The OctaMic XTC also provides ample MIDI connectivity, equipped with two 5-pin DIN standard MIDI I/O connectors, plus it allows for two sets of MIDI I/O to be transmitted over USB and an additional set over the optical MADI port. - All analog and digital inputs, including up to 64 MADI channels and 8 AES/EBU audio channels, can be freely patched to any output. Up to 24 channels can be carried over the USB 2.0 port
- Two unbalanced hi-power stereo headphone outputs that can also operate as line outputs with use of TRS to RCA phono cable, or TRS plug to TS cable
- Switchable +48V phantom power per channel
In the Box RME OctaMic XTC 8-Channel Digital Mic Preamp and USB 2.0 Interface Power Cord 6.6' (2 m) Optical Cable (TOSLINK) Limited 2-Year Warranty User Manual PDF 662.2kbvftasrvexavbu Table of Contents
|
Upload User Manual
Have you got an user manual for the RME OctaMic XTC 8-Channel Digital Mic Preamp and USB 2.0 Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRME OctaMic XTC Specs | Converters | SNR AD: 113 dB RMS unweighted, 117 dBA
THD: < 0.0003 %, < -110 dB
Frequency Response AD: @ 192 kHz, -1 dB;8 Hz - 94 kHz
SNR DA: 115 dB RMS unweighted, 118 dBA
Frequency Response DA: @ 192 kHz, -1 dB; 8 Hz - 75 kHz
Supported Sample Rates: 28 kHz - 200 kHz
Sync Sources: AES/EBU, Word Clock, MADI, ADAT, internal
SteadyClock ensures best sound quality even when synched to jittery external clocks | | Analog Inputs | 8x balanced XLR microphone/line inputs
4x TRS line
4x TRS instrument inputs | | Analog Outputs | 2x unbalanced hi-power stereo line/headphone outputs | | Memory Capacity | Unit's current state can be stored on 6 memory slots | | Remote Capable | Yes | | Word Clock I/O | Yes, BNC | | MIDI I/O | MIDI I/O via DIN, USB (2x) and MADI | | AES/EBU | 4x AES/EBU out via D-Sub, 8 channels @ 192 kHz | | ADAT | 2x ADAT out, 8 channels @ 96 kHz | | MADI | MADI I/O (64 channels @ 48 kHz) | | Phantom Power | +48 Volt switchable per channel | | Power Supply | Internal wide range switching power supply 100-240 Volt AC | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 10.25 lb | | Box Dimensions (LxWxH) | 22.3 x 12.6 x 5.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
