ROBO 3D R1 Plus 3D Printer

Search your instruction manual in PDF to download

User Manual for ROBO 3D R1 Plus 3D Printer

Click to enlarge the picture
ROBO 3D R1 Plus 3D Printer Contents of the user manual for the ROBO 3D R1 Plus 3D Printer
  • Product category: 3D Printers ROBO 3D
  • Brand: ROBO 3D
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ROBO 3D 3D Printers

ROBO 3D R1 Plus 3D Printer ROBO 3D R1 Plus 3D Printer ROBO 3D R1 Plus 3D Printer ROBO 3D R1 Plus 3D Printer ROBO 3D R1 Plus 3D Printer
User manual for the ROBO 3D R1 Plus 3D Printer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ROBO 3D product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ROBO 3D user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ROBO 3D product will considerably shorten its lifespan!



Product description

  • ROBO 3D R1 "PLUS" Getting Started Video

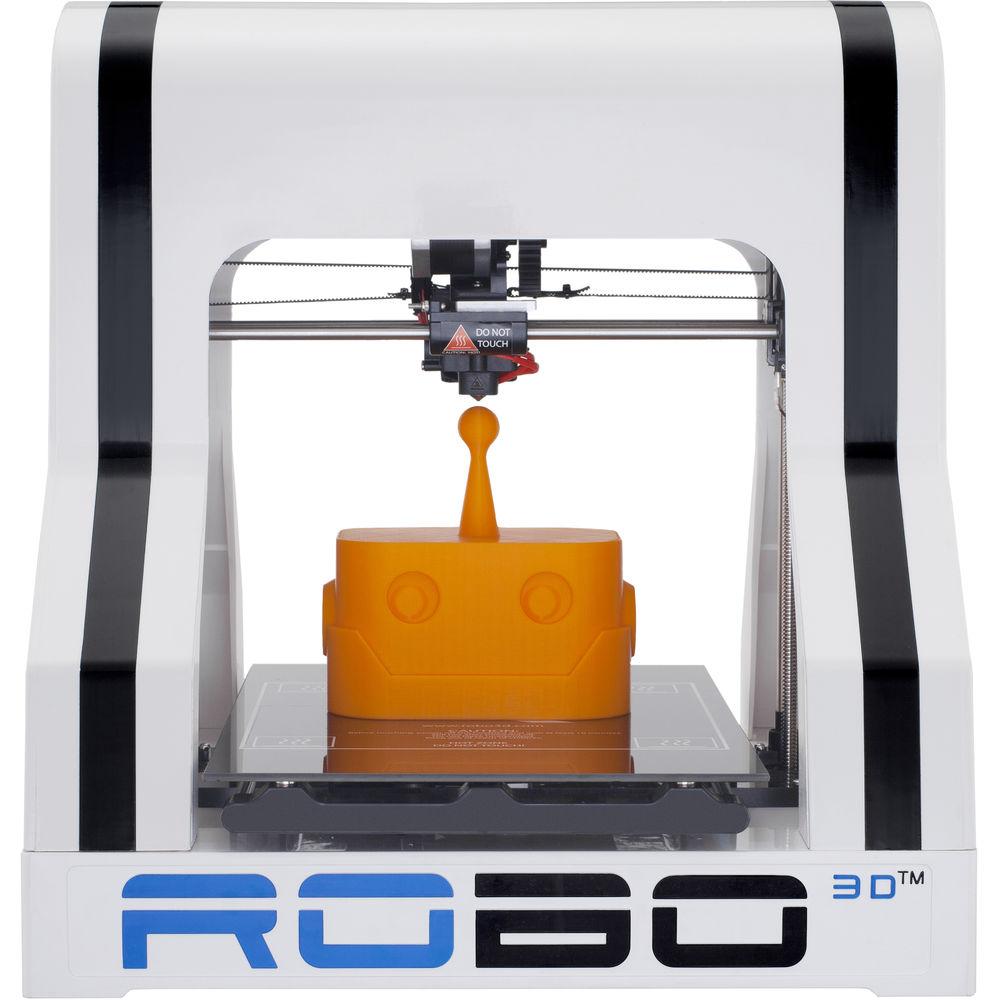

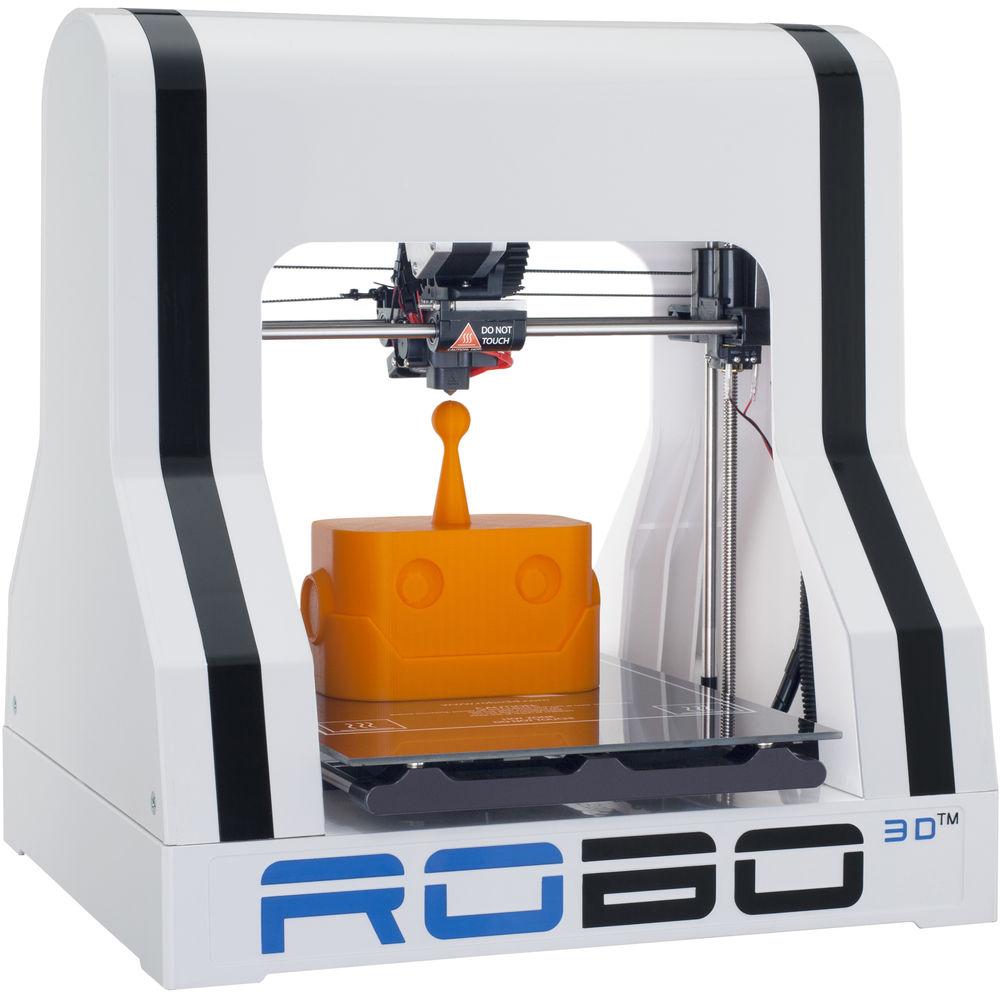

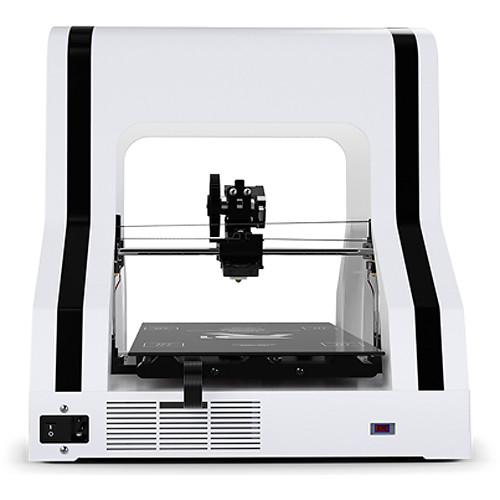

The R1 +Plus 3D Printer from ROBO 3D features a 9-point leveling system that automatically levels at the start of each print and Hexagon All Metal Hot End that covers all materials in commercial circulation for 3D printing. The R1 +Plus prints objects up to 10 x 9 x 8" from a variety of materials, including both PLA and ABS plastics. Its versatility lies in its ability to be used with almost any open-source software, a flexible range of materials, a variety of resolution settings, and most current operating systems. The single extruder allows you to print with one material at a time. The R1 +Plus is engineered to print at three levels of detail - set it to high resolution to achieve prints comprised of 100-micron thin layers. Use your current Mac or PC to design your object with almost any kind of CAD software, and send it to the printer via USB cable, or save your file onto an SD card and plug it directly into the R1 +Plus.
    Automatic Leveling
  • The R1 +Plus is automatically set to a 9 point leveling system every time it starts a print. No longer have to worry about adjusting or leveling your bed manually.
    All Metal Hot End
  • The R1 +Plus comes installed with the Hexagon All Metal Hot End that gives you the capability of printing with any material available. It goes up to 290c, which covers all materials in commercial circulation for 3D printing.
    100 Micron Resolution
  • Fine print resolutions mean that each layer of plastic put down by the 3D printer is very thin. This allows the finished product to have a great deal of detail and precision in its design. The printer's default setting is 200 microns, or 0.2mm per layer, but the software settings can easily be changed to a finer, 0.1mm resolution, or a coarser 0.3mm.
    Large Build Volume
  • The 10 x 10" build platform allows you to print an object up to 720 cubic inches in size in one run. And as always, you can print several separate pieces and glue them together for an even larger product.
    Heated Build Plate
  • The build platform is made of borosilicate glass to withstand the extremes of heating and cooling that occur during printing. An 8.4 x 8.4" area in the center of the build platform is heated, which keeps the bottom of the 3D print warm while the top is being printed - this helps distribute heat more evenly throughout the print, which in turn prevents the base from warping. This is helpful for printing with PLA, but essential for printing with ABS. The build plate is also magnetic and removable.
    Wide Range of Materials
  • The R1 +Plus works with a variety of filaments and materials in addition to the standard ABS and PLA plastics, such as glass, wood, nylon, flexible materials, high impact polystyrene (HIPS), and more. The printer is also compatible with most open-source 3D printing software.
    Stand-Alone Printing
  • Use the USB port to send a print file from your computer, or print from an SD memory card by inserting an SD card into the SD card slot.
UPC: 855076005400 In the Box ROBO 3D R1 +Plus 3D Printer
  • Limited 6-Month Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ROBO 3D R1 Plus 3D Printer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ROBO 3D R1 Plus Specs

    Print Technology (Marketed as )
    Build Volume 10 x 9 x 8" / 25.4 x 22.86 x 20.3 cm
    Cubic Build Volume 720 in³ / 1829 cm³
    Layer Resolution (XY Axis) 100 micron / 0.1 mm
    Number of Extruders 1
    Extruder Nozzle Diameter 400 micron / 0.4 mm
    Stepper Motors 1.8° Step Angle with 1/16 Micro-Stepping
    Filament Diameter 1.75 mm
    Filament Compatibility ABS, HIPS, Laywood, Nylon, PLA, T-Glase, Flexible Materials
    Build Area Open
    Filament Spool Storage External
    Camera No
    3D Scanner No
    Composition Borosilicate Glass
    Magnetic Yes
    Heated Yes
    Leveling Self-Leveling
    Software Supported 3D File Types .obj, .stl
    Mac OS X Compatibility 10.6 and Above
    Windows Compatibility 7 and Above
    Package Weight 31.7 lb
    Box Dimensions (LxWxH) 21.2 x 19.3 x 17.6"
