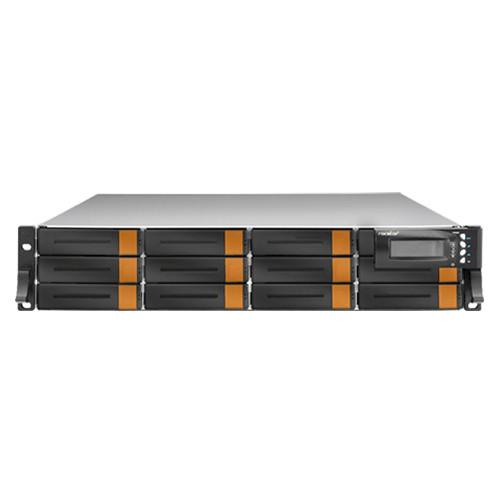

Product description With twelve hot-swappable drive bays fit into a 2 RU rack mount form factor, the 96TB Enteroc F1620 12-Bay Dual Controller 16Gb Fibre SAN Storage System from Rocstor makes it easy for network administrators to exchange drives from this storage array even when installed into an existing rack mount configuration. Aside from ease of use, this storage array supports both single and dual controllers as well as multiple RAID configurations including RAID 0, 1,10(1E), 3, 5, 6, 30, 50, 60 and JBOD making it easy to configure the R2U12DDFGS6-S120 to suit specific storage needs.
Once installed the Rocstor R2U12DDFGS6-S120 features a fiber channel host interface with speeds up to 16 Gb/s and 6 Gb/s SAS and SATA disk interfaces. The unit itself comes equipped with 12 direct attached disks and can be expanded to handle as many as 144 disks. Inside this storage enclosure is an 800 MHz dual core RAID-on-chip processor along with 4GB of DDR3 RAM which is expandable up to 16GB for optimal system performance. Management - The firmware-embedded Web Browser-based RAID manager allows local or remote management and configuration
- The firmware-embedded SMTP manager monitors all system events and user notification automatically
- The firmware-embedded SNMP agent allows remote to monitor events via LAN with no SNMP agent required
- Menu-Driven front panel display
- Innovative Modular architecture
RAID Support - Supports RAID levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60 and JBOD
- Supports online Array roaming
- Online RAID level/stripe size migration
- Online capacity expansion and RAID level migration simultaneously
- Support global and dedicated hot spare
- Online Volume Set Expansion
- Support multiple array enclosures per host connection
- Greater than 2TB per volume set (64-bit LBA support)
- Greater than 2TB per disk drive
- Supports 4K bytes/sector for Windows up to 16TB per volume set
- Disk scrubbing/ array verify scheduling for automatic repair of all configured RAID sets
- Login record in the event log with IP address and service (http, telnet and serial)
- Support intelligent power management to save energy and extend service life
Other Features - Support NTP protocol to synchronize RAID controller clock over the on-board LAN port
- Max 128 LUNs (volume set)
- Transparent data protection for all popular operating systems
- Instant availability and background initialization
- Multi-path & load-balancing support
- Automatic synchronization of firmware version in the dual-active mode
- Supports S.M.A.R.T, NCQ and OOB Staggered Spin-up capable drives
- Supports hot spare and automatic hot rebuild
- Local audible event notification alarm
- Redundant flash image for high availability
In the Box Rocstor 120TB Enteroc F1620 12-Bay Dual Controller 16Gb Fibre SAN Storage System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor 120TB Enteroc F1620 12-Bay Dual Controller 16Gb Fibre SAN Storage System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor F1620 Specs | | | Controller CPU | RAID-on-Chip Dual-Core | | Total Installed Memory | 4 GB ECC 1333 MHz DDR3 | | # of RAID Controllers | Dual | | | | Total Raw Capacity | 120 TB | | | | Number of Bays | 12 x 2.5"/3.5" | | Connections | 4 x LC (FC (16 Gb/s)) | | Compatible Drive Interface | SAS-2, SATA III | | Form Factor | Rackmount (2 RU) | | RAID Modes | RAID 0, 1, 10, 1E, 3, 30, 5, 50, 6, 60, JBOD | | | | Max LUN | 128 | | Max Groups | 128 | | | | Security Features | Lockable Bay Door | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz at 4 to 7.5 A | | PSU Wattage | 2 x 400 W | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Operating Humidity | 10 to 85% | | | | Status Monitoring | LED Indicator | | Cooling | 2 x Fans | | Dimensions | 23.2 x 19.0 x 3.5" / 59.0 x 48.2 x 8.8 cm | | Weight | 18.2 lb / 19.7 kg |
