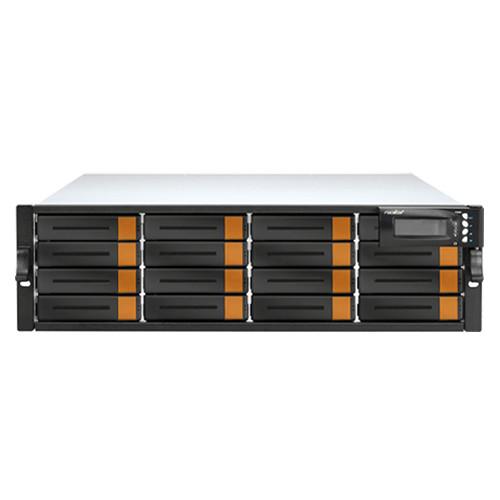

User Manual for Rocstor 160TB Enteroc F1630 16-Bay Dual Controller 16Gb Fibre SAN Storage System Click to enlarge the picture
Contents of the user manual for the Rocstor 160TB Enteroc F1630 16-Bay Dual
- Product category: Network Attached Storage Drives Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor Network Attached Storage Drives
|
User manual for the Rocstor 160TB Enteroc F1630 16-Bay Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|
Product description Featuring dual-redundant controllers, the Rocstor 160TB Enteroc F1630 16-Bay 16Gb Fibre SAN Storage System offers 16Gb FC-AL host performance to increase system efficiency as well as providing continuous availability of data to your network. It's built with 16 hot-swappable 6 Gb/s SAS/SATA drive bays that hold enterprise SAS 7200 rpm hard drives with 256MB of cache memory to deliver a total storage capacity of 160TB. Further storage expansion is made possible by connecting an optional SAS expansion chassis to one of the two 6 Gb/s SAS ports. Additionally, it supports RAID levels 0, 1, 10 (1E), 3, 5, 6, 30, 50, 60, and JBOD.
This storage system is powered with an 800 MHz dual-core RAID-On-Chip processor and 4GB of RAM, which can be upgraded to 16GB. It is equipped with two 500W power supplies and four fans that cool the system. Moreover, this 3U rackmount storage system has an integrated menu-driven front display panel and includes firmware-based software to configure the RAID as well as monitoring system events. - Enhanced Manageability
- The firmware-embedded Web Browser-based RAID manager allows local or remote management and configuration
The firmware-embedded SMTP manager monitors all system events and user notification automatically
The firmware-embedded SNMP agent allows remote to monitor events via LAN with no SNMP agent required
Menu-Driven front panel display
Innovative Modular architecture - Supports RAID levels 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, and JBOD
- Supports online array roaming
- Online RAID level/stripe size migration
- Online capacity expansion and RAID level migration simultaneously
- Support global and dedicated hot spare
- Online Volume Set Expansion
- Support multiple array enclosures per host connection
- Greater than 2TB per volume set (64-bit LBA support)
- Greater than 2TB per disk drive
- Supports 4K bytes/sector for Windows up to 16TB per volume set
- Disk scrubbing/ array verify scheduling for automatic repair of all configured RAID sets
- Login record in the event log with IP address and service (http, telnet, and serial)
- Support intelligent power management to save energy and extend service life
- Support NTP protocol to synchronize RAID controller clock over the on-board LAN port
- Max 128 LUNs (volume set)
- Transparent data protection for all popular operating systems
- Instant availability and background initialization
- Multi-path & load-balancing support
- Automatic synchronization of firmware version in the dual-active mode
- Supports S.M.A.R.T, NCQ, and OOB Staggered Spin-up capable drives
- Supports hot spare and automatic hot rebuild
- Local audible event notification alarm
- Redundant flash image for high availability
In the Box Rocstor 160TB Enteroc F1630 16-Bay Dual Controller 16Gb Fibre SAN Storage System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor 160TB Enteroc F1630 16-Bay Dual Controller 16Gb Fibre SAN Storage System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor F1630 Specs | | | Controller CPU | 800 MHz RAID-on-Chip Dual-Core | | Total Installed Memory | 4 GB ECC 1333 MHz DDR3 | | Maximum Memory Capacity | 16 GB | | # of RAID Controllers | Dual | | | | Total Raw Capacity | 160 TB | | | | Number of Bays | 16 x 3.5" | | Connections | 4 x LC (FC (16 Gb/s)) | | Compatible Drive Interface | SAS-2, SATA III | | Form Factor | Rackmount (3 RU) | | RAID Modes | RAID 0, 1, 10, 1E, 3, 30, 5, 50, 6, 60, JBOD | | Expansion | Up to 192 Drives | | | | Max LUN | 128 | | Max Groups | 128 | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz at 5 to 10 A | | PSU Wattage | 2 x 500 W | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Operating Humidity | 10 to 85% | | | | Cooling | 4 x Fans | | Dimensions | 23.2 x 19.0 x 5.2" / 59.0 x 48.2 x 13.1 cm | | Weight | 55.1 lb / 25.0 kg |
