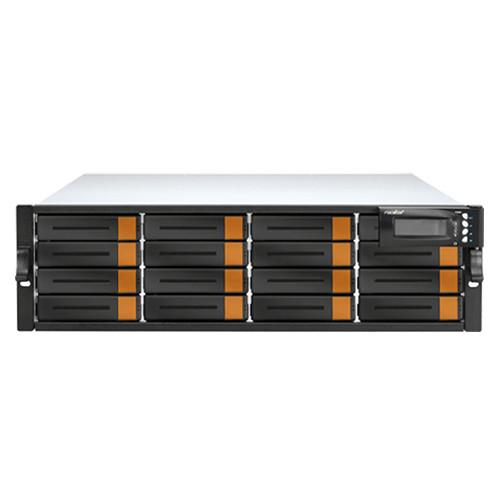

User Manual for Rocstor 160TB Enteroc S630 SAS Single Controller RAID Storage System Click to enlarge the picture
Contents of the user manual for the Rocstor 160TB Enteroc S630 SAS Single
- Product category: Hard Drive Arrays Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor Hard Drive Arrays
|
User manual for the Rocstor 160TB Enteroc S630 SAS Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More cftyxxcxwdtabft The Rocstor Enteroc S630 SAS Rackmount RAID Storage System offers 120TB of data capacity housed in a 3U rackmount enclosure. Inside its sixteen hot swappable bays are SAS enterprise hard drives that are more reliable than standard drives and are designed to run 24 x 7. In addition, each of the drives spins at a speed of 7200 rpm and has 256MB of cache. It comes with single SAS 6 Gb/s interfaces. For added reassurance, it is equipped with redundant 500W power supplies and offers RAID support.
The Enteroc S630 is outfitted a 1.2 GHz dual-core RAID-On-Chip processor that manages the data on the drives. Moreover, it supports RAID levels 0, 1, 10 (1E), 3, 5, 6, 30, 50, 60, and JBOD to provide data redundancy, performance, or both. - SAS Redundant RAID Subsystem
- The Enteroc S630 SAS RAID features 12Gb SAS host performance to increase system efficiency and performance. It features high capacity expansion, with 16 hot-swappable SAS2/SATA3 hard disk drive bays in a 19-inch 3U rackmount unit, scaling to a maximum storage capacity in the terabyte range. The S630 can connect with expansion enclosures to accommodate up to 256 drives. The Enteroc S630 series also supports dual redundant controllers which provide better fault tolerance and higher reliability of system operation.
- Controller Redundancy
- • Dual-active RAID controller with cache mirroring through dedicated high speed bus
• Automatic synchronization of firmware version in the dual-active mode
• Redundant controller operation with active/active and failover/failback function
• Redundant flash image for controller availability
• Management port seamless take-over - High Availability
- • DataBolt Bandwidth Optimizer for balance faster host and slower SAS or SATA devices
• RAID level 0, 1,10(1E), 3, 5, 6, 30, 50, 60, 00, 100, Single Disk and JBOD - Enhanced Drive Support
- • Support for native 4K and 512 byte sector SAS and SATA devices
• Support HDD firmware update
• SSD automatic monitor clone (AMC) support
• S.M.A.R.T. support - Energy Savings
- • Low power consumption & Low heat production
• Support intelligent power management to save energy and extend service life - RAID Management
- • Access terminal menu by telnet via a LAN port
• API library for customer to write its own monitor utility
• Field-upgradeable firmware in flash ROM
• Firmware-embedded manager via RS-232 port
• Firmware-embedded Web Browser-based RAID manager allows local or remote management and configuration
• SAP management utility to easily manage multiple RAID units in the network In the Box Rocstor 160TB Enteroc S630 SAS Single Controller RAID Storage System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor 160TB Enteroc S630 SAS Single Controller RAID Storage System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor S630 Specs | | | Capacity | 160 TB | | Controller | Single | | Host Interface | Two / Four 4x mini SAS HD
(12Gb/s) (SFF-8644) | | Disk Interface | 6 Gb/s SAS, 6 Gb/s SATA | | Expansion | One / Two 6Gb/s SAS (SFF-8644)
- Direct Attached: 16 Disks
- Expansion: Up to 256 Disks | | Processor | 1.2 GHz Dual-core RAID-On-Chip processor | | Cache Memory | 4 GB Single Controller/ 8 GB Dual Controller standard
8 GB / 16 GB DDR3 ECC SDRAM option upgrade | | Ports | Management Port Support
2 x RJ-11 Serial Ports; 1 x RJ-45 Ethernet port | | RAID Configurations | RAID Level
0, 1,10(1E), 3, 5, 6, 30, 50, 60, 00, 100, Single Disk and JBOD | | LUNs | Up to 128 | | Hot Spare | Global and dedicated | | Variable Stripe Size | Up to 1024 KB | | Rackmount | 3U | | Backplane | SAS2 / SATA3 Single BP | | Power Supply | 2 x 500 W with PFC | | Fans | 4 | | Power Requirements | 90 ~ 264 VAC full range
10 ~ 5 A, 47 ~ 63 Hz | | Temperature & Humidity | Operating Temperature
50 to 104°F / 10 to 40°C
Relative Humidity
10 to 85% non-condensing | | Dimensions | 23.2 x 19.0 x 5.2" / 590 x 482 x 131 mm | | Weight | 55 lb / 25 kg |
