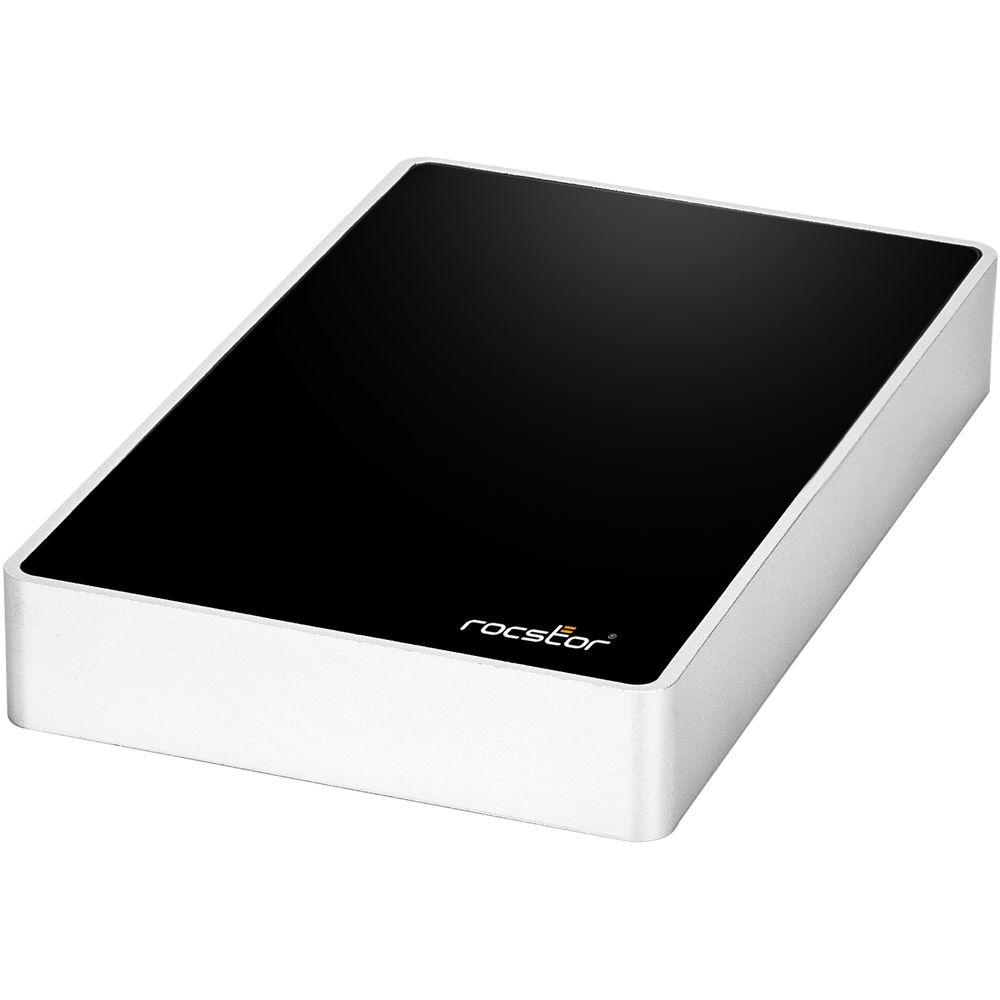

User Manual for Rocstor 1TB Rocsecure EX31 USB 3.1 Encrypted Portable 7200 rpm HDD Click to enlarge the picture
Contents of the user manual for the Rocstor 1TB Rocsecure EX31 USB 3.1
- Product category: External Drives Rocstor
- Brand: Rocstor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rocstor External Drives
 |
User manual for the Rocstor 1TB Rocsecure EX31 USB 3.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rocstor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rocstor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rocstor product will considerably shorten its lifespan!
|

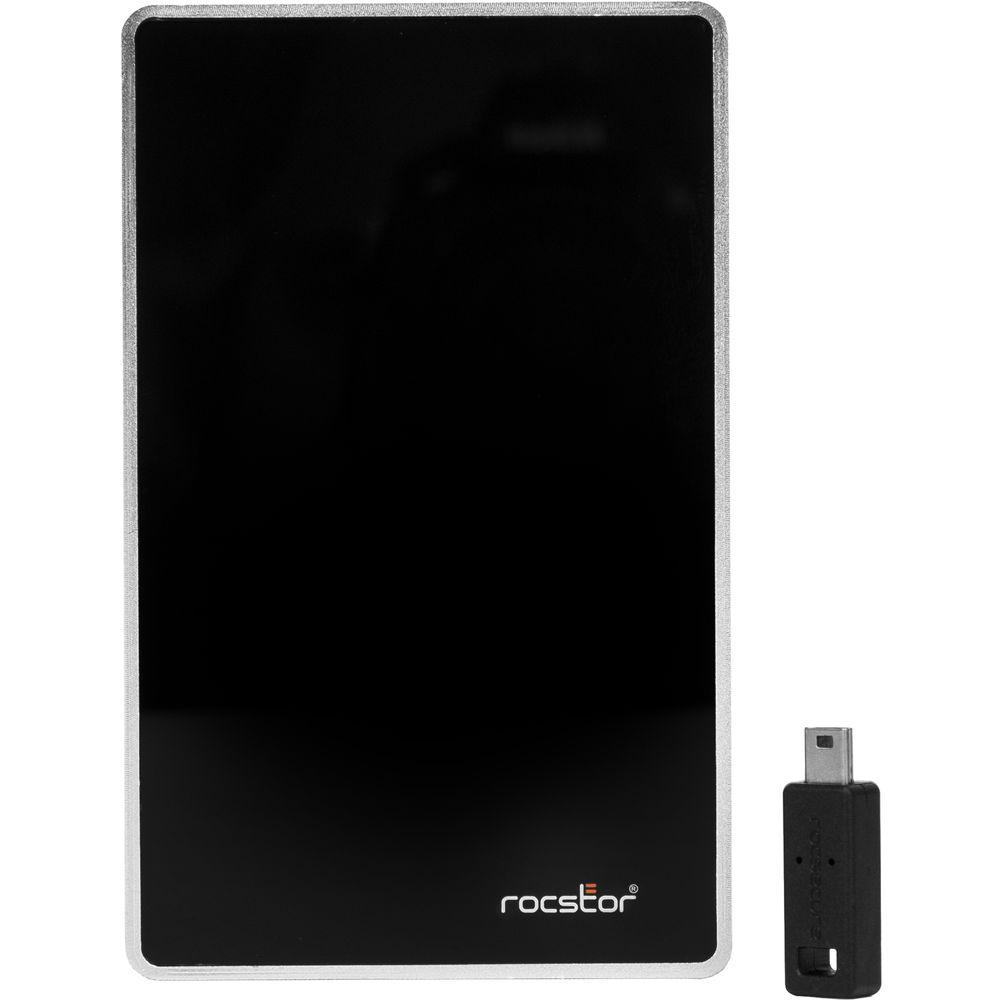

Product description NAB 2019: G-Tech, SanDisk, and WD Show Off Latest Storage Solutions Read More ctuwbqctcvst Keep your data safe at all times with the 1TB Rocsecure EX31 USB 3.1 Encrypted Portable 7200 rpm HDD from Rocstor. Equipped with a FIPS 140 Level-2 and NIST certified cryptographic processor, this portable drive provides AES 256-bit real-time hardware encryption along with secure token-key authentication. The cryptographic processor performs full-disk encryption, protecting your entire data at rest. The full-disk encryption (FDE) solution is OS independent with no extra software or driver components needed. Included in the package are three standard token keys. - Encryption
- The EX31 is engineered to encrypt/decrypt the entire SATA HDD including the boot sector, temporary files, and operating system with SATA III speed at 6 Gb/s. The drive offers enhanced security, performance, and speed with FIPS 140-2 level-2 and NIST cryptographic processor certifications.
- Advanced Security
- The Rocsecure EX31 uses the CryptoKey standard token key system to manage a confidential communication channel with the encryption/decryption engine. CryptoKey token keys (three included) feature a wide array of defense mechanisms designed to prevent physical attacks on the device as well as logical attacks on the data transmitted between the token key and the Rocsecure EX31 storage device.

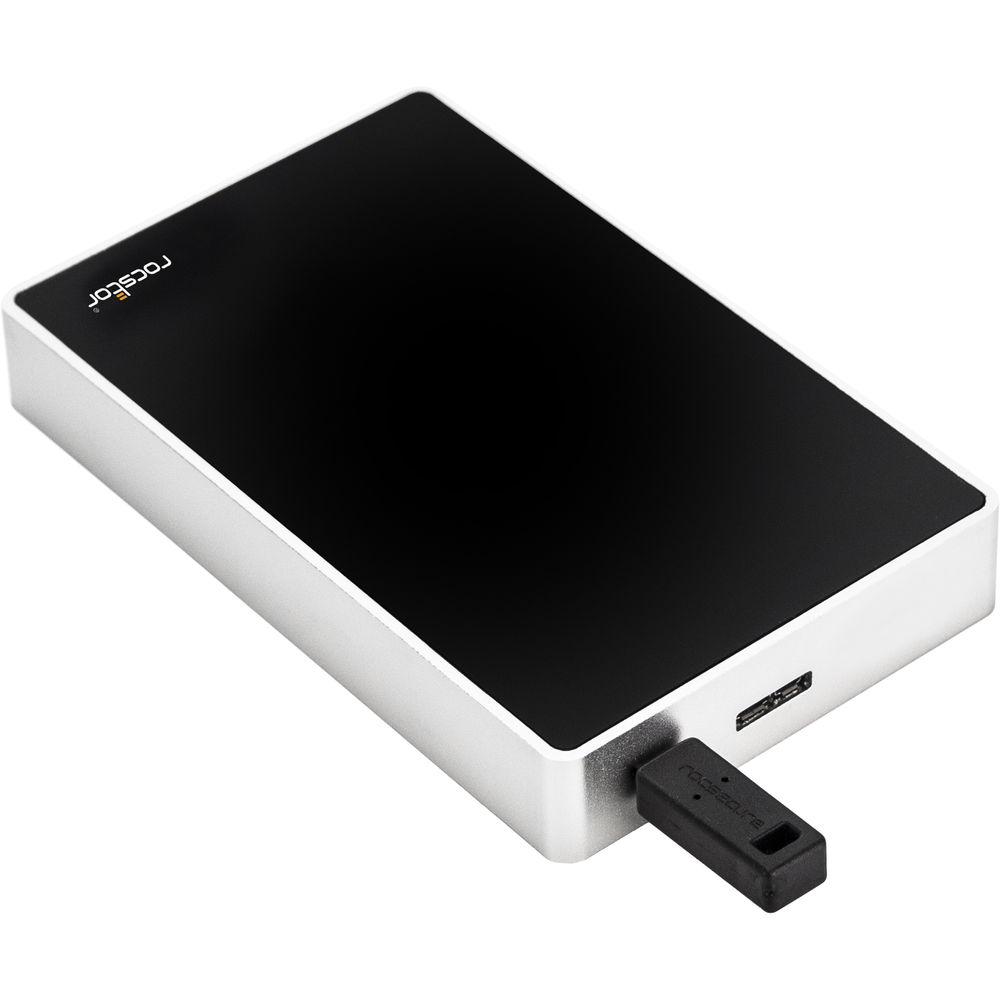

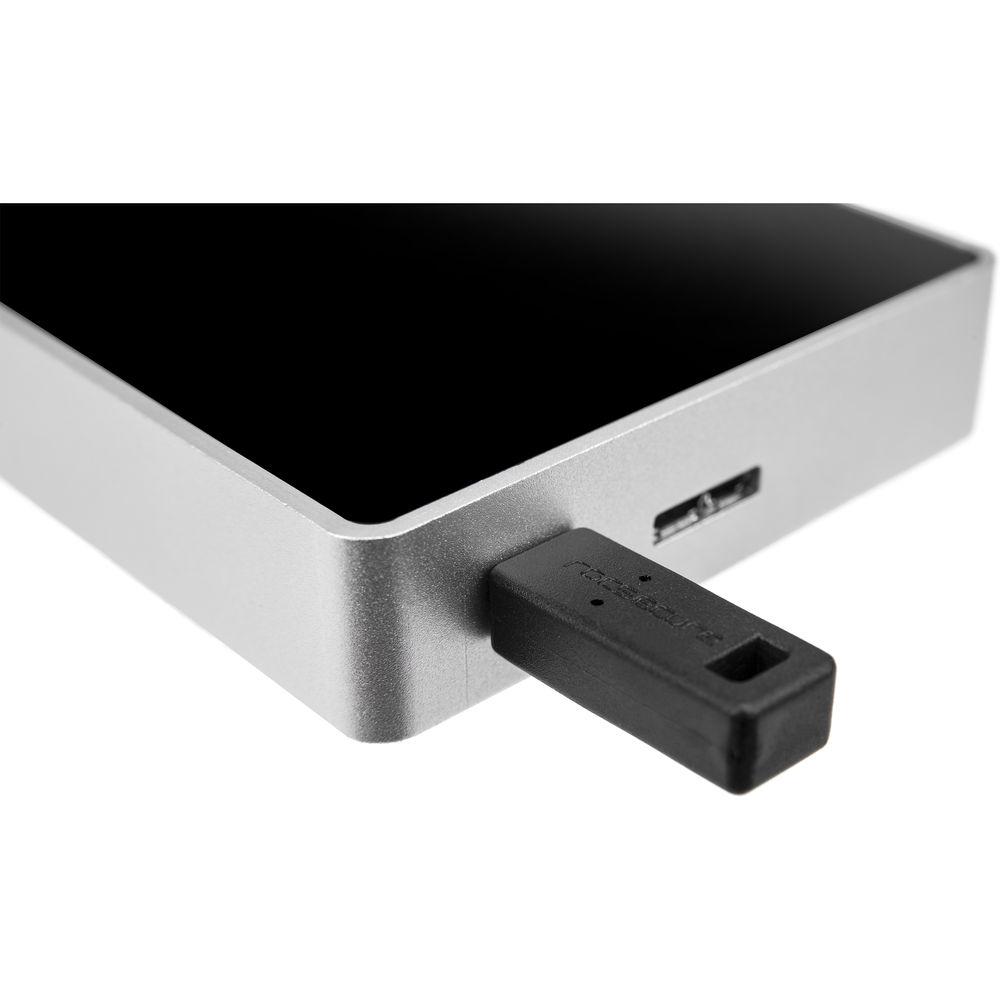

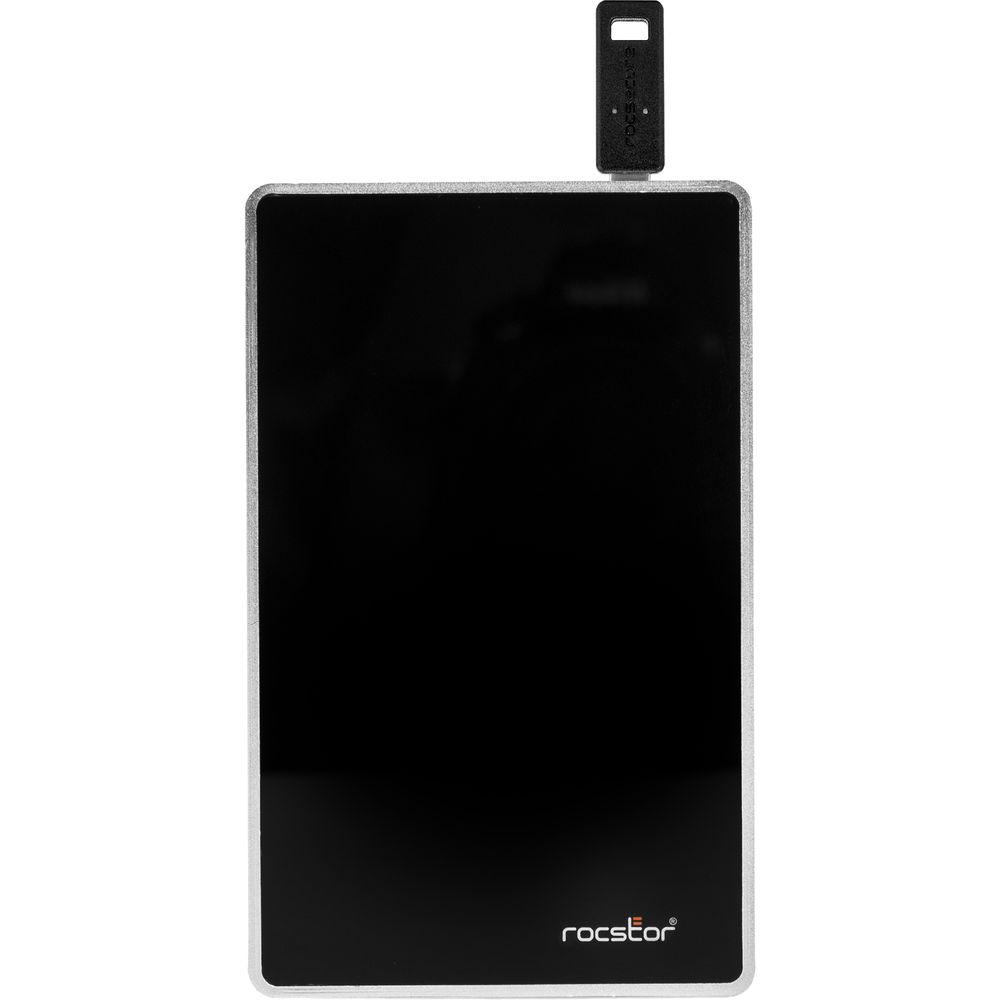

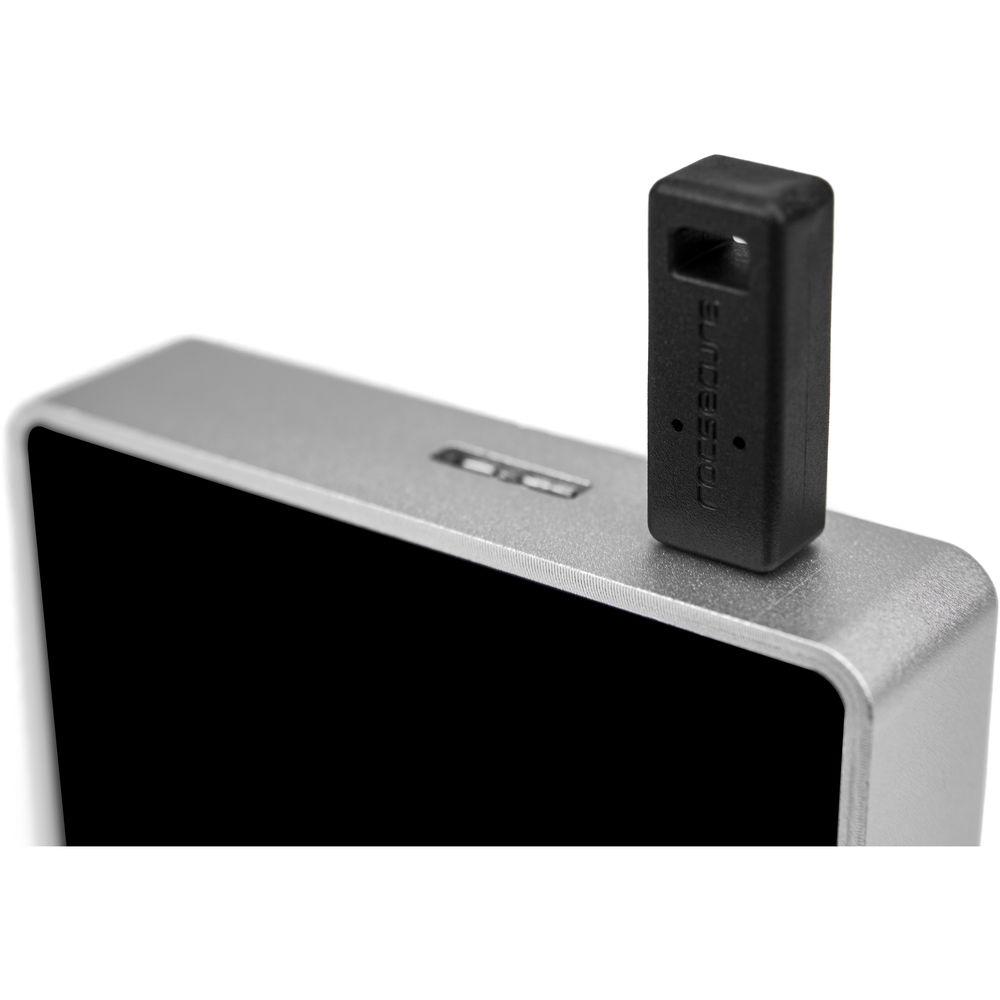

Rocsecure EX31 CryptoKey token keys provide a secure authentication method. A CryptoKey token key is required for authentication before the host computer can mount the drive. The token key must be physically attached to the EX31 before connecting the drive to the host computer, otherwise the EX31 HDD volume is not mounted or displayed. - Ruggedized Aluminum Frame

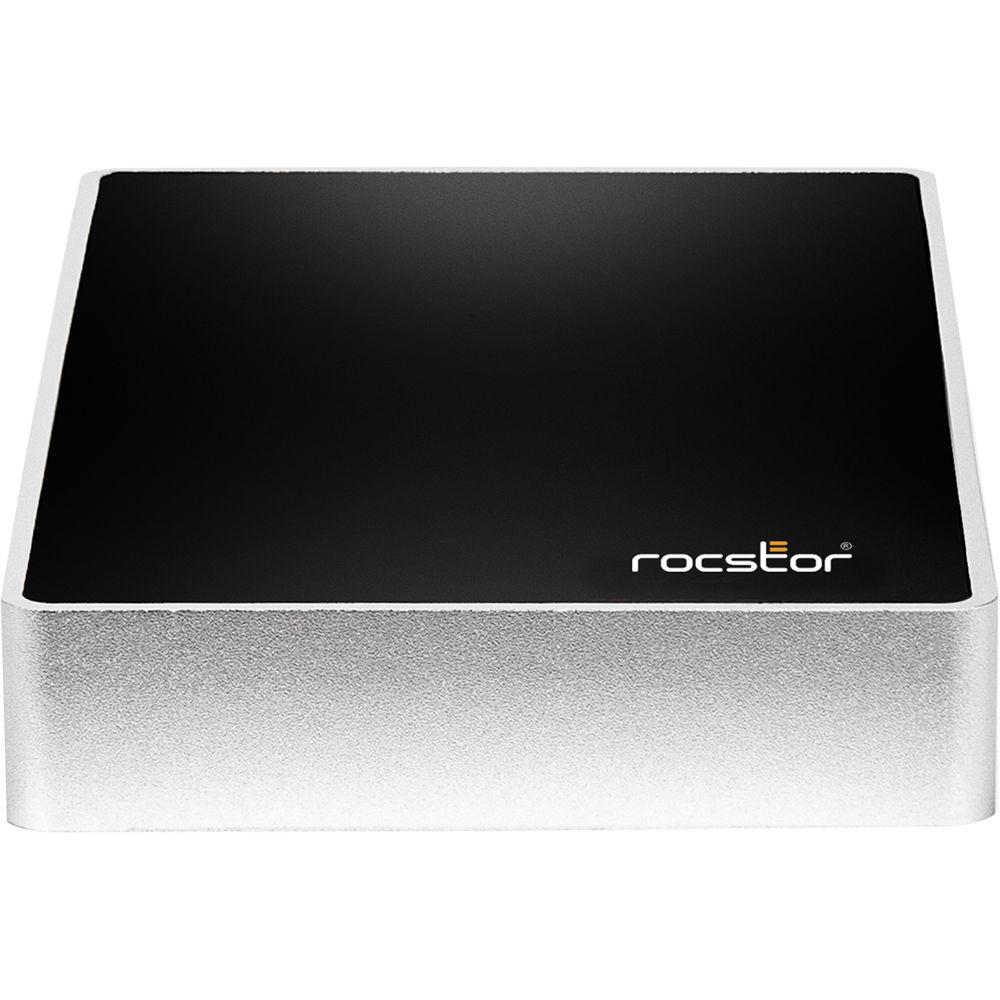

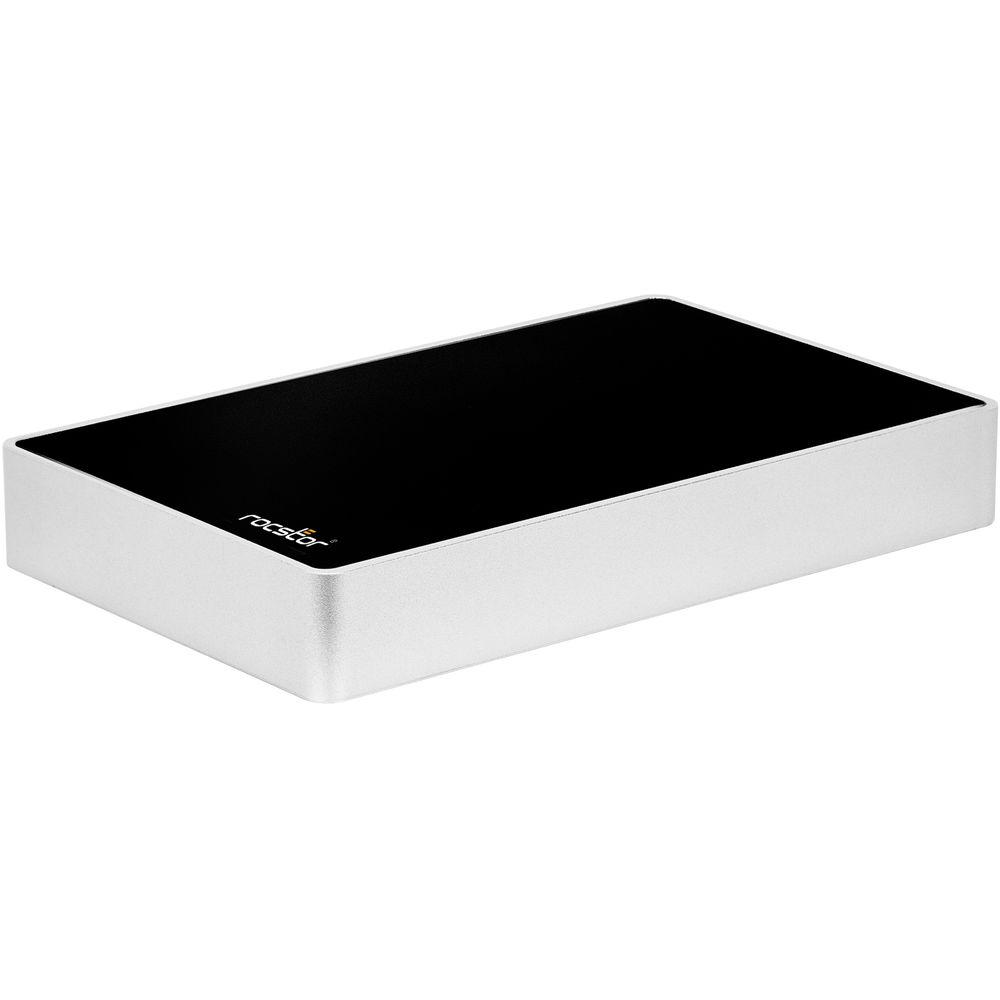

- The portable ruggedized aluminum enclosure helps to protect your HDD and data. The safety-centric mechanical design of the Rocsecure EX31's 2.5" enclosure provides critical hardware protection features.
- Shock Protection
- The full-length bridgeboard provides protection by supporting the entire length of the drive. A strong aluminum rim holds the drive chassis firmly in place, eliminating stress on the bridgeboard and preventing damage due to impact or violent movement.
The shock-absorbent damper strip between the bridgeboard and chassis offers additional resistance against accidental drops and bumps. The disposition of the drive and housing profile form an anti-shock chamber to cushion potential impacts. - Thermal Protection and Load-Bearing Case

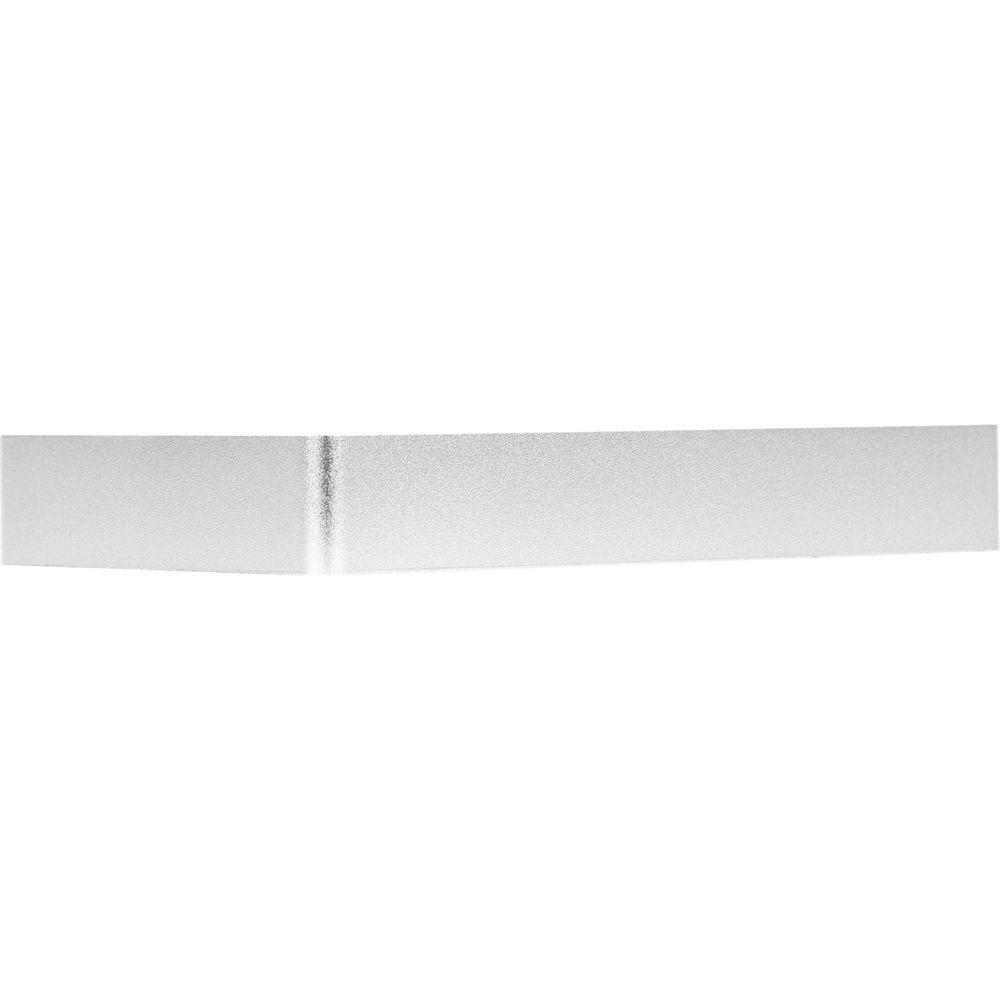

- The precision density of the rugged aluminum aircraft-grade border provides efficient heat dissipation and is strong enough to bear external weight.
- Regulatory Compliance
- Rocsecure EX31 employs data encryption and pre-boot authentication allowing organizations to better protect and control access to their corporate and customer records, thus complying with regulations such as Sarbanes-Oxley (SOX), Health Insurance Portability and Accountability Act (HIPAA), and Gramm-Leach-Bliley (GLB). It is also FCC and CE compliant. Together with full-disk encryption and token-key-based authentication, these features give you a high level of protection along with ease of use.
- System Requirements
- The Rocsecure EX31 is OS independent and is compatible with Windows XP, Windows Vista, Windows 7/8/10/, Linux, and Mac OS 10.5 and later. Its USB 3.1 Gen 1 interface is backward-compatible.
In the Box Rocstor 1TB Rocsecure EX31 USB 3.1 Encrypted Portable 7200 rpm HDD 3 x Token Keys micro-USB Type-B to USB Type-A Cable Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Rocstor 1TB Rocsecure EX31 USB 3.1 Encrypted Portable 7200 rpm HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRocstor EX31 Specs | Storage Capacity | 1 TB | | Connection Interface | 1 x USB 3.1 Gen 1 (USB Micro-B) | | Encryption | 256-Bit AES, FIPS 140-2 Level 2 | | | | Internal Interface | SATA III | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Form Factor | 2.5" | | Cache Memory | 32 MB | | | | Security Features | Token Key Authentication (Dongle) | | Bus Power | USB | | Material | Aluminum | | Cooling System | Passive | | Environmental Resistance | Drop, Shock | | Green Certifications | RoHS, WEEE, Per Manufacturer | | Dimensions (L x W x H) | 5.0 x 2.9 x 0.7" / 12.7 x 7.4 x 1.8 cm | | Weight | 8 oz / 227 g |
